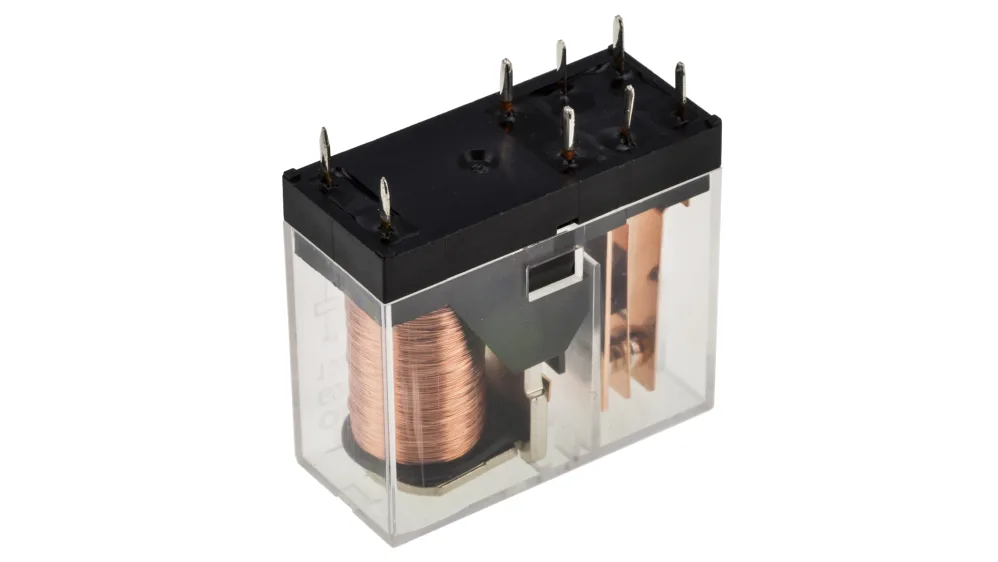

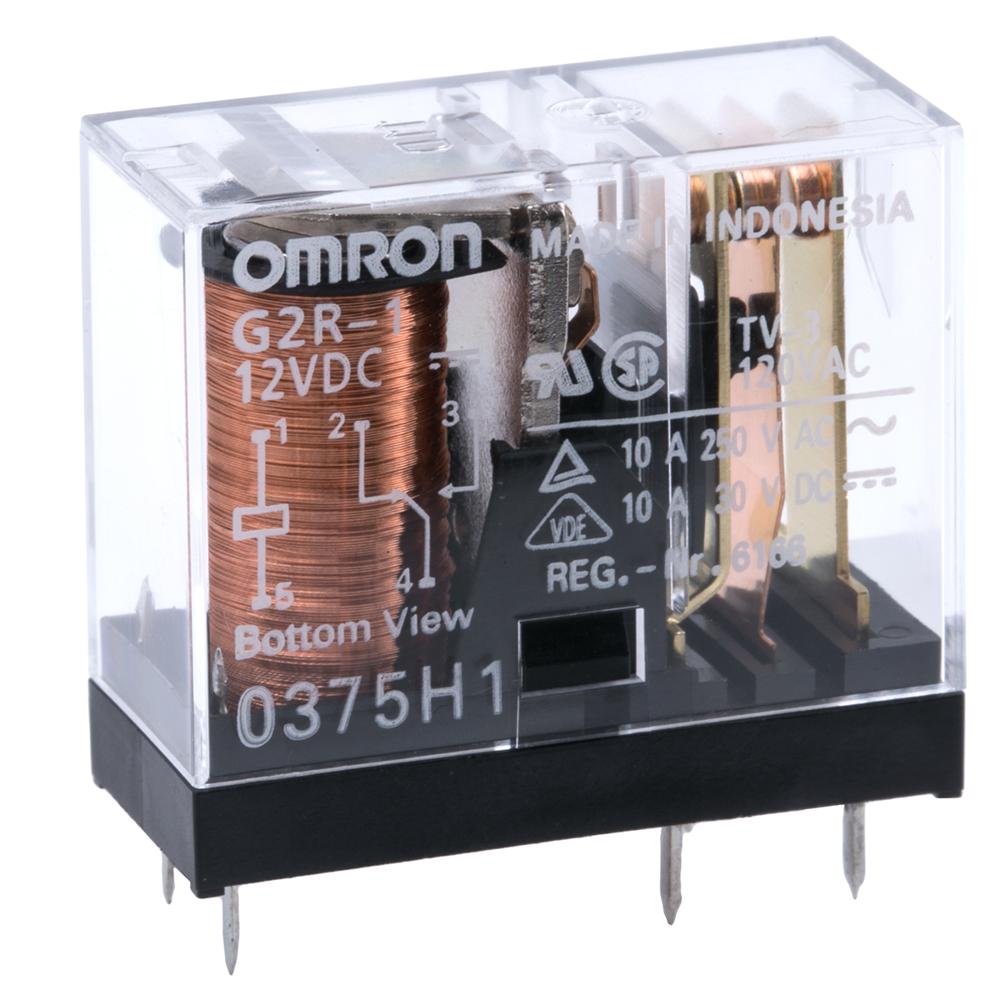

G2R-1-DC12 PCB Power Relay

G2R-1-DC12 PCB Power Relay Specification

Usage
The **G2R-1-DC12 relay** is used to switch high-power AC or DC loads using a 12V DC control signal.

Power Supply
DC

Product Type
General-purpose PCB power relay

Application
Industrial Control Systems

Rated Voltage
12 Volt (V)

Function
Switches high-power loads using a 12V control signal

Color
smoky gray

Weight
Approx. 15 to 20 Grams (g)

Warranty
1 year

Material
Electromechanical.

Thickness
12.7 Millimeter (mm)

G2R-1-DC12 PCB Power Relay Trade Information

Minimum Order Quantity
15 Pieces

Delivery Time
5 Days

About G2R-1-DC12 PCB Power Relay

1 General purpose power Relays of single-pole10 A and double-pole 5 A.
Safety-oriented design with dielectric strength of 5,000 V between coil and contacts, and surge resistance of 10,000 V.
AC and DC types are both available for operational coils.

Efficient Power Switching for Industry

The G2R-1-DC12 relay is engineered for switching high-current loads safely and efficiently in industrial automation systems. Designed with durability in mind, this relay handles both AC and DC high-power applications, triggered by a low-voltage 12V DC control signal. Its electromechanical construction guarantees precise and reliable operation, making it ideal for demanding environments.

Compact Design for Versatile Use

At just 12.7 millimeters thick and weighing between 15 to 20 grams, the G2R-1-DC12 relay fits seamlessly onto PCB boards without taking up excessive space. Its smoky gray color helps with easy identification and efficient heat dissipation, enhancing the longevity and reliability of your industrial equipment.

FAQs of G2R-1-DC12 PCB Power Relay:

Q: How does the G2R-1-DC12 relay function in industrial applications?

A: The G2R-1-DC12 operates by using a 12V DC control signal to switch high-power AC or DC loads in industrial control systems. This allows for remote or automated switching of machinery and other electrical equipment safely and efficiently.

Q: What are the main benefits of using the G2R-1-DC12 PCB Power Relay?

A: The primary benefits include reliable switching of high-power loads, compact size for efficient PCB mounting, durable electromechanical construction, and a 1-year warranty for peace of mind. Its ability to handle both AC and DC loads increases its versatility.

Q: When is it appropriate to use the G2R-1-DC12 relay?

A: This relay is best used when you need to control or automate high-power equipment in industrial environments, particularly when a 12V DC control signal is available to trigger the switching process.

Q: Where can I purchase the G2R-1-DC12 relay in India?

A: The G2R-1-DC12 PCB Power Relay is supplied by authorized importers, suppliers, and traders throughout India. It is typically available through electronic component distributors dealing with industrial control equipment.

Q: What is the process for installing the G2R-1-DC12 relay on a PCB?

A: Installation involves soldering the relay onto the PCB at the designated location. Ensure the relays pins align with the boards circuit tracks, and connect the control circuit to the 12V DC input while routing the load through the relays switching terminals.

Q: What materials are used in the G2R-1-DC12 relay, and why?

A: The relay utilizes an electromechanical construction, combining electrical conductors, magnetic components, and a robust smoky gray housing. These materials ensure reliable operation and effective switching of high-power loads while maintaining safety.
