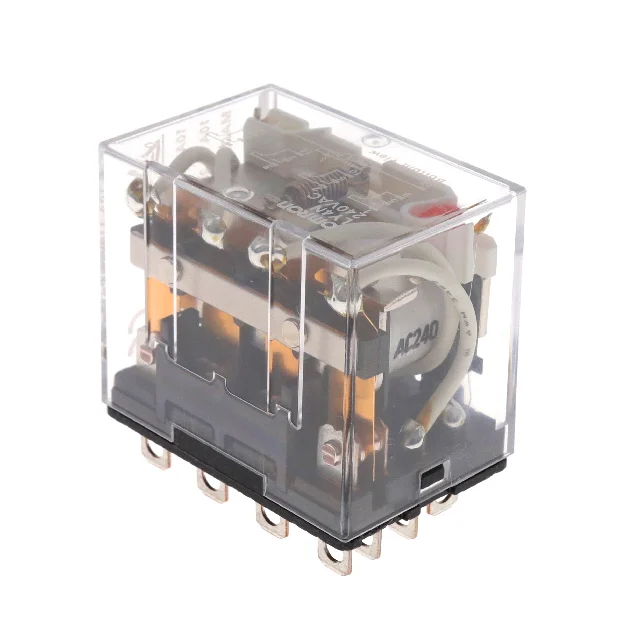

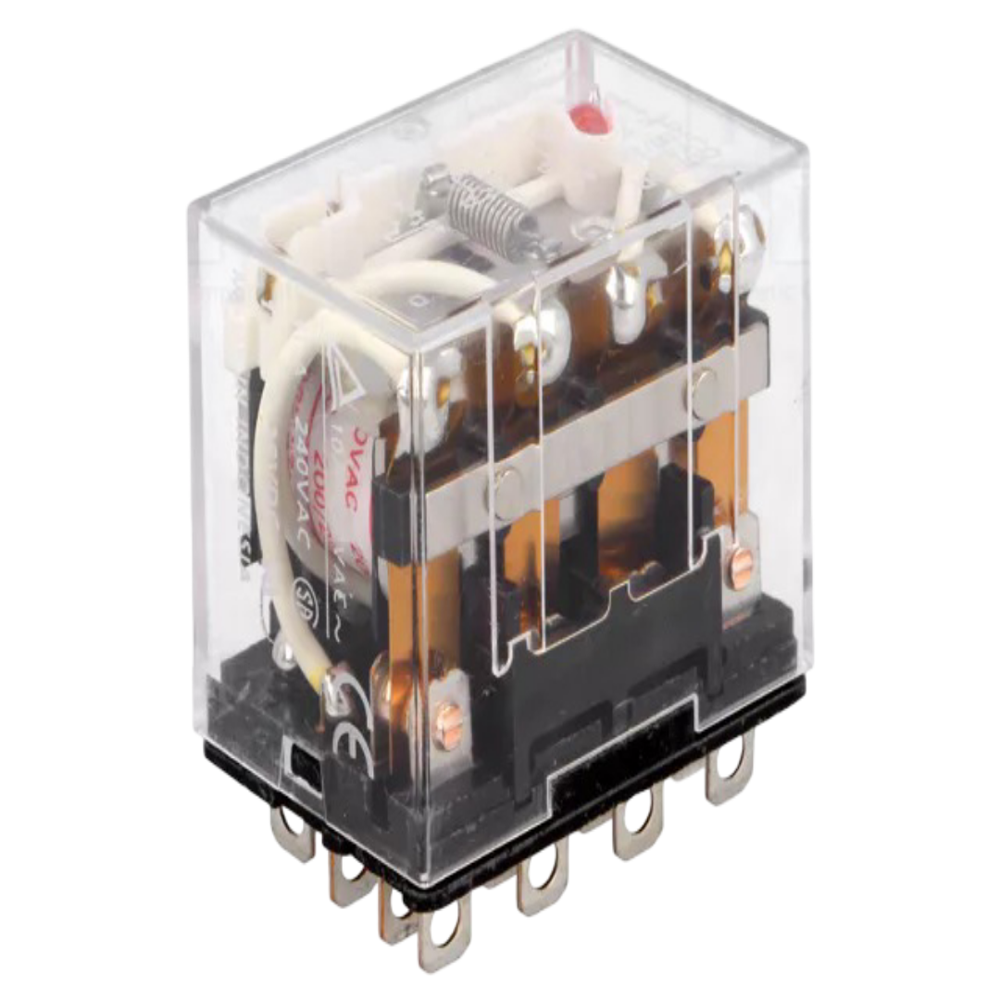

LY4N Series Relays Omron

LY4N Series Relays Omron Specification

Output
4PDT contact switching up to 10 A for AC/DC loads.

Usage
Used for industrial control, PLC outputs, automation, and AC/DC load switching.

Input
DC/AC control voltage (coil) matching model

Product Type
Electromagnetic Relay, Bi-Power Relay.

Application
Industrial control panels, PLC outputs, motor and lighting control, AC/DC load switching.

Rated Voltage
DC12 V, DC24 V, AC24 V, AC100/110 V, AC200/220 V, AC240 V Volt (V)

Dimension (L*W*H)
28 41 36 Millimeter (mm)

Function
General-purpose 4PDT electromagnetic relay for AC/DC control, switching up to 10 A per contact, with optional LED indicator, plug-in socket mounting, suitable for industrial automation, PLC outputs, and control panels.

Color
light gray

Weight
70 Grams (g)

Warranty
1 year

Phase
Single-phase

Rated Current
10 Ampere (amp)

Material
plastic

Thickness
36 Millimeter (mm)

LY4N Series Relays Omron Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal

Supply Ability
350 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About LY4N Series Relays Omron

Omron LY4N-DC24 / Omron LY4N-DC12 / Omron LY4N-AC24 / Omron LY4N-AC200/220 / Omron LY4N-D2-DC24

The Omron LY4N Series is a family of general purpose, bi power electromagnetic relays designed for reliable control switching in industrial, automation, and panel applications. They are compact socket mount relays with a common mechanical platform but different coil voltages to suit AC or DC control circuits

Versatile Control Solutions

The LY4N Series Relays are engineered for broad utility in industrial automation, enabling reliable switching for both AC and DC loads. Supporting various control voltages, they easily integrate into PLC systems, control panels, and more. Each unit's 4PDT configuration allows it to manage multiple circuits concurrently, making it ideal for complex automation requirements.

Robust Construction and Easy Installation

Constructed with a durable plastic housing and weighing just 70 grams, these Omron relays are both sturdy and lightweight. Their compact dimensions (284136 mm) and plug-in socket mounting system allow for efficient installation and straightforward replacement, enhancing uptime in busy industrial settings.

Enhanced Functionality with Optional Features

The relay series offers options such as integrated LED indicators, providing clear visual status for quick diagnostics. Their ability to handle currents up to 10 amps per contact makes them suitable for demanding applications like motor and lighting control, ensuring dependable performance even in challenging environments.

FAQ's of LY4N Series Relays Omron:

Q: How do I choose the right LY4N Series Relay for my application?

A: Select the appropriate LY4N relay model by matching your control voltage (DC12V, DC24V, AC24V, AC100/110V, AC200/220V, or AC240V) and ensuring it meets your load type and current requirements (up to 10A per contact). The relay's 4PDT contacts accommodate both AC and DC load switching, making it versatile for various industrial control panels and PLC outputs.

Q: What is the process for installing the LY4N Series Relay?

A: Installation is streamlined thanks to the plug-in socket mounting design. Simply seat the relay into its compatible socket, ensuring correct orientation and secure fit. Connect the coil and load wiring as per your control circuit diagram. For models with LED indicators, wiring is the same, but you gain quick visual feedback on relay operation.

Q: Where can I use LY4N Series Relays in industrial settings?

A: These relays are suitable for use in automation systems, PLC output expansion, motor tapping, lighting control, and any scenario requiring reliable AC/DC load switching up to 10 amps. Their robust design allows them to operate efficiently in control panels in a wide range of industrial environments across India.

Q: What are the benefits of using an Omron LY4N relay?

A: Omron LY4N relays offer reliable multi-circuit switching, broad coil voltage support, and high switching capacity. Optional LED indicators provide operational status at a glance, while the relay's compact design and plug-in socket simplify both installation and replacement, reducing downtime and maintenance costs.

Q: When should I replace an LY4N Series Relay?

A: Consider replacing the relay after prolonged use, signs of contact wear, or if switching performance degrades. Regular maintenance checks in your control panel can help identify the need for replacement. The compact, socket-mounted design facilitates easy relay swaps without disturbing wiring.

Q: How does the LED indicator option enhance usage?

A: The LED indicator provides immediate visual confirmation when the relay coil is energized, aiding troubleshooting and reducing panel inspection time. This feature is particularly valuable in complex control panels or automated systems where multiple relays are in use.

Q: What kind of warranty and support are available for LY4N Series Relays in India?

A: These Omron relays are supplied with a 1-year warranty against manufacturing defects. Support and procurement are accessible through authorized importers, suppliers, and traders across India, ensuring you receive genuine products and technical assistance as needed.
