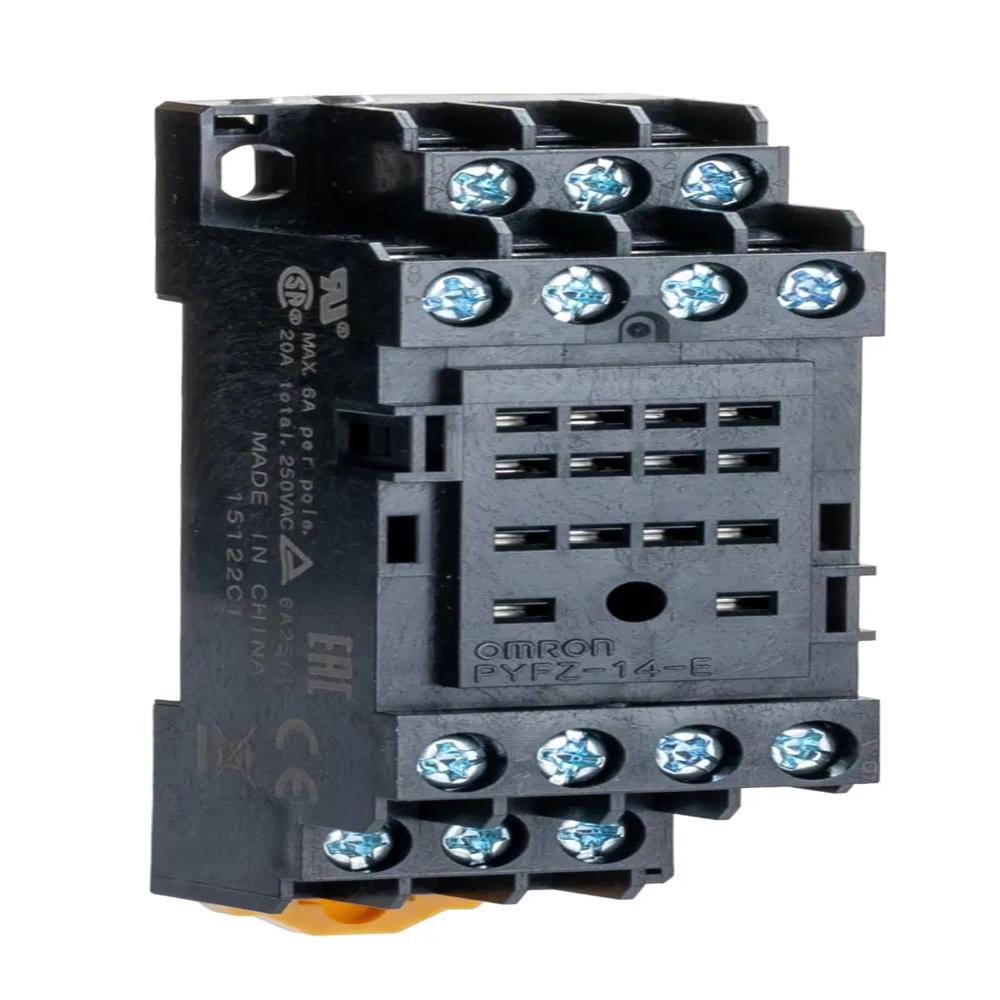

Omron PYFZ-14-E Base Relay
Omron PYFZ-14-E Base Relay Specification
- Power Source
- External DC source (relay powered separately)
- Input
- Relay coil input compatible
- IP Rating
- IP20
- Operating Temperature
- -40C to +70C
- Usage
- For industrial control panels and automation systems
- Interface
- Screw terminal interface
- Components
- Socket terminal, mounting clips
- Features
- Finger-safe construction, DIN-rail and panel mounting options
- Output
- Electrical contact output via relay
- Power Supply
- DC
- Product Type
- Relay Socket/Base
- Application
- Relay socket for Omron MY/MY2/MY4 series plug-in relays
- Rated Voltage
- 24 Volt (V)
- Supply Voltage
- 24 V DC
- Size
- Compact
- Dimension (L*W*H)
- Approx. 78 mm x 36 mm x 25 mm
- Function
- Relay Base for mounting 14-pin plug-in Relays
- Color
- Black
- Weight
- Approx. 50 g
- Warranty
- 1 Year
- Current Rating
- 5A max
- Capacity
- Rated for 5A/250V AC relay loads
- Thickness
- Standard socket base thickness
- Frequency
- 50/60 Hz compatible
- Terminal Type
- Screw terminals for reliable wiring
- Wire Size Range
- Up to 2.5 mm
- Compatible Relays
- Omron MY2/MY4 plug-in relays
- End Plate Requirement
- End plates available for secure mounting
- Material
- High-grade polycarbonate
- Mounting Method
- DIN rail or direct panel mounting
Omron PYFZ-14-E Base Relay Trade Information
- Minimum Order Quantity
- 10 Pieces
- Delivery Time
- 10 Days
About Omron PYFZ-14-E Base Relay
The Omron PYFZ-14-E Base Relay is a durable and efficient solution for relay modules, designed for single-phase operations. Engineered using premium plastic material, it ensures dependability and longevity in demanding environments. Sporting a sleek black design, this relay base accommodates a rated current of 10 Amps and operates flawlessly at a rated voltage of 24 VDC. Its robust construction makes it ideal for industrial applications requiring precise electrical connectivity and support. Backed by a 1-year warranty, this relay base delivers peace of mind with reliable performance.
FAQs of Omron PYFZ-14-E Base Relay:
Q: What is the rated current capacity of the Omron PYFZ-14-E Base Relay?
A: The Omron PYFZ-14-E Base Relay has a rated current capacity of 10 Amperes.Q: What material is used in the construction of this relay base?
A: The Omron PYFZ-14-E Base Relay is constructed using high-quality plastic material.Q: What phase does the Omron PYFZ-14-E support?
A: This relay base is designed for single-phase operations.Q: What is the warranty period for the Omron PYFZ-14-E Base Relay?
A: The Omron PYFZ-14-E Base Relay comes with a 1-year warranty.Q: What is the operating voltage of the Omron PYFZ-14-E relay base?
A: The relay base operates at a rated voltage of 24 VDC.Versatile Mounting Solutions
Designed for both DIN rail and direct panel installation, the Omron PYFZ-14-E Base Relay offers flexibility to accommodate diverse industrial environments. The socket's compact profile enables straightforward integration into tight control panels, while mounting clips and optional end plates ensure secure attachment and long-term reliability.
Reliable and Safe Connection
Featuring screw terminals for wiring up to 2.5 mm2, this relay base guarantees consistent electrical contact and finger-safe operation. The sturdy polycarbonate housing, combined with an IP20 rating, helps protect users and equipment, maintaining safety standards vital in industrial automation applications.
Optimized for Omron MY Series Relays
Engineered specifically for MY2 and MY4 plug-in relays, the PYFZ-14-E simplifies the relay replacement process and assures seamless compatibility. This makes maintenance more efficient, reducing downtime and ensuring that the system remains operational even during relay service or replacement.
FAQ's of Omron PYFZ-14-E Base Relay:
Q: How do I mount the Omron PYFZ-14-E Base Relay?
A: You can mount the PYFZ-14-E either directly onto a panel or on a DIN rail. Mounting clips and optional end plates are provided to ensure a stable and secure installation in your control panel.Q: What are the benefits of using screw terminals on this relay base?
A: Screw terminals provide a reliable connection, accommodating wires up to 2.5 mm2, and support secure, finger-safe wiring-minimizing risk of accidental contact-especially important in industrial environments.Q: When should I use an end plate with this base relay?
A: End plates are recommended when mounting multiple bases side by side on a DIN rail, as they provide additional securing and alignment, preventing unwanted movement and enhancing mechanical stability.Q: Where can the PYFZ-14-E be used effectively?
A: This relay base is ideal for use in control panels and industrial automation systems, particularly those requiring Omron MY/MY2/MY4 relays. Its compact size and robust design suit tight or demanding environments.Q: What is the installation process for the Omron PYFZ-14-E?
A: Connect the relay base to the desired mounting surface (DIN rail or panel), attach end plates if needed, and perform wiring through the screw terminals. Plug in your compatible Omron relay, and the base is ready for operation.Q: How does the relay base support system safety?
A: The finger-safe construction and IP20 rating protect users from accidental electrical contact, while high-quality polycarbonate housing and robust terminals ensure reliable operation in industrial settings.Q: What are the main benefits of using the PYFZ-14-E for relay mounting?
A: The PYFZ-14-E ensures quick installation, secure relay mounting, reliable wiring, and flexible compatibility for industrial control and automation, backed by a one-year warranty for peace of mind.Tell us about your requirement
