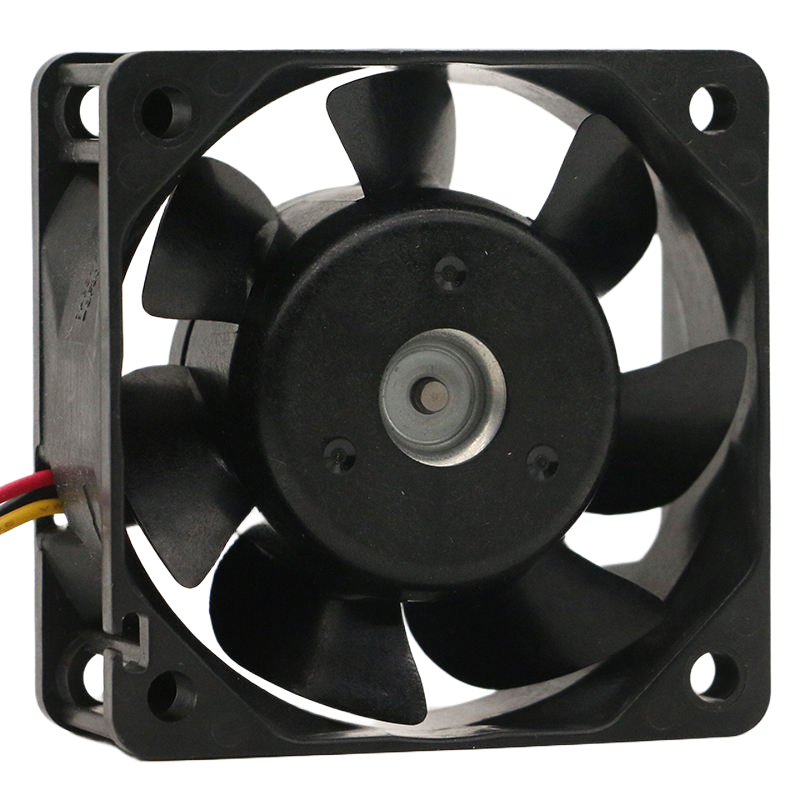

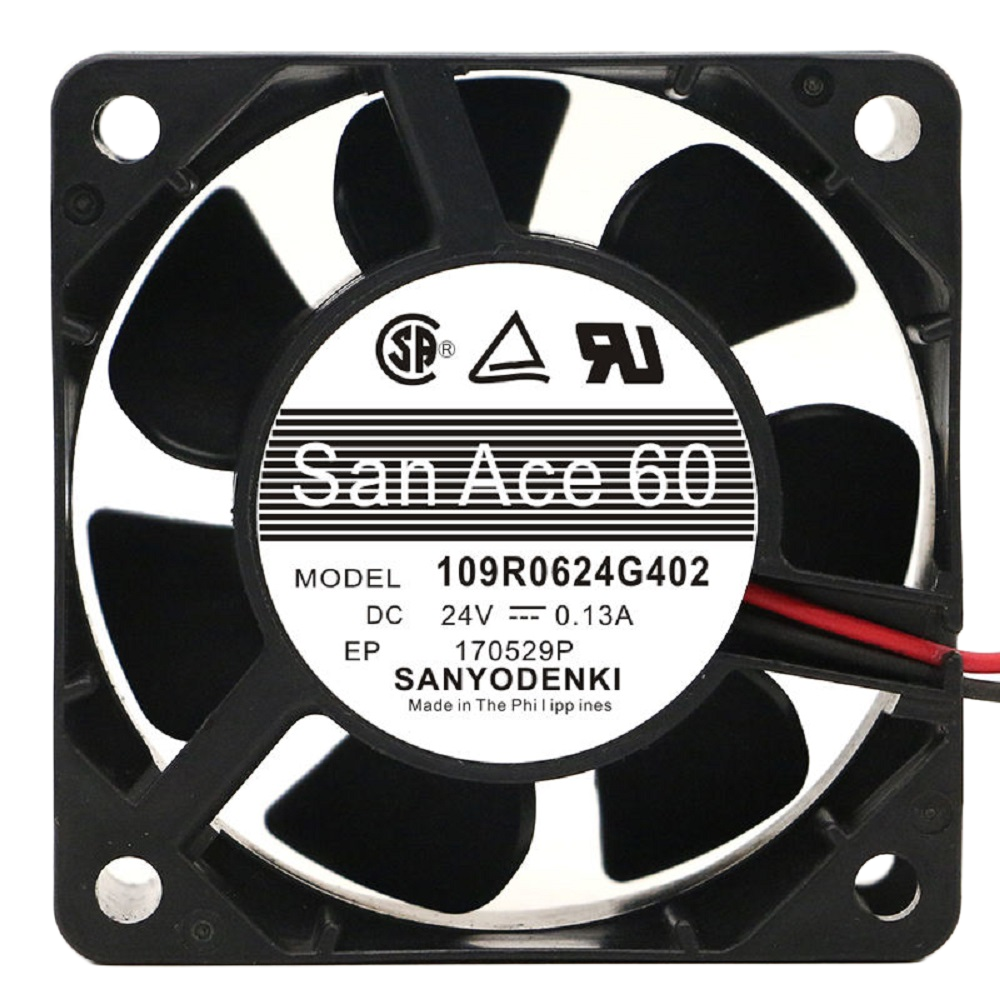

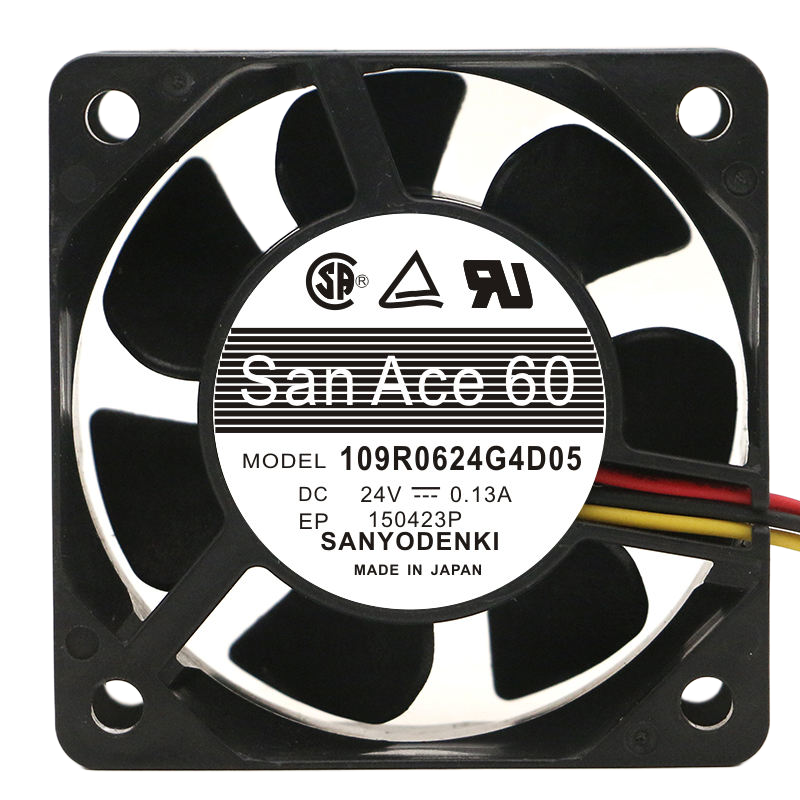

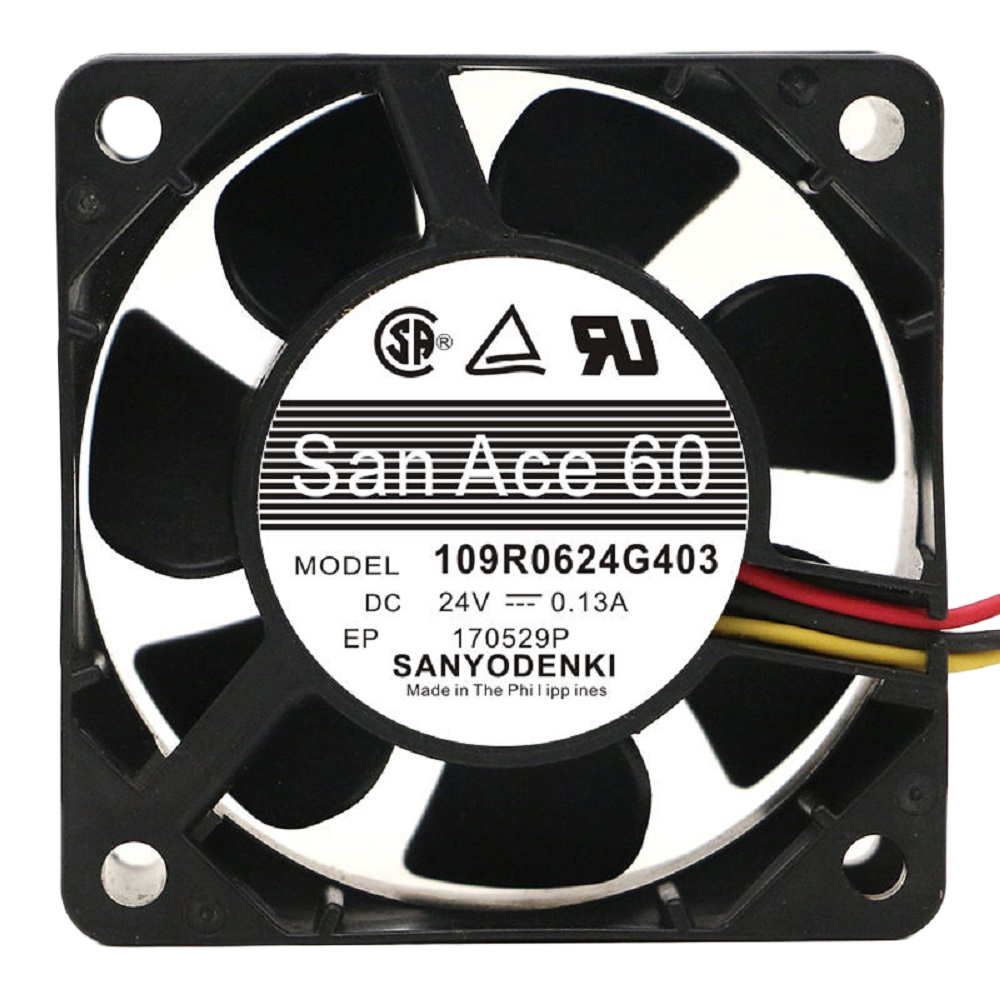

SANYO 109R0624G402/G403/G4021/G4D05/G4D06 Cooling Fan

SANYO 109R0624G402/G403/G4021/G4D05/G4D06 Cooling Fan Specification

IP Rating
IP20

Output
Air Flow (see model specific)

Power Source
DC Power

Components
Fan body, wire leads

Usage
Industrial, Electronics Cooling

Interface
Lead Wires

Power Supply
Electric

Input
24V DC

Operating Temperature
-20C to +70C

Features
Long life, high airflow, low noise

Product Type
Axial Cooling Fan

Application
Cabinets, Inverters, Machine Cooling

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
60mm x 60mm x 25mm

Dimension (L*W*H)
60mm x 60mm x 25mm

Function
Cooling

Color
Black

Weight
Approx. 215g

Capacity
Standard

Current Rating
0.07A - 0.10A (depends on model)

Thickness
25mm

Frequency
DC Fan - Not Applicable

Rotation
Clockwise (viewed from label side)

Mounting Hole Pitch
50 x 50 mm

Model Numbers
109R0624G402, 109R0624G403, 109R0624G4021, 109R0624G4D05, 109R0624G4D06

Compliance
RoHS Compliant

Max Static Pressure
51.3 Pa

Impeller Material
Plastic (UL94V-0)

Air Flow
32.7 CFM (approx., model dependent)

Noise Level
34 - 38 dB(A) (varies by model)

Frame Material
Plastic (UL94V-0)

Expected Life
40,000 hours at 60C (rated voltage, continuous operation)

Bearing Type
Ball Bearing

Connector Type
Leads (standard), connector options available

SANYO 109R0624G402/G403/G4021/G4D05/G4D06 Cooling Fan Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Paypal

Supply Ability
140 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

About SANYO 109R0624G402/G403/G4021/G4D05/G4D06 Cooling Fan

Brand: SANYO DENKI
Series: San Ace 60 (109R Series)
Models: 109R0624G402 / G403 / G4021 / G4D05 / G4D06
Fan Type: DC Axial Cooling Fan
Fan Size: 60 mm 60 mm 25 mm
Rated Voltage: 24V DC
Voltage Range: 20.4 27.6 VDC
Current Rating: 0.13 A (model dependent)
Power Consumption: 3.0 3.5 W
Speed: 5000 6000 RPM
Airflow: 25 30 CFM
Static Pressure: 0.35 in HO
Noise Level: 38 40 dBA
Bearing Type: Ball Bearing
Fan Structure: Tube Axial
Number of Wires: 2 / 3 Wire (variant based)
Frame & Blade Material: High-quality plastic
Operating Temperature: -20C to +70C
Life Expectancy: 40,000 hours @ 60C
Protection Feature: Locked Rotor Protection
Mounting Type: Panel Mount

Rugged and Efficient Cooling Solution

These SANYO cooling fans are designed to excel in industrial and electronics environments. Built with ball bearings and premium casing materials, they provide consistent airflow while maintaining quiet operation and a long service life. Their high airflow capacity ensures components stay within safe temperature limits, reducing the risk of overheating and equipment failure.

Adaptable and Easy Installation

The standard lead wire connection and compact 60mm square frame make installation simple and flexible. With a universal mounting hole pitch and multiple connector options, these fans are suitable for a wide range of cabinet, inverter, and electronic cooling applications. The durable plastic construction enhances safety and reliability in demanding industrial settings.

FAQ's of SANYO 109R0624G402/G403/G4021/G4D05/G4D06 Cooling Fan:

Q: How is the SANYO 109R0624G4 series cooling fan installed?

A: The SANYO 109R0624G4 series fan uses a standard 60mm x 60mm x 25mm frame with a 50 x 50 mm mounting hole pitch. It is easily installed using screws that fit these mounting holes, and the standard lead wire interface allows for straightforward electrical connection to a 24V DC power source.

Q: What applications are suitable for this cooling fan?

A: These fans are perfect for cabinets, inverters, industrial machinery, and electronics cooling. Their robust design and high airflow make them ideal for environments where consistent, reliable cooling is critical.

Q: When should I consider replacing the cooling fan?

A: Replacement is typically considered after the rated life of 40,000 hours (continuous operation at 60C), or sooner if there are signs of abnormal noise, reduced airflow, or failure to start. Regular preventive maintenance checks can help ensure optimal performance.

Q: Where can I use the SANYO 109R0624G402/G403/G4021/G4D05/G4D06?

A: These fans are designed for indoor use in industrial, commercial, or electronic equipment where effective cooling and reliable operation are required. They are suitable for installation in control panels, server cabinets, power inverters, and similar environments.

Q: What benefits does the ball bearing feature provide?

A: The ball bearing system allows for smoother operation, reduced wear, and a significantly extended service life compared to sleeve bearing fans. This results in lower maintenance, improved reliability, and sustained performance in demanding environments.

Q: How does the fan contribute to equipment reliability?

A: By maintaining steady airflow and dissipating heat efficiently, the fan helps keep sensitive components within optimal temperature ranges. This reduces the likelihood of overheating, equipment failure, and unplanned downtime, safeguarding the longevity and performance of your systems.

Q: What connector options are available for the fan?

A: The fans come with standard lead wire connections, but various connector types can be specified based on installation requirements. This flexibility ensures easy integration into existing systems.
