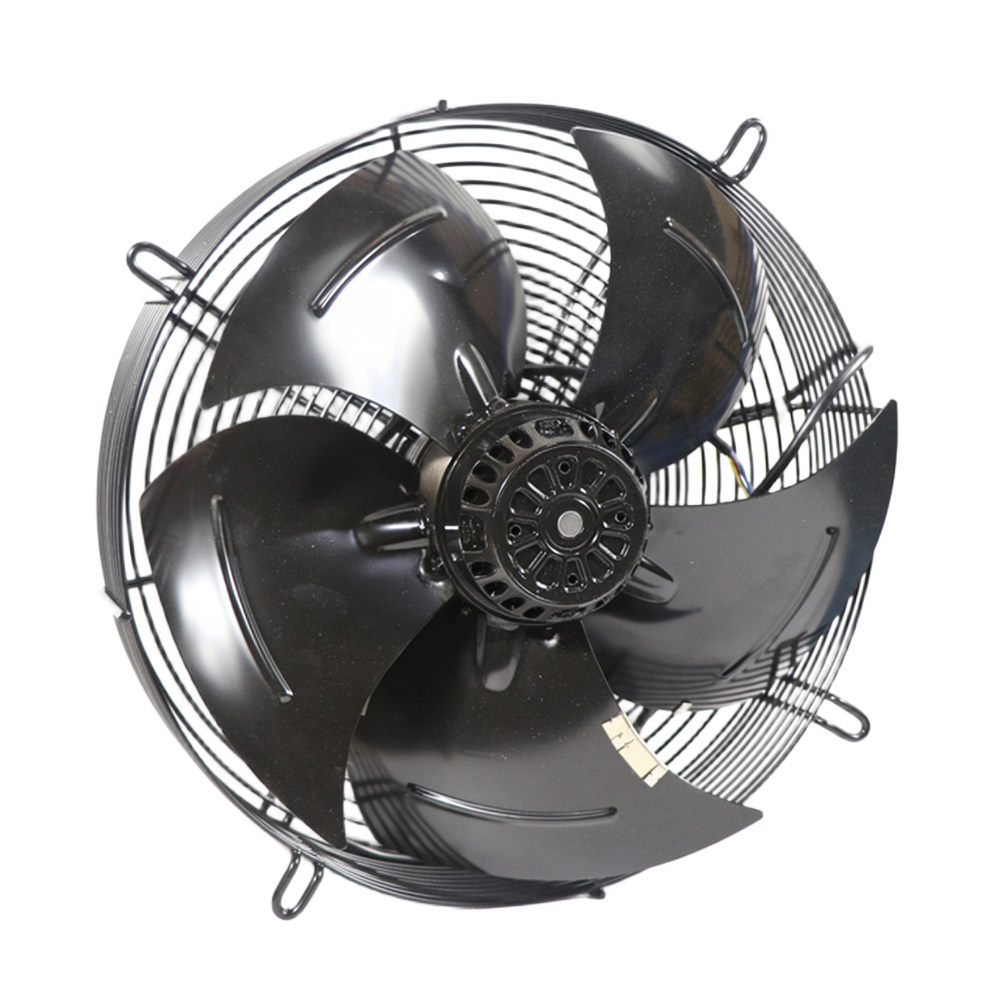

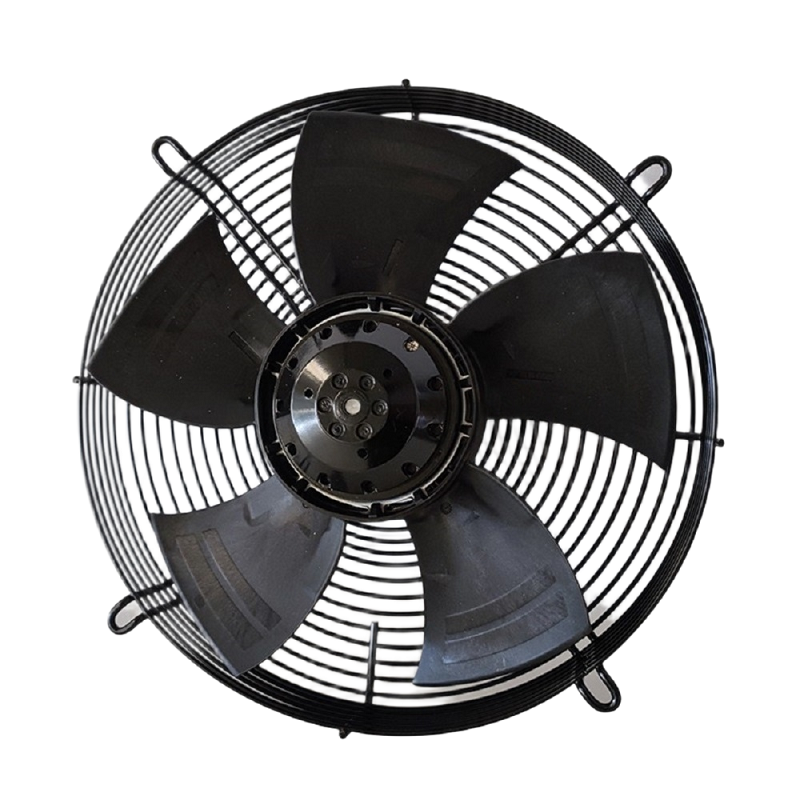

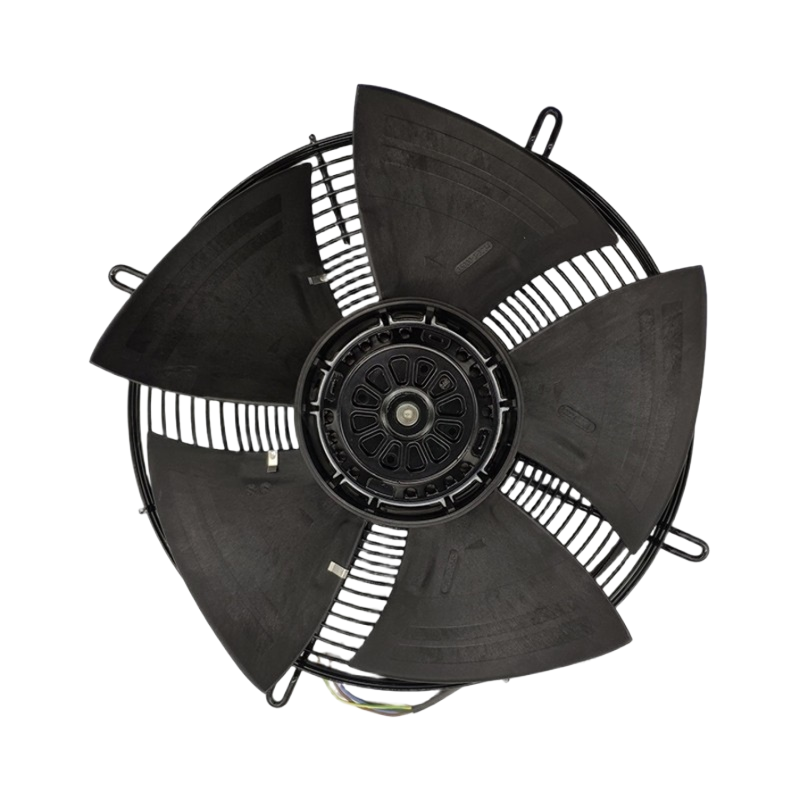

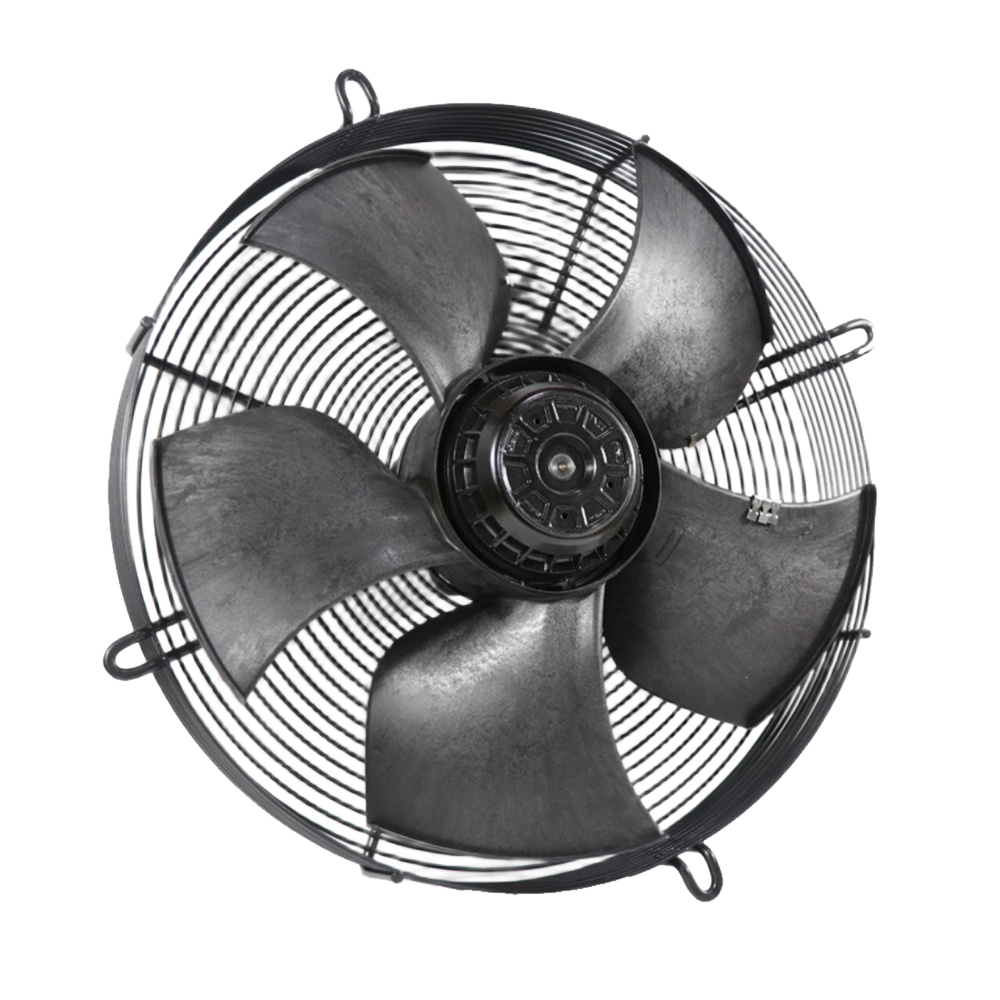

ebm-papst S4E350-AN02-30 AC Axial Cooling Fan

ebm-papst S4E350-AN02-30 AC Axial Cooling Fan Specification

Power Supply
AC

IP Rating
IP44

Power Rating
165 W

Product Type
AC Axial Cooling Fan

Rated Voltage
230 Volt (V)

Supply Voltage
230 VAC Volt (v)

Size
350 mm (14")

Color
Black

Weight
5.5 Kilograms (kg)

Warranty
1 year

Phase
Single Phase

Rated Current
0.73 Ampere (amp)

Current Rating
0.73 A

Frequency
50 Hertz (HZ)

ebm-papst S4E350-AN02-30 AC Axial Cooling Fan Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About ebm-papst S4E350-AN02-30 AC Axial Cooling Fan

The ebm-papst S4E350-AN02-30 is a premium 350 mm (14") 230V AC axial cooling fan engineered for efficient industrial ventilation and cooling applications. Equipped with an advanced HyBlade composite impeller, an energy-efficient external rotor motor, and maintenance-free ball bearings, it delivers powerful airflow of up to 3305 m/h with low energy consumption and quiet operation. The fan features IP44 protection, built-in thermal overload protection, and a durable guard grille, making it ideal for HVAC systems, refrigeration equipment, condensers, evaporators, heat exchangers, electrical panels, and industrial machinery. Designed for continuous-duty operation, the S4E350-AN02-30 provides reliable performance, long service life, and minimal maintenance in demanding environments.

Model: S4E350-AN02-30
Fan Type: AC Axial Cooling Fan
Application Type: Wall Mounted / Tube Axial
Series: S Series (HyBlade)
Fan Size: 350 mm (14")
Supply Voltage: 230 VAC
Frequency: 50 Hz
Phase: Single Phase
Motor Type: External Rotor AC Motor (M4E074-DF)
Motor Power: 165 W (Approx. 0.22 HP)
Current Rating: 0.73 A
Speed: 1340 RPM
Air Flow: Up to 3305 m/h (1,945 CFM)
Maximum Static Pressure: 90 Pa
Bearing Type: Maintenance-Free Ball Bearing
Blade Material: HyBlade Composite (Aluminium Core with Plastic/PP)
Number of Blades: 5
Protection Rating: IP44
Insulation Class: F
Motor Protection: Internal Thermal Overload Protector (TOP)
Capacitor: 4 F / 400 V
Operating Temperature: -25C to +65C
Mounting Position: Any Position
Rotation Direction: Clockwise (Viewed from Rotor Side)
Operating Mode: Continuous Duty (S1)
Overall Dimensions: 422 132.3 mm

Optimal Cooling Performance

The S4E350-AN02-30 axial fan delivers efficient airflow with its powerful 165-watt motor and large 350 mm blade size. Whether used in ventilation systems or equipment enclosures, it ensures continuous cooling, helping maintain safe operating temperatures and prolonging equipment lifespan.

Built for Durability and Safety

Engineered with an IP44 rating, this fan is protected against solid objects and water splashes, making it suitable for various working environments. Its sturdy construction and 1-year warranty provide reliability and peace of mind for both suppliers and end-users.

FAQ's of ebm-papst S4E350-AN02-30 AC Axial Cooling Fan:

Q: How do I install the ebm-papst S4E350-AN02-30 AC axial cooling fan?

A: To install the fan, ensure the power supply is switched off, mount the unit securely in the required ventilation opening, and connect it to a 230V AC single-phase supply following the wiring instructions. Refer to the manufacturer's manual for specific installation guidelines.

Q: What are the main applications for this axial cooling fan?

A: This fan is typically used in industrial ventilation, cooling for machinery enclosures, HVAC systems, and similar environments requiring reliable air movement to dissipate heat and ensure operational efficiency.

Q: When should I consider replacing or servicing the fan?

A: Regular maintenance is recommended, including periodic cleaning and checking for abnormal noise or decreased performance. If you notice any drop in airflow or signs of wear, consider servicing or replacing the fan. The product is covered by a 1-year warranty for manufacturing defects.

Q: Where can I purchase the ebm-papst S4E350-AN02-30 fan?

A: This model is available through authorized importers, suppliers, and traders specializing in industrial electrical components. Contact your local distributor or visit the official ebm-papst website for dealer locations.

Q: What is the process for claiming the 1-year warranty?

A: If the fan malfunctions within the warranty period due to manufacturing defects, contact your supplier with proof of purchase and the product serial number. The supplier will guide you through the warranty claim process, which may involve inspection or replacement.

Q: How does the IP44 rating benefit my installation?

A: The IP44 rating means the fan is protected against solid objects over 1mm and water splashing from any direction, making it suitable for industrial environments where exposure to dust and moisture is common.

Q: What are the advantages of using a 230V single-phase fan like this model?

A: A 230V single-phase fan is compatible with standard industrial and commercial AC power supplies, offering straightforward installation and reliable performance for various cooling needs.
