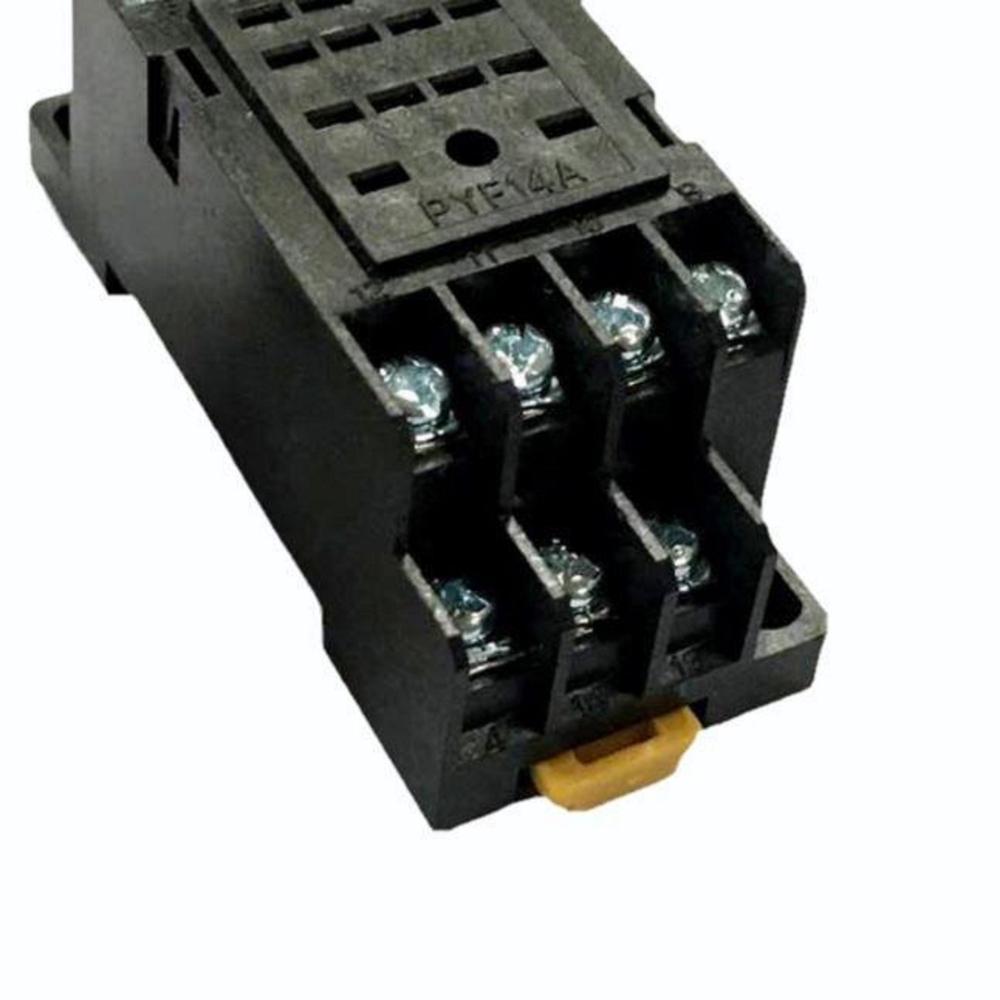

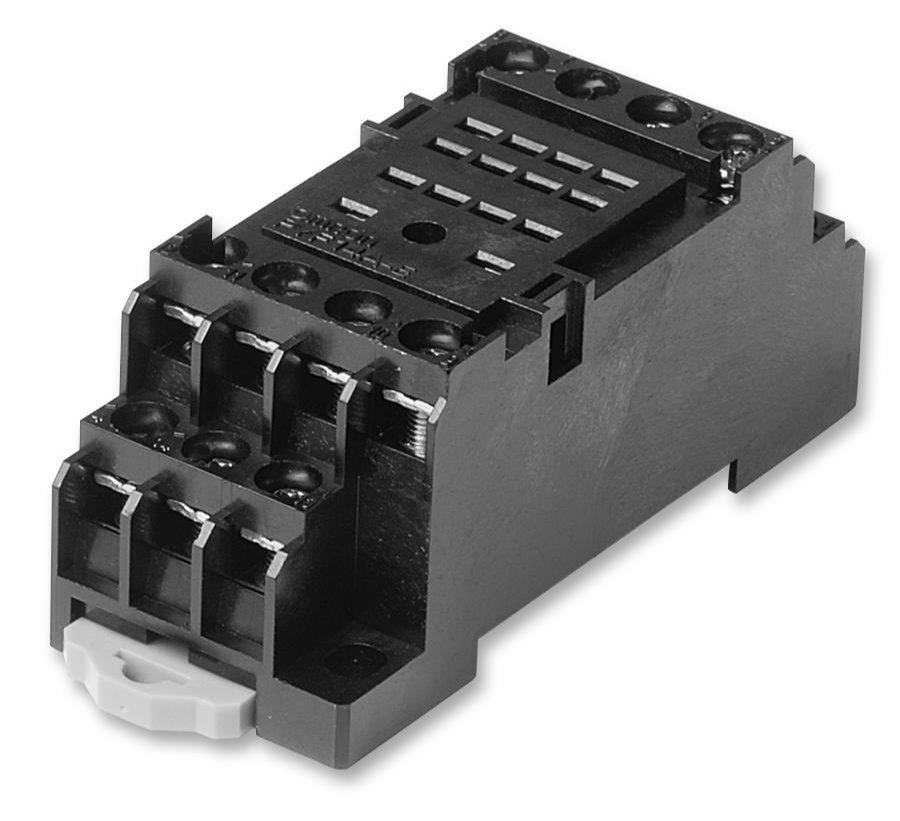

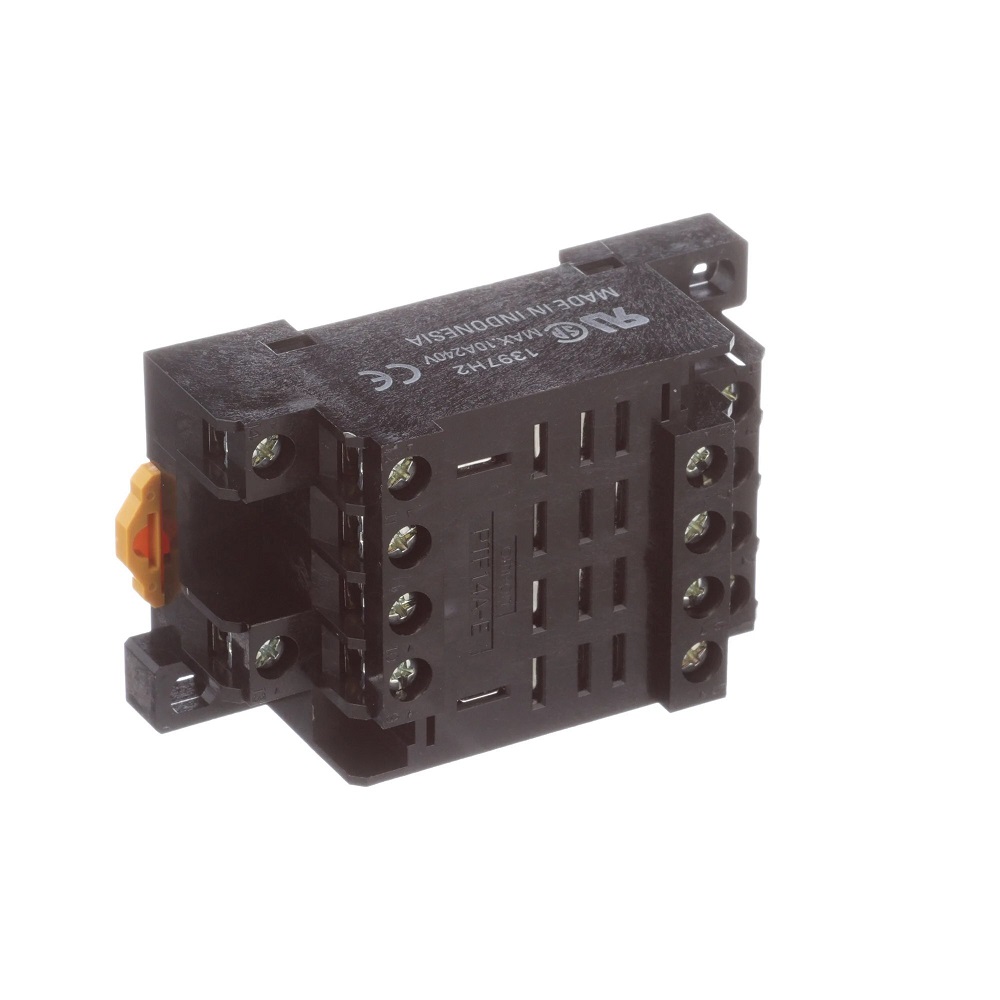

PYE14A-E Omron Relay base

PYE14A-E Omron Relay base Specification

Output
Relay Mount

Usage
Socket

Input
Screw Terminal

Power Supply
AC

Product Type
14-pin Relay Socket

Application
General-purpose, I/O, Power Relays in control systems

Rated Voltage
250 Volt (V)

Weight
49 Grams (g)

Rated Current
5 Ampere (amp)

Thickness
Compact DIN base Millimeter (mm)

PYE14A-E Omron Relay base Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
1 Week

About PYE14A-E Omron Relay base

The Omron PYF14A-E is a 14-pin, DIN rail mountable relay socket for industrial automation, featuring screw terminals for secure wiring, designed for compatibility with Omron's general-purpose 4-pole relays like the MY4 series, offering a 5A/250VAC rating, and used in control panels for reliable connections in demanding environments.

Key Features:

Type: 14-pin Relay Socket
Mounting: DIN Rail & Panel Mount (Screw Terminals)
Compatibility: For Omron MY4, MY4N, H3YN series relays
Terminals: Screw Terminal Connections
Current Rating: 5A
Voltage Rating: 250 VAC
Poles: 4-pole (for 4PDT relays)
Application: General-purpose, I/O, Power Relays in control systems

Versatile Applications in Control Systems

The PYE14A-E Omron Relay Base is tailored for various uses, including general-purpose control, I/O switching, and power relay applications. Its compatibility with both industrial and commercial control systems ensures adaptability in dynamic environments.

Simple Installation and Maintenance

Equipped with screw terminal inputs, the relay base offers straightforward wiring. Its relay mount output facilitates quick and secure installation or replacement of relays, significantly reducing downtime during maintenance or upgrades.

Reliable Performance and Safety

Designed to handle up to 5 Amps at 250 Volts AC, this relay base delivers stable performance for high-demand circuits. The compact DIN-rail mounting aids in organized installations, minimizing wiring complexity and enhancing safety protocols.

FAQ's of PYE14A-E Omron Relay base:

Q: How do I install the PYE14A-E Omron Relay Base in my control panel?

A: To install the PYE14A-E, mount it onto a suitable DIN rail in your control panel, connect the input wires to the screw terminals, and simply fit the compatible relay onto the relay socket for secure contact.

Q: What are the primary applications of this relay base?

A: This relay base is ideal for general-purpose automation, I/O operations, and power relay switching within control systems, making it suitable for industrial and commercial environments.

Q: When should I use the PYE14A-E Omron Relay Base for my projects?

A: Use the PYE14A-E when you require reliable, modular relay mounting for circuits operating up to 250V AC and 5A, especially when a compact DIN rail solution is needed for relay-based automation or control tasks.

Q: Where can this product be sourced in India?

A: The PYE14A-E Omron Relay Base can be sourced through various importers, suppliers, and traders specializing in electrical control system components across India.

Q: What is the process for wiring this relay base?

A: Begin by securely mounting the base onto a DIN rail, connect your circuit wires to the clearly labeled screw terminals for input, then plug in the corresponding relay to the output socket.

Q: What benefits does the compact DIN base design offer?

A: The compact DIN-compatible design saves valuable panel space, ensures easy organization, and simplifies both installation and future system modifications or expansions.

Q: How does the relay base enhance system reliability and maintenance?

A: With its robust construction, secure screw terminals, and tool-free relay replacement, the base ensures dependable operation and allows for quick, hassle-free maintenance or relay upgrades.
