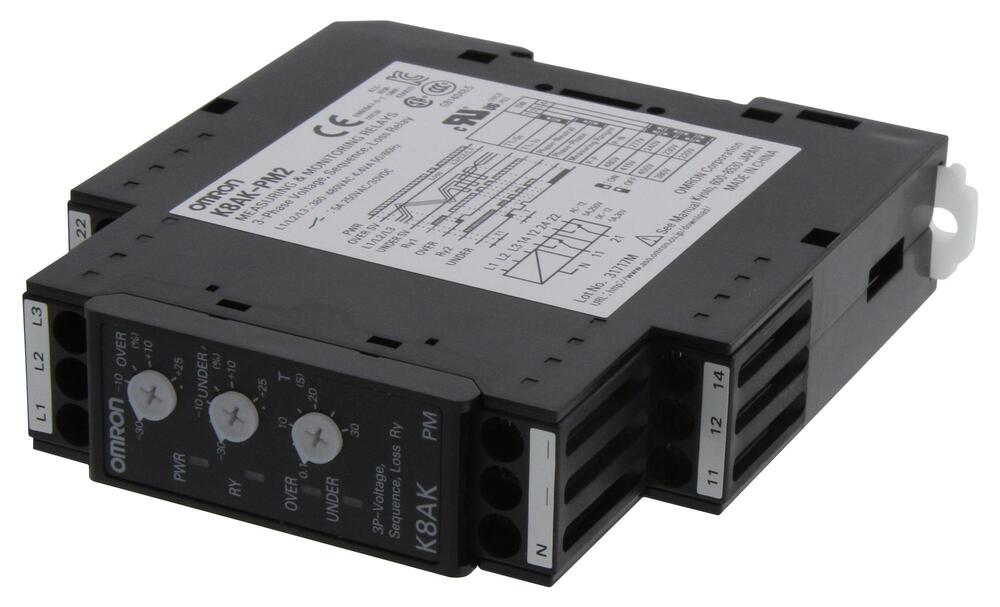

Omron K8AK-PM2 Relay

Omron K8AK-PM2 Relay Specification

Processor Speed
0.5 SEC

Power Supply
50/60 Hz

Usage
protect three-phase equipment

Input
Three-phase

Product Type
Phase Monitoring Relay

Application
Motor protection

Rated Voltage
200 to 480 VAC Volt (V)

Dimension (L*W*H)
78 * 90 * 22.5 Millimeter (mm)

Function
The Omron K8AK-PM2 relay monitors three-phase voltage for phase sequence, phase loss, overvoltage, and undervoltage conditions.

Color
Black

Weight
150 Grams (g)

Warranty
1 year

Conductor
Copper or aluminum conductors

Material
durable, flame-retardant plastic

Thickness
22.5 Millimeter (mm)

Current Rating
5A

Frequency
50/60 Hertz (HZ)

Omron K8AK-PM2 Relay Trade Information

Minimum Order Quantity
5 Thousand

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Per Month

Delivery Time
3 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia

Main Domestic Market
All India

About Omron K8AK-PM2 Relay

The Omron K8AKPM2 is a3phase voltage phase sequence and phase loss monitoring relay designed for industrial applications Its a compact DIN rail mountable relay 225mm wide that protects three phase systems by detecting overvoltage under voltage phase sequence errors and phase loss The relay features two SPDT Single Pole Double Throw output relays each rated for 5A at 250V AC allowing for independent signaling of overvoltage and under voltage conditions

Advanced Three-Phase Protection

The Omron K8AK-PM2 relay offers state-of-the-art monitoring of three-phase systems, detecting dangers such as phase loss, incorrect sequence, and abnormal voltage levels within 0.5 seconds. This vigilance provides continuous safety for motor-driven equipment, minimizing the risk of unexpected downtime.

Built for Durability and Versatility

Manufactured from robust flame-retardant plastic, the K8AK-PM2 relay combines safety with resilience. Its design accommodates both copper and aluminum conductors, ensuring compatibility with a variety of installations. The slim profile allows for easy integration into crowded control panels without sacrificing reliability.

FAQs of Omron K8AK-PM2 Relay:

Q: How does the Omron K8AK-PM2 relay protect three-phase equipment?

A: The relay continually monitors phase sequence, detects phase loss, and identifies overvoltage or undervoltage conditions. If an anomaly is found, it quickly isolates the affected circuit to prevent equipment damage.

Q: What are the primary benefits of installing this relay for motor protection?

A: By protecting motors from voltage disturbances and phase faults, the relay helps avoid expensive repairs, prolongs equipment life, and minimizes operational interruptions in industrial applications.

Q: When should the Omron K8AK-PM2 be installed?

A: It is recommended to install the relay whenever you need reliable protection for three-phase motors and sensitive equipment against voltage or phase faults, especially in demanding environments.

Q: Where can the Omron K8AK-PM2 relay be used?

A: This relay is suitable for a variety of industrial settings, including manufacturing plants and facilities using three-phase motors or machinery that require constant voltage and phase monitoring.

Q: What is the installation process for this relay?

A: The K8AK-PM2 is designed for easy panel mounting with standard wiring to three-phase input supplies. Copper or aluminum conductors can be used, and settings are configured according to specific voltage requirements.

Q: How does the relay respond to voltage faults?

A: When the relay detects a voltage irregularity such as overvoltage, undervoltage, or incorrect phase sequence, it trips within 0.5 seconds to disconnect the equipment, ensuring prompt protection.
