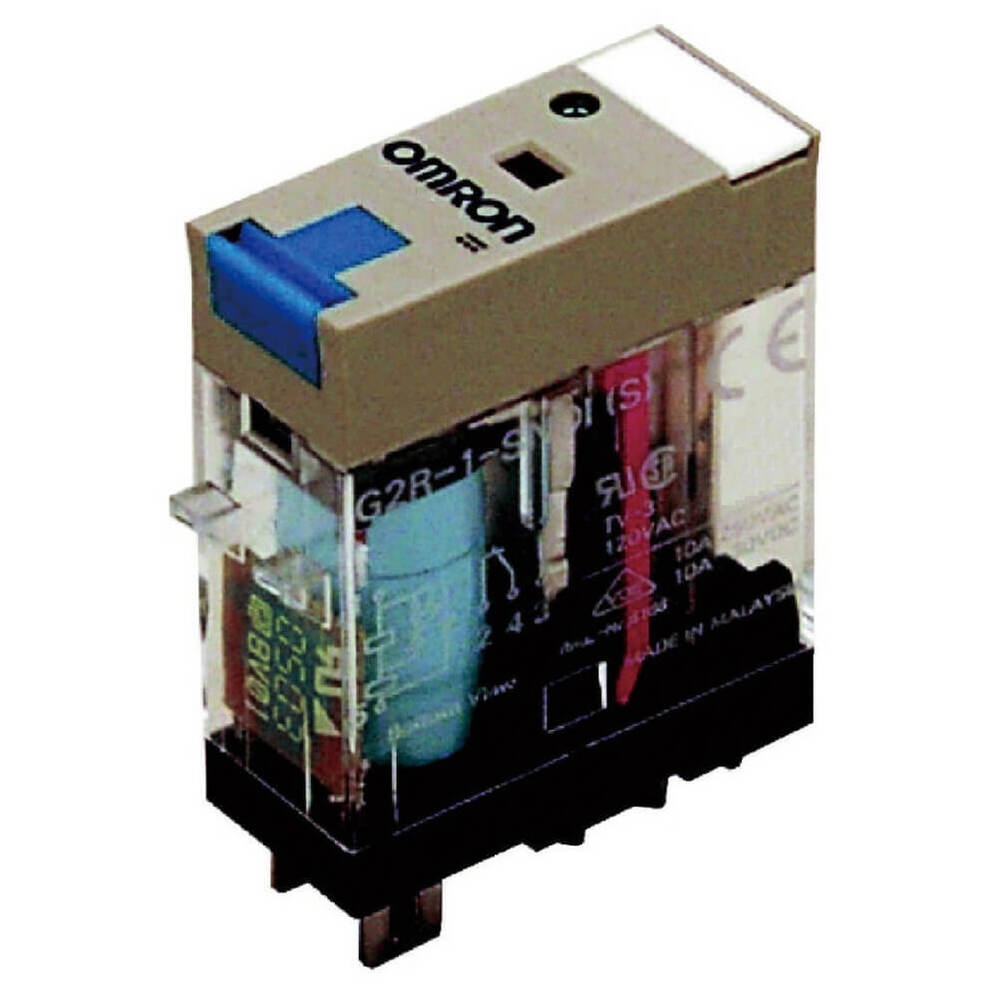

G2R-1-SNI-DC24 Omron Relay

G2R-1-SNI-DC24 Omron Relay Specification

Usage
Industrial automation

Power Supply
DC

Product Type
Power Relay

Application
Industrial, Power Management, Automation & Process Control, Automotive, Avionics, Medical, Safety

Rated Voltage
24 Volt (V)

Dimension (L*W*H)
29 x 13 x 35.5 Millimeter (mm)

Function
Single Pole Double Throw (SPDT)

Color
Glass

Weight
Approx. 20 Grams (g)

Warranty
1 year

Material
Silver Alloy

Current Rating
10A

G2R-1-SNI-DC24 Omron Relay Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Paypal, Cheque

Supply Ability
100 Pieces Per Week

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About G2R-1-SNI-DC24 Omron Relay

The Omron G2R1-SNI-DC24S is a versatile general purpose relay designed for efficient switching in various electronic and industrial applications This relay features a Single Pole Double Throw SPDT contact configuration also known as 1 Form C allowing it to switch between a normally open NO and a normally closed NC contact It operates with a 24V DC coil voltage drawing a coil current of 216 mA with a coil resistance of 11 k The relays contacts are rated for a maximum switching capacity of 4400 VA or 1250 W accommodating both AC and DC loads The maximum switching voltage is 440 VAC and 125 VDC with a maximum contact current of 10 A for both AC and DC circuits The contacts are constructed from silver alloy ensuring durability and low contact resistance The G2R1SNIDC24S is designed for socket mounting simplifying installation and maintenance It operates effectively within a temperature range of 40C to 70C and has a power consumption of approximately 053 W The relays compact design and reliable performance make it suitable for applications such as automation systems control panels and industrial machinery Additionally it features an LED indicator for status monitoring and a test button for manual operation verification

Versatile Application Range

Thanks to its SPDT functionality and 10A current rating, the G2R-1-SNI-DC24 relay can be integrated into diverse sectors, including automation, power management, automotive, avionics, and safety systems. Its robust construction and compact size allow for easy installation in various equipment enclosures.

Robust and Efficient Design

Constructed with a silver alloy and glass housing, this relay provides outstanding conductivity and resistance to wear. The precise 29 x 13 x 35.5 mm dimensions make it suitable for dense control panels or tight spaces, while the 24V DC coil voltage ensures energy-efficient switching.

Reliable Power Control

With a current rating of 10A, the G2R-1-SNI-DC24 can safely switch power to industrial and commercial devices. Its application in power management, automation, and process control systems maximizes operational reliability and safety, backed by a standard one-year warranty.

FAQ's of G2R-1-SNI-DC24 Omron Relay:

Q: How is the G2R-1-SNI-DC24 relay typically used in industrial automation?

A: This relay is commonly used to control or switch various electronic devices and systems, such as motors, sensors, and safety mechanisms, in automated industrial settings. Its SPDT functionality provides flexible switching for power and signal routing.

Q: What are the main benefits of using a silver alloy contact in this relay?

A: Silver alloy contacts offer excellent conductivity and enhanced durability, reducing electrical resistance and prolonging the relay's lifespan, even with frequent switching or in demanding environments.

Q: When should I use the G2R-1-SNI-DC24 relay for power management?

A: You should consider this relay when you need reliable switching of circuits that operate at up to 10A and 24V DC, especially in applications requiring frequent and precise control, such as power distribution units or safety cut-off systems.

Q: Where can the G2R-1-SNI-DC24 relay be installed?

A: This relay can be installed in industrial control panels, automation systems, and process equipment. Its compact size makes it suitable for crowded enclosures or systems requiring a dense arrangement of components.

Q: What is the process of integrating the G2R-1-SNI-DC24 into an existing automation setup?

A: Integration involves mounting the relay in a suitable socket or PCB location, wiring it to the control circuit (24V DC coil), and connecting its SPDT contacts to the devices or circuits that require switching. Always ensure compatibility with current and voltage requirements.

Q: Is the relay suitable for applications beyond industrial automation?

A: Yes, in addition to industrial automation, the G2R-1-SNI-DC24 is applicable in automotive, avionics, medical devices, and safety systems, where reliable switching and power management are essential.
