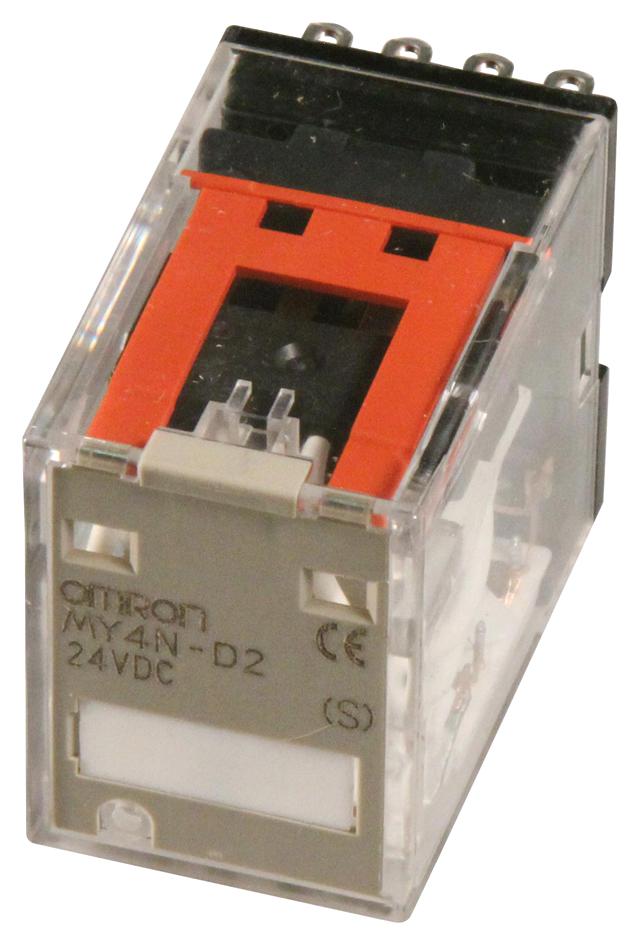

Omron MY4N-D2 24VDC Relay

Omron MY4N-D2 24VDC Relay Specification

Output
Relay contacts (NO/NC) for load switching

Input
24 VDC coil signal

Usage
automating electrical machines

Power Supply
DC

Product Type
Electromechanical relay

Application
Industrial control panels.

Rated Voltage
24 Volt (V)

Dimension (L*W*H)
Approx. 27.94 21.59 36.06 Millimeter (mm)

Function
Switching

Color
Opaque light gray

Weight
35 Grams (g)

Warranty
1 Year

Material
plastic (insulating) enclosure

Rated Current
3 Ampere (amp)

Omron MY4N-D2 24VDC Relay Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal

Supply Ability
500 Pieces Per Month

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron MY4N-D2 24VDC Relay

The Omron MY4N-D2 24VDC is a versatile, miniature 4PDT (4 Changeover/Form C) plug-in power relay for 24V DC control, featuring gold-plated silver alloy contacts, an LED indicator, a built-in surge suppression diode, and a latching lever (on 'S' types), designed for industrial control, automation, and general electrical switching, offering easy identification with color-coded tape and compatibility with specific sockets for reduced wiring.

Key Features & Specifications:

Coil Voltage: 24V DC (nominal).
Contact Configuration: 4PDT (4 Changeover/Form C).
Contact Rating: 3 Amps at 250V AC / 30V DC.
Mounting: Plug-in (14-pin).
Indicators: LED for coil status and often a mechanical indicator.
Protection: Built-in diode for coil surge absorption.
Latching Lever: Available on 'S' versions for easy circuit checks.
Contact Material: Gold-plated Silver Alloy (Au/Ag) for reliability.
Identification: Color-coded tape (usually blue for DC) for quick distinction.

Versatile Switching for Industrial Automation

The MY4N-D2 relay offers reliable switching performance for various industrial automation tasks. Its NO/NC contact configuration enables it to handle complex control panel operations, making it indispensable in modern automated environments. Built for high endurance, it ensures consistent operation even in intensive settings.

Compact Size, Durable Construction

With dimensions of approximately 27.94 x 21.59 x 36.06 mm and a tough, insulating plastic enclosure, the relay is engineered to fit effortlessly into crowded control panels while safeguarding internal components. Its opaque light gray finish complements any industrial setup, offering both functionality and resilience.

FAQ's of Omron MY4N-D2 24VDC Relay:

Q: How is the Omron MY4N-D2 24VDC Relay used in industrial control panels?

A: The relay is commonly integrated into industrial control panels to automate processes by switching devices on or off through its NO/NC contacts. Its reliable output makes it suitable for controlling motors, lights, or other loads in automated systems.

Q: What benefits does the opaque light gray plastic enclosure provide?

A: The insulating plastic enclosure protects the internal components from dust, electrical shocks, and mechanical impact. Its opaque light gray color provides a professional, clean appearance for industrial installations.

Q: Where can the MY4N-D2 relay be installed?

A: This relay is primarily designed for use in industrial control panels, but it can also be utilized in any setting requiring safe and dependable switching of electrical equipment, provided the operating voltage and current ratings are met.

Q: What is the process for operating this relay?

A: To operate the MY4N-D2, supply a 24V DC signal to its coil input. This energizes the relay, switching the contacts and enabling connected loads to be powered ON or OFF according to the control design.

Q: When should I use a relay with NO/NC output contacts?

A: NO/NC contacts are ideal when you need flexibility to control circuits in both the normally open (activates upon energizing) and normally closed (deactivates upon energizing) configurations, facilitating complex automation and safety interlocks.

Q: What applications benefit from this relay's features?

A: Industries using automated machinery, conveyor systems, or process controls benefit from the MY4N-D2 due to its reliable switching, compact size, and ease of wiring in existing or new installations.
