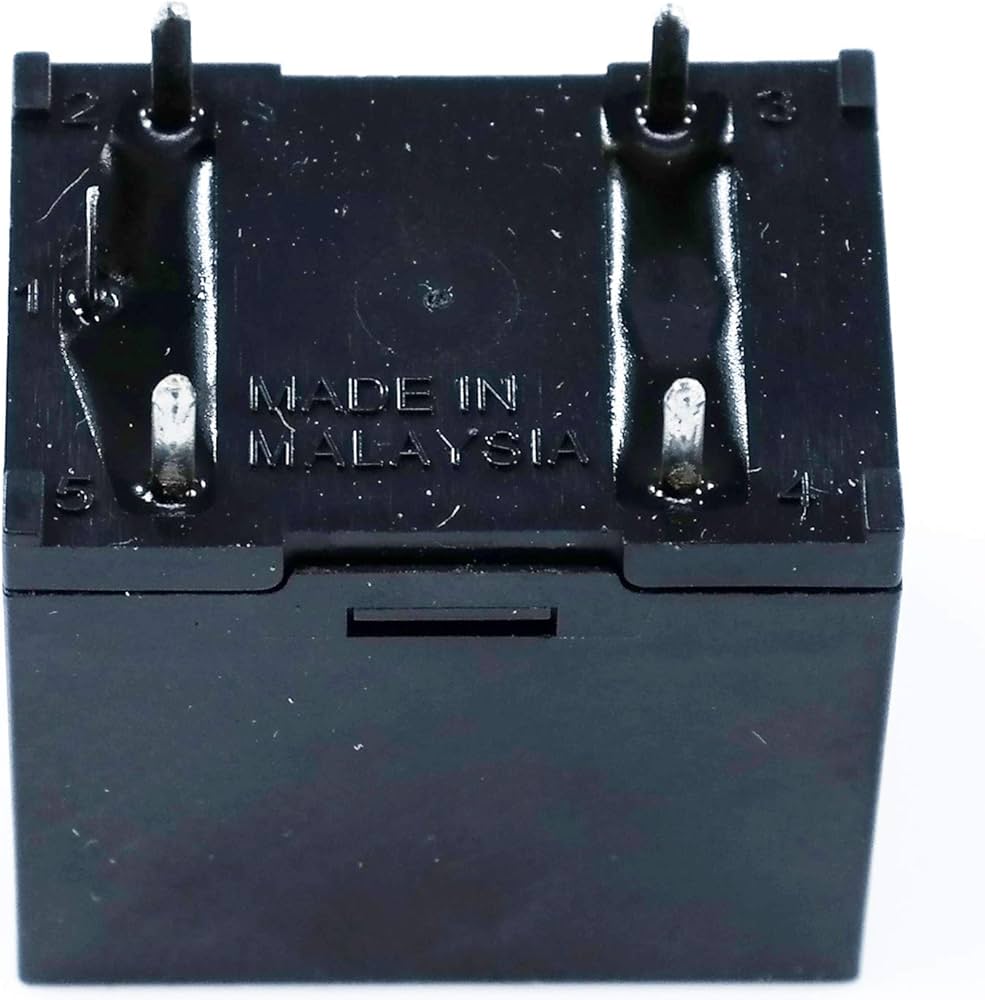

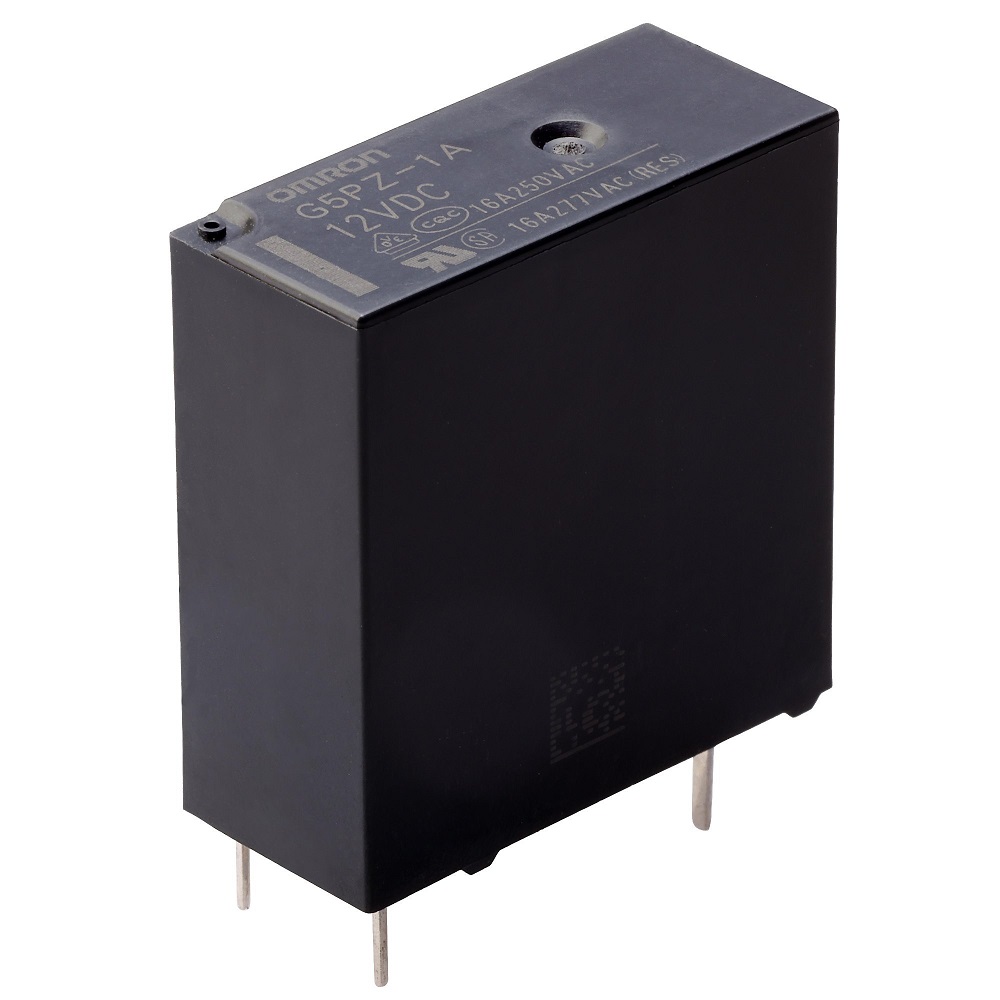

Omron G5PZ-1A-DC12 Single Pole Power Relay

Omron G5PZ-1A-DC12 Single Pole Power Relay Specification

Input
12VDC

Usage
Switching

Power Supply
DC

Output
AC/DC loads

Product Type
Power Relay

Application
Industrial

Rated Voltage
12 Volt (V)

Function
Switching AC/DC loads

Color
Black

Weight
10.5 Grams (g)

Warranty
1 year

Omron G5PZ-1A-DC12 Single Pole Power Relay Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Paypal, Cheque

Supply Ability
500 Pieces Per Year

Delivery Time
2 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron G5PZ-1A-DC12 Single Pole Power Relay

The

Omron G5PZ-1A-DC12 is a compact, single-pole (SPST-NO) PCB power relay designed for high-switching applications in industrial and home appliance environments. It features a slim 10.5mm width, 12VDC coil voltage, and a 16A switching current.

Key Features & Highlights

Compact Design: 10.5mm (W) x 23.8mm (L) x 24.9mm (H) footprint, ideal for space-constrained PCB designs.
High Switching Capacity: 16A at 250VAC, with high-capacity (-E) models supporting up to 20A.
High Sensitivity: Low coil consumption of 530mW, with further energy savings possible at a 50% holding voltage.
Robust Insulation: Minimum 6.4mm insulation distance and 10kV impulse withstand voltage between coil and contacts.
Environmental Protection: Flux protection seal rating.
Certifications: Compliant with UL, VDE, TUV, and CSA standards.

Technical Specifications

Model: G5PZ-1A-DC12
Coil Voltage: 12 VDC
Contact Form: SPST-NO (1 Form A)
Switching Current: 16 A
Switching Voltage: 250 VAC (max)
Coil Resistance: 272
Operating Temperature: -40C to 70C
Mounting Type: Through-hole PCB

Typical Applications

Home Appliances: Air conditioners, refrigerators, and washing machines.
Industrial Machinery: Automation equipment and control systems.
Power Solutions: Uninterruptible Power Supplies (UPS) and solar inverters

Efficient Industrial Switching Solution

The Omron G5PZ-1A-DC12 relay stands out as an adaptable component used for managing both AC and DC electrical loads in industrial settings. Its 12VDC input and compact profile make it suitable for integration into control panels and automated systems, ensuring smooth operation and seamless load switching. The relay's tested reliability enhances productivity and operational safety in factory environments.

Versatile Applications in Automation

This relay is ideal for a host of industrial applications, from motor control and lighting systems to security installations and process automation. Its ability to switch different load types makes it a versatile tool for engineers and maintenance professionals looking to streamline power management and safeguard complex circuits.

FAQ's of Omron G5PZ-1A-DC12 Single Pole Power Relay:

Q: How is the Omron G5PZ-1A-DC12 relay typically installed in industrial systems?

A: The Omron G5PZ-1A-DC12 relay can be mounted directly onto circuit boards or suitable relay sockets in control panels, using standard wiring practices for the 12VDC coil and the load connections.

Q: What are the main benefits of using this relay for switching AC and DC loads?

A: Using this relay enables efficient switching between AC and DC loads, offering versatility in application. Its durable mechanism reduces wear and tear, ensuring long operational life and helping to maintain reliable system performance.

Q: Where can I source the Omron G5PZ-1A-DC12 relay in India?

A: You can purchase this relay from authorized importers, suppliers, and traders across India. It is widely available through electrical distributors who cater to industrial automation needs.

Q: When should this relay be used in an electrical system?

A: This relay should be used whenever there is a need to control or automate the switching of AC or DC loads in industrial environments, such as starting motors, switching solenoids, or controlling lighting circuits.

Q: What is the expected warranty for this relay and what does it cover?

A: The Omron G5PZ-1A-DC12 comes with a 1-year warranty, covering manufacturing defects or operational failures under normal usage, as per the supplier's terms.

Q: How does the relay handle the switching process for various loads?

A: Upon receiving a 12VDC input, the relay coil is energized, which actuates the contacts. This allows the controlled switching of connected AC or DC loads, making the relay suitable for a variety of control tasks.
