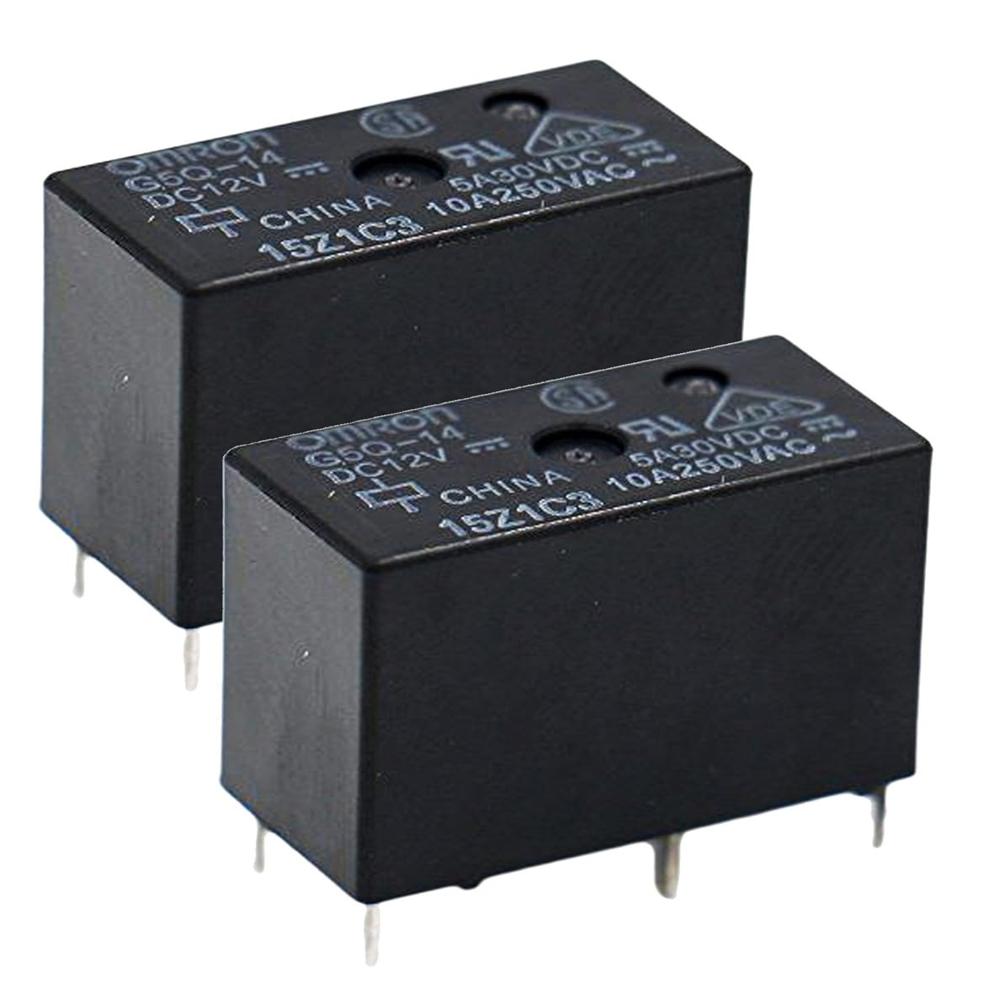

G5Q-14-DC12 Power Relay

G5Q-14-DC12 Power Relay Specification

Usage
Switching

Power Supply
DC

Product Type
Power relay

Application
General-purpose switching

Rated Voltage
12 Volt (V)

Function
Electrical switching and isolation of circuits

Color
Black

Weight
12 Grams (g)

Warranty
1 year

Rated Current
10 Ampere (amp)

G5Q-14-DC12 Power Relay Trade Information

Minimum Order Quantity
4 Pieces

Payment Terms
Paypal

Supply Ability
200 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About G5Q-14-DC12 Power Relay

A Miniature Power Relay with 1-pole 10A Switching Capacity
Compact single pole relay.
Excellent switching performance for a variety of loads.
Small, yet provide 8-kV impulse withstand voltage (between coil and contacts).
Low coil power consumption (SPST-NO: 200 mW, SPDT: 400 mW)
Coil insulation system: Class F (UL1446).
IEC/EN 60335-1 conformed. (-HA Model)

Reliable Switching Performance

Engineered for general-purpose applications, the G5Q-14-DC12 ensures stable and safe electrical switching as well as circuit isolation. Its 12V DC coil and 10A current rating make it apt for a broad range of small-to-medium power devices, supporting efficient and reliable operation throughout its usage lifecycle.

Lightweight and Durable Design

Weighing only 12 grams and crafted in a classic black color, this relay features a compact, durable structure that integrates easily into most electrical setups. The robust build enhances longevity, while the lightweight profile facilitates easier handling and installation.

Supported by Local Expertise

As an imported product supplied and traded within India, customers benefit from prompt support, local availability, and a full 1-year warranty, ensuring comprehensive assistance and satisfaction during and after purchase.

FAQ's of G5Q-14-DC12 Power Relay:

Q: How do I connect the G5Q-14-DC12 Power Relay to my circuit?

A: To connect the G5Q-14-DC12 Power Relay, follow your circuit's wiring diagram, ensuring you connect the coil terminals to a 12V DC supply. The load circuit should be routed through the relay's switching terminals, enabling the relay to control the flow as required for your application.

Q: What are the main benefits of using the G5Q-14-DC12 Power Relay in my setup?

A: This relay offers reliable electrical switching and isolation, supports a 10A current, and is lightweight at just 12 grams. It's backed by a 1-year warranty, making it a dependable component for various general-purpose electrical applications.

Q: When should I consider using this relay in my electrical projects?

A: The G5Q-14-DC12 is suitable whenever you need to switch or isolate medium-power loads up to 10A, especially when a 12V DC trigger is available. It's ideal for automation, control panels, and devices that require safe, repeatable switching.

Q: Where can I purchase this relay in India?

A: This relay is available through authorized importers, suppliers, and traders across India. Reach out to local electrical component vendors or online marketplaces specializing in industrial controls for purchase.

Q: What is the typical process for installing this power relay?

A: Installation involves securing the relay to your circuit board or mounting base, connecting the input (coil) to a 12V DC supply, and wiring your load to the switching terminals. Always ensure power is off during installation to avoid electrical hazards.

Q: Can the G5Q-14-DC12 be used for frequent switching operations?

A: Yes, it is designed for general-purpose switching, suitable for repeated on-off cycles, as long as current and voltage ratings are not exceeded.

Q: What kind of warranty support is provided for this relay?

A: The G5Q-14-DC12 Power Relay comes with a 1-year warranty, covering manufacturing defects and ensuring users receive necessary support or replacement within this period.
