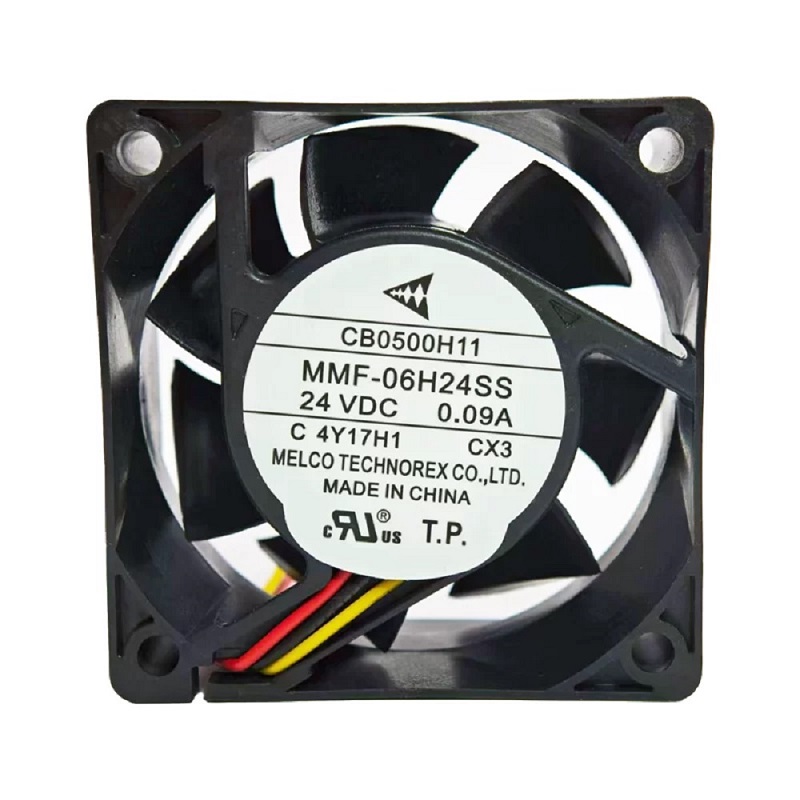

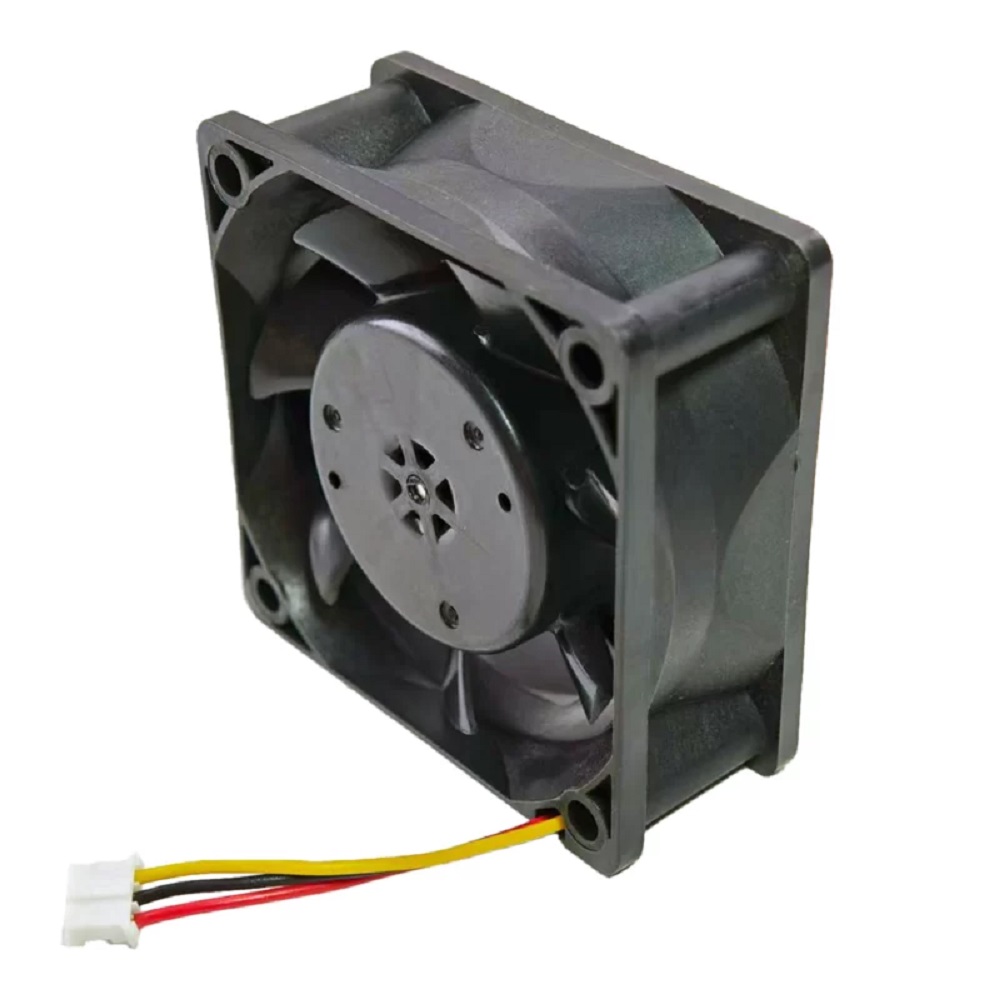

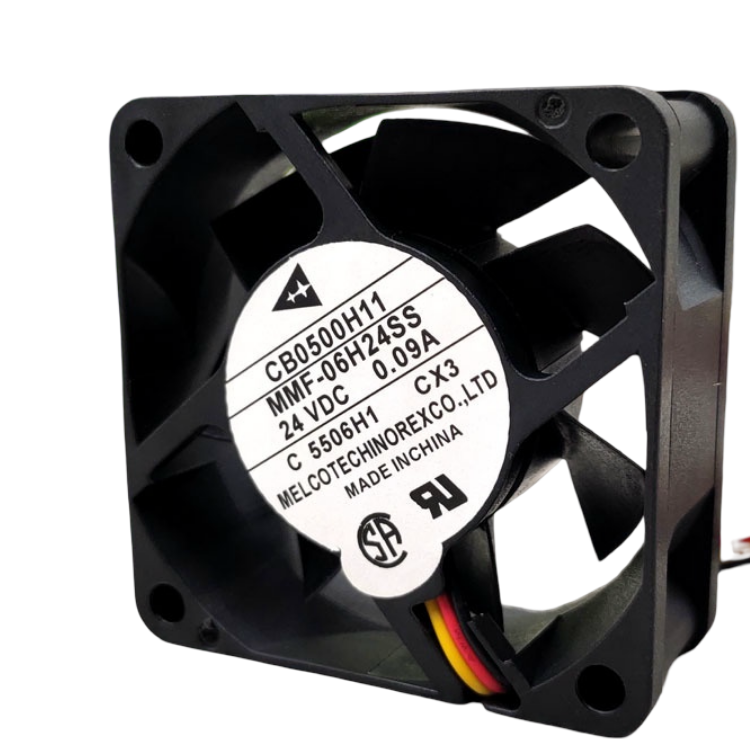

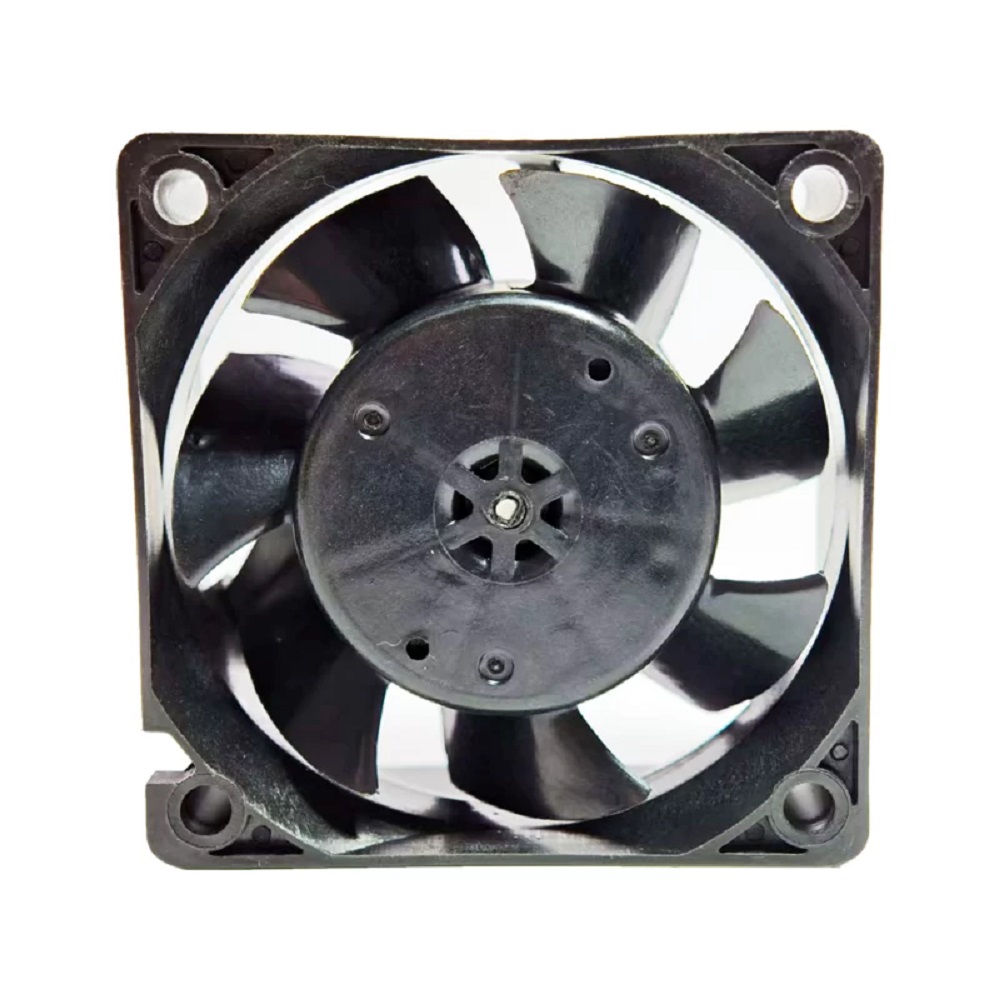

Melco MMF-06H24SS Cooling Fan

Melco MMF-06H24SS Cooling Fan Specification

Processor Speed
3000 RPM

Operating Temperature
-10 C to +70 C Celsius (oC)

Power Supply
DC

Power Rating
2.16 W

Product Type
DC Axial Cooling Fan

Application
PLC Panels, Servo Drives, CNC Machines, Inverters, Power Supplies, Industrial Control Panels, Telecommunication Equipment, Electronic Cooling Systems

Rated Voltage
24 Volt (V)

Size
60 x 60 x 25 mm

Color
Black

Weight
0.12 Kilograms (kg)

Warranty
1 Year

Cable Type
3-Wire Lead (Red, Black, Yellow)

Features
Compact Design, High Cooling Efficiency, Low Power Consumption, Low Noise Operation, Brushless DC Motor, Reliable Performance, Long Service Life, Locked Rotor Protection, Auto Restart Function, Easy Installation, Maintenance-Free Operation

Current Rating
0.09 A

Melco MMF-06H24SS Cooling Fan Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
1 Week

About Melco MMF-06H24SS Cooling Fan

The Melco MMF-06H24SS Cooling Fan is a compact and reliable DC axial cooling fan designed for industrial automation, PLCs, servo drives, CNC machines, inverters, power supplies, communication equipment, and electronic cooling systems. Featuring a Brushless DC (BLDC) motor with efficient cooling performance, this fan delivers stable airflow, low power consumption, and long service life, making it ideal for continuous industrial operation.

Product Name: Melco MMF-06H24SS Cooling Fan
Brand: Melco
Fan Type: DC Axial Cooling Fan
Model Number: MMF-06H24SS
Size: 60 x 60 x 25 mm
Size (Inch): 2.36 x 2.36 x 0.98 Inch
Rated Voltage: 24V DC
Voltage Category: 24V DC
Operating Voltage: 10.8 to 27.6V DC
Rated Current: 0.09 A
Input Power: 2.16 W
Air Flow: 18 CFM (Approx.)
Rotational Speed: 3000 RPM (Approx.)
Bearing Type: Sleeve Bearing
Current Category: 0.1 A
Noise Level: 2530 dBA (Approx.)
Number of Wires: 3 Wires
Blade Material: Plastic (UL94V-0)
Frame Material: Plastic (UL94V-0)
Motor Type: Brushless (BLDC)
Mounting Type: Panel Mount
Termination: 3-Wire Lead (Red, Black, Yellow)
Protection: Locked Rotor Protection with Auto Restart

Exceptional Cooling for Industrial Needs

The Melco MMF-06H24SS Cooling Fan is engineered to deliver outstanding thermal management for a range of industrial equipment. With a processor speed of 3000 RPM and high cooling efficiency, it combats overheating in PLC panels, servo drives, and more. Its robust brushless DC motor, paired with reliable locked rotor protection and auto restart, makes it an essential component for critical systems.

Easy Installation and Maintenance-Free Use

Installing the Melco MMF-06H24SS is effortless, thanks to its 3-wire lead configuration (red, black, yellow) and compact 60 x 60 x 25 mm size. Designed for long, uninterrupted operation, the fan features a maintenance-free mechanism, reducing downtime in industrial environments and ensuring consistent performance over time.

Designed for Durability and Efficiency

Built to withstand harsh operating conditions, the MMF-06H24SS fan operates reliably in temperatures ranging from -10C to +70C. Its low power consumption and low noise output contribute to efficient, quiet system operation, while the high-grade construction guarantees long service life and minimum maintenance intervention.

FAQ's of Melco MMF-06H24SS Cooling Fan:

Q: How do I install the Melco MMF-06H24SS Cooling Fan in my equipment?

A: The Melco MMF-06H24SS Cooling Fan features a compact 60 x 60 x 25 mm size and a 3-wire lead (red, black, yellow) configuration for straightforward installation. Simply connect the leads to the appropriate terminals on your DC power supply (24V), and securely mount the fan in your panel or device using standard fasteners.

Q: What types of applications is this cooling fan best suited for?

A: This fan is ideal for cooling PLC panels, servo drives, CNC machines, inverters, power supplies, industrial control panels, telecommunication equipment, and electronic cooling systems. Its reliable, long-lasting design ensures optimal thermal management in diverse settings.

Q: When should I use a fan with locked rotor protection and auto restart features?

A: Locked rotor protection with auto restart is beneficial in environments where motor stalls or clogging could occur, as it safeguards the fan's motor by shutting it down during a lock and automatically restarting once the blockage is removed. This extends the lifespan of the cooling system and ensures consistent operation without manual intervention.

Q: Where can I use the Melco MMF-06H24SS given its operating temperature range?

A: With an operating temperature range of -10C to +70C, this cooling fan can be used in a variety of environments, from cold storage areas to industrial spaces with elevated temperatures. It is robust enough to handle temperature fluctuations without compromising performance.

Q: What are the benefits of a brushless DC motor in this cooling fan?

A: A brushless DC motor offers higher reliability, longer service life, and reduced maintenance compared to brushed motors. It enables smooth, quiet operation and helps lower the fan's overall power consumption while delivering consistent airflow.

Q: How does the Melco MMF-06H24SS Cooling Fan improve system efficiency?

A: By offering high cooling efficiency at a low power rating of 2.16 W and operating at 3000 RPM, the fan effectively disperses heat from sensitive electronics. This prolongs component lifespan, reduces thermal-related failures, and maintains stable equipment performance.

Q: What is the warranty coverage for this fan and how do I process a claim?

A: The Melco MMF-06H24SS Cooling Fan comes with a 3-month warranty, extendable up to 1 year. For warranty claims, retain your purchase invoice and contact your supplier or importer. They will guide you through the replacement or repair process, ensuring your fan stays protected.
