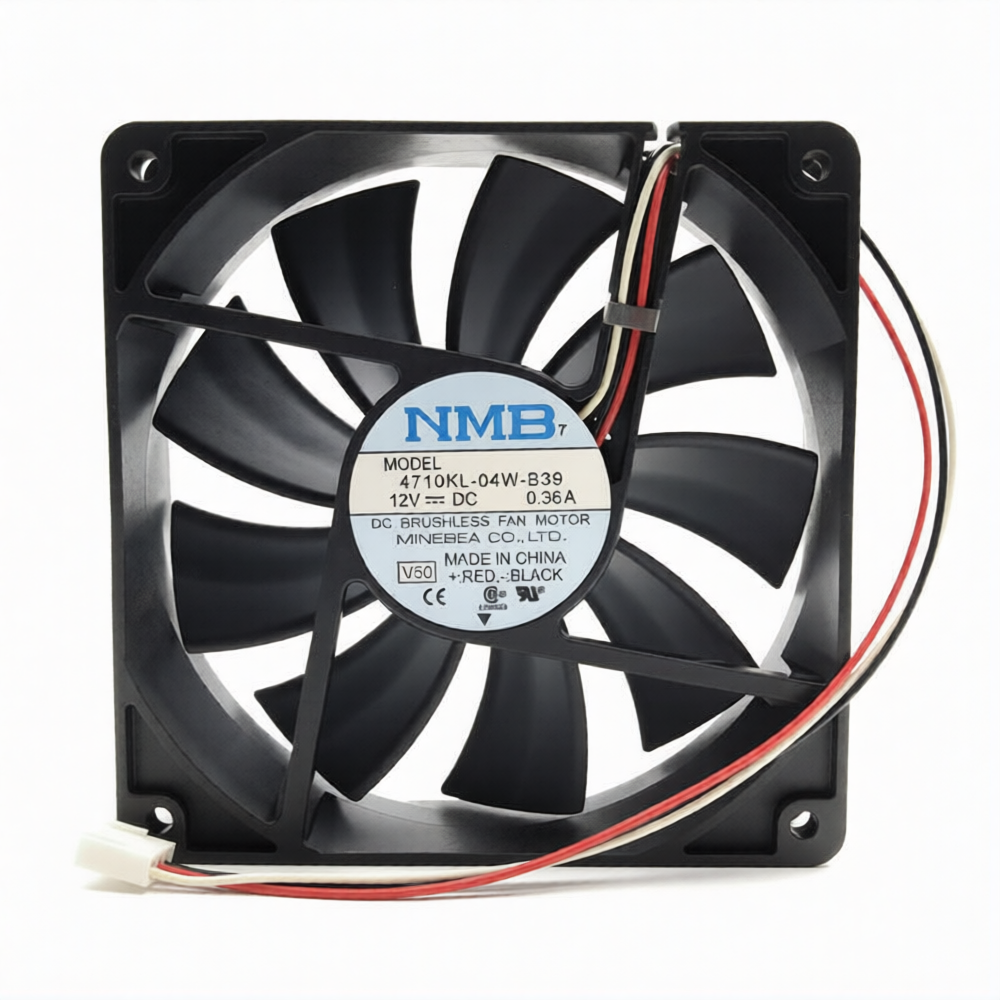

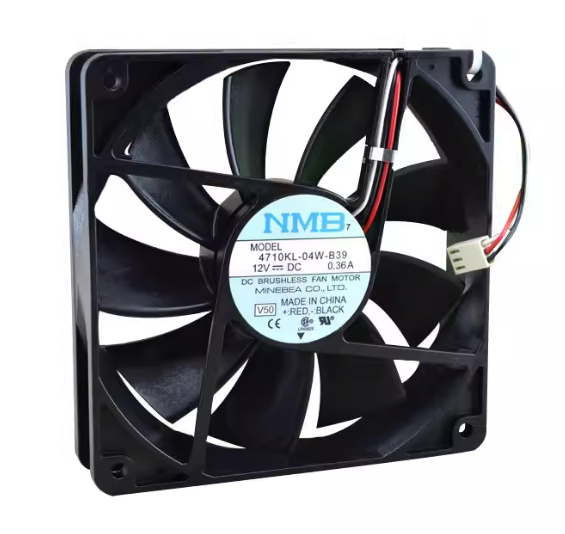

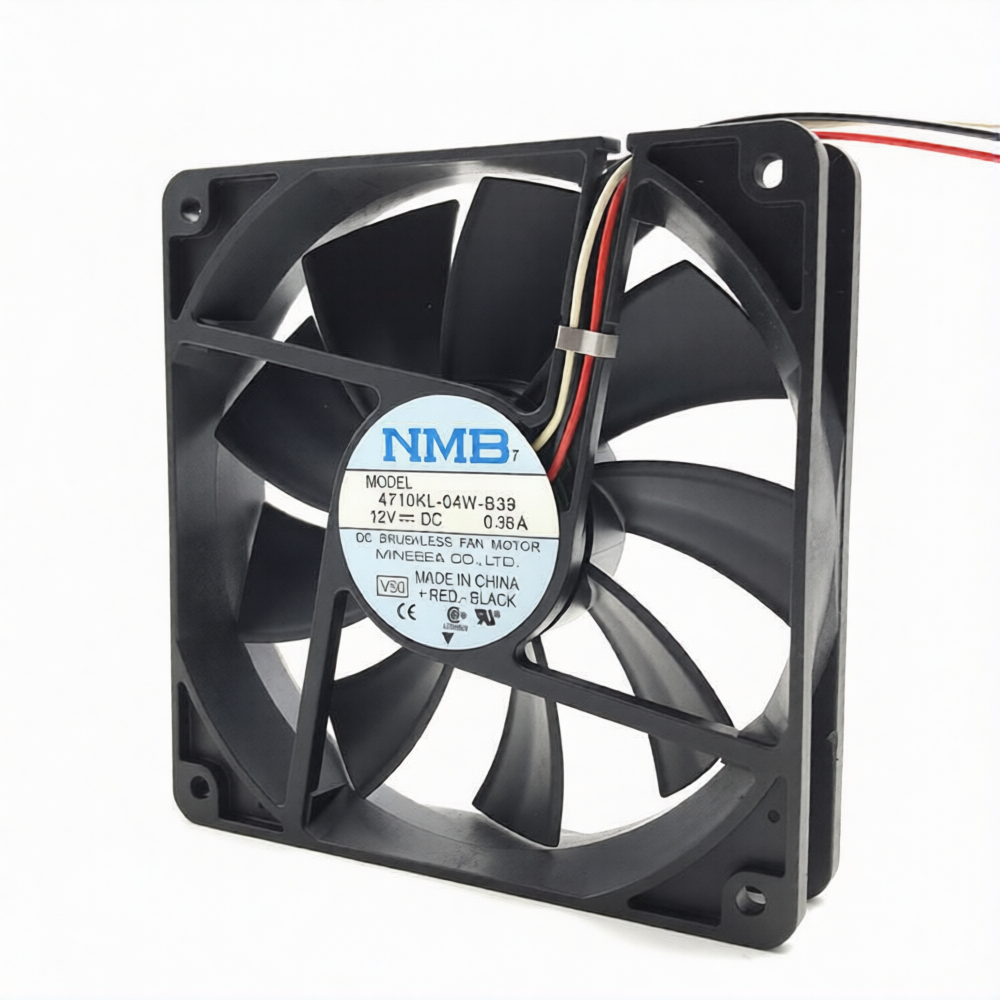

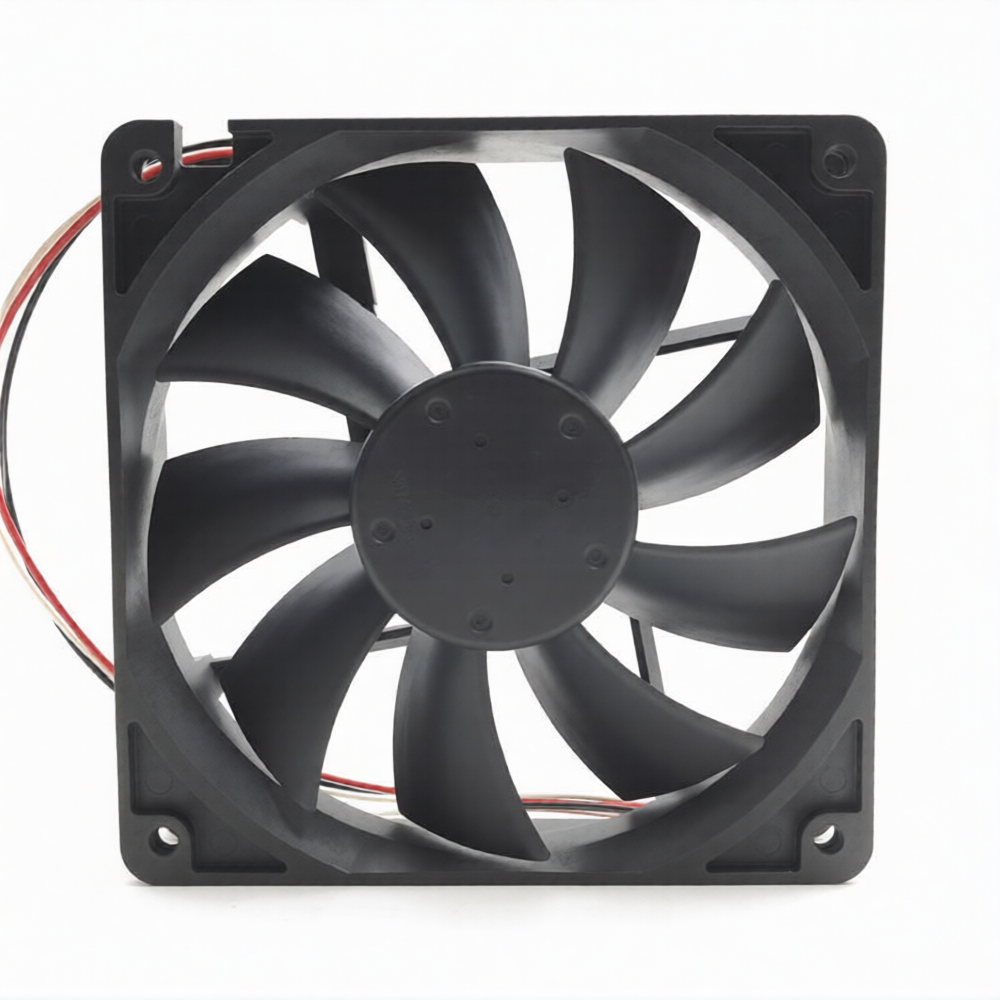

NMB-MAT 4710KL-04W-B39 Cooling Fan

NMB-MAT 4710KL-04W-B39 Cooling Fan Specification

Power Supply
DC

Input
2.16W

Power Source
DC Power

Usage
Industrial, Computers, Power Supplies, HVAC

Output
Air flow cooling

Operating Temperature
-10C to 70C

IP Rating
Not Rated

Features
Long life, Ball bearing, High reliability

Components
Fan blade, Motor, Frame

Interface
2-wire

Product Type
Cooling Fan

Application
Electronics Equipment Cooling

Rated Voltage
12V DC

Supply Voltage
12 Volts DC

Size
120mm x 120mm

Dimension (L*W*H)
120 x 120 x 25 mm

Function
Cooling and ventilating electronic equipment

Color
Black

Weight
160g

Current Rating
0.18A

Thickness
25mm

Static Pressure
0.18 inch H2O (45 Pa)

Frame Material
Plastic (UL94V-0)

Number of Blades
7

Life Expectancy
Over 60,000 hours at 25C

Fan Bearing Type
Ball Bearing

Model Number
4710KL-04W-B39

Connector Type
Lead Wires

Air Flow
85.0 CFM (2.41 m3/min)

Fan Speed
3100 RPM

Noise Level
36 dBA

NMB-MAT 4710KL-04W-B39 Cooling Fan Trade Information

Minimum Order Quantity
2 Units

Supply Ability
500 Units Per Month

Delivery Time
7 Days

About NMB-MAT 4710KL-04W-B39 Cooling Fan

Fan Type: DC Axial / Brushless Fan
Size: 120 120 25 mm
Rated Voltage: 12V DC
Current: 0.28 0.36 A
Power Consumption: 3.4 4.3 W
Speed: 2200 RPM
Air Flow: 88.2 CFM ( 2.5 m/min)
Noise Level: 35 dB
Bearing Type: Ball Bearing
Connection: 3 Wire (with sensor)
Static Pressure: 0.13 in HO
Operating Temperature: -10C to +70C

Exceptional Cooling Efficiency

Engineered for high airflow, the NMB-MAT 4710KL-04W-B39 moves up to 85.0 CFM, making it highly effective for cooling and ventilating demanding electronic equipment. Its precisely balanced, seven-blade design guarantees consistent performance while minimizing noise and vibration, even during extended use.

Built for Longevity and Reliability

With a robust ball bearing mechanism and premium plastic frame rated for flame resistance (UL94V-0), this fan is crafted to endure tough industrial environments. Its life expectancy surpasses 60,000 hours at 25C, ensuring reliable and continuous operation in various applications, from computers to HVAC systems.

Versatile Application and Easy Integration

The 4710KL-04W-B39 is versatile and straightforward to install thanks to lead wire connectors and a universal 12V DC input. Its lightweight, compact frame (120 x 120 x 25 mm) fits a wide range of housings, making it suitable for electronics cooling, industrial control systems, and more.

FAQ's of NMB-MAT 4710KL-04W-B39 Cooling Fan:

Q: How is the NMB-MAT 4710KL-04W-B39 cooling fan typically installed?

A: The fan is installed using standard mounting holes on its 120mm frame and connects via lead wires to a 12V DC power source. Its compact 25mm thickness allows it to fit easily into electronic enclosures, power supplies, or HVAC devices.

Q: What benefits does the ball bearing design offer for this fan?

A: The ball bearing design ensures a long lifespan-over 60,000 hours at 25C-and supports reliable, maintenance-free operation in both vertical and horizontal mounting positions, which is essential for industrial and continuous-use environments.

Q: When should this fan be used over sleeve-bearing alternatives?

A: This fan is preferable when extended operation, higher reliability, and minimal maintenance are required, such as in industrial machines, servers, or power supplies with prolonged usage cycles.

Q: Where can the 4710KL-04W-B39 fan be used effectively?

A: It is ideal for cooling and ventilating a variety of equipment including electronic systems, computers, power supplies, and HVAC units, especially in settings that demand high airflow and quiet performance.

Q: What is the process for connecting the fan electrically?

A: The fan is powered with 12V DC through its lead wires in a simple 2-wire setup, making connection straightforward for technicians and system integrators.

Q: How does the fan's high airflow benefit electronic equipment?

A: Its strong airflow (85.0 CFM) efficiently dissipates heat from critical components, preventing overheating and enhancing equipment reliability and longevity, particularly in dense or high-power assemblies.

Q: What features contribute to its long operational life?

A: Long-life ball bearings, a flame-retardant plastic frame, and high-quality components ensure durability and consistent performance even in demanding conditions and elevated temperatures.
