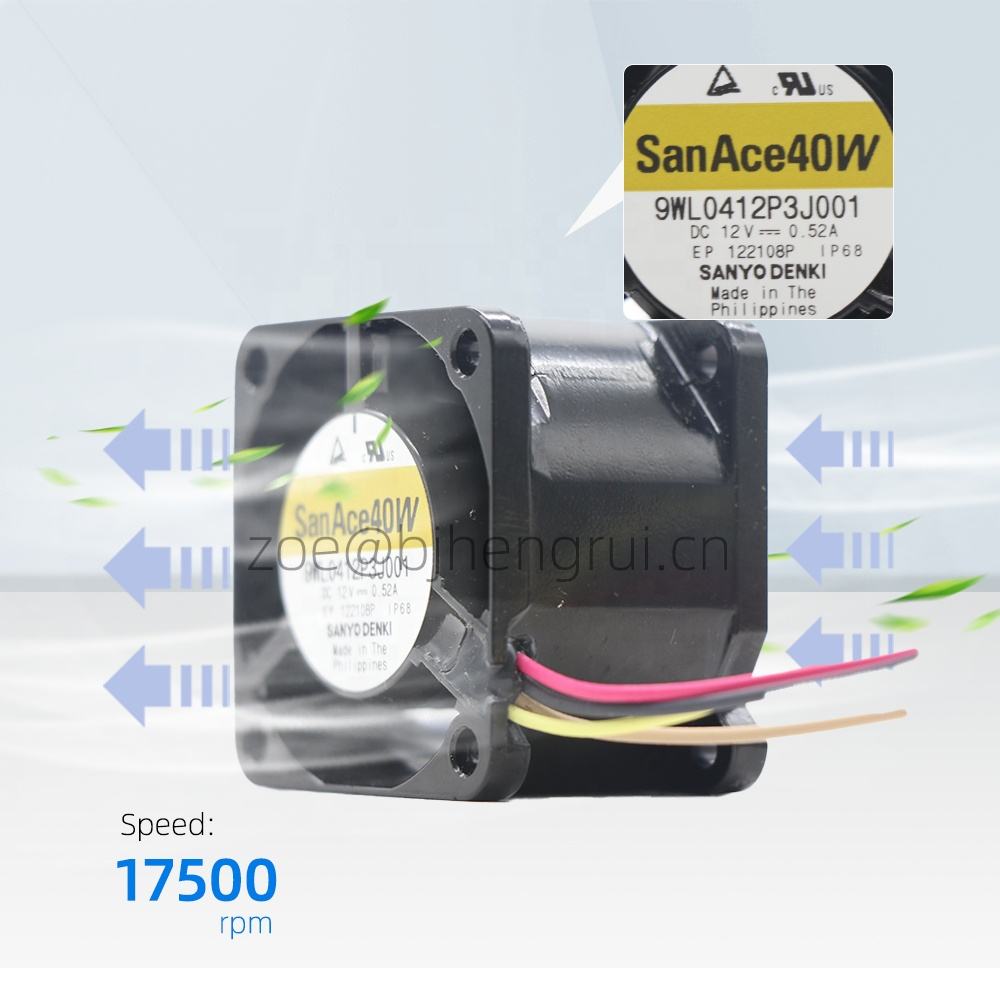

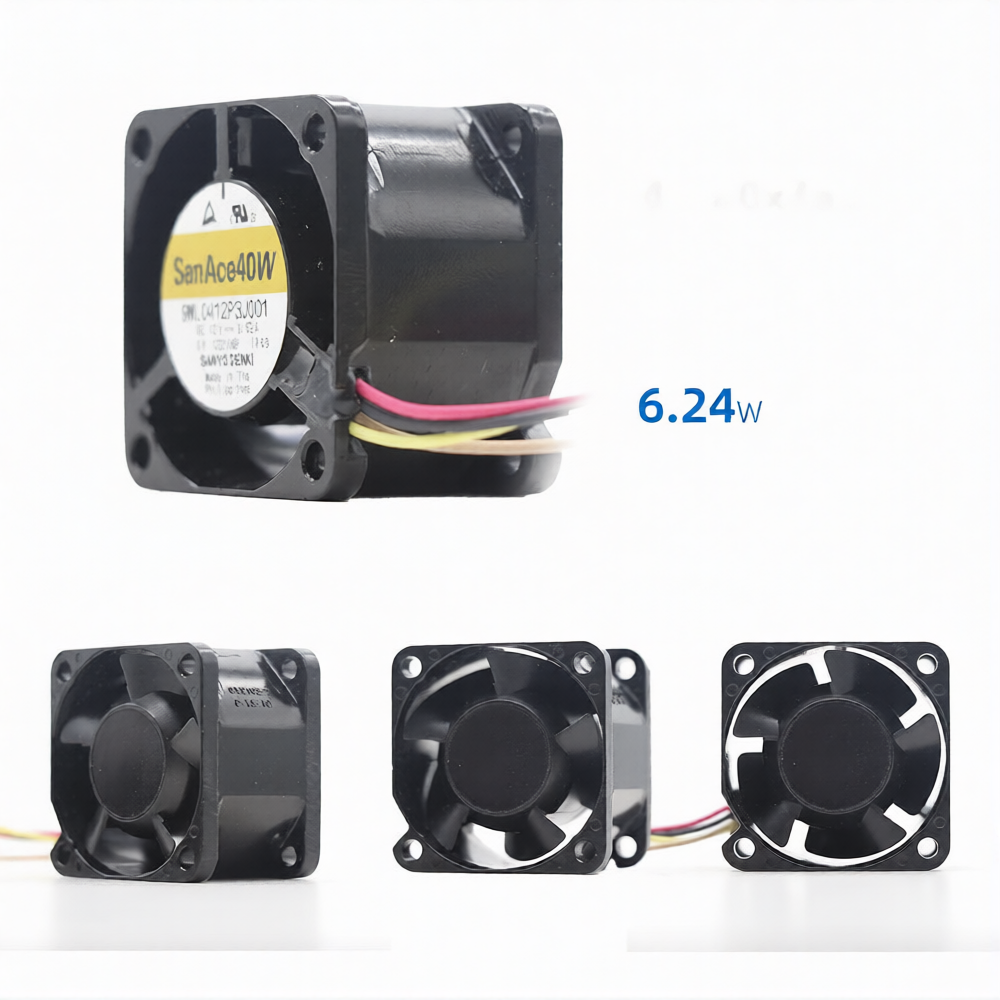

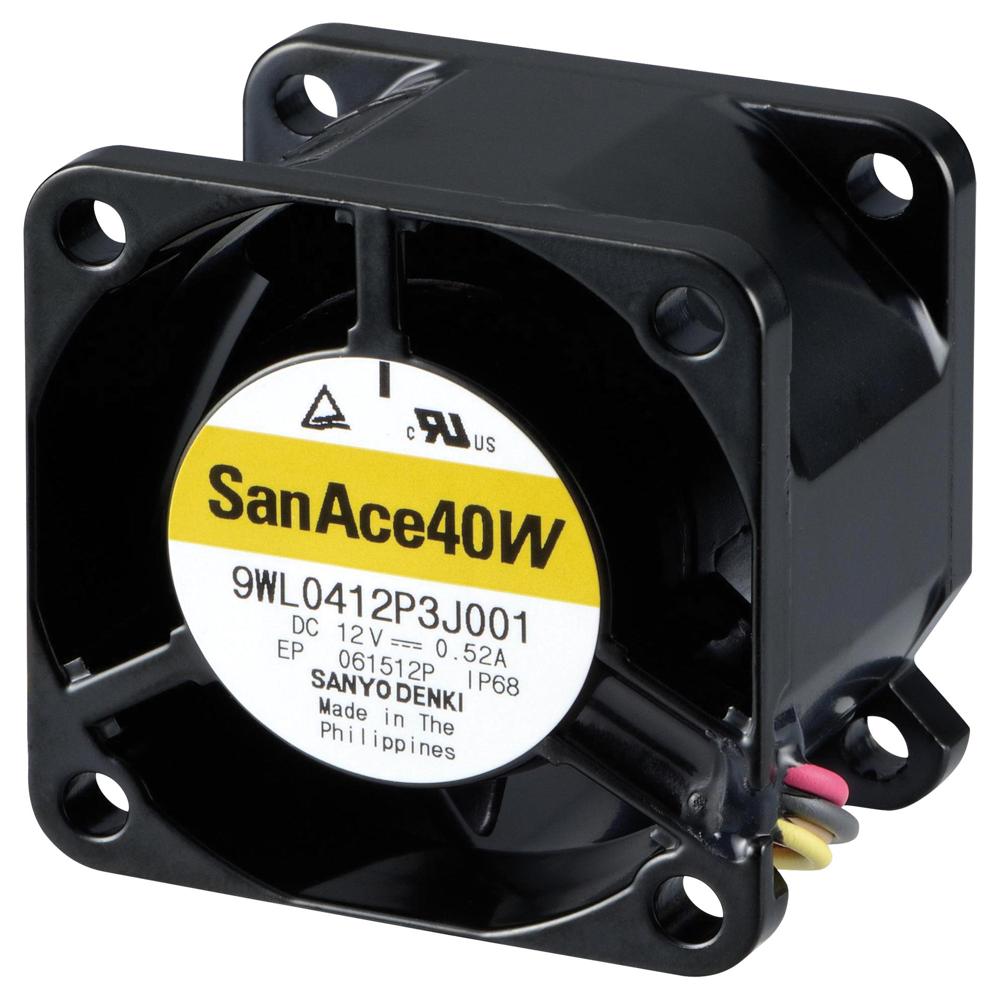

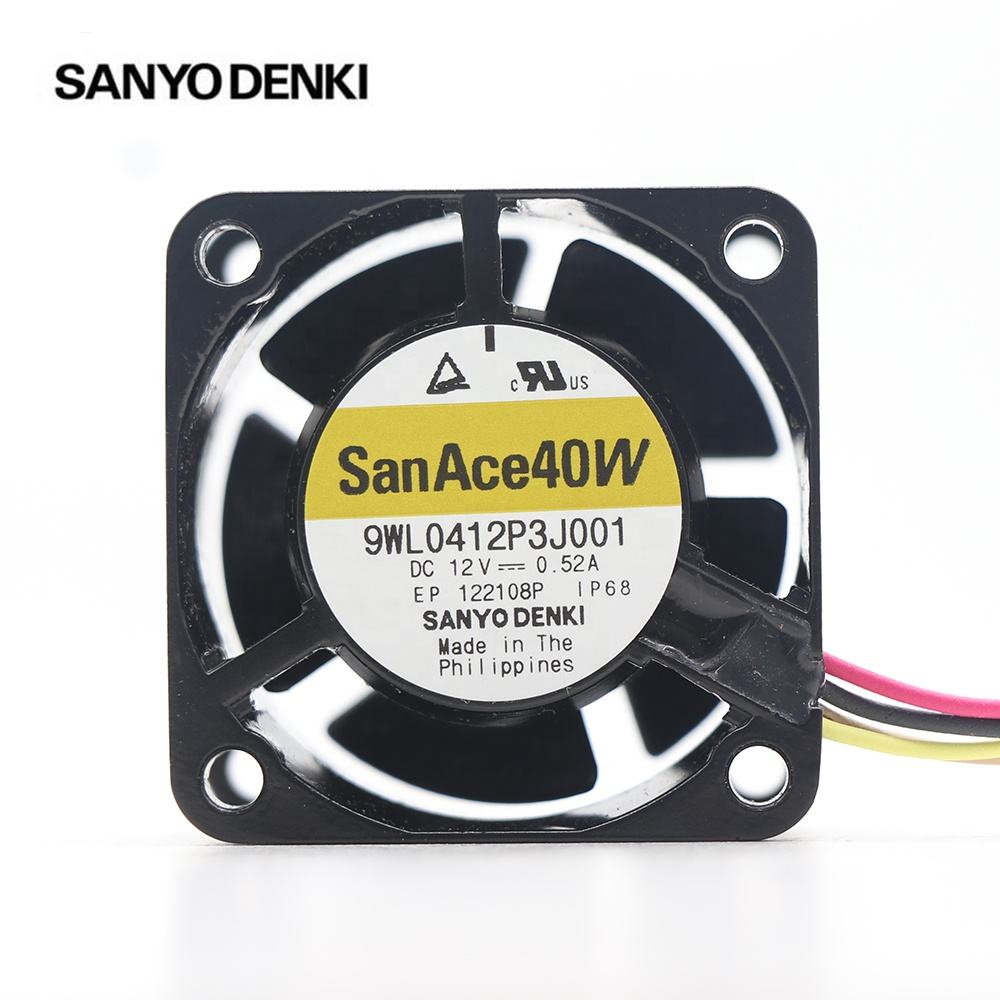

Sanyo San Ace 9WL0412P3J001 Cooling Fan

Sanyo San Ace 9WL0412P3J001 Cooling Fan Specification

Operating Temperature
-20C to +70C

IP Rating
IP21

Input
DC

Interface
2-wire

Power Source
DC Powered

Usage
Industrial Equipment, Electronics, Computers

Features
Long life, High Reliability, Low Noise

Output
Air Flow (Cooling)

Power Supply
DC

Components
Cooling Fan Assembly

Product Type
Axial Cooling Fan

Application
Cooling and Ventilation

Rated Voltage
24 Volt (V)

Supply Voltage
12V DC

Size
40mm

Dimension (L*W*H)
40mm x 40mm x 25mm

Function
Cooling

Color
black

Weight
Approx. 55g

Rated Current
0.52 Ampere (amp)

Thickness
25mm

Current Rating
0.13A

Max Static Pressure
0.141 in H2O (35 Pa)

Noise Level
28 dB(A)

Max Air Flow
15.8 CFM (0.45 m3/min)

Life Expectancy
40,000 hours at 60C

Connector Type
Lead Wires

Frame Material
Plastic (UL94V-0)

No. of Blades
7

Bearing Type
Ball Bearing

Model Number
9WL0412P3J001

Sanyo San Ace 9WL0412P3J001 Cooling Fan Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
80 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Sanyo San Ace 9WL0412P3J001 Cooling Fan

Brand: SANYO DENKI
Model No.: 9WL0412P3J001
Series: San Ace 40 (Splash Proof Fan)
Fan Type: DC Axial Cooling Fan
Fan Size: 40 mm 40 mm 28 mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.8 13.2 VDC
Current Rating: 0.52 A
Power Consumption: 6.24 W
Speed: 17,500 RPM
Airflow: 22.2 CFM
Static Pressure: 1.61 inHO
Noise Level: 51 dBA
Bearing Type: Ball Bearing
Sensor Type: Pulse Sensor (Tach Output)
PWM Control: Yes
Protection Rating: IP68 (Dust & Waterproof)
Operating Temperature: -20C to +70C
Life Expectancy: 150,000 hours @ 60C
Frame Material: Aluminum
Mounting Type: Panel Mount

Long-Lasting Performance

Thanks to high-grade ball bearings and a sturdy plastic frame (UL94V-0), the 9WL0412P3J001 cooling fan offers an impressive lifespan of up to 40,000 hours at 60C. Its durability supports continuous operation in demanding environments and reduces downtime due to maintenance.

Versatile Applications

Engineered for a broad range of systems, this 40mm fan is suitable for cooling industrial machinery, electronic equipment, and computers. Its compact size and reliable airflow performance make it an excellent choice for both new builds and replacement projects.

Quiet and Efficient Cooling

The fan combines a low noise output of 28 dB(A) with maximum airflow of 15.8 CFM, ensuring powerful yet silent operation. This balance makes it optimal for situations where efficient thermal management is required without increasing ambient noise levels.

FAQ's of Sanyo San Ace 9WL0412P3J001 Cooling Fan:

Q: How is the Sanyo San Ace 9WL0412P3J001 cooling fan installed?

A: The 9WL0412P3J001 fan is designed for straightforward installation using its lead wire connector. It fits standard 40mm x 40mm x 25mm mounting configurations, and its lightweight construction allows for quick integration into various electronic devices or equipment.

Q: What benefits does the ball bearing system provide in this fan?

A: Ball bearings enhance the fan's durability and longevity by minimizing friction and wear, supporting up to 40,000 operating hours at elevated temperatures. This design also ensures stable and reliable performance even with continuous use.

Q: When should I use this cooling fan for my equipment?

A: This fan is ideal when your devices require enhanced thermal management, especially in high-temperature, industrial, or electronic environments. Its efficient airflow and high reliability make it suitable for critical cooling tasks that demand long service life.

Q: Where can the Sanyo San Ace 9WL0412P3J001 be utilized?

A: The fan is versatile enough for a variety of uses, including industrial machinery, electronic cabinets, and computer systems. It is especially beneficial in settings where space is limited, but reliable and efficient airflow is necessary.

Q: What is the process for maintaining this fan to ensure optimal performance?

A: Maintenance typically involves keeping the fan free from dust and debris, ensuring unobstructed airflow, and periodically checking the wiring connections. The durable build allows it to run with minimal upkeep, contributing to long-term consistent cooling.

Q: How does the IP21 rating benefit the user?

A: The IP21 protection class shields the fan from vertical water drips and solid objects larger than 12mm. This makes it suitable for most indoor industrial and electronic applications, adding a layer of reliability against minor environmental risks.
