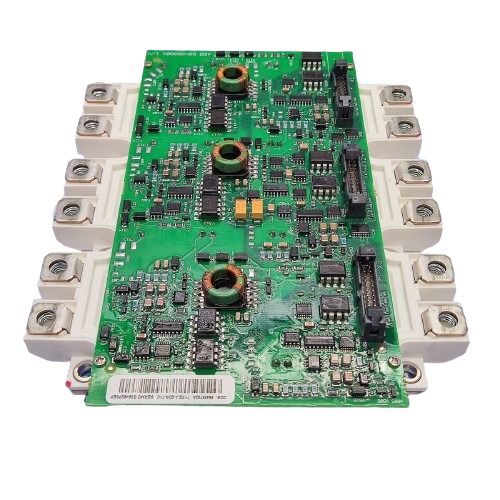

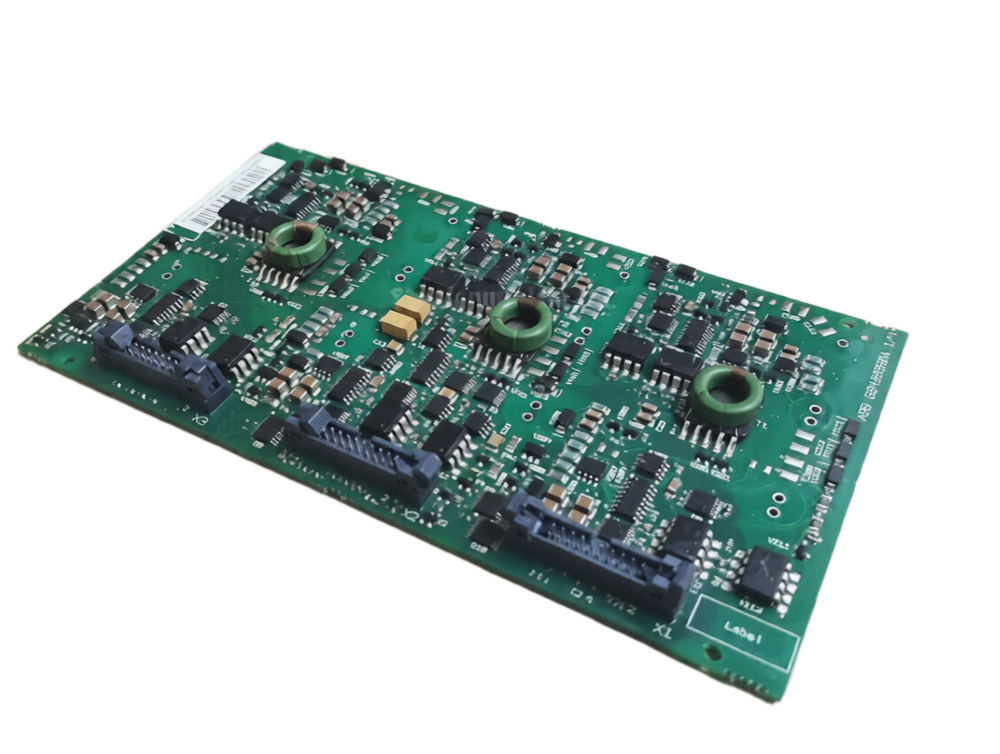

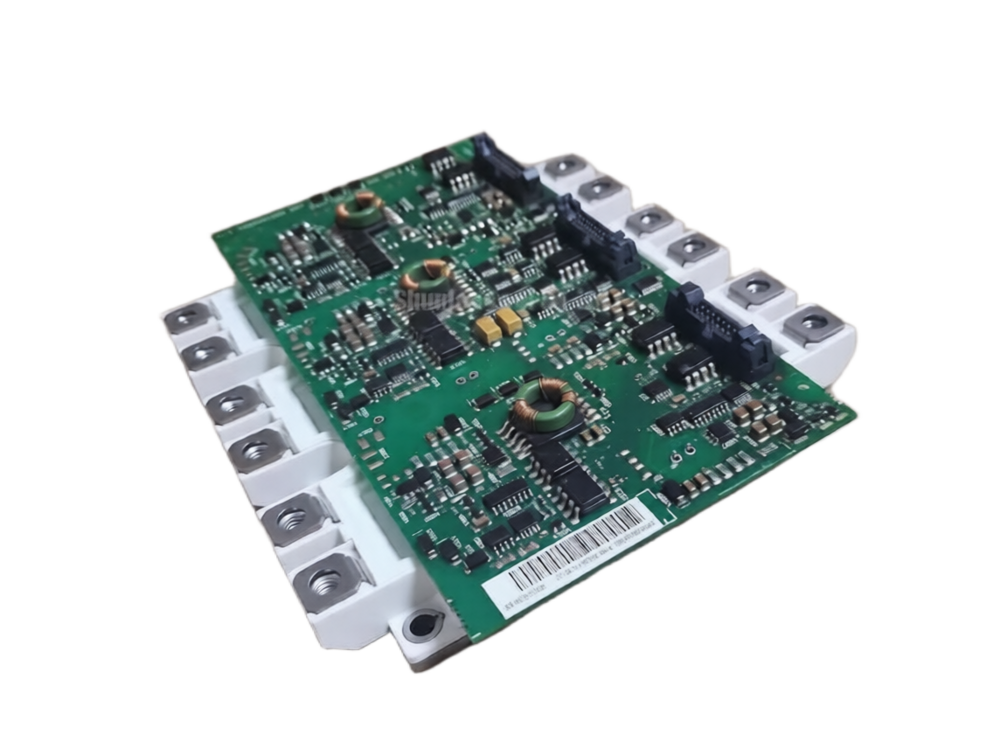

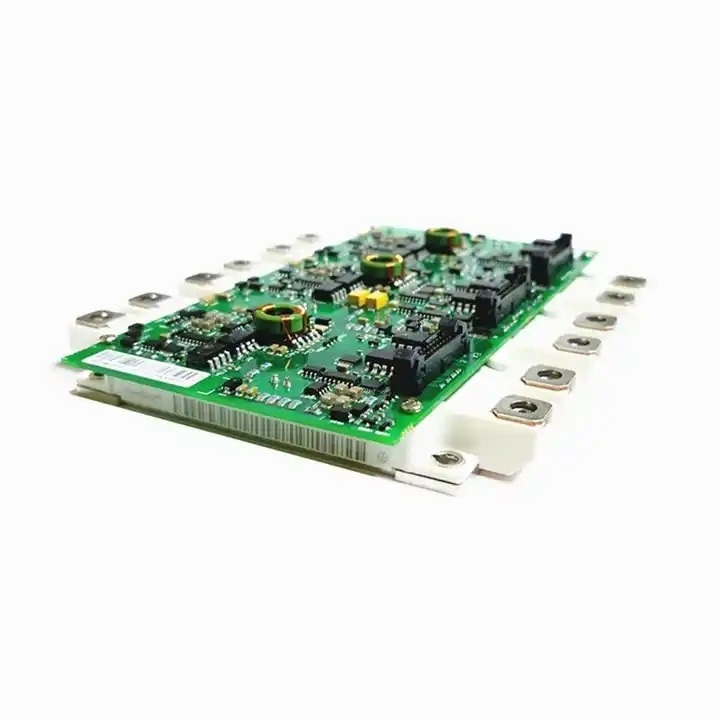

INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card
INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card Specification
- Response Time
- Fast switching (<500 ns)
- Power Source
- External DC supply
- IP Rating
- Not rated (for enclosed use)
- Interface
- Standard control terminal blocks and connectors
- Components
- Driver ICs, isolation transformers, connectors, passive components
- Display Type
- No display
- Usage
- Industrial power electronics, inverter drives, motor control
- Sensors Specification
- Includes fault detection and feedback paths
- Input
- Control signals (PWM, enable, fault feedback)
- Features
- Short-circuit and overcurrent protection, isolation, fast gate drive, status indication
- Operating Temperature
- -40C to +85C
- Output
- Gate drive signals for IGBT module (FS450R17KE3)
- Power Supply
- External DC power supply
- Thermal Conductivity
- Designed for optimal heat dissipation in industrial environments
- Product Type
- IGBT Module Drive Card
- Application
- Drives for FS450R17KE3-AGDR-71C IGBT module, general power conversion
- Rated Voltage
- 1700 V
- Supply Voltage
- 15 V DC (typical)
- Size
- Medium-size PCB
- Dimension (L*W*H)
- Approx. 180 mm x 70 mm x 20 mm
- Function
- IGBT Module Driver Card for power switching and control
- Color
- Green (PCB), Black/White components
- Weight
- Approx. 180 g
- Current Rating
- 450 A (IGBT current capability)
- Thickness
- Approx. 2 mm (PCB)
- Capacity
- Supports up to 450 A switching capacity
- Frequency
- Up to 20 kHz switching
- Protection Functions
- Short Circuit, Over Current, Gate Fault
- Connector Type
- Screw Terminals and Pin Headers
- Status Indication
- LED for Power and Fault
- Control Method
- Optically Isolated
- Fault Feedback
- Yes (LED and Output Signal)
- Isolation Voltage
- 2500V RMS (Input to Output)
- Humidity Range
- 0-95% RH Non-Condensing
- RoHS Compliance
- Yes
- Switching Technology
- PWM Compatible
- Cooling Requirement
- External Cooling of Power Module Required
- Signal Isolation
- Opto-Isolated Input
- PCB Material
- FR4, Flame Retardant
- Mounting Type
- Panel or Chassis Mount
- Compatibility
- For Infineon FS450R17KE3 IGBT Module
INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Paypal
- Supply Ability
- 12 Pieces Per Month
- Delivery Time
- 3 Week
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
About INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card
Configuration Sixpack ThreePhase Inverter Configuration
Package Case EconoPACK B Module Package
NTC Thermistor Integrated NTC Temperature Sensor Included
IGBT Type Trench Field Stop IGBT Technology
Operating Temperature 40C to 150C Junction Temperature Range
Brand Infineon Technologies
Application Industrial AC Drives Servo Drives Solar Inverters Wind Energy Systems UPS Systems Welding Equipment HighPower Switching Applications
CollectorEmitter Voltage 1700 V
Collector Current 450 A
Gate Driver Card AGDR71C Intelligent Gate Driver
Mounting Type Chassis Mount
Cooling Method Heatsink Based Air Liquid Cooling
Protection Features DESAT Protection Under Voltage Lockout UVLO Short Circuit Protection
Switching Frequency HighSpeed Switching Performance
Technology TrenchSTOP IGBT3 Technology
Module Type High Power IGBT Module with Driver Card
Usage Motor Control and Power Conversion Applications
Complete Driver Solution for FS450R17KE3 IGBT Modules
Tailored specifically for the Infineon FS450R17KE3 IGBT module, this drive card guarantees seamless integration into industrial power conversion systems. Its medium-sized PCB design, combined with bracket or bolt mounting options, ensures compatibility with diverse control cabinets and backplanes.
Reliable Protection and Rapid Response
Equipped with comprehensive protection features such as short-circuit and overcurrent detection, the FS450R17KE3-AGDR-71C drive card ensures safe module operation. Its fast response time of less than 500 ns and robust isolation mechanisms via optocouplers and transformers enhance safety and operational reliability.
Versatile Industrial Applications
This drive card excels in a wide array of settings, including wind turbine converters, industrial inverters, and motor drives. Its support for up to 20 kHz switching and operation across a wide temperature range makes it suitable for harsh and dynamic industrial environments.
FAQ's of INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card:
Q: How is the FS450R17KE3-AGDR-71C drive card typically mounted in an industrial system?
A: The drive card is designed for secure bracket or bolt mounting onto the system's backplane, providing stable integration within control cabinets or power electronics assemblies.Q: What makes this drive card beneficial for industrial power electronics applications?
A: Its combination of fast (<500 ns) switching, robust short-circuit and overcurrent protection, isolation, and support for up to 450A switching enhances operational safety and boosts performance in industrial environments.Q: Where can the FS450R17KE3-AGDR-71C drive card be most effectively used?
A: This drive card is ideally used in industrial inverters, wind turbine converters, motor drives, uninterruptible power supplies (UPS), and other demanding power conversion systems requiring high switching capacity and reliability.Q: What is the process for connecting the control signals to the drive card?
A: Standard control terminal blocks and connectors simplify wiring of input control signals, such as PWM, enable, and fault feedback, ensuring straightforward integration into your control systems.Q: What diagnostics and feedback are available on the drive card?
A: LED indicators provide real-time visual feedback for fault and operational status, helping maintenance teams quickly identify operating conditions or issues during system checks.Q: What are the typical supply and gate drive voltage requirements for this card?
A: It typically operates on a 15V DC external supply, providing +15V and -8V gate drive voltage to the IGBT module for optimal switching performance.Q: How does the drive card ensure reliable operation in harsh environments?
A: Optional conformal coating can be applied for protection in harsh or high-humidity environments, safeguarding components from moisture, dust, and chemical exposure.Tell us about your requirement
