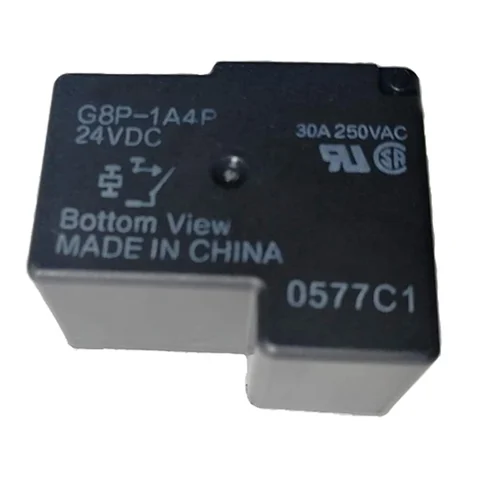

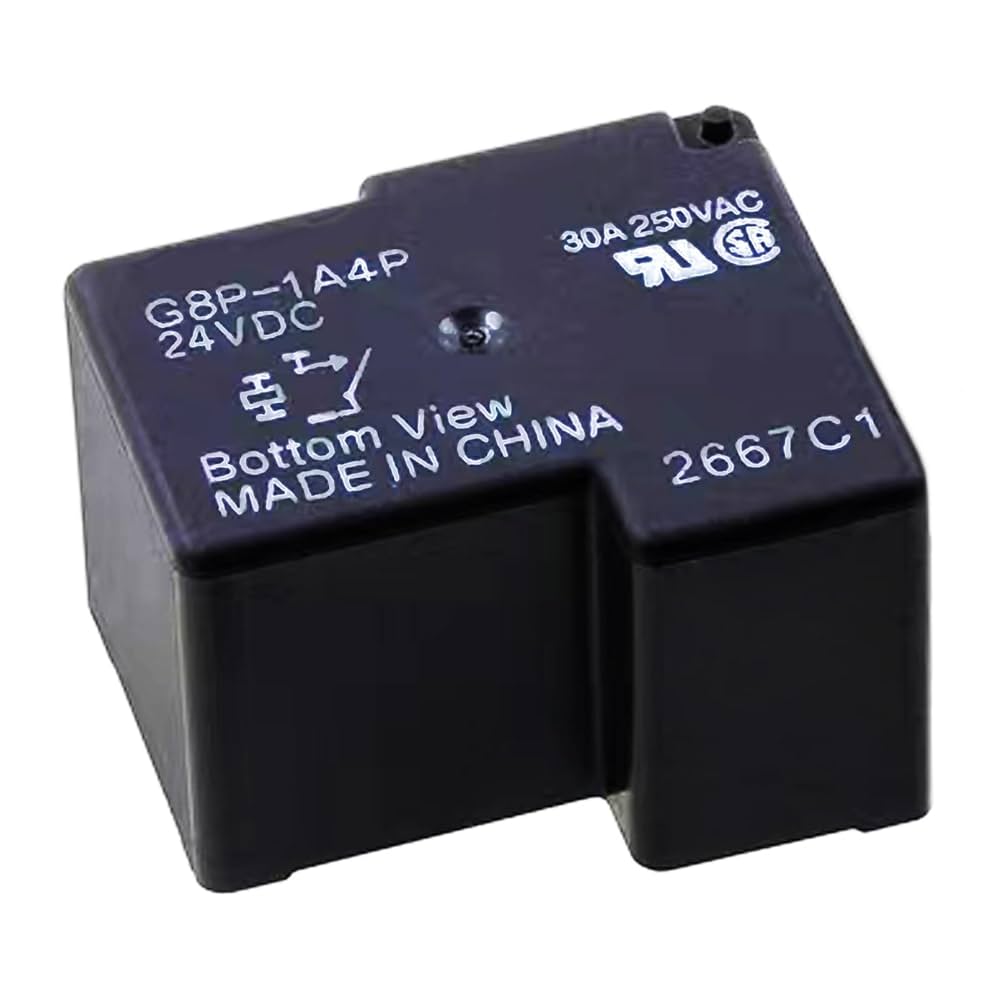

G8P-1A4P-24VDC Relay T Type

G8P-1A4P-24VDC Relay T Type Specification

Usage
The G8P-1A4P-24VDC relay is used to control high-power electrical loads with a low-voltage DC signal.

Power Supply
DC

Product Type
Electromechanical Power Relay

Application
Power switching in HVAC, appliances, industry, automotive.

Rated Voltage
24 Volt (V)

Function
The G8P-1A4P-24VDC relay is a "switch."

Color
black

Weight
36 Grams (g)

Warranty
1 year

Material
plastic

Thickness
20.1 Millimeter (mm)

G8P-1A4P-24VDC Relay T Type Trade Information

Minimum Order Quantity
15 Pieces

Delivery Time
1 Week

About G8P-1A4P-24VDC Relay T Type

Up to 30 A switching capacity in compact package
Available with quick-connect terminals for easy load connecting
UL Class F coil insulation standard
Complies with UL 873 and UL 508 column A spacings up to 300 V
Minimum 6kV Impulse Surge Withstand
Ideal for home and industrial appliances, HVAC (heating, ventilating, and air conditioning), and many other applications
UL/CSA approvals, VDE pending

Versatile Power Switching

The G8P-1A4P-24VDC Relay is engineered for handling a variety of demanding applications, from HVAC systems and industrial machinery to automotive electronics and home appliances. Its versatile design makes it a preferred choice for those seeking reliable switching solutions for high-power circuits.

Compact Design and Durable Material

With a thickness of just 20.1 mm and a sturdy plastic housing, this relay is both space-saving and durable. Despite weighing only 36 grams, its construction ensures resistance to wear, making it ideal for installations where size and longevity are key considerations.

Reliable Performance and Hassle-free Operation

Operating at a 24V DC rated voltage, the G8P-1A4P-24VDC relay guarantees efficient switching with low power consumption. Its easy integration into different systems and a 1-year warranty ensure dependable operational continuity and customer satisfaction.

FAQs of G8P-1A4P-24VDC Relay T Type:

Q: How does the G8P-1A4P-24VDC relay function in an electrical circuit?

A: This relay acts as an electrically operated switch, enabling a low-voltage DC signal to safely control high-power loads. It isolates the control circuit from the load circuit, providing both operational efficiency and safety in various applications.

Q: What are the primary benefits of using this relay in power switching applications?

A: The G8P-1A4P-24VDC relay offers compact size, lightweight design, reliable switching capability, and long-lasting durability. Its plastic construction and efficient power handling make it ideal for demanding scenarios where space and safety are critical.

Q: When should I consider using this relay in my project?

A: Choose the G8P-1A4P-24VDC relay when you need to switch high-power devices using a low-voltage DC control signal, such as in home appliances, HVAC systems, automotive systems, or industrial equipment.

Q: Where can this relay be installed or applied most effectively?

A: This relay is highly suitable for use in HVAC systems, industrial automation, automobile circuits, and household appliances, providing flexibility across numerous switching scenarios.

Q: What is the process for integrating the G8P-1A4P-24VDC relay into an existing system?

A: To integrate this relay, connect its coil terminals to a 24V DC low-voltage control circuit, then wire the load circuit to its switching terminals. Secure the relay within the allocated space, ensuring proper insulation and safe installation in compliance with local standards.

Q: How does the warranty support benefit users of this relay?

A: With a 1-year warranty, users are assured of product quality and support in case of manufacturer defects, enhancing reliability and peace of mind during operation.
