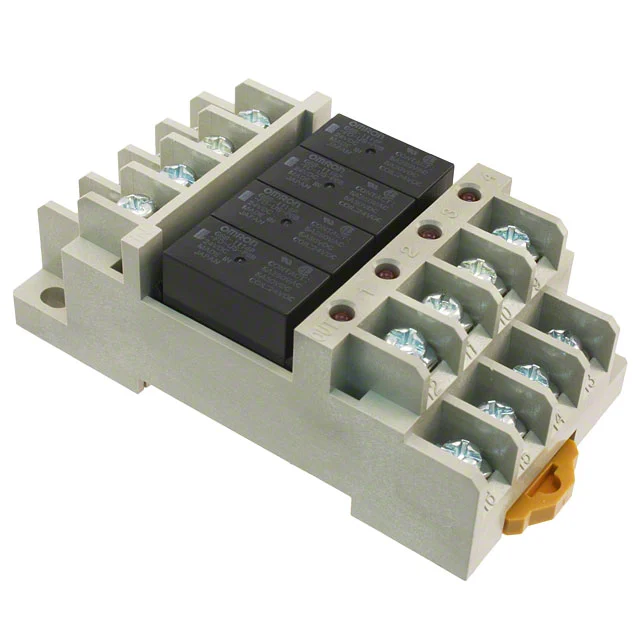

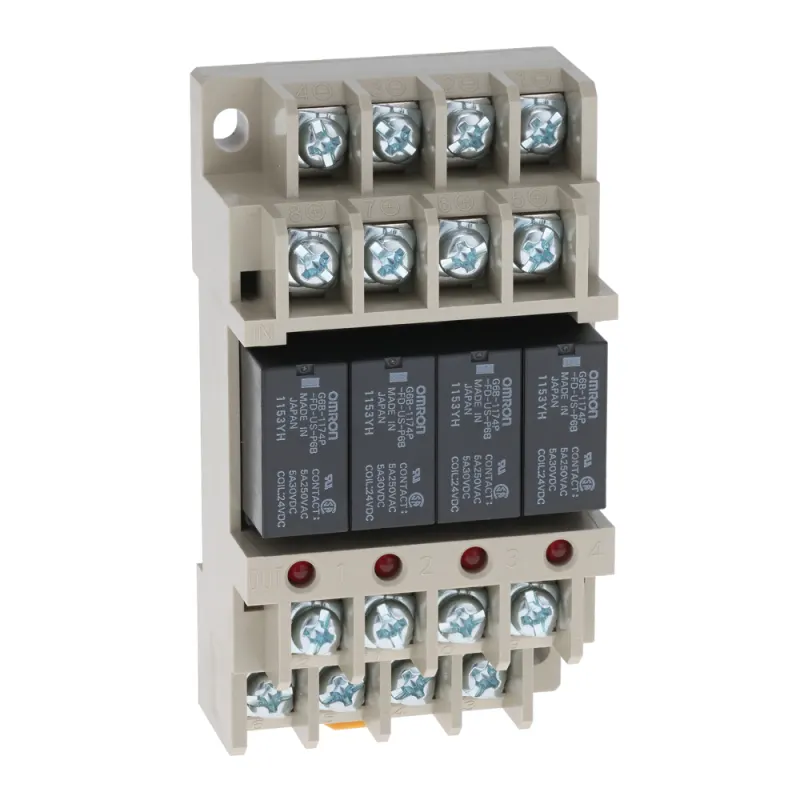

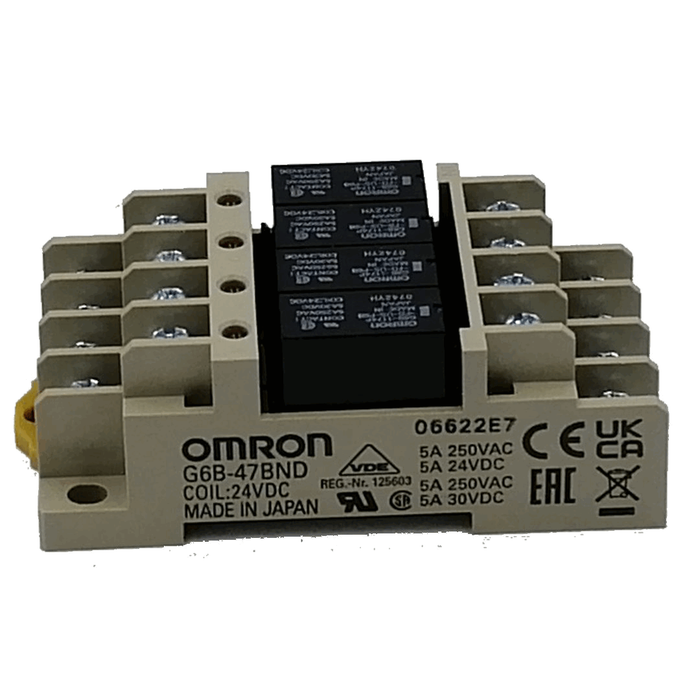

Omron G6B-47BND-DC24 Terminal Relay

Omron G6B-47BND-DC24 Terminal Relay Specification

Power Supply
DC

Components
24 VDC coil, relay contacts, LED indicator, surge diode, screw terminals, plastic housing

Usage
Industrial control and signal switching

Product Type
Terminal Relay

Application
Connecting PLC outputs to solenoid valves, motors, etc.

Rated Voltage
24 Volt (V)

Dimension (L*W*H)
78mm (Height) x 43mm (Width) x 28mm (Depth) Millimeter (mm)

Function
Switches multiple circuits via 24 V DC control in a compact terminal relay.

Color
black

Weight
75 Grams (g)

Warranty
1 Year

Material
plastic housing

Rated Current
5 Ampere (amp)

Thickness
28 Millimeter (mm)

Current Rating
5 Amps

Omron G6B-47BND-DC24 Terminal Relay Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
100 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron G6B-47BND-DC24 Terminal Relay

The Omron G6B-47BND-DC24 is a 4-pole, 24VDC general-purpose terminal relay, featuring compact G6B mini-relays, LED indicators, surge protection diodes, and AgSnIn contacts, designed for easy wiring in control panels (like PLC interfaces) to switch up to 5A loads, often used with P6B sockets for quick replacement.

Key Specifications & Features:

Type: Terminal Relay (4-Pole, G6B Series)
Coil Voltage: 24 VDC
Contact Rating: 5 Amps
Poles: 4
Construction: Sealed plastic, compact
Indicators: Built-in LED for operation
Protection: Built-in diode for coil surge absorption (ND type)
Contacts: Ag Sn In (Silver Tin Indium) for inductive/capacitive loads
Application: Connecting PLC outputs to solenoid valves, motors, etc.
Socket: Requires a P6B socket for mounting and easy replacement

Compact Solution with Versatile Applications

This terminal relay is engineered to efficiently bridge PLC outputs with loads such as solenoid valves and motors. Its slender form factor (78x43x28mm) saves panel space, while robust 5A switching capability supports a range of moderate current devices. Its black plastic enclosure ensures both safety and longevity in demanding industrial environments.

Effortless Installation and Maintenance

Equipped with screw terminals, the Omron G6B-47BND-DC24 enables quick, secure wiring. An integrated LED indicator provides immediate visual feedback on relay status, while the surge diode enhances protection for connected equipment, reducing risks of electrical surges and extending operational life.

FAQ's of Omron G6B-47BND-DC24 Terminal Relay:

Q: How does the Omron G6B-47BND-DC24 terminal relay benefit industrial automation systems?

A: This relay streamlines the process of switching multiple control circuits, allowing for organized connection between PLC outputs and field devices like solenoid valves and motors. Its compact design and integrated features, such as the LED indicator and surge diode, enhance reliability and ease integration into existing automation systems.

Q: What is the recommended process for wiring the Omron G6B-47BND-DC24 relay?

A: To wire the relay, connect the 24 V DC control voltage to the coil terminals. Secure load and power connections to the relay output screw terminals. Ensure proper polarity and use secure, tight connections for consistent operation. Always disconnect power before wiring for safety.

Q: When should I use the Omron G6B-47BND-DC24 instead of a standard relay?

A: Use this terminal relay when you need to switch multiple circuits via a PLC or control system with compact dimensions and added features, such as LED status indication and integrated circuit protection. It is especially suited for applications requiring DIN rail or panel mounting in industrial environments.

Q: Where is this terminal relay typically installed in industrial settings?

A: The Omron G6B-47BND-DC24 is commonly installed within control panels or distribution boards, mounted on a DIN rail or screw-fixed to a backplane. It is positioned between PLC outputs and actuation devices to neatly manage signal distribution and circuit switching.

Q: What devices can be connected to this relay for signal switching?

A: Commonly connected devices include solenoid valves, small motors, signal lamps, alarms, and other industrial equipment that operate on 24 V DC and draw current up to 5 amps, making it ideal for varied automation and control circuitry.

Q: How does the integrated LED indicator aid in usage?

A: The built-in LED indicator instantly displays the relay's operational status, assisting maintenance personnel in troubleshooting and confirming relay activation without needing additional measuring instruments.
