G2R-1-SN-AC230 General-purpose Relay

G2R-1-SN-AC230 General-purpose Relay Specification

Power Supply
DC

Usage
General electrical control and switching in industrial and automation circuits

Product Type
General Purpose, Power Relay

Application
General industrial control, power management, automation & process control

Rated Voltage
230 Volt (V)

Dimension (L*W*H)
29 13 35.5 Millimeter (mm)

Function
Electromechanical SPDT relay that energizes its coil at 230 VAC to switch one circuit on/off through its contacts

Color
Transparent/clear body with red LED indicator

Weight
20 Grams (g)

Warranty
1 year

Rated Current
10 Ampere (amp)

Material
plastic (transparent/flame-retardant) housing

Thickness
13 Millimeter (mm)

G2R-1-SN-AC230 General-purpose Relay Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Paypal

Supply Ability
300 Pieces Per Month

Delivery Time
2 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About G2R-1-SN-AC230 General-purpose Relay

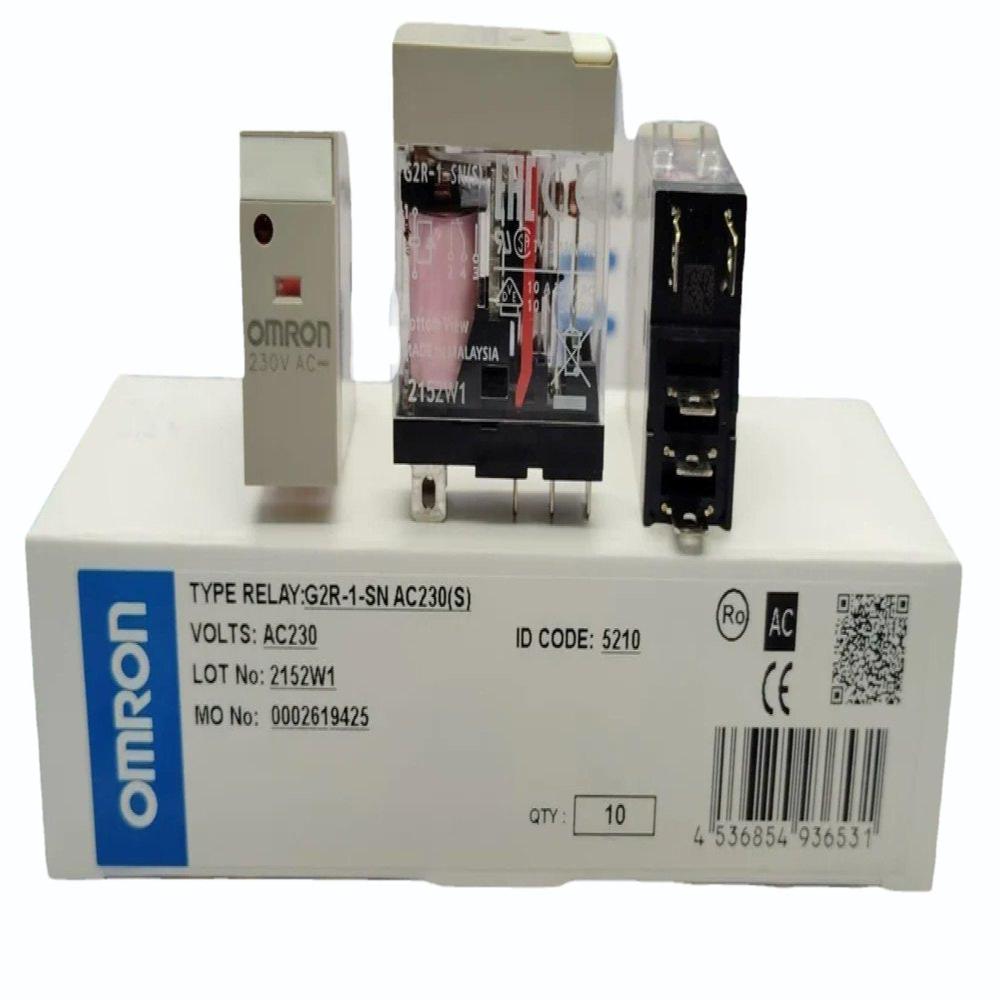

The Omron G2R-1-SN-AC230 General-purpose Relay is a slim, single-pole (SPDT) industrial electromechanical relay designed for general automation, featuring a 230V AC coil, 10A switching capacity, plug-in terminals, a transparent case, and built-in LED indicators, often paired with P2RF-@-PU sockets for easy wiring and installation in industrial control panels.

Key Specifications:

Manufacturer: Omron
Type: General Purpose Power Relay
Poles: 1 (SPDT - Single Pole Double Throw)
Coil Voltage: 230 VAC
Contact Rating: 10 A at 250 VAC / 30 VDC
Mounting: Plug-in (often with compatible sockets like P2RF-05-PU)
Features: LED indicator, mechanical indicator, lockable test button (on some variants), transparent case, AgSnIn contact material.
Applications: Industrial control, interface circuits, space-saving designs.

Reliable Switching for Industrial Control

Engineered for versatility, the G2R-1-SN-AC230 relay provides dependable performance in managing electrical circuits. Its SPDT configuration allows for efficient control of power in automation and process systems. The robust 10A contact rating ensures suitability for a wide range of industrial applications, while the transparent plastic housing provides added safety and visual monitoring during operation.

Easy Installation and Safe Monitoring

This relay's compact dimensions (29x13x35.5 mm) and standard design facilitate straightforward panel integration. The clear housing, combined with a red LED indicator, allows users to quickly assess relay status and operation, enhancing maintenance efficiency and troubleshooting efforts on busy shop floors or in automated setups.

FAQ's of G2R-1-SN-AC230 General-purpose Relay:

Q: How do I properly install the G2R-1-SN-AC230 relay in an industrial circuit?

A: To install the G2R-1-SN-AC230, ensure your control panel provides a 230 VAC supply to the relay coil terminals. Mount the relay securely using the designated socket or PCB mount, and connect the load and control wiring to the SPDT contacts as per your circuit design. Verify tight connections and consult the wiring diagram for correct polarity and functionality.

Q: What benefits does the transparent housing with LED indicator provide?

A: The clear flame-retardant plastic housing enables immediate visual inspection of the relay's condition and operation. The built-in red LED indicator lights up when the coil is energized, helping technicians quickly verify relay activation and diagnose control system issues without the need for external tools.

Q: When should I use the G2R-1-SN-AC230 relay in my process control system?

A: Use this relay whenever you need to switch electrical loads up to 10A with reliable isolation and control, especially in automation, process management, or industrial equipment. It's ideal for situations requiring visual feedback, quick status checks, and easy maintenance.

Q: Where is this relay commonly applied?

A: The G2R-1-SN-AC230 is widely used in industrial control panels, automation equipment, power management devices, and general-purpose switching applications throughout manufacturing, processing plants, and infrastructure systems.

Q: What is the process for troubleshooting if the relay does not operate?

A: If the relay fails to activate, first check the input voltage at the coil terminals to ensure it is 230 VAC. Inspect the LED indicator-no illumination usually indicates either no power supply or a faulty coil. Verify all terminal connections and examine the contacts for any signs of wear, pitting, or contamination. Replace the relay if faults persist.

Q: How does this relay enhance safety in electrical control setups?

A: The relay's flame-retardant, transparent housing reduces fire risks while providing a protective barrier against accidental contact. The LED coil status indicator further improves operational safety, allowing workers to diagnose live equipment without removing covers.
