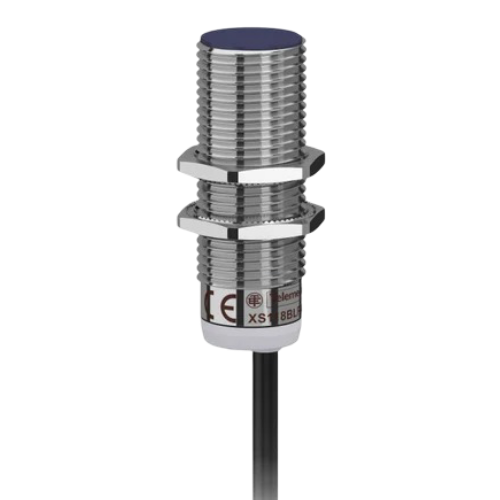

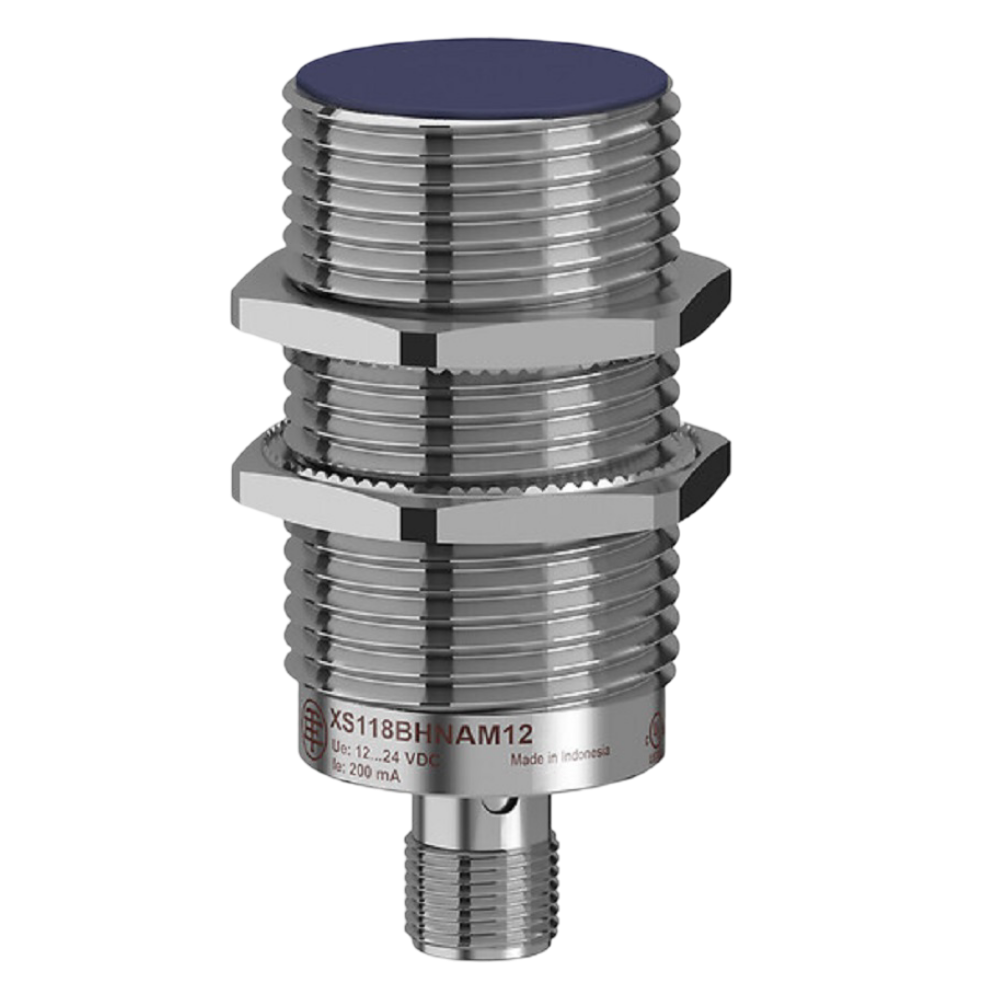

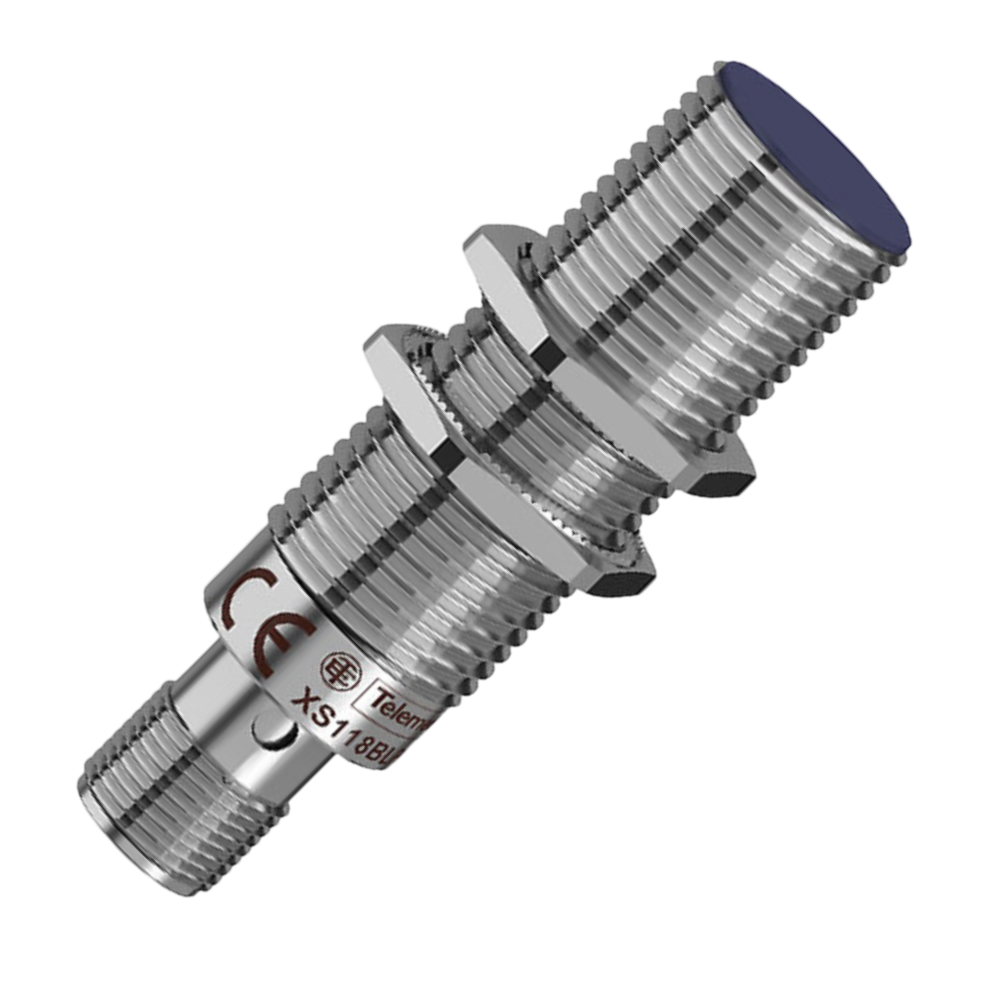

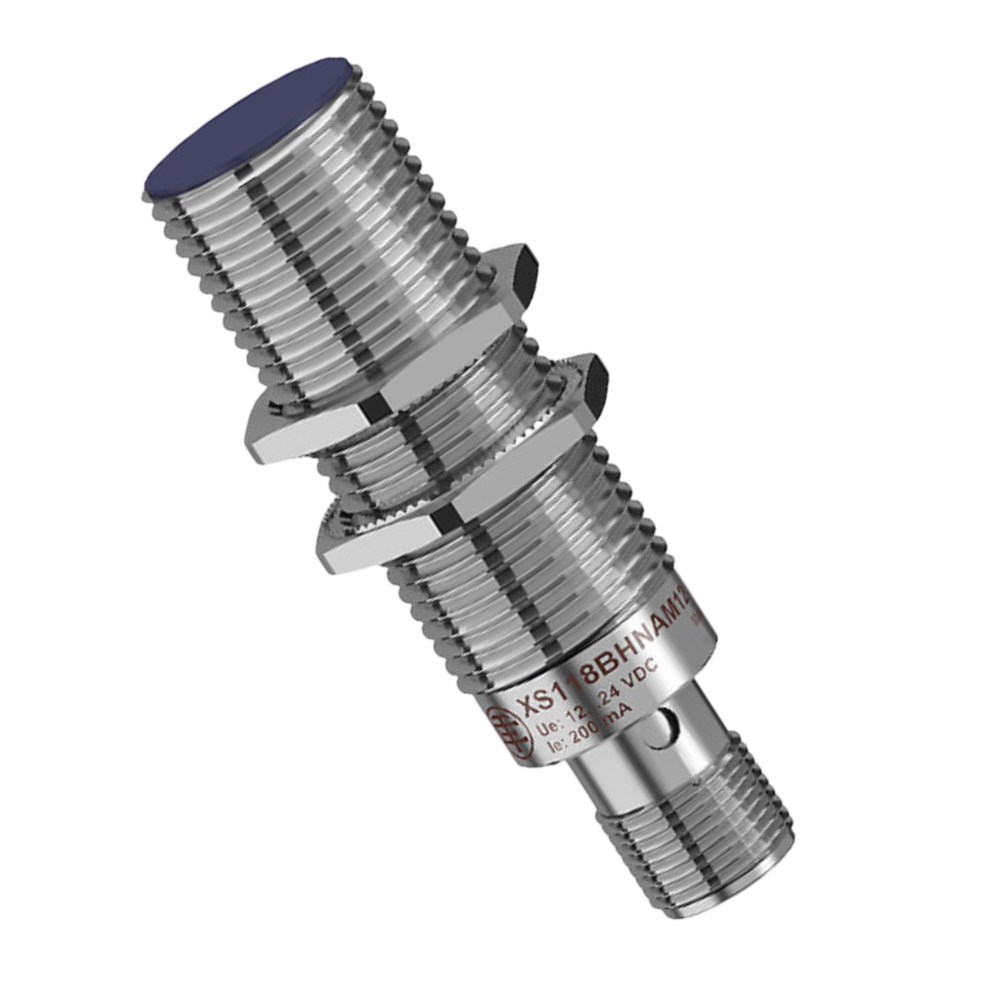

XS118BHNAM12 Proximity Sensor

XS118BHNAM12 Proximity Sensor Specification

Application
Industrial Automation, Metal Detection, Machine Position Sensing

Housing Material
Nickel Plated Brass

Product Type
Inductive Proximity Sensor

Power Rating
36/31 W

Material
Nickel Plated Brass & Plastic

Usage
Industrial Automation

Voltage
12 24 Volt (V) Volt (v)

Rated Voltage
12-24V DC Volt (V)

Usage & Applications
Packaging Machines, Conveyor Systems, Automation Equipment, CNC Machines

Weight
150 Grams (g)

Warranty
1 year

Rated Current
200 Megaampere ( MA)

XS118BHNAM12 Proximity Sensor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
100 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About XS118BHNAM12 Proximity Sensor

Model : XS118BHNAM12

Type : Inductive Proximity Sensor

Brand : Telemecanique Sensors (Schneider Electric)

Series : XS1 Series

Sensor Design : Cylindrical M18

Body Type : Threaded Barrel

Size : 64 mm

Mounting Type : Flush Mountable

Sensing Distance : 8 mm

Operating Zone : 0 to 6.4 mm

Output Type : NPN

Output Function : NO (Normally Open)

Output Signal : Discrete

Wiring Type : 3 Wire

Electrical Connection : M12 Connector (4 Pin)

Supply Voltage : 12 to 24 V DC

Current Consumption : 10 mA (no load)

Switching Current : 200 mA

Switching Frequency : Up to 700 Hz

Response Time : 0.6 ms

Delay First Up : 15 ms

Voltage Drop : < 2 V (closed state)

IP Rating : IP67

Housing Material : Nickel Plated Brass

Front Material : PBT

Detection Face : Frontal

ISO Thread : M18 x 1

Operating Temperature : -25C to +70C

Storage Temperature : -40C to +85C

Shock Resistance : 50 g (11 ms)

Vibration Resistance : 25 g (1055 Hz)

Indicator : Yellow LED Output Status

Protection Features : Reverse polarity, short circuit, overload protection

Certification : CE, UL, CSA

Application : Industrial Automation, Metal Detection, Machine Position Sensing

Country of Origin : Indonesia

Engineered for Industrial Versatility

The XS118BHNAM12 Proximity Sensor is designed to excel in diverse industrial settings, especially for applications requiring metal detection and precise machine position sensing. Its robust design and compatibility with both AC and DC power supplies make it suitable for continuous duty cycles found in cooling systems, packing machinery, and automation equipment.

Durable Construction, Reliable Performance

Encased in nickel-plated brass and plastic, the sensor resists wear and environmental stress. Its durability ensures stable operation when integrated into conveyor systems, CNC machines, and control panels. With a compact build and light weight, installation is flexible and allows for seamless incorporation into existing industrial infrastructures.

FAQ's of XS118BHNAM12 Proximity Sensor:

Q: How does the XS118BHNAM12 Proximity Sensor benefit industrial automation processes?

A: This sensor enables precise, non-contact detection of metal objects, enhancing the accuracy and speed of automation systems. It improves operational reliability in packaging lines, conveyors, and CNC machines by providing real-time position feedback and reducing manual intervention.

Q: What is the recommended power supply for the XS118BHNAM12?

A: The sensor operates on either 12-24V DC or 230V AC, providing flexibility for various industrial environments and control panel configurations.

Q: When should the XS118BHNAM12 be chosen over other proximity sensors?

A: Select this model for applications requiring robust performance in harsh industrial conditions, continuous duty cycles, and reliable metal detection-such as in packaging machines, electrical cabinets, or conveyor systems.

Q: Where can the XS118BHNAM12 Proximity Sensor be installed?

A: It is suitable for installation on machines, control panels, electrical cabinets, conveyor systems, and automation equipment. Its versatile design allows for integration in different industrial settings where metal object detection or position sensing is needed.

Q: What is the process for installing the XS118BHNAM12 in an automation setup?

A: To install, securely mount the sensor in its designated position using its compact housing. Connect the electrical terminals to either a DC or AC power supply within the rated voltage range, and integrate it with your control system according to equipment specifications.

Q: How does the sensor's housing material affect its performance?

A: The nickel-plated brass construction provides durability, corrosion resistance, and protection from environmental impacts, ensuring long-term, stable performance in demanding industrial settings.
