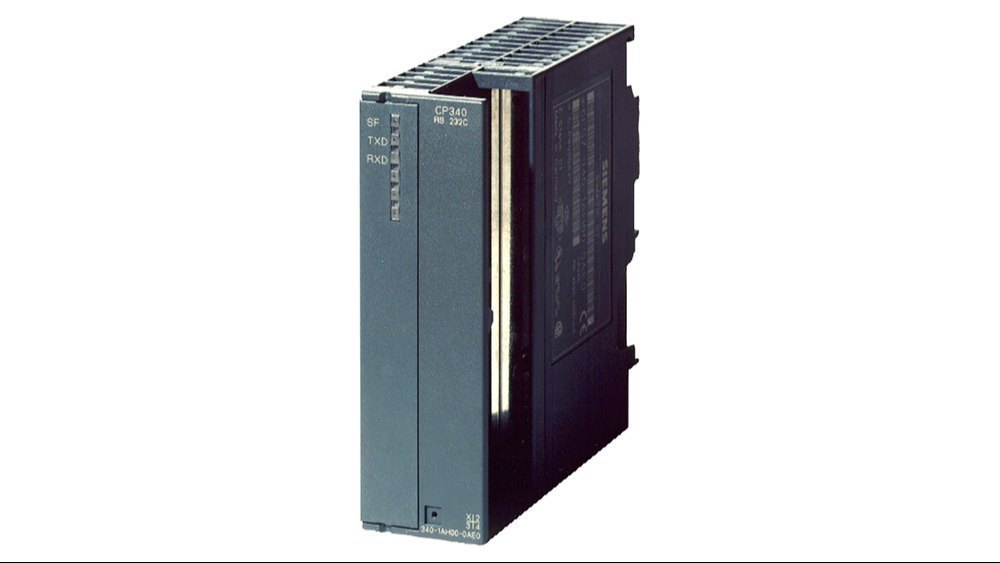

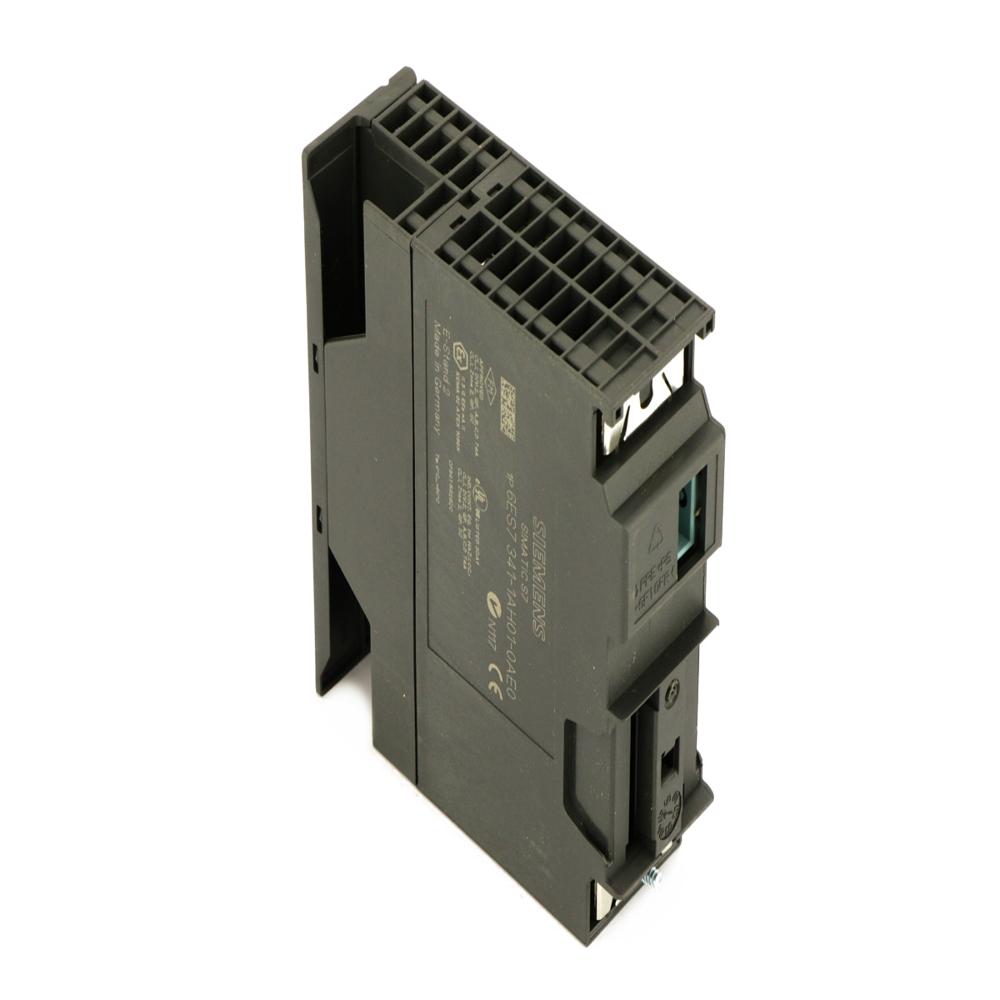

Siemens Plc 6ES7341-1AH02-0AE0

Siemens Plc 6ES7341-1AH02-0AE0 Specification

Usage
Industrial communication interface

Interface
RS232 / RS422 / RS485 (via connection module)

Power Supply
DC

IP Rating
IP20

Product Type
Communication Processor (CP 341)

Application
PLC communication with barcode readers, printers, weighing systems, drives

Rated Voltage
24 Volt (V)

Function
Point-to-point serial communication between PLC and external devices

Color
Gray

Siemens Plc 6ES7341-1AH02-0AE0 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
10 Pieces Per Month

Delivery Time
3 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Siemens Plc 6ES7341-1AH02-0AE0

Parameter Details

Product Series SIMATIC S7-300 (CP 341 Communication Module)

Number of Digital Inputs (DI) Not Applicable

Number of Digital Outputs (DO) Not Applicable

Supply Voltage 24 V DC

Output Type Serial Communication (RS-232C Interface)

Work Memory Not Applicable (Communication Processor no CPU memory)

Communication Protocol ASCII, 3964(R), RK512, Modbus RTU (loadable)

Number of Analog Inputs (AI) Not Applicable

Number of Analog Outputs (AO) Not Applicable

Additional Technical Details

Interface: 1 RS232C (V.24)

Data Transfer Rate: 0.3 kbps to 115.2 kbps

Power Consumption:

Typical: 1.6 W

Max: 2.4 W

Current Consumption:

Max 100 mA (24V supply)

Dimensions: approx. 40 125 120 mm

Weight: approx. 0.30 kg

Mounting: Rack-mounted (S7-300 system)

Application: Industrial communication, machine automation, robotics, barcode systems

Industrial Connectivity Simplified

The Siemens 6ES7341-1AH02-0AE0 module ensures reliable and straightforward integration of PLCs with a wide range of industrial devices. Designed to support multiple serial communication standards, it meets the connectivity challenges posed by barcode readers, weighing systems, drives, and more.

Robust and Adaptable Performance

With its 24V DC power requirement and IP20-rated protection, this communication module is built to handle demanding industrial settings. Its flexibility in interfacing via RS232, RS422, or RS485 ensures that it adapts smoothly to various data communication needs.

FAQ's of Siemens Plc 6ES7341-1AH02-0AE0:

Q: How does the Siemens 6ES7341-1AH02-0AE0 facilitate communication between my PLC and external equipment?

A: The module enables point-to-point serial communication using RS232, RS422, or RS485 interfaces, allowing your PLC to exchange data efficiently with barcode readers, printers, weighing systems, and drives.

Q: What devices can be connected using the Siemens 6ES7341-1AH02-0AE0 communication module?

A: This module is suitable for linking PLCs with industrial devices such as barcode scanners, industrial printers, weighing systems, and motor drives that support serial protocols.

Q: When should I consider using this communication module in my automation project?

A: You should use the 6ES7341-1AH02-0AE0 when your application requires reliable serial communication between a PLC and external devices, especially where RS232, RS422, or RS485 interfaces are involved.

Q: Where can the Siemens 6ES7341-1AH02-0AE0 be installed, considering its IP rating?

A: Thanks to its IP20 rating, this module is designed for installation in protected industrial control cabinets or enclosures, away from dust, moisture, or direct exposure to harsh environments.

Q: What is the process for integrating this module into an existing PLC system?

A: Integration involves physically connecting the module to the PLC, configuring the serial interface (RS232/RS422/RS485 as needed), and setting up the relevant communication parameters in your PLC's programming environment.

Q: How does using this module benefit industrial operations?

A: The module streamlines data transfer between PLCs and a variety of serial devices, leading to improved process efficiency, data accuracy, and seamless automation within industrial environments.
