6ES7231-5PA30-0XB0 Simatic S7-1200, Analog Input

6ES7231-5PA30-0XB0 Simatic S7-1200, Analog Input Specification

Power Supply
DC

Usage
Temperature signal acquisition

Input
RTD Sensors (Pt100, Pt1000)

Output
Digital signal to PLC

Product Type

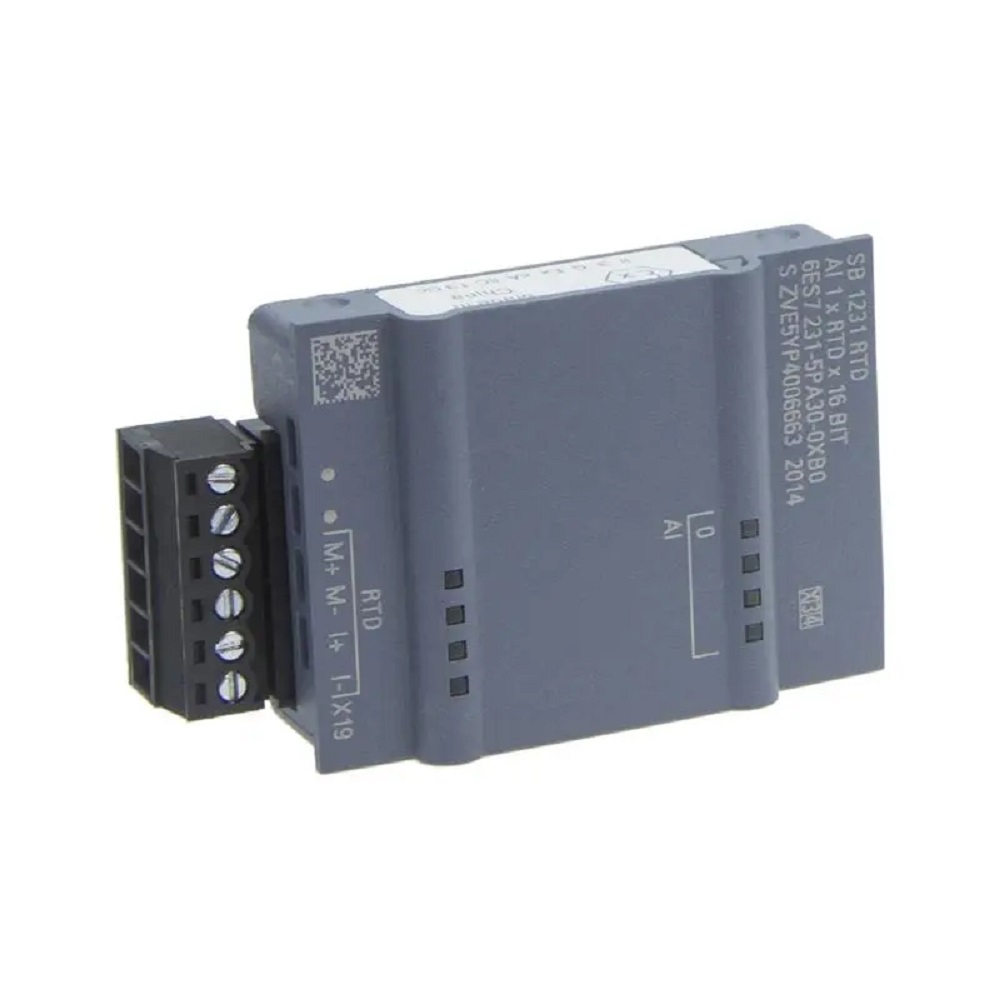

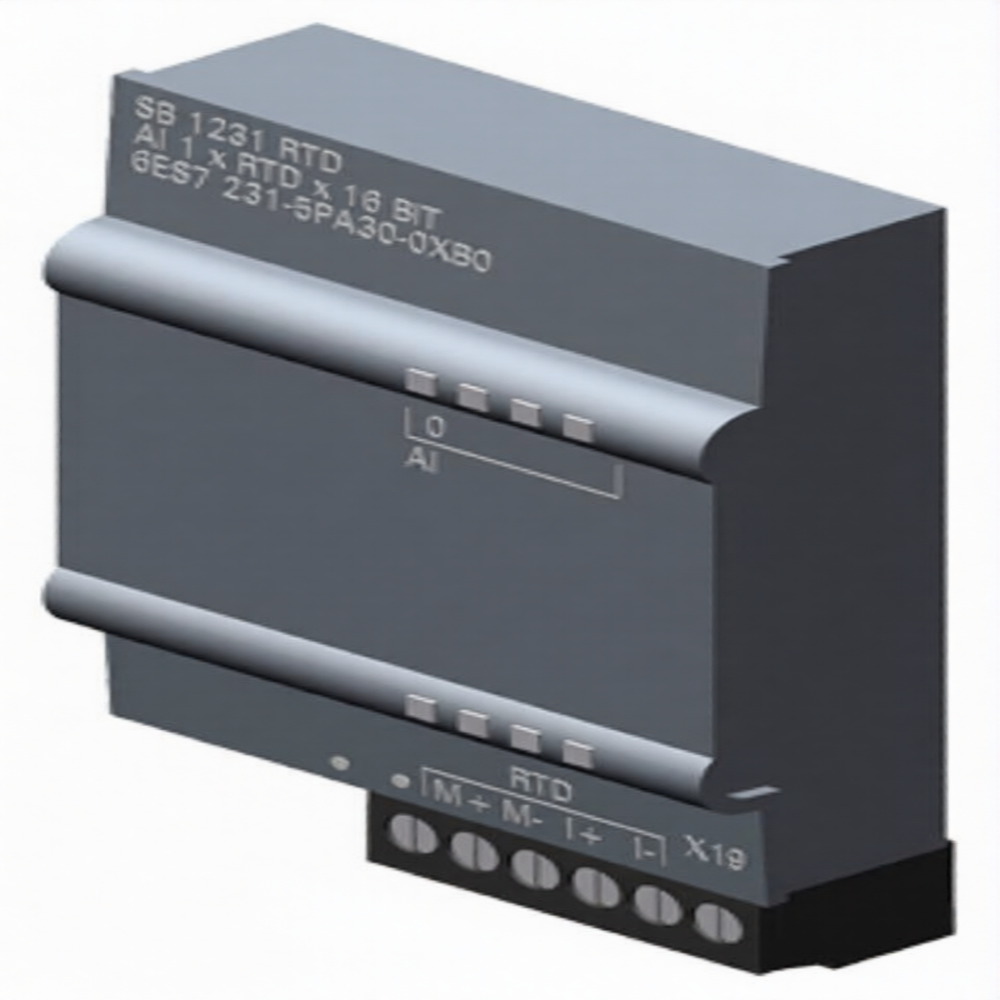

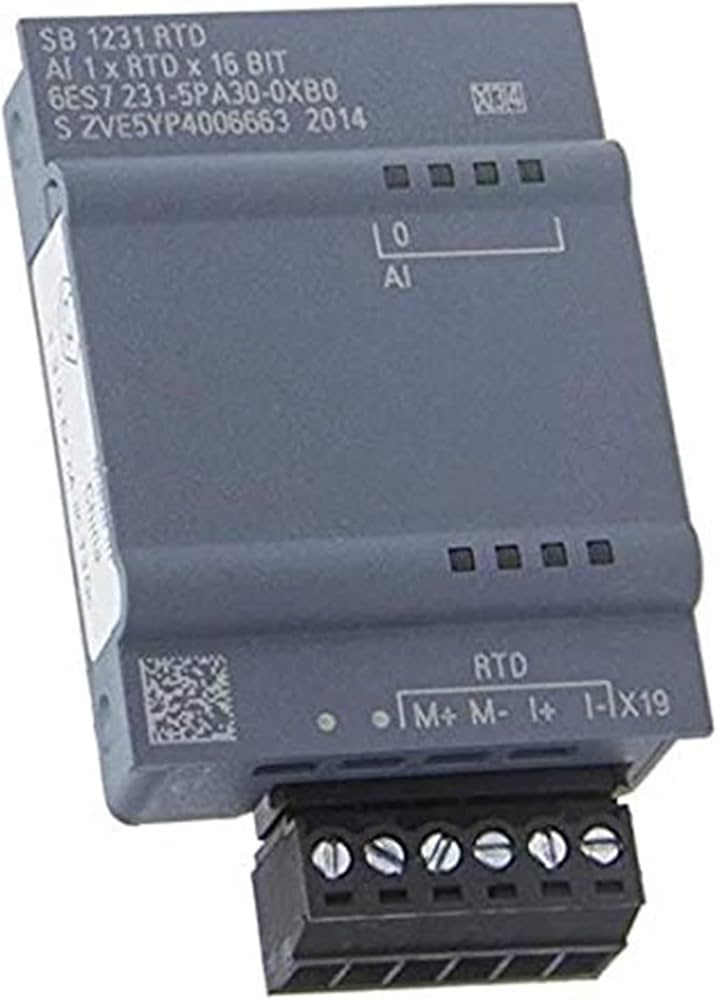

Analog Input Module (RTD Signal Board SB 1231)

Application
Industrial automation, HVAC, process control

Rated Voltage
24 Volt (V)

Function
Converts RTD temperature signals into digital PLC data

Color
Grey

Weight
Approx. 0.03 Kilograms (kg)

Warranty
1 YEAR

Rated Current
5 Megaampere ( MA)

6ES7231-5PA30-0XB0 Simatic S7-1200, Analog Input Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
5 Pieces Per Month

Delivery Time
3 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About 6ES7231-5PA30-0XB0 Simatic S7-1200, Analog Input

Brand : Siemens

Model Number : 6ES7231-5PA30-0XB0

Series : SIMATIC S7-1200

Module Type : Analog Input (RTD Signal Board)

Product Family : SB 1231 RTD

Number of Channels : 1 Analog Input

Input Type : RTD (Resistance Temperature Detector)

Supported Sensors : Pt100, Pt1000

Resolution : 1516 Bit

Input Signal Range :

Resistance : 0150 , 0300 , 0600

Voltage : -80 mV to +80 mV

Supply Voltage : 24 V DC

Current Consumption : Approx. 5 mA

Power Loss : Approx. 0.5 W

Backplane Current : 20 mA (5V DC)

Measurement Unit : C / F (Configurable)

Isolation : Not Isolated

Mounting Type : Direct Plug-on CPU (Signal Board)

Dimensions (LWH) : Approx. 62 38 21 mm

Weight : Approx. 0.03 kg

Operating Temperature : -20C to +60C

IP Rating : IP20

Country of Origin : China

Product Status : Active

Effortless Temperature Signal Acquisition

Designed for industrial applications, the S7-1200 Analog Input module streamlines the process of converting resistance temperature detector (RTD) signals into digital data. Whether you need real-time monitoring or integration into extensive control systems, this module offers crisp reliability and ease of implementation.

Seamless Integration and Reliable Performance

With straightforward compatibility for Pt100 and Pt1000 sensors, the module delivers consistent temperature measurements. Its 24V DC power supply and compact size make it simple to install, saving critical panel space while ensuring your process control runs smoothly.

FAQ's of 6ES7231-5PA30-0XB0 Simatic S7-1200, Analog Input:

Q: How does the 6ES7231-5PA30-0XB0 module convert RTD signals into data for a PLC?

A: The module receives analog signals from RTD sensors (such as Pt100 or Pt1000), then converts those resistance-based temperature readings into digital signals that the PLC can process and use for automation or monitoring.

Q: What types of sensors are supported by this analog input module?

A: This module supports RTD sensors, specifically Pt100 and Pt1000 types, providing flexibility for a range of industrial temperature measurement tasks.

Q: When is it ideal to use this module in an automation system?

A: The module is best utilized whenever accurate, real-time temperature acquisition is essential-such as in process control, HVAC systems, or general industrial automation applications.

Q: Where can I install the 6ES7231-5PA30-0XB0 Analog Input module?

A: Its compact form allows installation within standard industrial control panels or enclosures, making it suitable for a wide variety of industrial facilities and automation environments.

Q: What is the process for setting up the module with a PLC?

A: Mount the module in your control cabinet, connect the RTD sensor wires to the input terminals, supply 24V DC power, and configure your PLC to accept and interpret the digital signals from this analog input module.

Q: What benefits does this analog input module provide for industrial processes?

A: It ensures highly accurate, stable, and reliable temperature data acquisition, vital for maintaining consistent process control and increasing overall operational efficiency.
