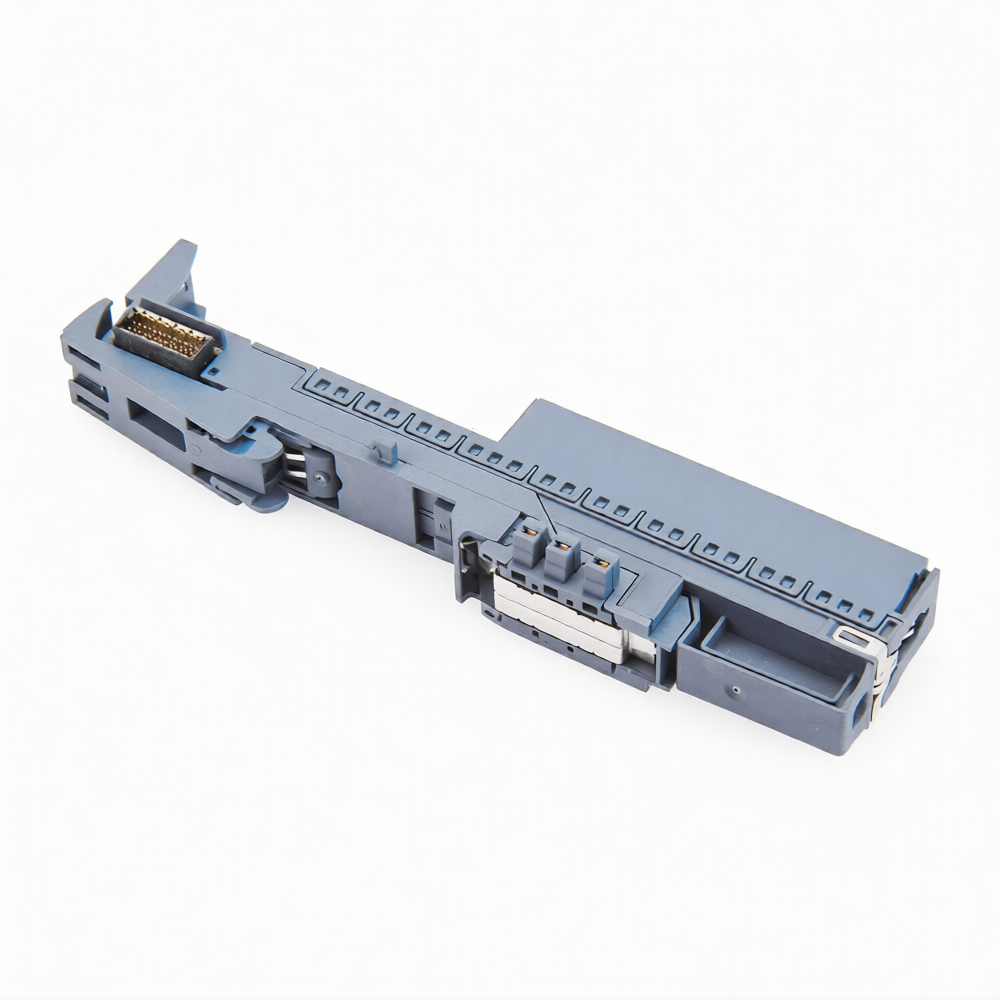

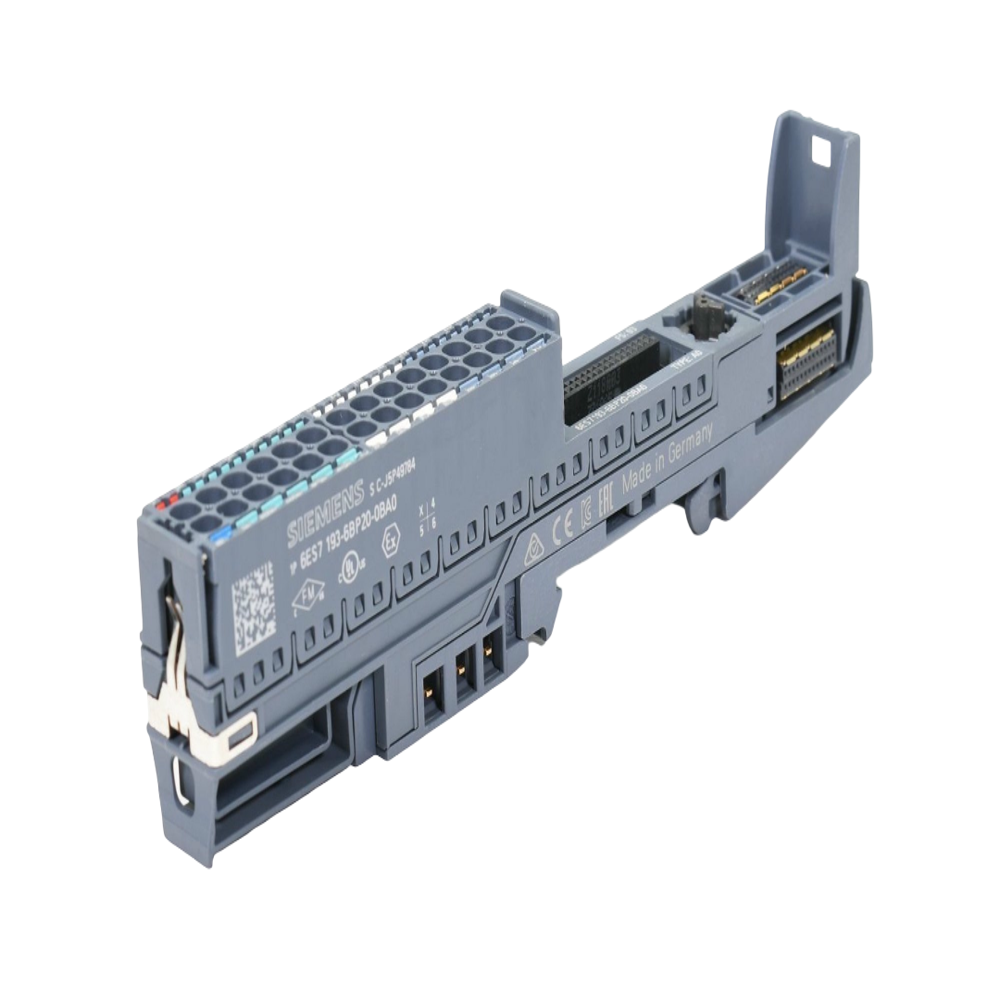

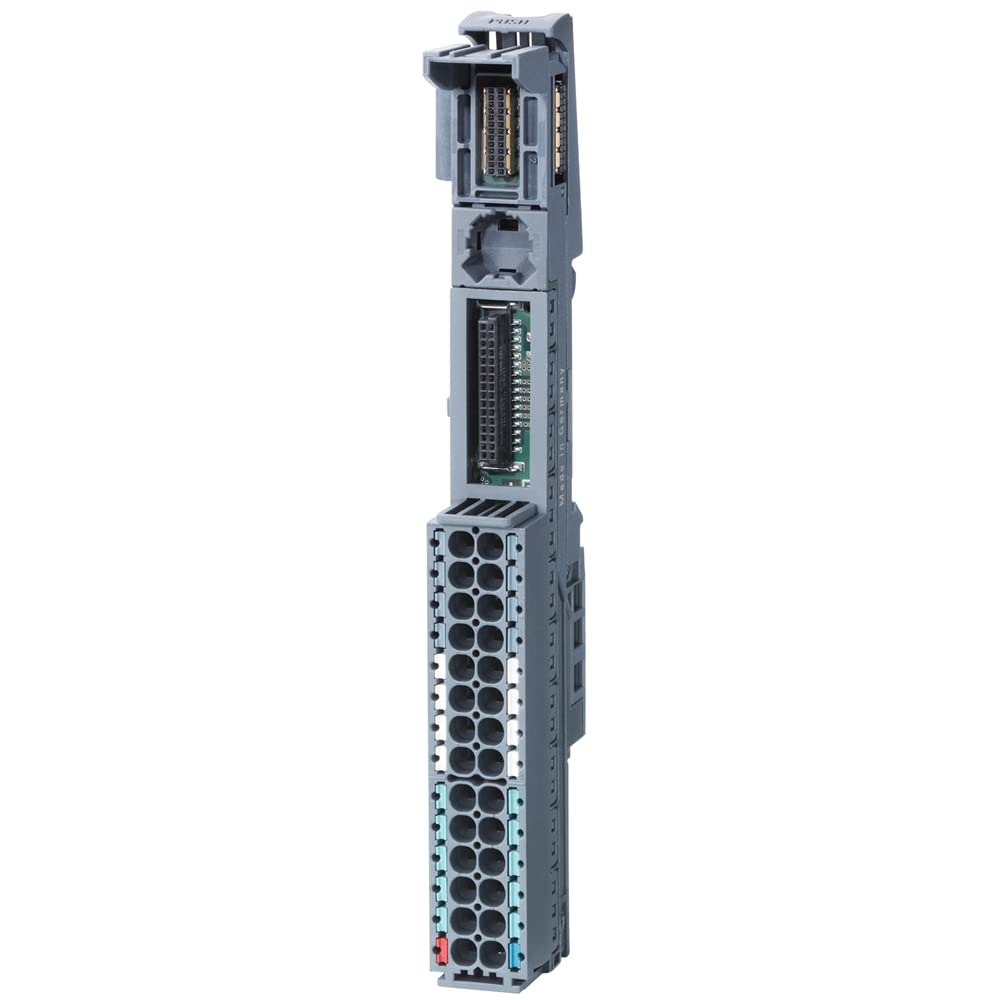

Siemens 6ES7193-6BP20-0BA0 Simatic ET 200SP
Siemens 6ES7193-6BP20-0BA0 Simatic ET 200SP Specification
- Interface
- Push-in (spring) terminal technology
- Usage
- Industrial Automation, Field I/O module mounting
- Operating Temperature
- -30 C to +60 C
- Display Type
- No display
- Output
- Channel connection to peripheral modules
- Power Source
- External supply
- Features
- Push-in terminal, easy installation, color-coded release tabs, supports module hot swapping
- Components
- Base Unit (BU20-P16+A0) for 16 potential pins, auxiliary terminals
- IP Rating
- IP20
- Input
- Signals from field devices
- Power Supply
- Electrical
- Product Type
- Simatic ET 200SP Base Unit
- Application
- PLC and Distributed Automation Systems
- Rated Voltage
- 24 V DC
- Supply Voltage
- 24 V DC nominal
- Size
- Compact
- Dimension (L*W*H)
- 75 x 15 x 73 mm
- Function
- Base Unit for ET 200SP distributed I/O system
- Color
- Grey
- Weight
- Approx. 34 g
- Current Rating
- Up to 10 A per module group
- Capacity
- Supports multiple electronic modules
- Frequency
- DC operation
- Series
- SIMATIC ET 200SP
- Permissible Humidity
- 5% to 95% non-condensing
- Module Code
- BU20-P16+A0
- Terminal Type
- Spring-loaded push-in terminals
- Material
- Plastic, self-extinguishing
- Mounting Type
- DIN rail mounting
- Number of Slots
- 16 (16+ auxiliary terminals)
Siemens 6ES7193-6BP20-0BA0 Simatic ET 200SP Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Paypal
- Supply Ability
- 11 Pieces Per Month
- Delivery Time
- 2 Week
- Sample Available
- No
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Domestic Market
- All India
About Siemens 6ES7193-6BP20-0BA0 Simatic ET 200SP
Product Specifications
Brand: Siemens
Model Number: 6ES7193-6BP20-0BA0
Product Type: Base Unit (BU Type A0)
Series: SIMATIC ET 200SP
Technical Specifications
Model Type: BU15-P16+A10+2B (Type A0)
Supply Voltage: 24 V DC
Current Consumption: Approx. 2 A
Terminal Type: Push-in terminals
Process Terminals: 16
Auxiliary Terminals: 10
Degree of Protection: IP20
Operating Temperature: -20C to +60C
Storage Temperature: -40C to +85C
Humidity Range: 595% (non-condensing)
Mounting Type: DIN Rail
Innovative Mounting and Wiring
The Simatic ET 200SP base unit utilizes DIN rail mounting, which streamlines installation and provides a secure foundation in control cabinets. Its spring-loaded push-in terminals facilitate fast and reliable tool-free connections. This not only reduces installation time but also minimizes wiring errors, making it suitable for field I/O modules in busy industrial settings.
Highly Compatible and Expandable
With support for 16 slots plus auxiliary terminals, this base unit accommodates various electronic modules, allowing scalable configuration for evolving automation needs. Its design caters to Siemens SIMATIC ET 200SP series, ensuring integration with a wide array of components while supporting module hot swapping for uninterrupted operation.
Durable and Safe for Industrial Use
Constructed from self-extinguishing plastic, the base unit is engineered for safety and durability in harsh environments. It can operate reliably in temperatures ranging from -30C to +60C, and its IP20 rating provides effective protection against solid objects. The unit also handles up to 10 A per module group while ensuring consistent performance in high-humidity conditions.
FAQ's of Siemens 6ES7193-6BP20-0BA0 Simatic ET 200SP:
Q: How is the Siemens 6ES7193-6BP20-0BA0 base unit installed in control cabinets?
A: The base unit is designed for DIN rail mounting, simplifying installation in control cabinets. Just snap the unit onto the standard rail, ensuring a secure and stable connection for all attached I/O modules.Q: What are the advantages of the push-in spring terminal technology used in this module?
A: Push-in spring terminals enable tool-free wiring by allowing direct insertion of stripped wires, resulting in faster, more reliable connections. They also provide secure clamping and simplify subsequent maintenance or changes in wiring.Q: When should I use the BU20-P16+A0 base unit in industrial automation projects?
A: This base unit is ideal for use in distributed PLC and automation systems requiring reliable field I/O connection, especially where future expansion, easy installation, and module hot swapping are priorities.Q: Where can the Simatic ET 200SP base unit be used most effectively?
A: It is best suited for industrial environments like manufacturing plants, control cabinets, and process automation setups where compact, reliable I/O connection is necessary.Q: What process does the module use to handle field device signals?
A: The base unit receives signals from field devices and distributes them to peripheral modules through its 16 slots. Push-in terminals ensure each channel is securely connected, supporting precise and organized signal transmission.Q: How does supporting hot swapping benefit ongoing operations?
A: Hot swapping allows modules to be added or replaced without shutting down the system, minimizing downtime and maintaining continuous operation-vital for high-availability industrial environments.Q: What are the key safety and environmental ratings of this base unit?
A: The unit features a self-extinguishing plastic housing, an IP20 rating for protection against solid objects, and operates in a wide temperature range and high humidity, contributing to system safety and durability.Tell us about your requirement
