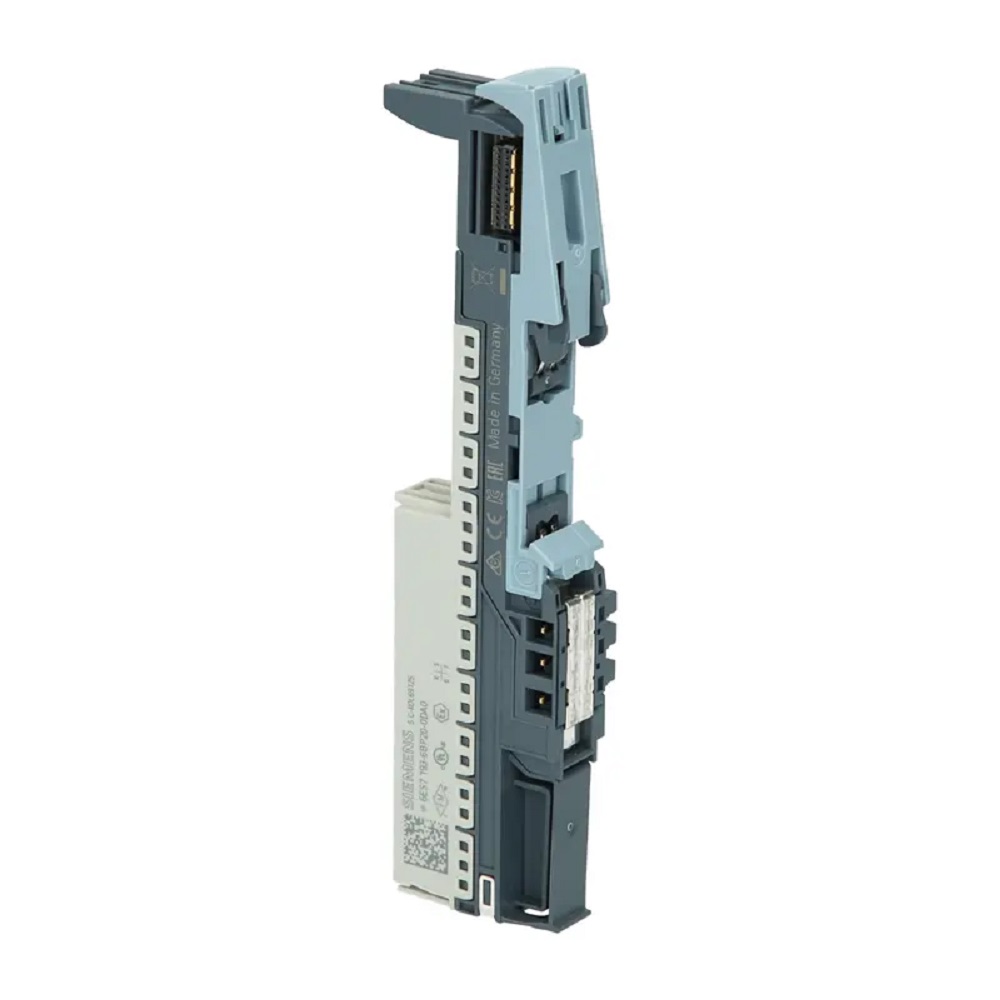

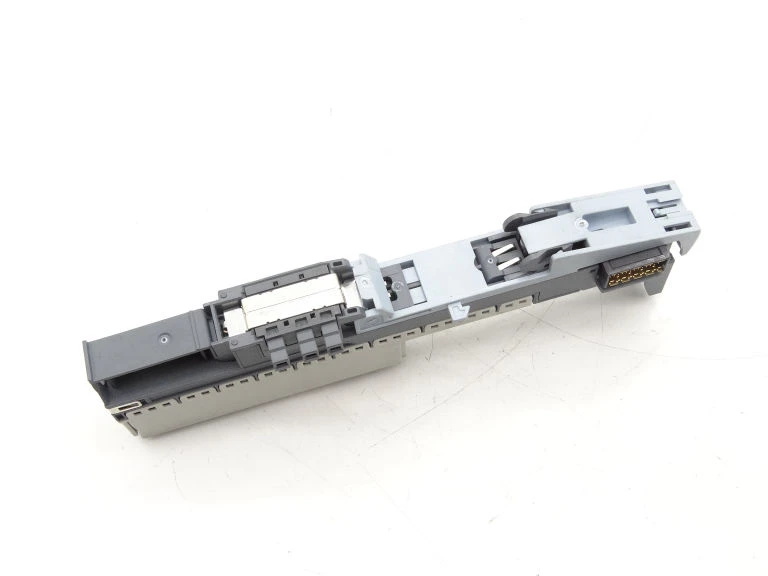

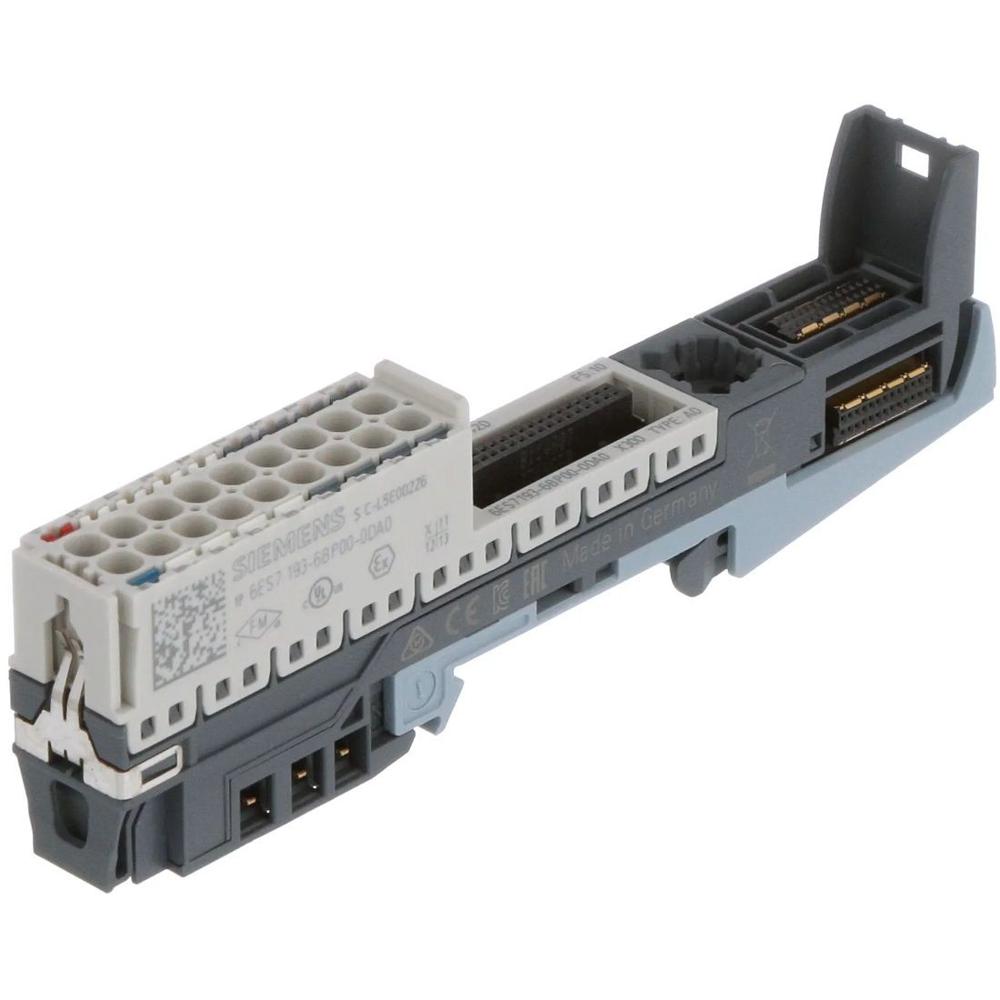

6ES7193-6BP20-0DA0 SIMATIC ET 200SP
6ES7193-6BP20-0DA0 SIMATIC ET 200SP Specification
- Operating Temperature
- -30C to +60C
- Output
- No direct output; interfaces with I/O modules
- Power Source
- Power supplied via ET 200SP backplane
- Usage
- Used as part of the SIMATIC ET 200SP distributed I/O system
- Components
- Base unit with 16 terminals, color code A0, mechanical coding
- IP Rating
- IP20
- Interface
- Mechanical interface for terminal blocks, electrical interface for backplane bus
- Input
- No specific signal inputs; carrier holds I/O modules
- Features
- Base unit for ET 200SP, tool-free wiring, color coding, mechanical keying, direct integration
- Power Supply
- Via system bus
- Product Type
- BaseUnit (BU20-P16+A1+2B), 16 terminal, A0 Color Code, New Series
- Application
- Process automation, distributed I/O for PLCs
- Rated Voltage
- 24 V DC
- Supply Voltage
- 24 V DC system supply
- Size
- Standard ET 200SP footprint
- Dimension (L*W*H)
- 80 mm x 15 mm x 73 mm (approx.)
- Function
- Terminal block carrier for system configuration in distributed automation
- Color
- Grey
- Weight
- Approx. 45 g
- Thickness
- Not applicable (mechanical carrier)
- Capacity
- Holds up to 16 channels per terminal block
- Current Rating
- 2 A per channel
- Suitable Modules
- Compatible with all ET 200SP I/O, interface and power modules
- Terminal Type
- Push-in connection
- Material
- Plastic, halogen-free
- Package Contents
- 1 x BaseUnit BU20-P16+A1+2B
- Mounting Type
- DIN rail mounting
- Coding
- Mechanical coding prevents incorrect installation
- Order Number
- 6ES7193-6BP20-0DA0
- RoHS Compliance
- Yes
- Series
- ET 200SP New Series
- Vibration Resistance
- Tested according to EN 60068-2-6
- Partial Load Capacity
- Yes, according to module specification
6ES7193-6BP20-0DA0 SIMATIC ET 200SP Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Paypal
- Supply Ability
- 10 Pieces Per Month
- Delivery Time
- 3 Week
- Sample Available
- No
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Domestic Market
- All India
About 6ES7193-6BP20-0DA0 SIMATIC ET 200SP
Specifications
Brand: Siemens
Model: 6ES7193-6BP20-0DA0
Series: SIMATIC ET 200SP
Product Type: Base Unit (BU Type A0)
Model Type: BU15-P16+A10+2D
Mounting: DIN Rail
Electrical
Rated Voltage: 24 V DC
Bus Current Capacity: Up to 10 A
Process Terminal Current: Up to 2 A
Functional
Connection Type: Push-in terminals
Process Terminals: 16
Auxiliary Terminals: 10
Load Group: New load group supported
Isolation: Tested up to 707 V DC
Mechanical
Dimensions (W H D): 15 141 35 mm
Weight: Approx. 0.050.06 kg
Environmental
Operating Temperature: -30C to +60C
Protection Class: IP20
Efficient Distributed I/O Integration
The SIMATIC ET 200SP BaseUnit BU20-P16+A1+2B enables seamless integration in distributed automation systems. Its mechanical carrier design, tool-free wiring, and push-in connection terminals simplify assembly and maintenance, streamlining the configuration process across various process automation scenarios. With up to 16 channels per terminal block, the product is ideal for expanding system capacity without increasing footprint.
Reliable and Safe Configuration
This base unit offers enhanced safety with mechanical coding that prevents incorrect module installation and color-coded identification for error reduction. The robust plastic, halogen-free casing, and vibration resistance tested in line with EN 60068-2-6 guarantee durability, making it suitable for challenging industrial environments. Its IP20 rating adds an extra measure of protection against accidental contact.
FAQ's of 6ES7193-6BP20-0DA0 SIMATIC ET 200SP:
Q: How is the 6ES7193-6BP20-0DA0 BaseUnit installed within an ET 200SP system?
A: This base unit is designed for DIN rail mounting, allowing quick and secure attachment within the ET 200SP distributed I/O system. Simply snap the unit onto the DIN rail to provide a carrier for up to 16 I/O channels, using tool-free, push-in connections.Q: What modules are compatible with this SIMATIC ET 200SP BaseUnit?
A: The BU20-P16+A1+2B is compatible with all ET 200SP series I/O, interface, and power modules, making it a flexible component for expanding or configuring your ET 200SP distributed automation system.Q: When is mechanical coding beneficial for this base unit?
A: Mechanical coding is most beneficial during initial installation and future module replacements, as it ensures only the correct modules can be inserted. This prevents misplacement and potential damage to system components.Q: Where is the 6ES7193-6BP20-0DA0 typically used?
A: This base unit is commonly used in process automation and distributed I/O applications for PLCs, where modularity, flexible expansion, and reliable performance are required.Q: What is the process for wiring the terminal blocks on this base unit?
A: Terminals on the BU20-P16+A1+2B utilize push-in connection technology, enabling fast, tool-free wiring. Simply insert the stripped wire into the terminal for a secure connection, reducing installation time and maintenance effort.Q: How does the unit benefit a distributed automation project?
A: The base unit enhances distributed automation by supporting tool-free, color-coded, and mechanically keyed connections. It allows system expansion with up to 16 channels, contributing to higher efficiency, easy maintenance, and reduced wiring errors.Tell us about your requirement
