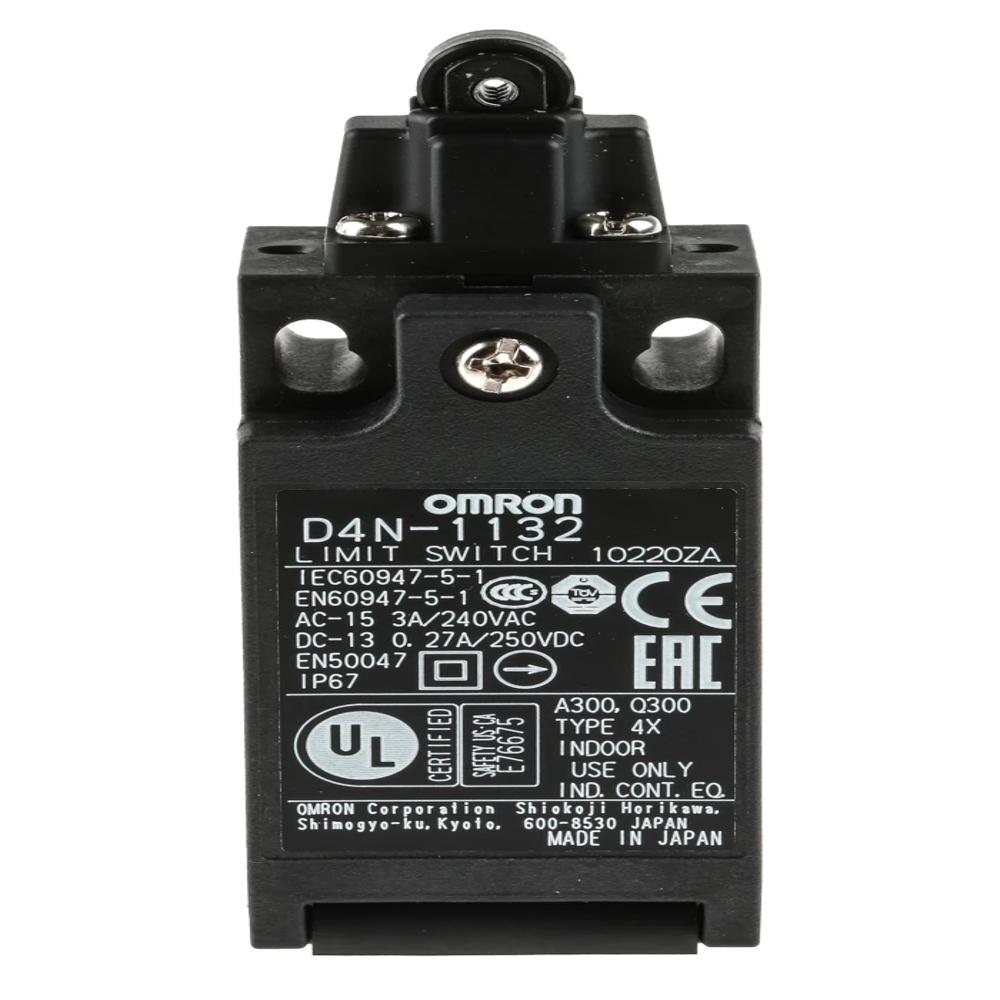

Safety Omron D4N-1132 Limit Switch

About Safety Omron D4N-1132 Limit Switch

The Omron D4N-1132 Safety Limit Switch is a compact and highly reliable safety limit switch designed for accurate position sensing and machine safety applications. It features a roller plunger actuator, 1 NC + 1 NO snap-action contacts, and a durable IP67-rated sealed housing that provides excellent protection against dust and water. The switch is ideal for industrial automation, conveyors, packaging machinery, CNC machines, material handling systems, and other factory automation equipment. Its compact design, long mechanical life, and international safety certifications make it a dependable choice for demanding industrial environments.

• Brand: Omron
• Model: D4N-1132
• Product Type: Safety Limit Switch
• Actuator Type: Roller Plunger
• Contact Configuration: 1 NC + 1 NO
• Operating Mechanism: Snap Action
• Rated Voltage: 240 VAC / 250 VDC
• Rated Current: 3 A AC-15 @ 240 VAC, 0.27 A DC-13 @ 250 VDC
• Protection Rating: IP67
• Housing Material: High-Strength Plastic
• Terminal Type: Screw Terminal (Terminal Block)
• Conduit Size: PG13.5 (1 Conduit)
• Mounting Type: Panel / Chassis Mount
• Mechanical Life: 15 Million Operations
• Electrical Life: Up to 500,000 Operations
• Operating Temperature: -30C to +70C
• Operating Frequency: 50/60 Hz
• Contact Resistance: 25 m Maximum
