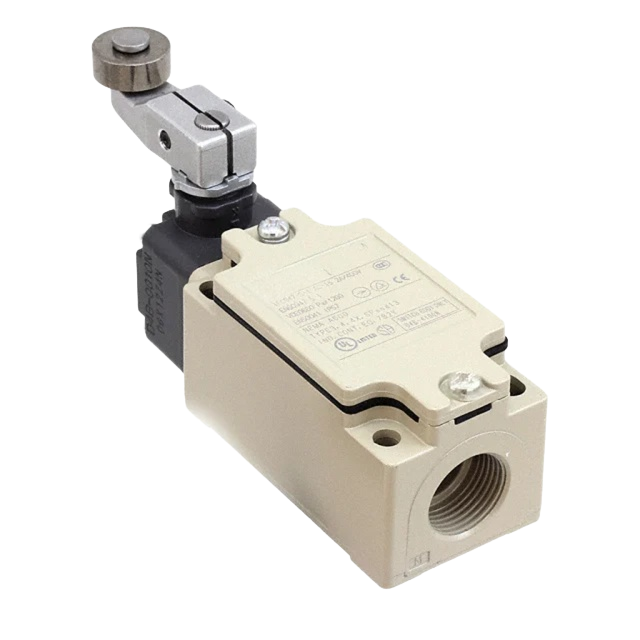

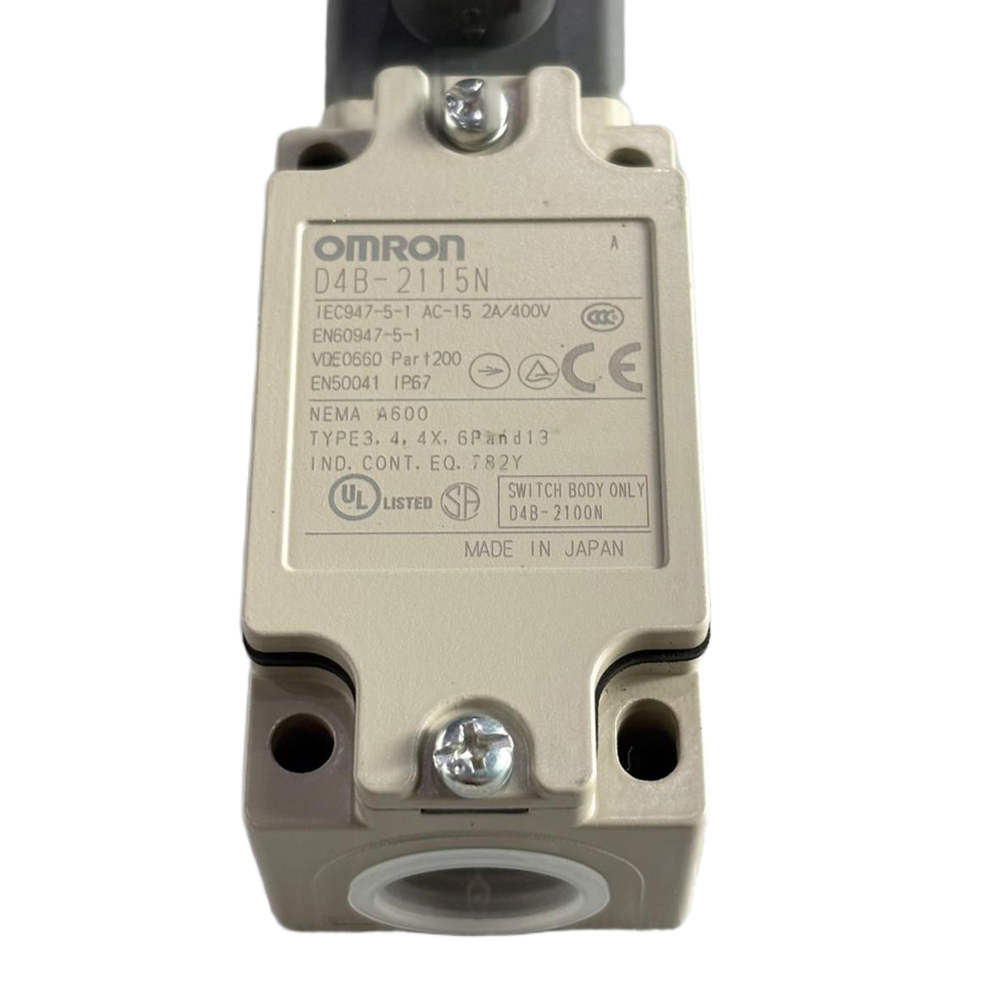

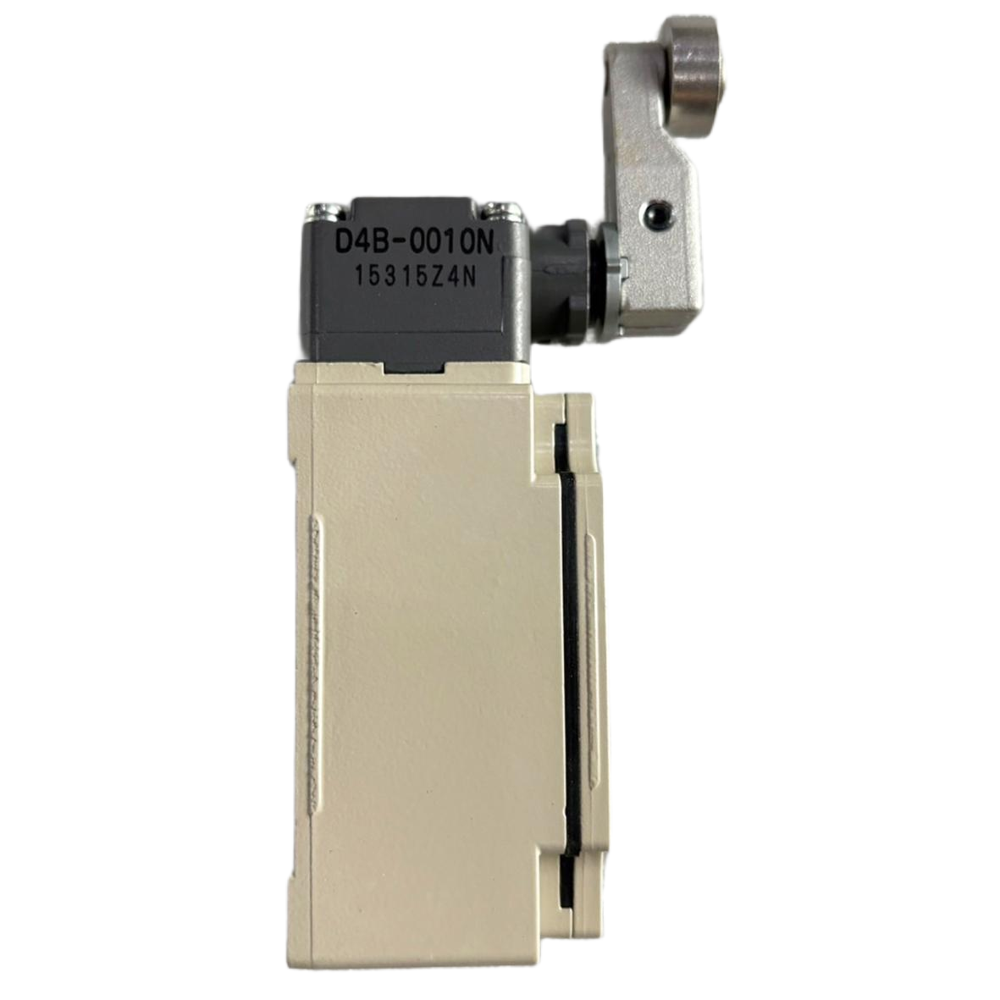

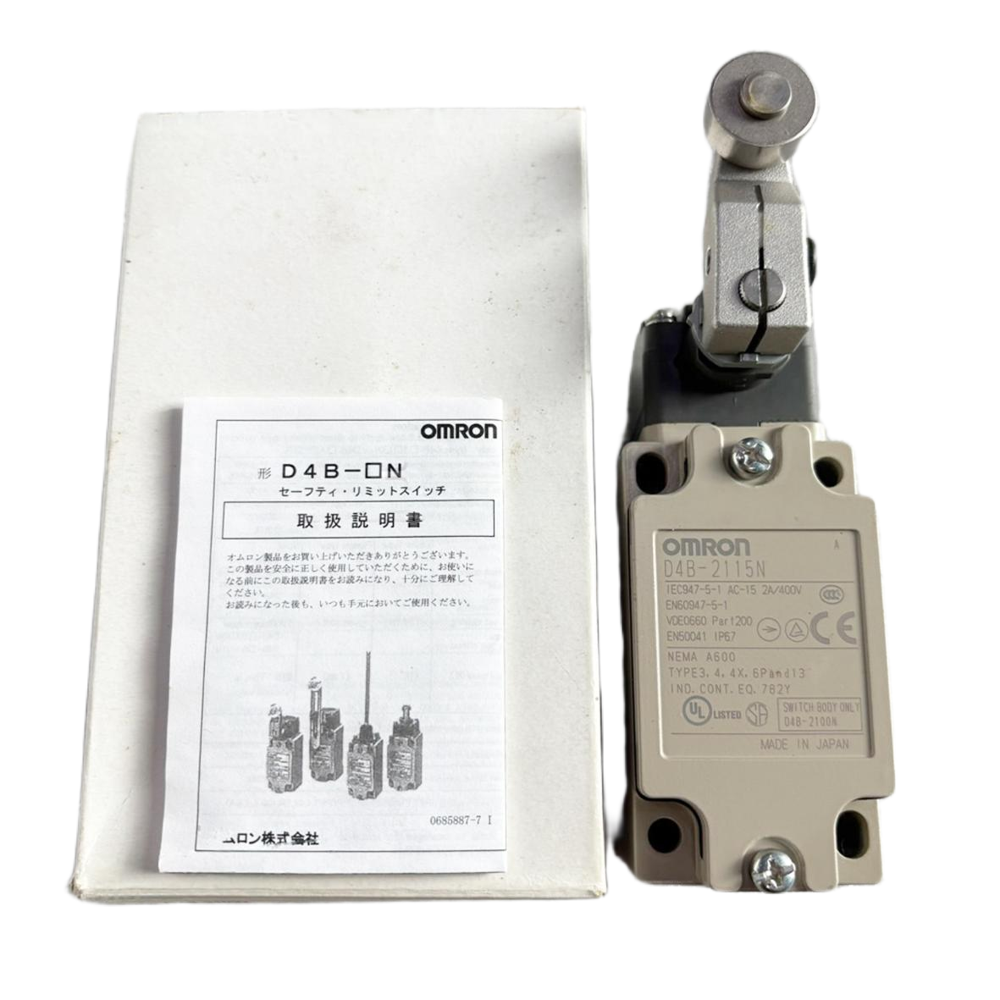

Omron D4B-2115N Safety Limit Switch

Omron D4B-2115N Safety Limit Switch Specification

Output
1NO + 1NC Contact Output

Power Supply
AC

Operating Temperature
-40 C to +80 C Celsius (oC)

Usage
Industrial Automation / Machine Safety

Components
Switch Body, Lever Actuator, Contacts, Terminal Block, Mounting Hardware

IP Rating
IP67

Product Type
Safety Limit Switch

Application
Industrial Automation, Machine Safety, Conveyors, Packaging Machines, CNC Machines, Material Handling Systems

Rated Voltage
Up to 400 Volt (V)

Dimension (L*W*H)
Approx. 80 44 44 Millimeter (mm)

Function
Safety Limit Switching / Position Detection

Color
Gray

Weight
250 Grams (g)

Warranty
1 Year

Phase
Single Phase

Material
Die-Cast Metal

Current Rating
10 A

Frequency
50/60 Hertz (HZ)

Omron D4B-2115N Safety Limit Switch Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
122 Pieces Per Month

Delivery Time
5 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron D4B-2115N Safety Limit Switch

Brand: Omron
Model: D4B-2115N
Product Type: Safety Limit Switch
Actuator Type: Roller Lever (Stainless Steel Roller)
Operating Mechanism: Snap Action
Contact Configuration: 1 NC + 1 NO
Rated Voltage: Up to 400 VAC / 250 VDC
Rated Current: 10 A
Rated Frequency: 50/60 Hz
Protection Rating: IP67
Housing Material: Die-Cast Metal
Conduit Size: G1/2 (PF1/2)
Terminal Type: Screw Terminal
Operating Temperature: -40C to +80C
Mechanical Life: 30 Million Operations
Electrical Life: 500,000 Operations
Contact Resistance: 25 m Maximum
Insulation Resistance: 100 M Minimum

Reliable Position Detection

Equipped with a high-quality lever actuator and precise contacts, the Omron D4B-2115N ensures accurate position detection in industrial machinery. Its 1NO + 1NC output allows for flexible integration into safety circuits, enhancing operational safety and automation reliability.

Durability for Tough Environments

Built with a die-cast metal body and IP67 protection, this safety limit switch is resistant to dust, water, and physical impacts. It is ideal for use in areas like material handling, CNC machines, and packaging lines where durability and consistent performance are critical.

FAQ's of Omron D4B-2115N Safety Limit Switch:

Q: How does the Omron D4B-2115N safety limit switch contribute to machine safety?

A: The switch offers reliable position detection, preventing machinery from operating outside designated boundaries. Its dual-contact output (1NO + 1NC) ensures safety circuits can be configured to safely respond to open or closed positions, reducing the risk of accidents.

Q: What is the installation process for this safety limit switch?

A: Installation involves securely mounting the switch using the supplied hardware, connecting the terminal block to the control circuit, and positioning the lever actuator to interact with moving machine parts. Its compact size makes it straightforward to fit in tight industrial spaces.

Q: Where can the Omron D4B-2115N be used in industrial settings?

A: It's suitable for applications such as conveyors, packaging machines, CNC equipment, and material handling systems where accurate positioning and safety monitoring are required.

Q: What benefits does the IP67 rating provide for this switch?

A: An IP67 rating ensures the switch is highly resistant to dust ingress and immersion in water, making it dependable in wet or dusty industrial environments.

Q: When should the safety limit switch be replaced or serviced?

A: The switch should be inspected regularly and replaced if the actuator or contacts show signs of wear, electrical failure occurs, or if physical damage is visible. Regular maintenance ensures optimal operation and safety compliance.

Q: What are the power and output specifications of the D4B-2115N switch?

A: The switch supports up to 400V and a current rating of 10A with AC power supply. It features one normally open (NO) and one normally closed (NC) contact for versatile output connections.

Q: How does using this safety switch benefit industrial automation?

A: Incorporating the Omron D4B-2115N enhances automated process reliability and safety by providing real-time position verification, which reduces downtime and helps protect operators and equipment.
