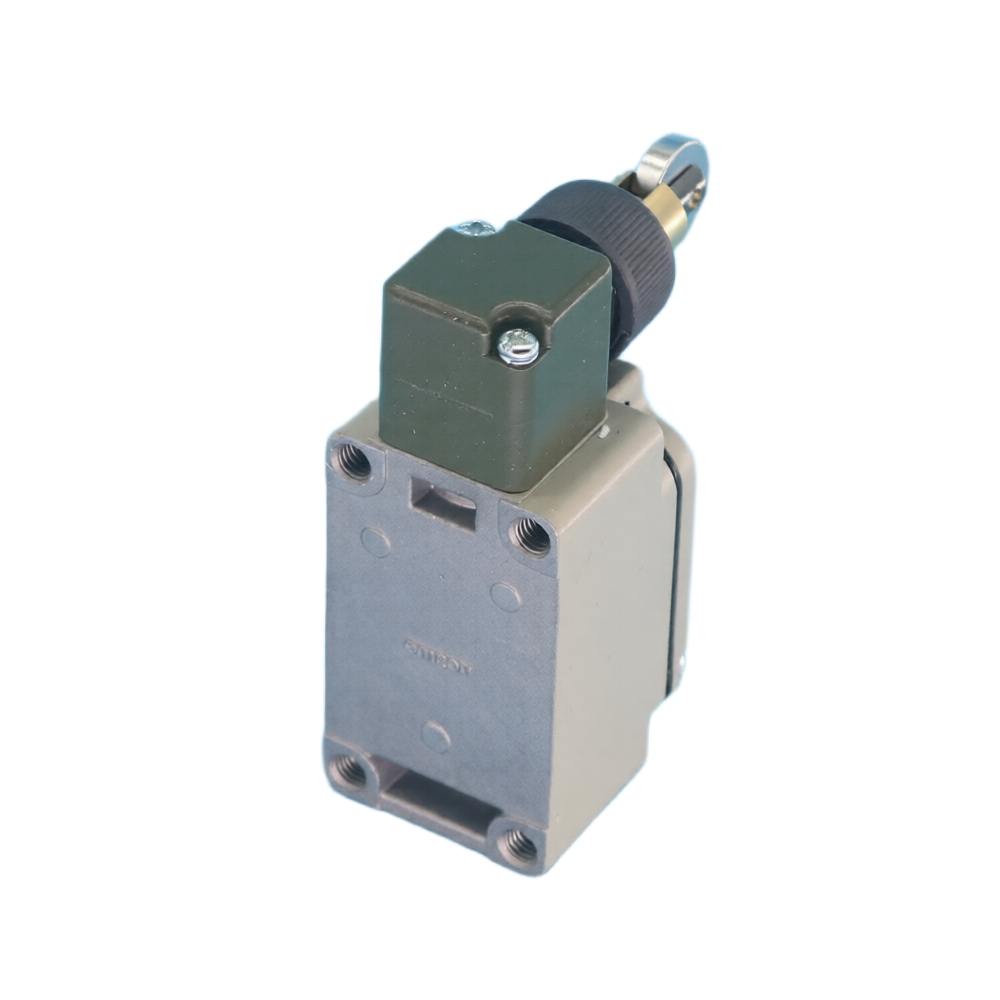

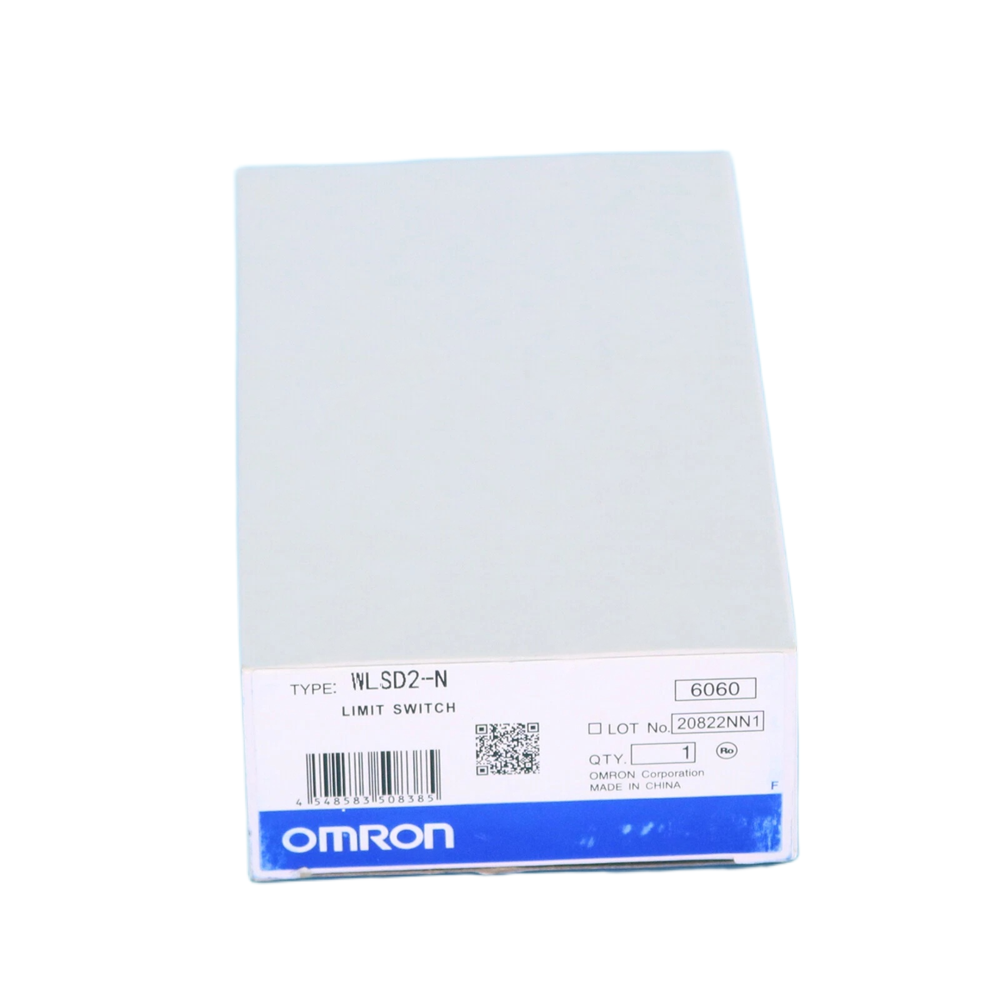

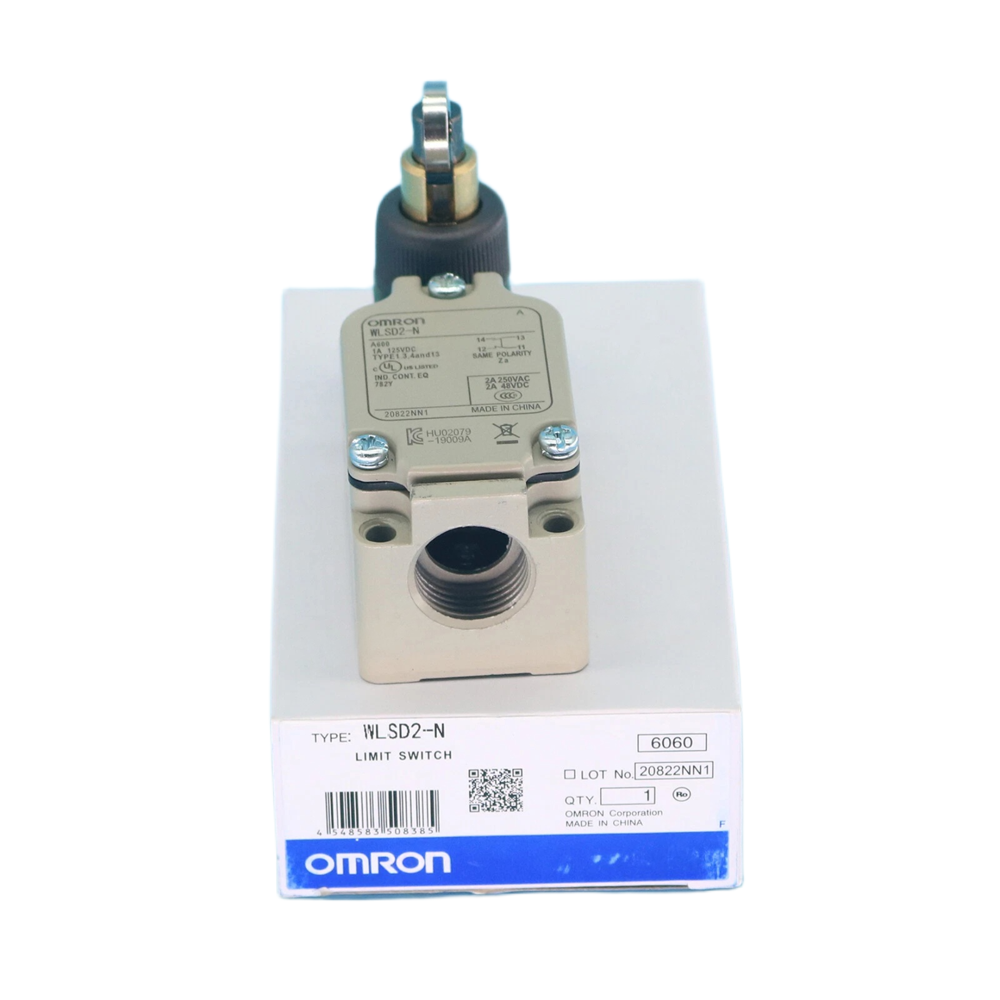

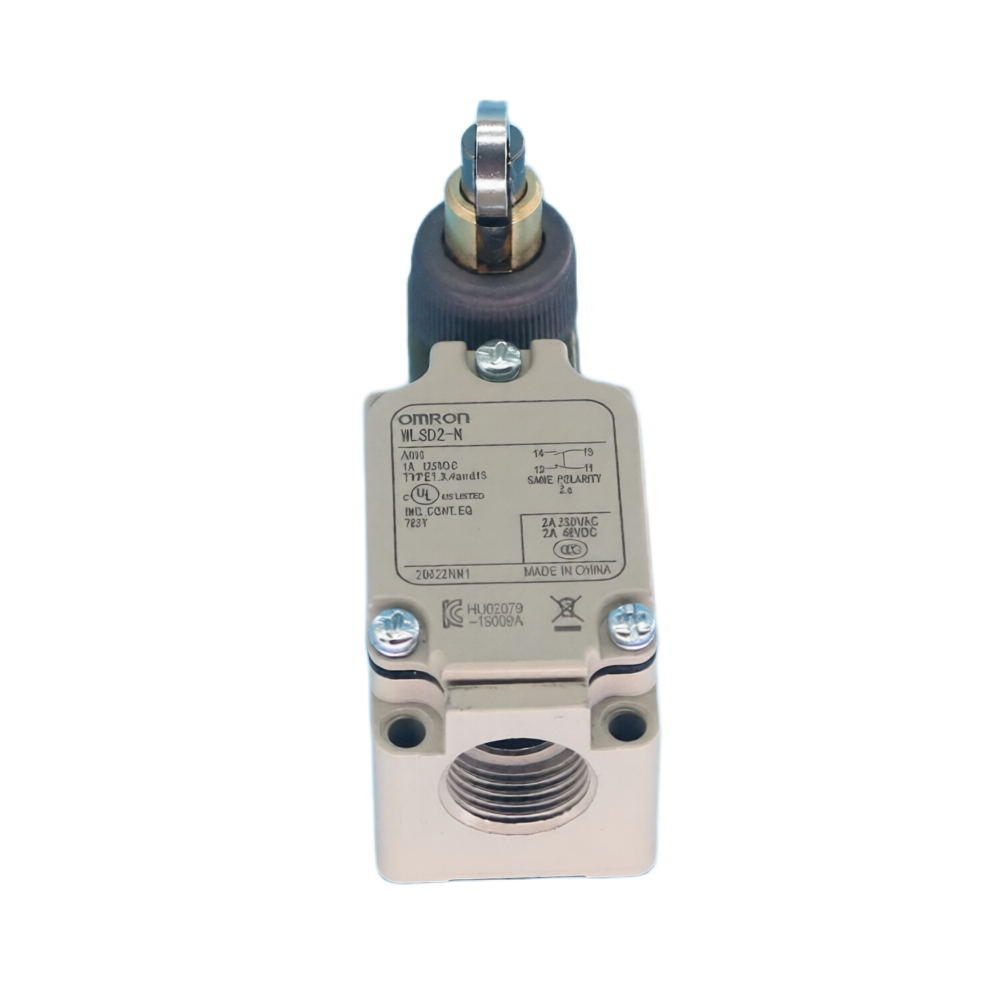

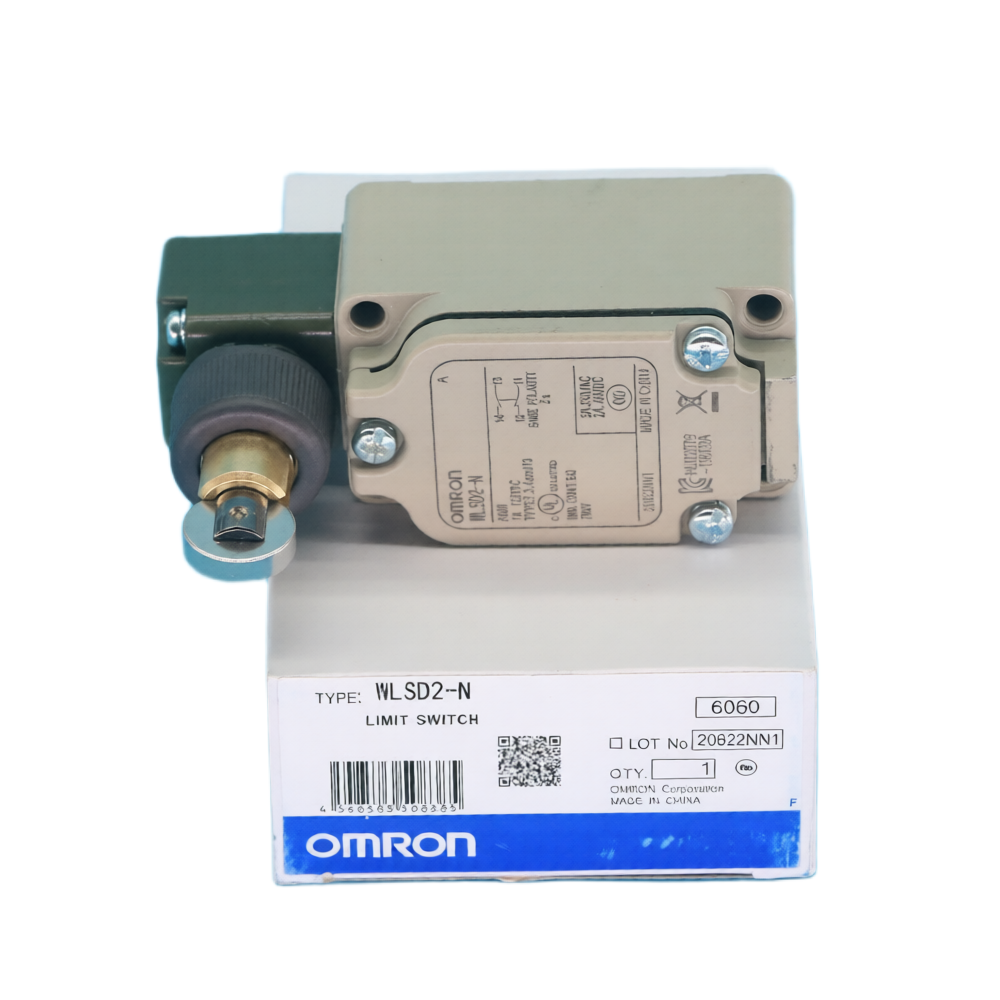

Omron WLSD2-N Limit Switch

Omron WLSD2-N Limit Switch Specification

Input
Mechanical Actuation

Usage
Industrial Automation / Machine Control / Position Detection

Components
Switch Body, Horizontal Roller Plunger, Contact Mechanism, Terminal Block, Conduit Entry

Output
Mechanical Actuation

IP Rating
IP67

Operating Temperature
-10 C to +80 C Celsius (oC)

Power Supply
AC

Product Type
Two-Circuit Limit Switch

Application
Industrial Automation, Conveyors, Packaging Machines, Material Handling Systems, Machine Tools

Rated Voltage
Up to 500 Volt (V)

Supply Voltage
250 Volt (v)

Function
Limit Switching

Color
Gray

Weight
900 Grams (g)

Warranty
1 Year

Features
Heavy-Duty Construction, Two-Circuit Switching, Horizontal Roller Plunger, IP67 Protection, High Durability

Current Rating
10 A

Thickness
Approx. 50 Millimeter (mm)

Frequency
50/60 Hertz (HZ)

Omron WLSD2-N Limit Switch Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

Omron WLSD2-N Limit Switch About

Brand: Omron
Model: WLSD2-N
Product Type: Two-Circuit Limit Switch
Actuator Type: Horizontal Roller Plunger
Contact Configuration: SPDT (Double Break)
Switch Action: Snap Action
Rated Voltage: Up to 500 VAC
Rated Current: 10 A
Protection Rating: IP67
Terminal Type: Screw Terminal
Conduit Size: G1/2 (Without Ground Terminal)
Pretravel (PT): 2.8 mm Max.
Mechanical Life: 15 Million Operations
Electrical Life: 750,000 Operations
Operating Temperature: -10C to +80C
Housing Material: Die-cast Metal
Mounting Type: Panel / Chassis Mount

Reliable Industrial Switching Solution

The Omron WLSD2-N Limit Switch delivers dependable position detection and control for automated systems. Its mechanical actuation with a horizontal roller plunger suits a wide variety of industrial equipment, including conveyor belts and packaging machinery. The device's robust build and IP67 rating guarantee consistent performance even in environments exposed to dust and moisture, making it a valuable asset in automated factory settings.

High Durability and Versatile Application

Constructed with heavy-duty materials, the WLSD2-N withstands extreme operating conditions commonly found in industrial automation and material handling systems. Its versatility, supported by a broad voltage and temperature range, ensures seamless integration into existing controls. The two-circuit switching design provides flexibility for different electrical layouts and enhances operational reliability.

FAQ's of Omron WLSD2-N Limit Switch:

Q: How does the Omron WLSD2-N Limit Switch function in industrial automation applications?

A: The WLSD2-N acts as a position detection device, converting mechanical movement from machinery or material flow into an electrical signal. Its horizontal roller plunger detects mechanical contact and triggers the switch, making it suitable for use in conveyors, packaging machines, and other automated systems.

Q: What are the key benefits of using the Omron WLSD2-N Limit Switch?

A: Key benefits include high durability thanks to its heavy-duty construction and IP67 protection, reliable operation at up to 10 A and 500 V, two-circuit switching capability for versatile control, and suitability for harsh industrial environments with wide temperature tolerance.

Q: When should I consider installing an Omron WLSD2-N Limit Switch?

A: Install the WLSD2-N when precise, heavy-duty mechanical actuation and position detection are required-such as on conveyors, machine tools, or other automated equipment needing reliable end-of-travel or safety indications.

Q: Where can the WLSD2-N Limit Switch be installed?

A: It is designed for mounting in industrial automation systems, material handling units, machine tools, and similar environments where position feedback and durability are essential. Its IP67 rating allows usage in locations exposed to moisture or dust.

Q: What is the installation process for this limit switch?

A: Installation involves mechanically mounting the switch using the provided conduit entry, connecting wiring to the terminal block, and aligning the horizontal roller plunger to interact with the moving machine part for effective mechanical actuation.

Q: How does the IP67 rating benefit the WLSD2-N in industrial environments?

A: The IP67 protection ensures the switch is dust-tight and protected against temporary submersion in water, significantly extending its reliability and operational lifespan in harsh, wet, or dusty conditions.
