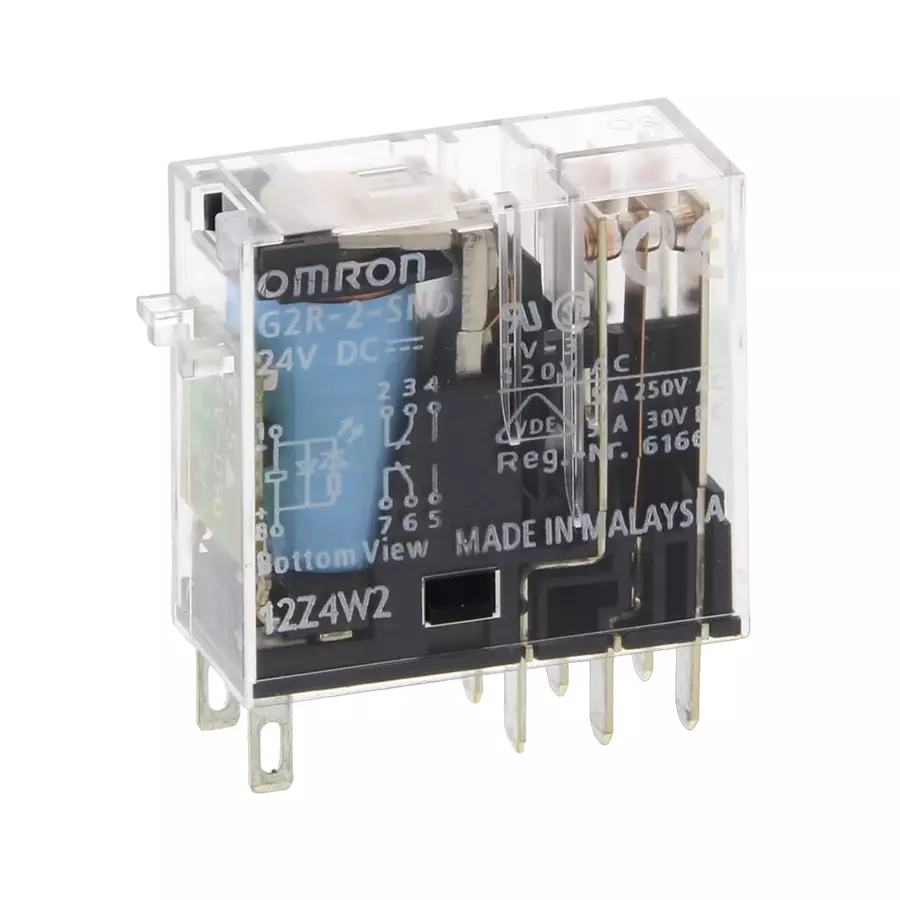

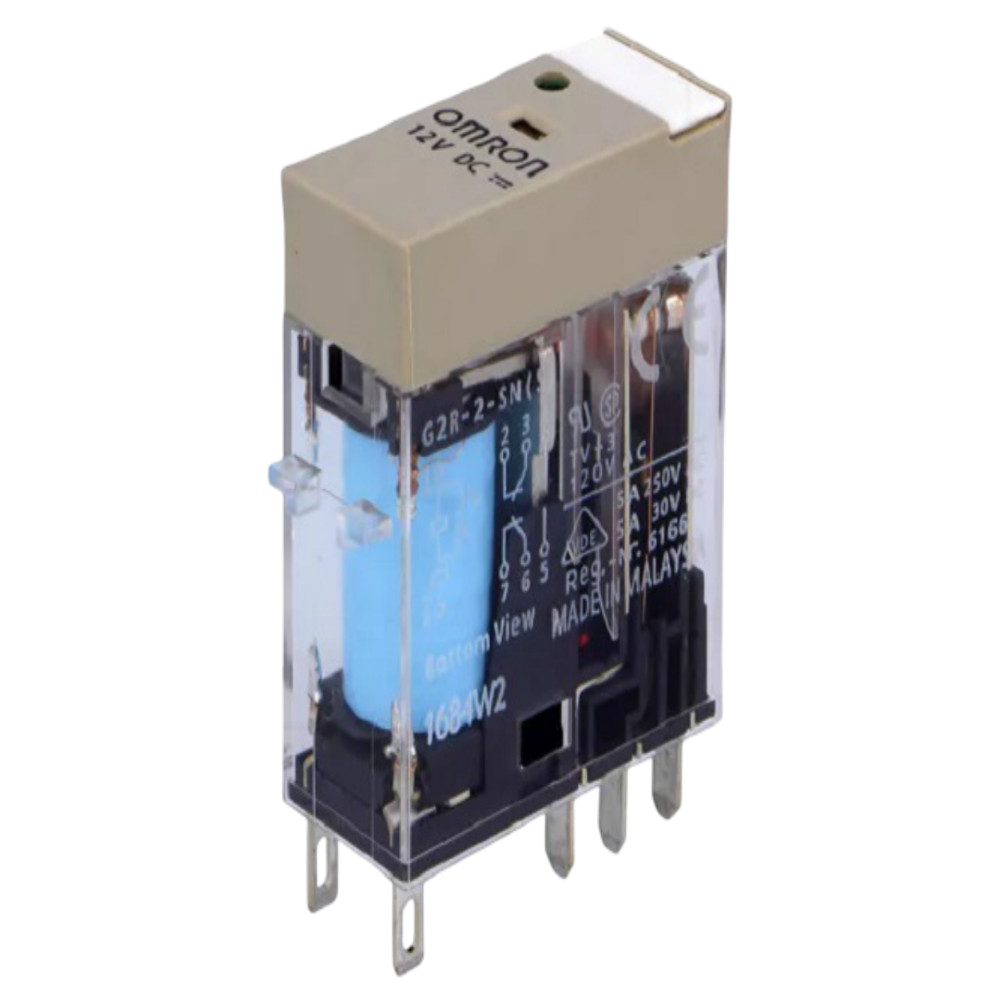

Omron G2R-2-SN Relay

Omron G2R-2-SN Relay Specification

Usage
switching loads in industrial automation, HVAC, lighting, and control systems

IP Rating
IP67

Output
DPDT isolated contacts switching the load (NO/NC) up to ~5 A at 250 VAC / 30 VDC

Input
Rated coil voltage

Display Type
LED Displays

Product Type
Electromechanical

Application
Industrial control, automation panels, motor control, power switching

Rated Voltage
24 Volt (V)

Dimension (L*W*H)
29 x 13 x 36 Millimeter (mm)

Function
switching loads in lighting, HVAC, and machinery

Color
black or dark grey plastic

Weight
20 Grams (g)

Warranty
1 year

Rated Current
5 Ampere (amp)

Thickness
13 Millimeter (mm)

Current Rating
5A

Omron G2R-2-SN Relay Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal, Cash in Advance (CID), Cheque

Supply Ability
300 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron G2R-2-SN Relay

The Omron G2R-2-SN is a slim, space-saving, DPDT (Double Pole Double Throw) general-purpose power relay used in industrial automation, featuring plug-in terminals, a transparent case, a mechanical indicator, and often an LED for status, allowing it to switch high-power loads (like 10A/250VAC) with various AC/DC coil voltages for applications requiring reliable, compact control.

Key Features & Specifications:

Type: General Purpose Power Relay, DPDT (2 Form C).
Form Factor: Slim, compact, plug-in style.
Contacts: Silver Alloy , rated for up to 10A (or 5A depending on variant) at 250VAC/30VDC.
Coil Options: Wide range of AC (e.g., 120VAC, 240VAC) and DC (e.g., 12VDC, 24VDC, 48VDC) voltages available.
Indicators: Built-in mechanical indicator and sometimes an LED for status.
Test Function: Often includes a lockable test button to manually operate the contacts.
Mounting: Designed for use with compatible sockets (like P2RF series) for DIN rail or surface mounting.
Applications: Power management, process control, automation, motor/conveyor control.

Reliable Load Switching for Industrial Applications

Designed to handle switching tasks in industrial automation, HVAC, lighting, and control systems, the Omron G2R-2-SN Relay provides robust performance and versatility. Its DPDT isolated contacts support both NO and NC operations, allowing seamless control of various loads while ensuring electrical isolation. With a rated capacity of 5A at 250 VAC or 30 VDC, it is well-suited for controlling motors, lights, and other essential machinery in demanding environments.

Compact Design with LED Status Indication

Measuring only 29 x 13 x 36 mm, this relay is specifically engineered to save space in control panels and automation setups. The integrated LED display gives immediate visual feedback on relay status, streamlining troubleshooting and monitoring processes. Its lightweight yet sturdy plastic case ensures easy installation and long-term durability in industrial settings.

FAQ's of Omron G2R-2-SN Relay:

Q: How is the Omron G2R-2-SN Relay typically installed in automation panels?

A: The relay's slim 13mm profile and compact dimensions enable easy integration into standard DIN-rail mounted sockets or PCB layouts within control panels. Installation is straightforward for technicians familiar with industrial automation wiring practices.

Q: What types of loads can this relay control?

A: With DPDT isolated contacts rated for up to 5A at 250 VAC or 30 VDC, the relay efficiently switches loads such as lights, motors, HVAC equipment, and other industrial machinery in both NO and NC configurations.

Q: When should the G2R-2-SN Relay be used in an application?

A: This relay is best suited for tasks requiring electrical isolation and the switching of moderate currents in automation panels, HVAC systems, lighting control circuits, and motor control centers.

Q: Where is the Omron G2R-2-SN Relay beneficial in an industrial setup?

A: It excels in automation panels, machine control circuits, industrial HVAC units, and lighting systems that require durable and reliable switching in compact spaces.

Q: What is the process for confirming relay operation?

A: The relay includes an LED display that indicates its activation status, allowing users to visually confirm whether the relay coil is energized during operation, simplifying troubleshooting and diagnostics.

Q: How does the IP67 rating enhance the relay's performance?

A: The IP67 rating ensures that the relay is resistant to dust and can withstand temporary immersion in water, making it suitable for use in harsh or demanding industrial environments.

Q: What warranty and support are available with this relay in India?

A: Omron provides a 1-year warranty for the G2R-2-SN Relay, and it is available through authorized importers, suppliers, and traders in India, ensuring responsive after-sales support.
