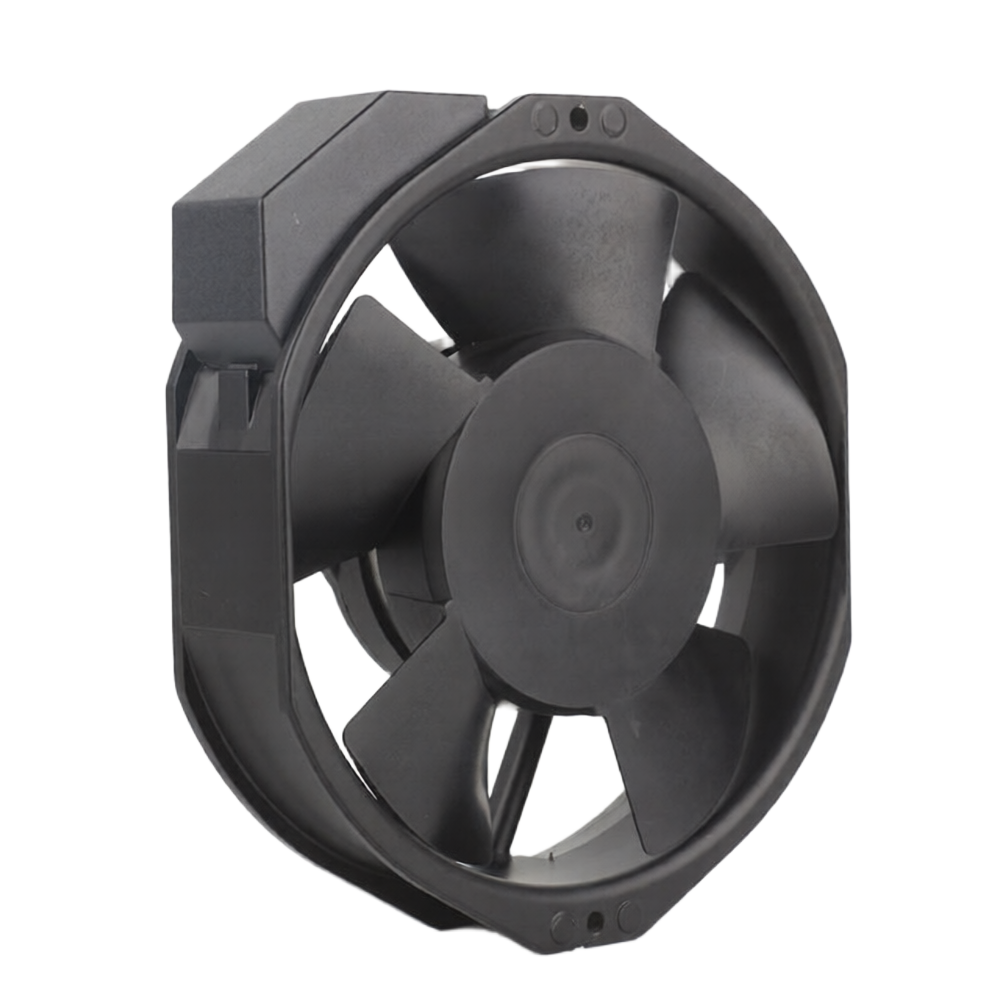

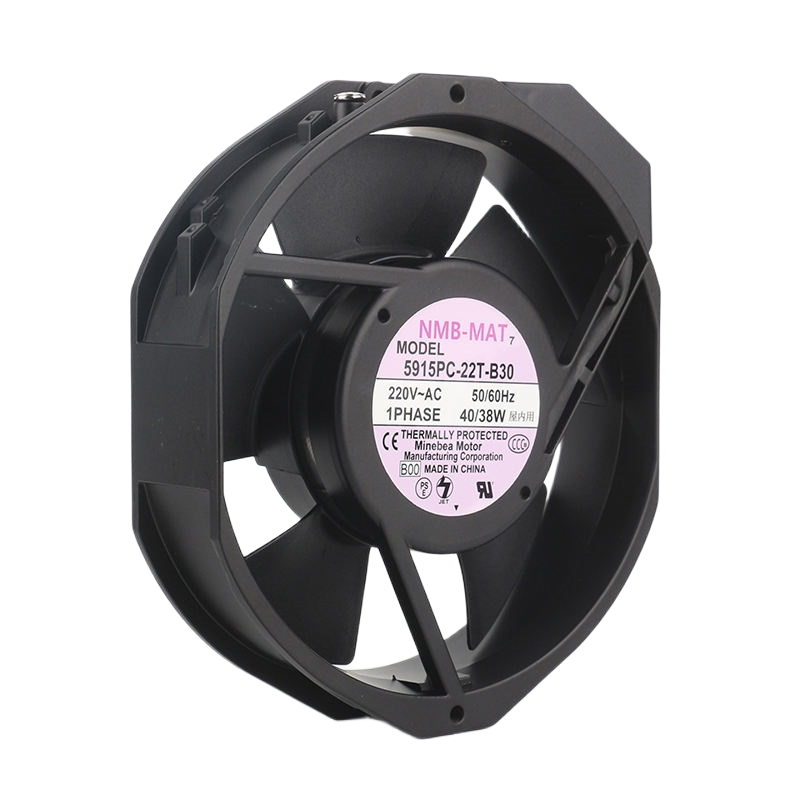

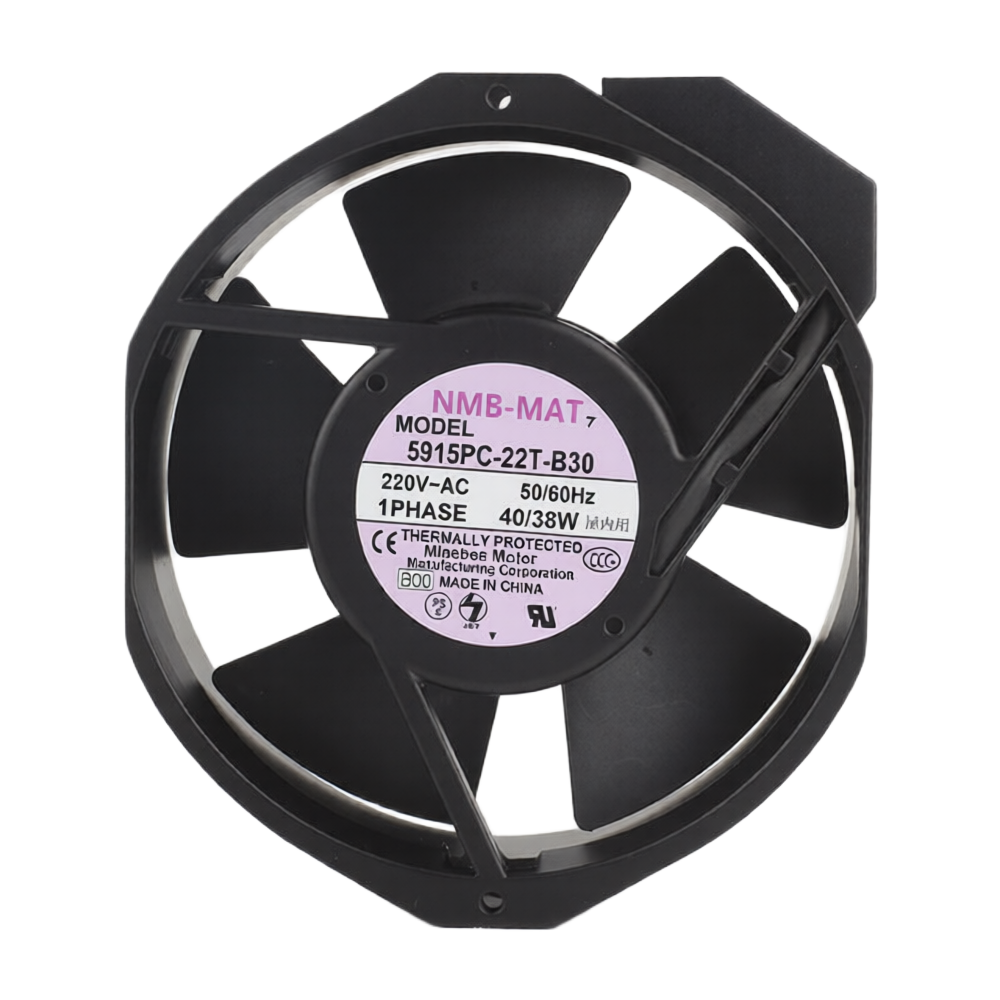

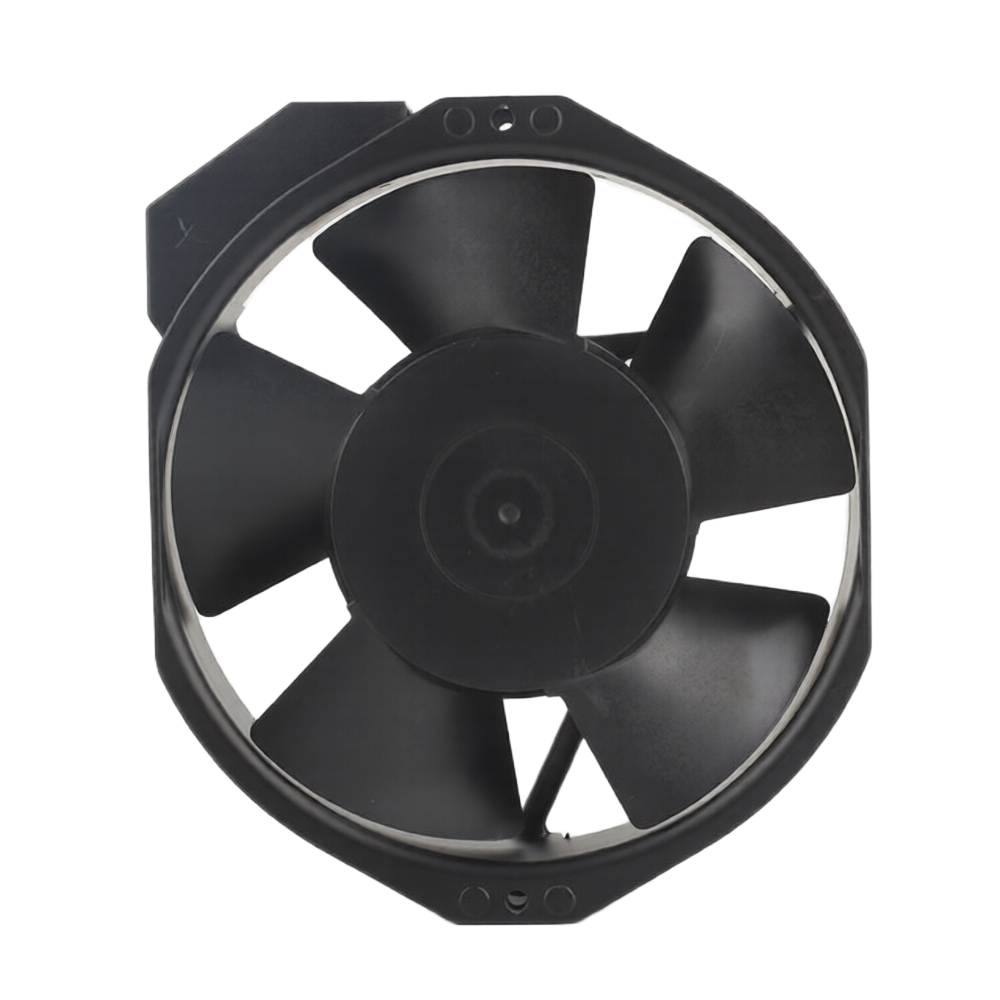

NMB 5915PC-22T-B30 Cooling Fan
NMB 5915PC-22T-B30 Cooling Fan Specification
- Operating Temperature
- -10C to +70C
- Input
- 230 Volt AC
- Output
- Air Flow for Cooling
- Interface
- 2 Wire
- Power Source
- AC Powered
- Features
- Long Life, High Durability, Low Noise, Maintenance Free
- Power Supply
- AC
- Components
- Fan Blade, Housing, Motor, Connector
- Usage
- Industrial Cooling and Ventilation
- Product Type
- AC Cooling Fan
- Application
- Electrical Panels, Cabinets, General Purpose Cooling
- Rated Voltage
- 230V AC
- Supply Voltage
- 230V
- Size
- 172mm
- Dimension (L*W*H)
- 172 x 150 x 38 mm
- Function
- Axial Cooling Fan
- Color
- Black
- Weight
- 0.78 kg (approx)
- Thickness
- 38 mm
- Current Rating
- 0.14A
- Frequency
- 50/60 Hz
- Mounting Hole Size
- Approx. 4.3 mm
- Connector Type
- Terminal
- Blade Material
- Plastic
- Bearing Type
- Ball Bearing
- Max. Air Flow
- 115 CFM (Cubic Feet per Minute)
- Number of Blades
- 7
- Frame Material
- Aluminum Alloy
- Fan Model
- 5915PC-22T-B30
- Noise Level
- 45 dB(A)
- Life Expectancy
- 60,000 hours at 25C
- Max. Static Pressure
- 0.33 Inch H2O
- Approval
- UL, CE Certified
NMB 5915PC-22T-B30 Cooling Fan Trade Information
- Minimum Order Quantity
- 2 Units
- Payment Terms
- Paypal
- Supply Ability
- 120 Units Per Month
- Delivery Time
- 1 Week
- Sample Available
- No
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Domestic Market
- All India
About NMB 5915PC-22T-B30 Cooling Fan
- Brand: NMB
- Model No.: 5915PC-22T-B30
- Fan Type: AC Axial / Tubeaxial Fan
- Rated Voltage: 220V AC
- Current: 0.18 A
- Power Consumption: 38 W
- Fan Size: 172 150 38 mm
- Air Flow: 212 CFM (5.94 m/min)
- Speed: 3200 RPM
- Noise Level: 56 dB
- Static Pressure: 0.865 in H2O
- Bearing Type: Ball Bearing
- Material: Aluminum Frame, FRP Plastic Blades
- Operating Temperature: -10C to +70C
- Life Expectancy: 50,000 hours
- Mounting Type: Panel Mount
- Connection Type: 2 Terminals
High Efficiency and Durable Build
The 5915PC-22T-B30 Cooling Fan is engineered for reliability, using a strong aluminum alloy frame and reinforced plastic blades. Its high-quality ball bearing system ensures smooth performance and longevity, making it suitable for continuous industrial operation. With a noise output of only 45 dB(A), it offers efficient cooling with minimal disturbance.
Versatile Industrial Application
This axial fan is designed for versatile use, fitting a variety of electrical panels, cabinets, and other general-purpose ventilation systems. The 7-blade design maximizes airflow (up to 115 CFM), while the sturdy construction ensures it withstands the demands of industrial environments. It mounts easily via standard 4.3 mm holes and integrates seamlessly into existing setups.
FAQ's of NMB 5915PC-22T-B30 Cooling Fan:
Q: How do I install the NMB 5915PC-22T-B30 Cooling Fan in an electrical cabinet?
A: To install the fan, align its mounting holes (approximately 4.3 mm) with your cabinet's pre-drilled holes, secure with appropriate fasteners, and connect the terminal-type AC power wires according to safety guidelines. Ensure the 230V AC supply is used to power the unit.Q: What are the main benefits of using this cooling fan for industrial applications?
A: This fan provides powerful airflow (up to 115 CFM), long service life (60,000 hours at 25C), and low maintenance due to its ball bearing design. It efficiently dissipates heat in electrical panels and cabinets, protecting sensitive equipment and ensuring reliable operation.Q: When should this cooling fan be replaced or serviced?
A: Typically, the fan requires minimal servicing thanks to its ball bearings and maintenance-free design. However, it should be replaced if excessive noise, reduced airflow, or signs of electrical failure occur, or after reaching its rated life expectancy.Q: Where can the NMB 5915PC-22T-B30 be used aside from electrical panels?
A: This fan is suitable for any industrial cooling or ventilation application, including control cabinets, machinery enclosures, and other environments where reliable air circulation at 230V AC is required.Q: What process should I follow to connect the fan's terminal-type connector?
A: Carefully strip the supply wires, insert them into the designated terminals following the manufacturer's wiring diagram, and secure the connections. Always ensure the power is turned off during installation for safety.Q: What makes this cooling fan durable and long-lasting?
A: The robust aluminum alloy frame, high-quality plastic blades, and ball bearing mechanism ensure durability and consistent performance. It is also certified by UL and CE, further attesting to its reliability and safety.Tell us about your requirement
