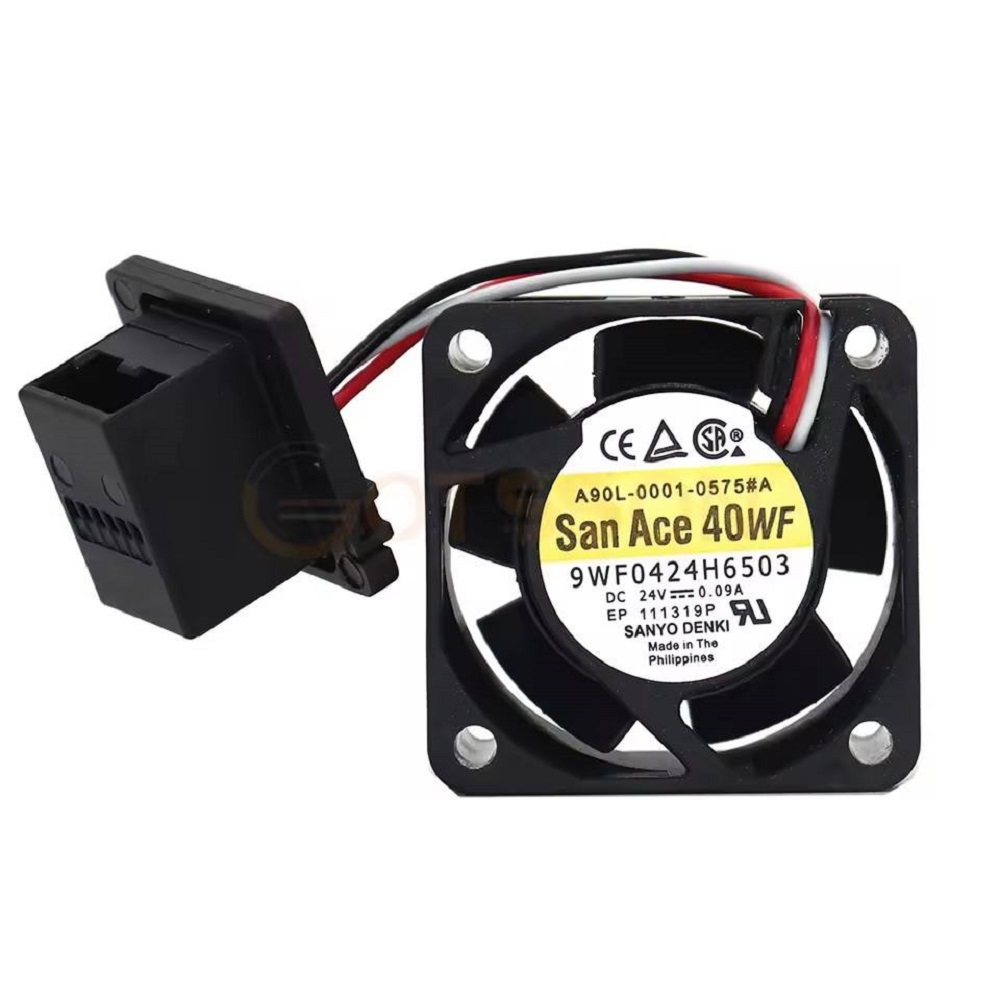

SANYO 9WF0424H6503 Cooling Fan

SANYO 9WF0424H6503 Cooling Fan Specification

Power Source
DC

Usage
Industrial equipment, IT systems, Automation

Components
Fan, housing, connector

Interface
2-wire

Features
Long life, energy efficient, low noise

Operating Temperature
-10C to +70C

Power Supply
DC

Product Type
Axial Cooling Fan

Application
Cabinet cooling, electrical panels, enclosures

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
40 x 40 mm

Dimension (L*W*H)
40 x 40 x 25 mm

Function
Cooling electronic components

Color
Black

Weight
Approx. 45g

Current Rating
0.11A

Thickness
25 mm

Airflow
0.97 m3/min (at maximum speed)

Connector Type
3-pin

Bearing Type
Ball bearing

Mounting
Flange mount

Noise Level
21 dB(A)

Model
9WF0424H6503

Life Expectancy
40,000 hours at 60C

Frame Material
Plastic (UL94V-0 rated)

Speed
8500 RPM

SANYO 9WF0424H6503 Cooling Fan Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Paypal

Supply Ability
250 Units Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia

Main Domestic Market
All India

About SANYO 9WF0424H6503 Cooling Fan

Brand: SANYO DENKI (San Ace Series)
Model No.: 9WF0424H6503
Fan Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Current: 0.09 A
Power Consumption: 2.1 W (approx.)
Fan Size: 40 mm 40 mm 20 mm
Speed: 1500 RPM
Air Flow: 26.8 CFM
Bearing Type: Ball Bearing (typical for San Ace series)
Number of Wires: 3 Wire
Material: Plastic Frame & Blade
Color: Black

Reliable Cooling Performance

With a maximum airflow of 0.97 m3/min and an impressive speed of 8500 RPM, the SANYO 9WF0424H6503 ensures stable cooling for electronic and industrial equipment. Its design minimizes overheating, safeguarding sensitive components in enclosed environments such as cabinets and electrical panels.

Long Lifespan and Energy Efficiency

Featuring high-quality ball bearings and energy-efficient operation, this fan provides up to 40,000 hours of service at 60C. Designed for continuous use, it is an ideal choice for industries and automation systems seeking long-term reliability with low energy consumption.

Low Noise Operation

Operating at just 21 dB(A), this cooling fan offers quiet performance suitable for noise-sensitive areas. Whether installed in IT enclosures or industrial panels, it ensures equipment stays cool with minimal acoustic disruption.

FAQ's of SANYO 9WF0424H6503 Cooling Fan:

Q: How does the SANYO 9WF0424H6503 Cooling Fan benefit electronic and industrial equipment?

A: The fan provides consistent airflow to quickly dissipate heat, helping prevent equipment failures and ensuring stable operation of electronic and industrial systems in demanding environments.

Q: What are the primary applications for this cooling fan?

A: It is commonly used in cabinet cooling, electrical panels, and enclosures found in industrial equipment, IT systems, and automation controls, ensuring optimal temperature management.

Q: When should the SANYO 9WF0424H6503 fan be replaced?

A: The fan is designed for a lifespan of up to 40,000 hours at 60C. Replacement is generally recommended when the fan exhibits signs of excessive noise, decreased airflow, or at the end of its rated service life.

Q: Where can I install the 9WF0424H6503 fan?

A: Thanks to its compact 40 x 40 x 25 mm size and flange mount, it fits easily into electrical cabinets, control panels, and tight enclosures within industrial and IT setups.

Q: How is the fan powered and connected?

A: The fan operates on a 24V DC power supply and uses a 3-pin connector (2-wire interface) for easy and secure installation in equipment requiring direct-current cooling solutions.

Q: What process should I follow for mounting the fan?

A: Prepare the appropriate opening and use the flange mount feature to secure the fan in place. Connect power via the 3-pin connector, ensuring correct voltage and polarity for safe operation.
