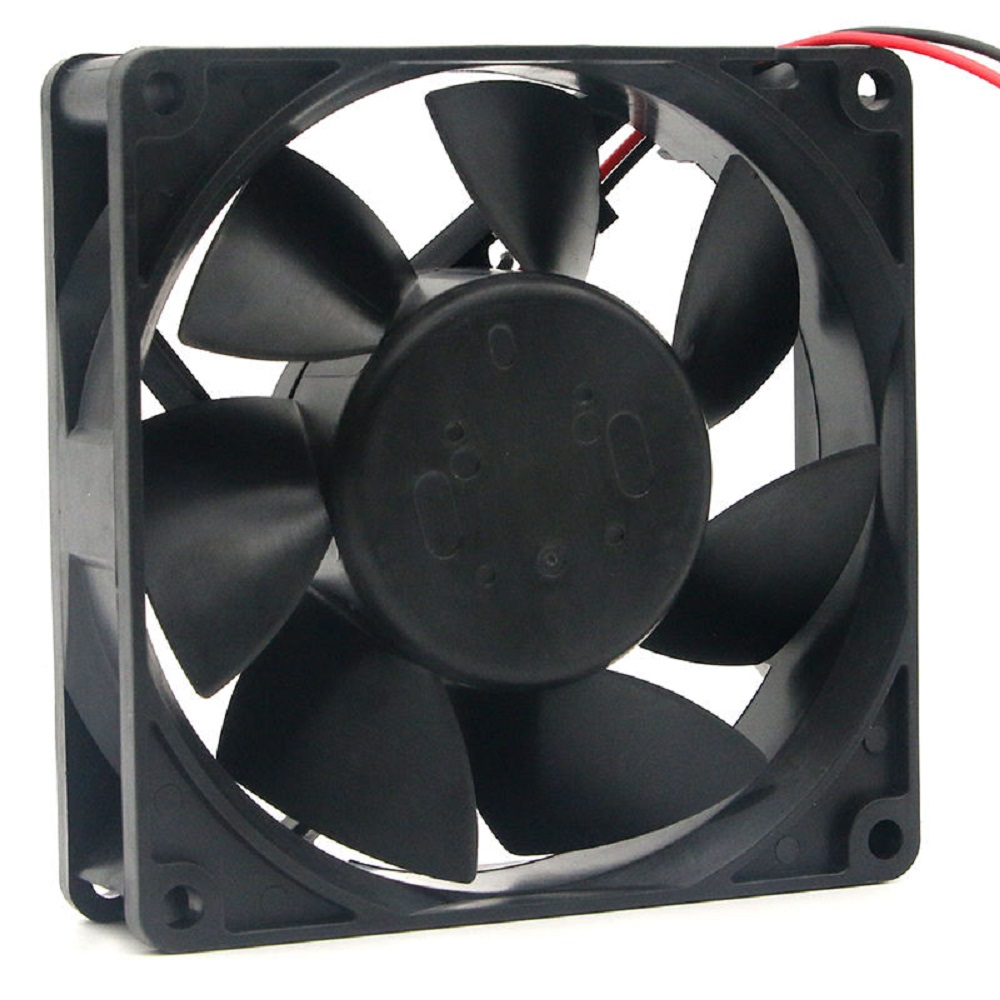

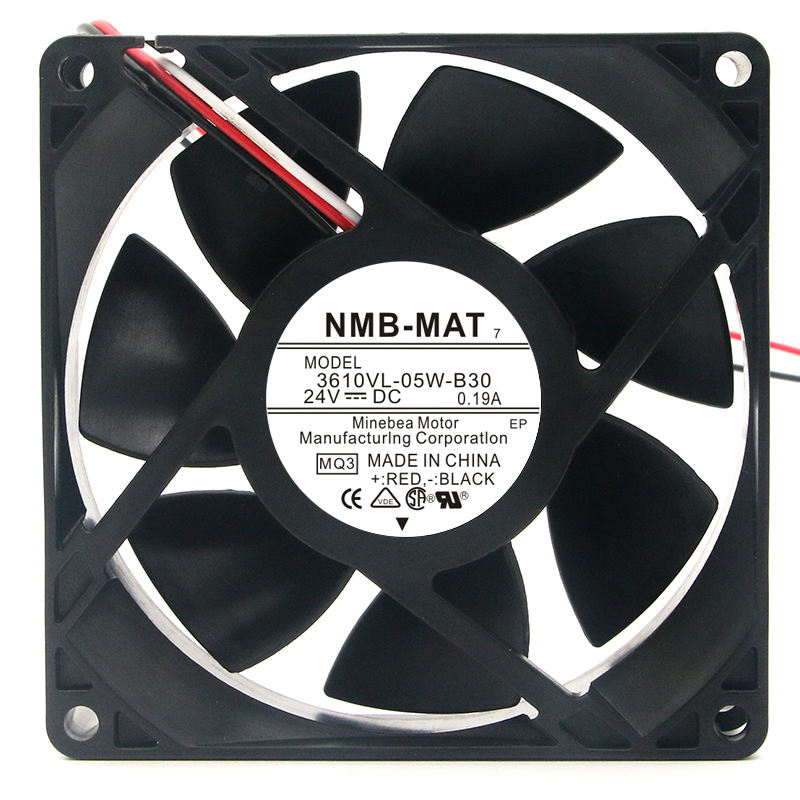

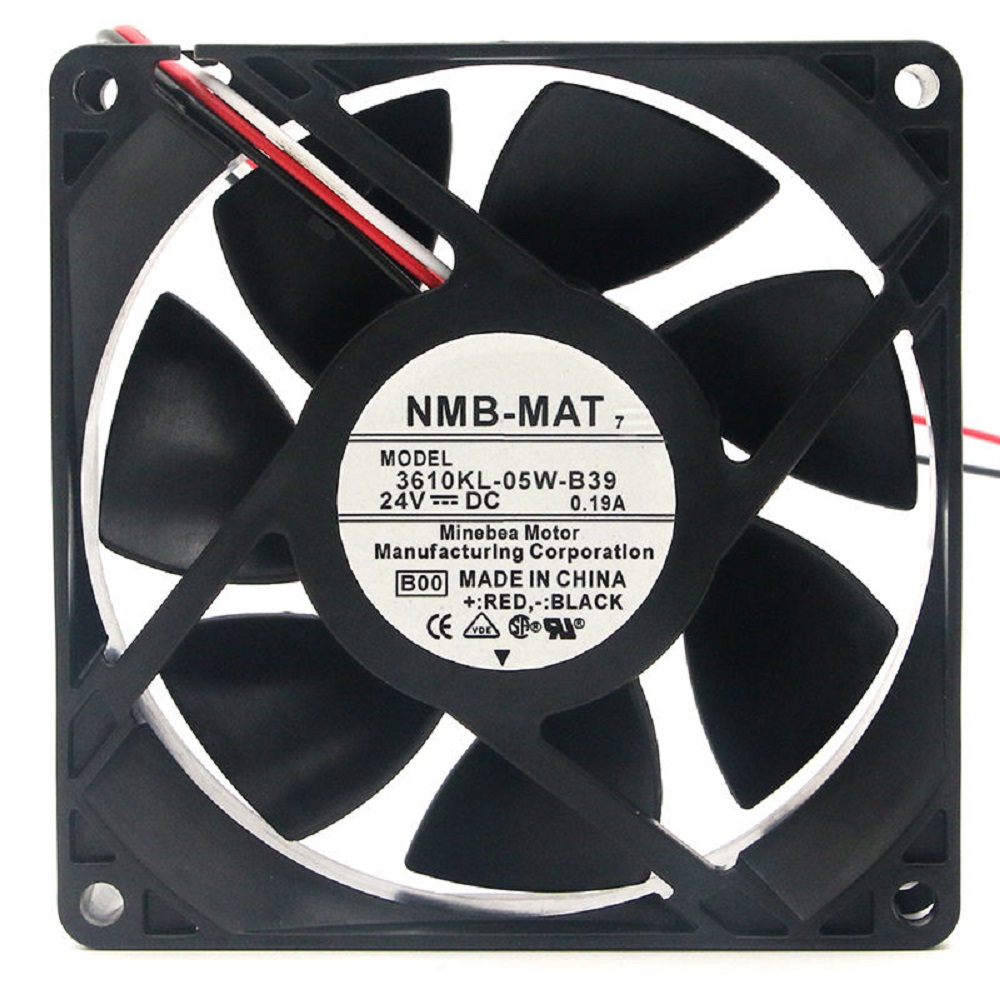

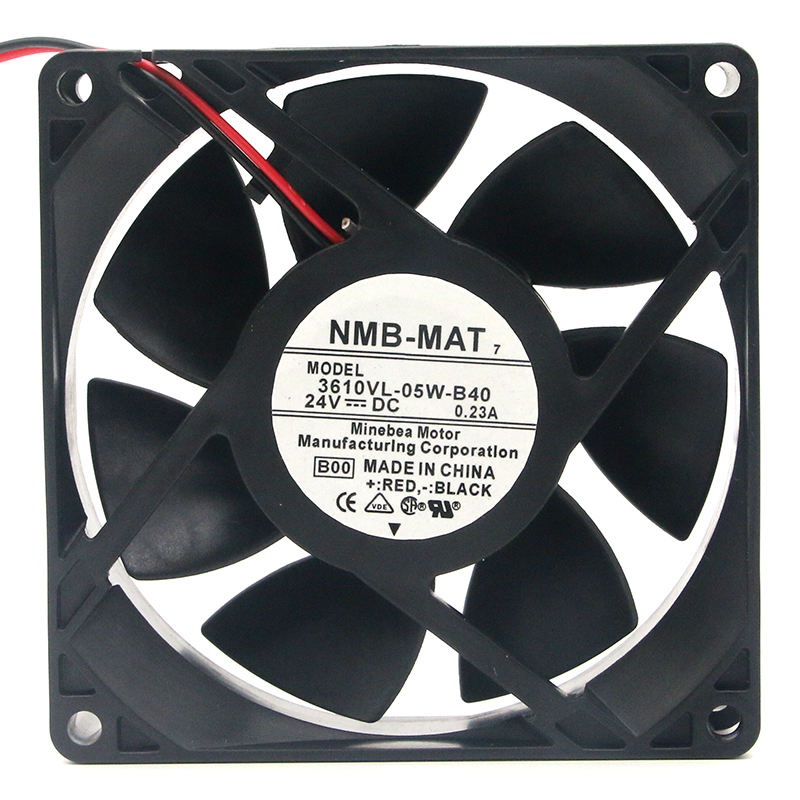

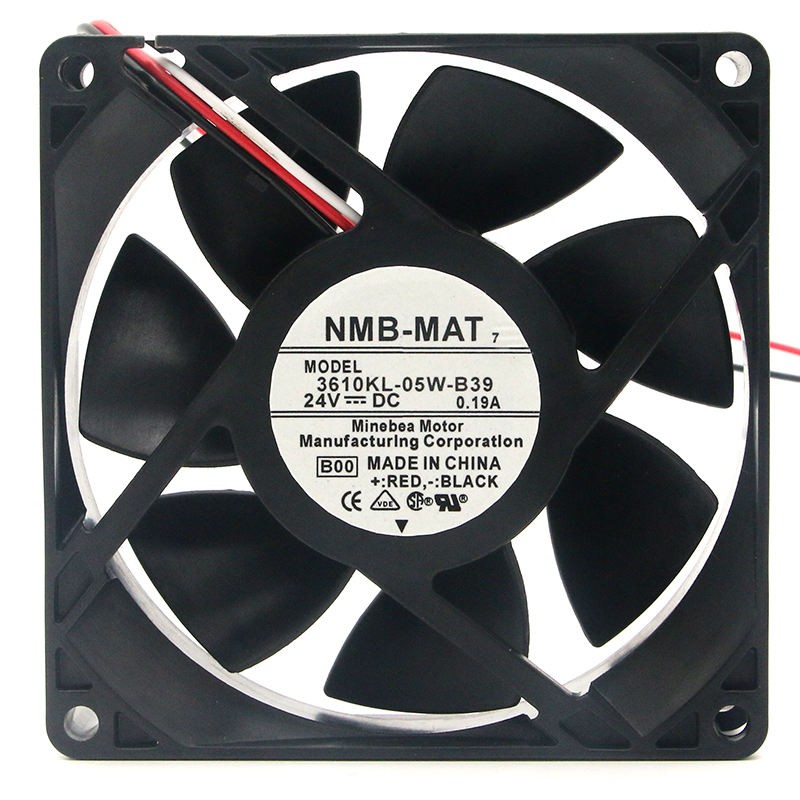

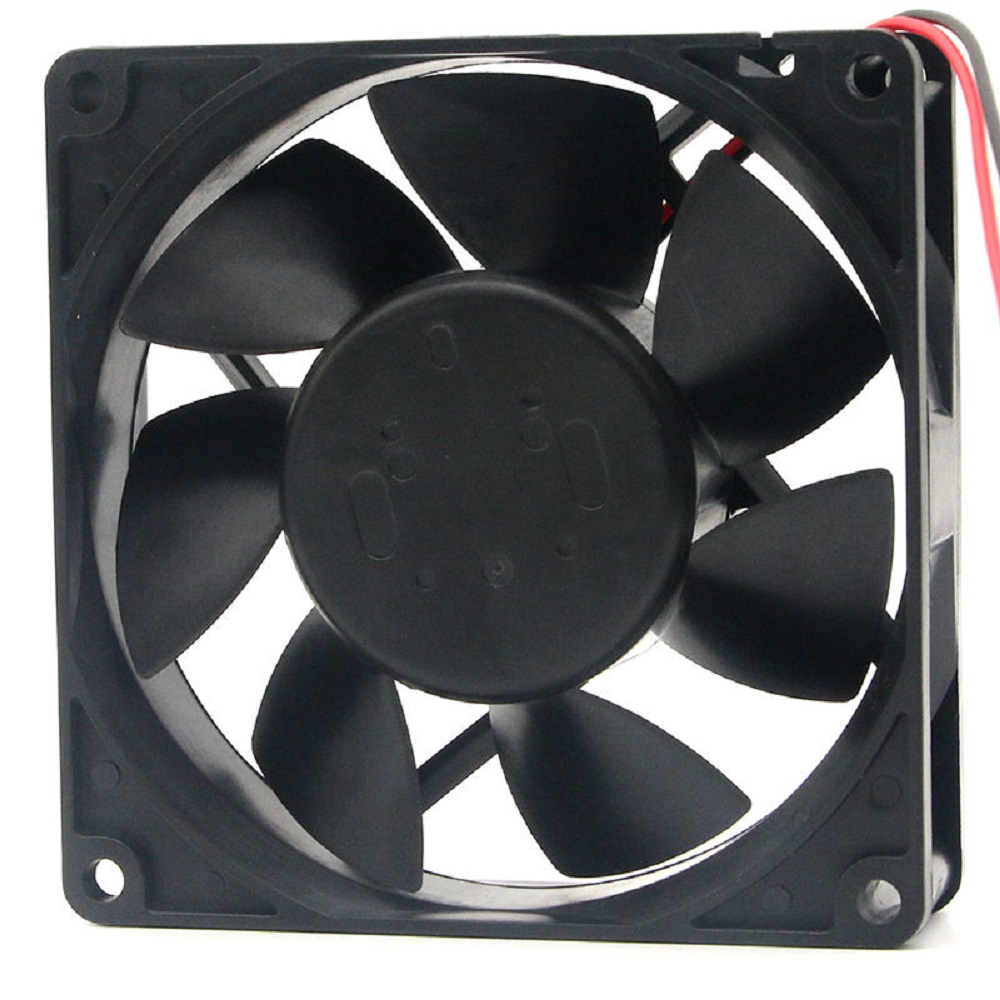

NMB 3610VL-05W-B26/B30/B39/B40 Cooling Fan

NMB 3610VL-05W-B26/B30/B39/B40 Cooling Fan Specification

Power Source
DC Electric

IP Rating
Not Rated

Power Supply
Electric

Components
Fan Blade, Motor, Housing

Usage
Industrial, Electronics, Machinery

Interface
2-wire/3-wire

Features
Long life, low noise, high performance

Output
0.06A

Input
1.44W

Operating Temperature
-10C to +70C

Product Type
Axial Cooling Fan

Application
Server, PC Case, Inverter, Control Box, PCB

Rated Voltage
DC 24V

Supply Voltage
24V DC

Size
92mm x 92mm x 25mm

Dimension (L*W*H)
92mm x 92mm x 25mm

Function
Cooling electronic components

Color
Black

Weight
Approx. 110g

Capacity
Standard airflow capacity for 92mm fans

Current Rating
0.06A

Thickness
25mm

Fan Model
3610VL-05W-B26/B30/B39/B40

Bearing Type
Ball Bearing

Life Expectancy
60,000 hours at 60C

Rotation Speed
2650 RPM

Frame Material
Plastic (UL94V-0)

Max Air Flow
51.4 CFM

Connector Type
Lead Wire

Noise Level
33 dBA

Max Static Pressure
0.19 in H2O

NMB 3610VL-05W-B26/B30/B39/B40 Cooling Fan Trade Information

Minimum Order Quantity
4 Units

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

About NMB 3610VL-05W-B26/B30/B39/B40 Cooling Fan

Fan Type: DC Axial / Brushless Fan
Size: 92 92 25 mm
Rated Voltage: 24V DC
Power Consumption: 3.0 4.5 W (varies by model)
Speed (RPM): 3000 4200 RPM (B26 to B40 variants)
Air Flow: 50 75 CFM (depending on model)
Noise Level: 34 42 dB
Bearing Type: Ball Bearing
Connection: 2 Wire Leads
Phase: Single Phase

Efficient Cooling Performance

The NMB 3610VL-05W series cooling fan ensures optimal airflow for demanding industrial and electronic environments. Thanks to its 2650 RPM rotation speed and 0.19 in H2O maximum static pressure, it keeps components cool under heavy workloads, which is vital for maintaining system stability and preventing overheating.

Durability and Extended Service Life

Featuring a high-quality ball bearing mechanism, this fan is rated for 60,000 hours of operation at 60C. This longevity reduces downtime and maintenance costs, making it ideal for critical applications such as servers, inverters, and control boxes where reliability is essential.

Quiet and Safe Operation

Operating at just 33 dBA, the fan offers low-noise performance suitable for environments where quiet is crucial. Constructed from UL94V-0 rated flame-retardant plastic, it meets safety standards for use in industrial and electronic installations.

FAQ's of NMB 3610VL-05W-B26/B30/B39/B40 Cooling Fan:

Q: How do I install the NMB 3610VL-05W series cooling fan in my equipment?

A: Installation requires mounting the fan using suitable screws or brackets at the designated location within your server, inverter, control box, or other compatible enclosure. Connect the lead wire to a 24V DC power supply, ensuring correct polarity and securing electrical connections as specified.

Q: What is the main function of the NMB 3610VL-05W-B26/B30/B39/B40 cooling fan?

A: This fan is primarily designed for cooling electronic components in industrial and electronic devices, helping to maintain optimal operating temperatures in server racks, machinery, and control panels.

Q: When should I consider replacing this cooling fan?

A: Consider replacing the fan if you notice reduced airflow, increased noise, or visible wear. With a life expectancy of 60,000 hours at 60C, replacement is typically needed after extended continuous usage or if the fan shows performance decline.

Q: Where is the NMB 3610VL-05W cooling fan commonly used?

A: This model is widely used in industrial equipment, electronic devices, server cabinets, PC cases, inverters, control boxes, and printed circuit board assemblies, wherever efficient and reliable cooling is required.

Q: What are the benefits of using a ball bearing fan like this model?

A: Ball bearing technology extends the life expectancy of the fan, ensures smoother operation at higher temperatures, and provides sustained performance, making it suitable for continuous industrial or commercial use.

Q: How does the fan handle high temperatures during operation?

A: The fan is rated for operation between -10C and +70C, and its ball bearing system is designed to withstand prolonged exposure to high temperatures while maintaining expected performance and durability.
