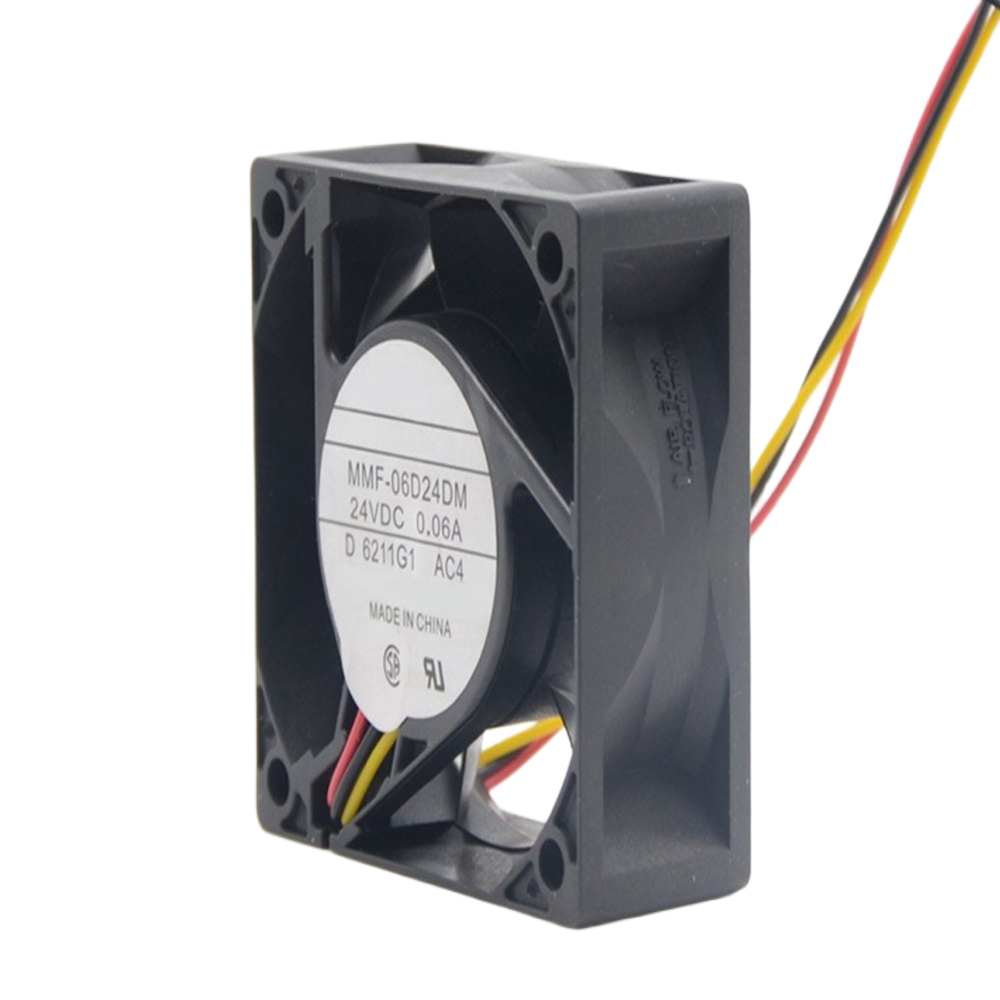

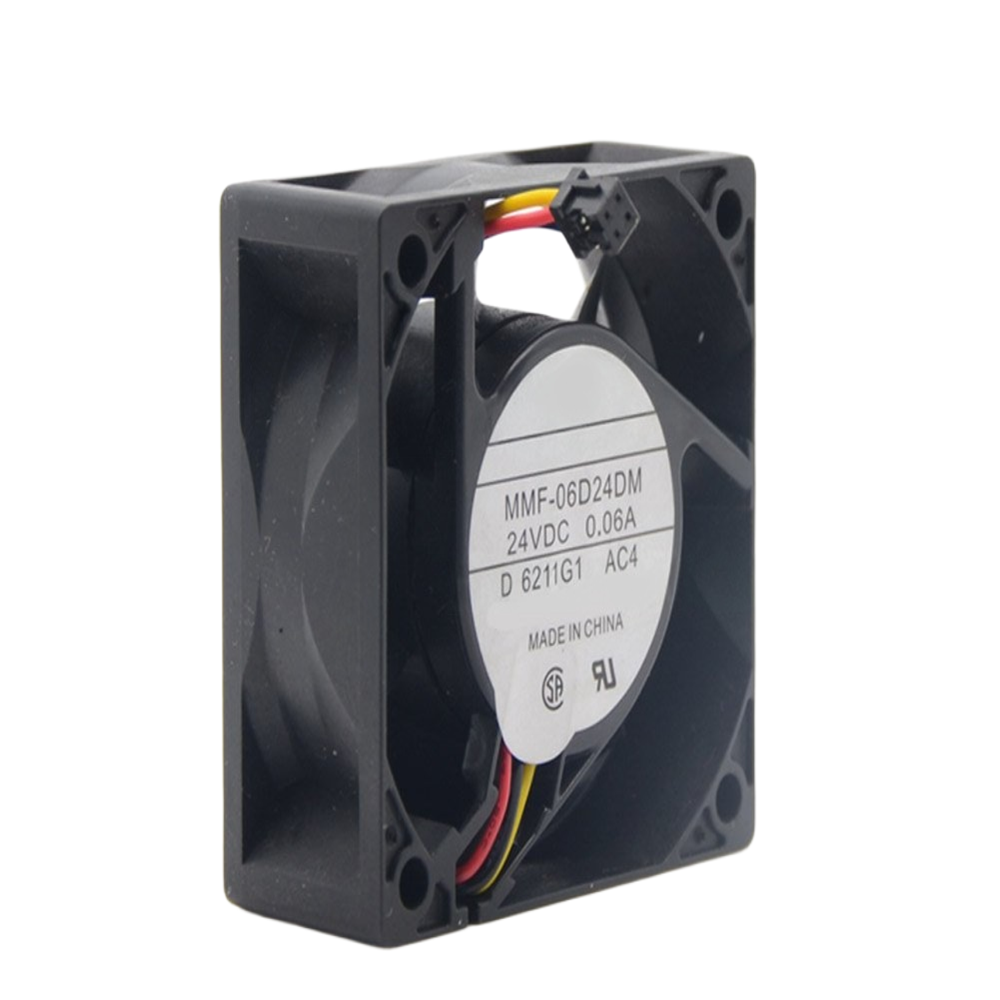

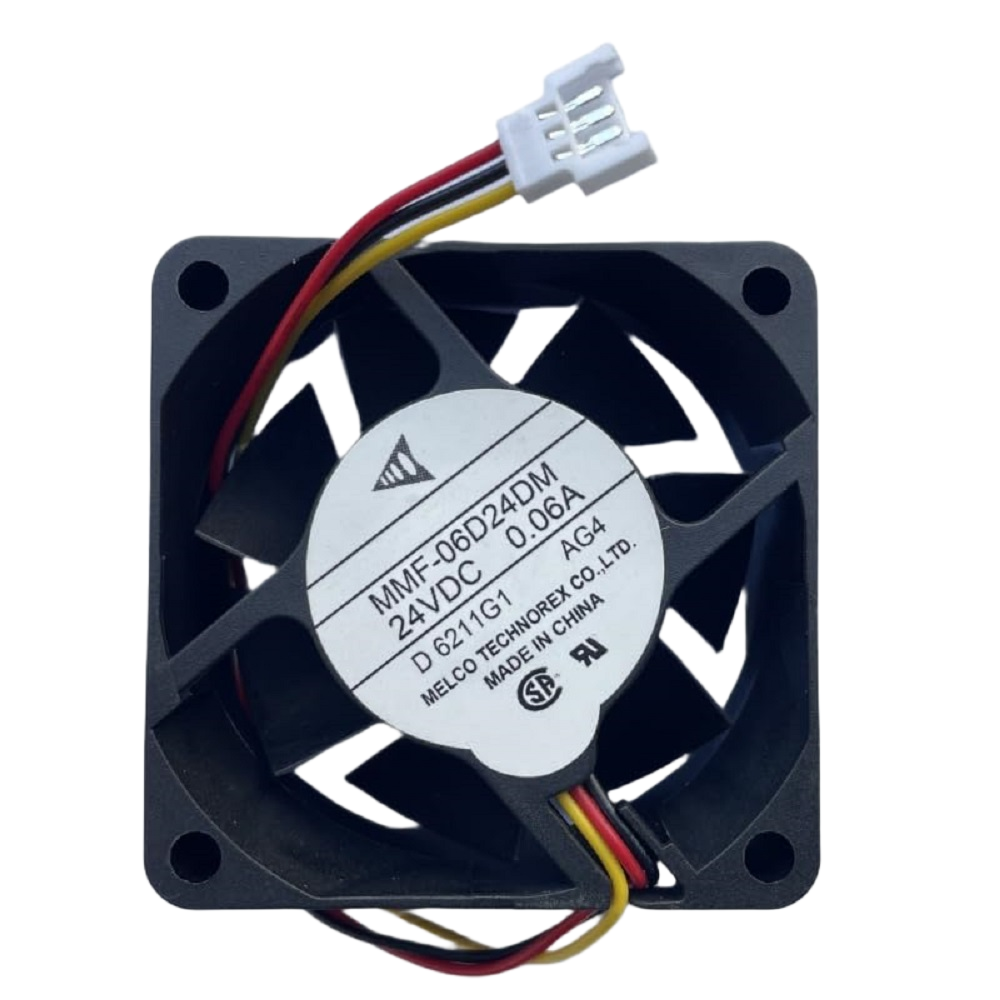

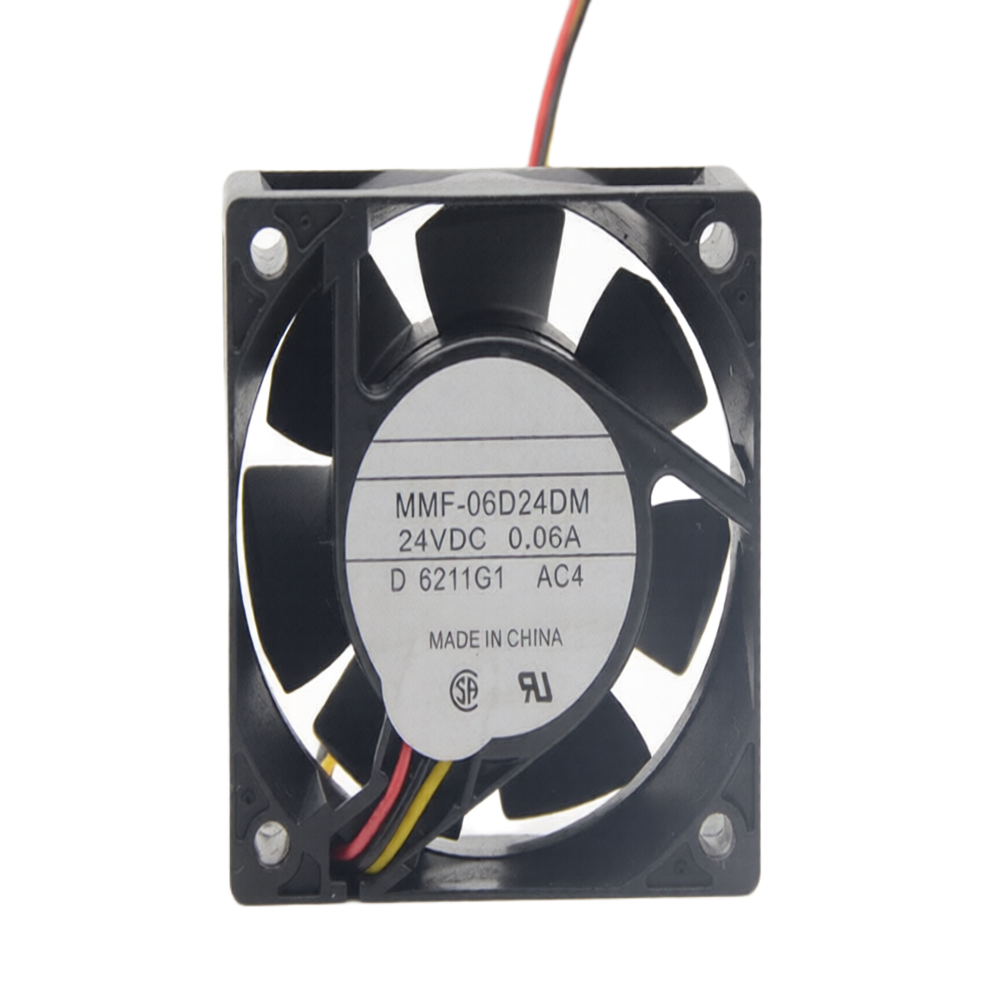

Melco MMF-06D24DM Cooling Fan

About Melco MMF-06D24DM Cooling Fan

The Melco MMF-06D24DM is a reliable 24V DC axial cooling fan engineered for efficient cooling in industrial automation systems, PLC panels, servo drives, inverters, power supplies, and electrical control cabinets. Its 60 60 25 mm compact design, ball bearing construction, and 3-wire connector ensure stable airflow, low-noise operation, and a long service life, making it ideal for continuous industrial applications.

Specifications

• Product Name: DC Cooling Fan
• Brand: Melco
• Model: MMF-06D24DM
• Fan Type: DC Axial Cooling Fan
• Rated Voltage: 24 V DC
• Current Rating: 0.050.06 A
• Power Consumption: Approx. 1.21.4 W
• Size: 60 X  60 X  25 mm
• Dimension (cm): 6 X 6 X 2.5 cm
• Dimension (inch): 2.36 2.36 0.98 in
• Air Flow: Approx. 1822 CFM
• Rotational Speed: Approx. 18002600 RPM
• Bearing Type: Ball Bearing (Dual Ball)
• Number of Blades: 7
• Blade Material: Plastic
• Frame Material: PBT Plastic
• Connector Type: 3-Wire / 3-Pin
• Mounting Type: Panel Mount
• Phase: Single Phase (DC)
• Power Category: Other
• Noise Level: 2130 dB(A)
