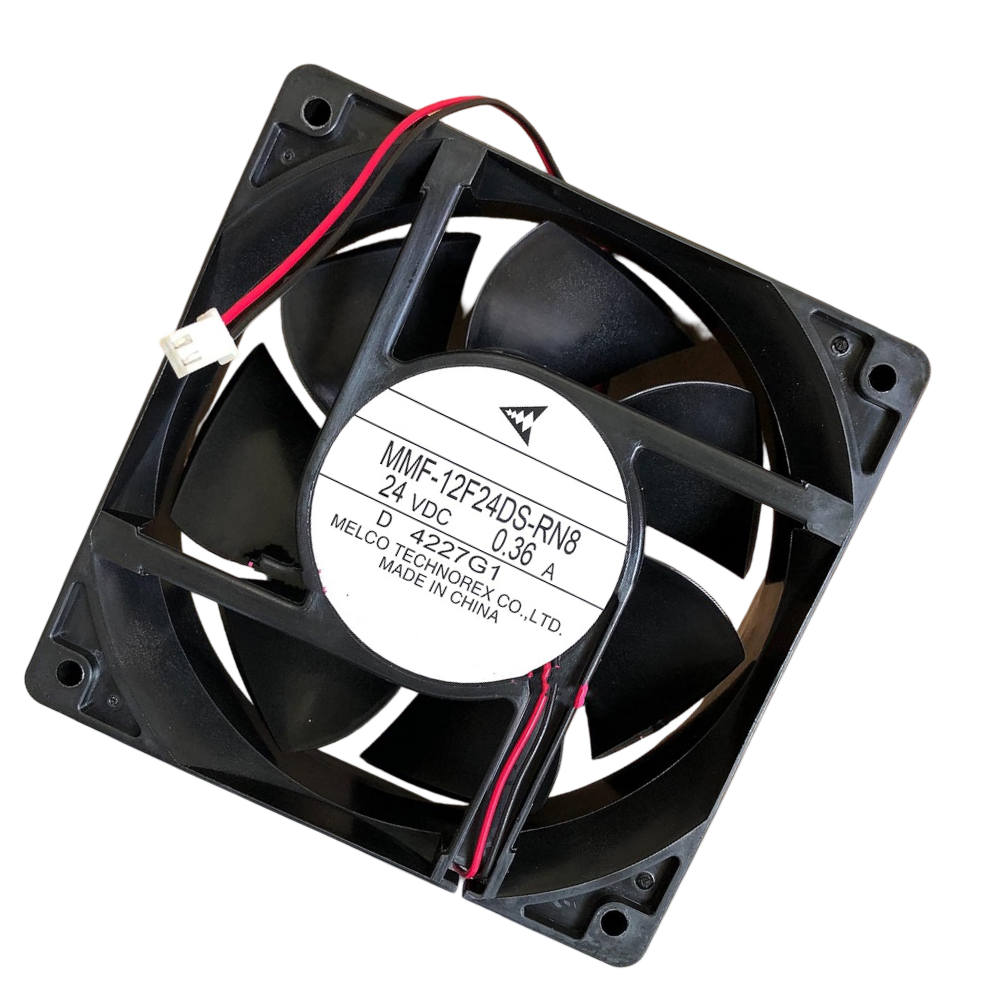

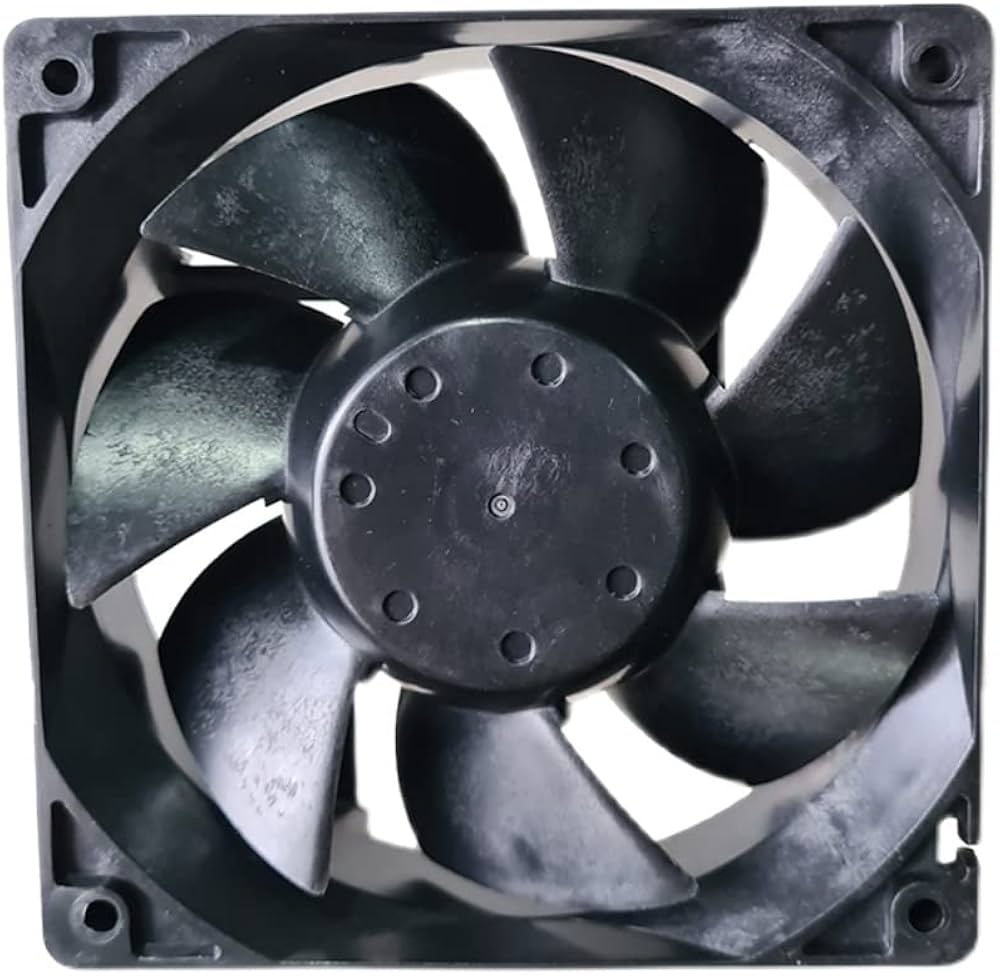

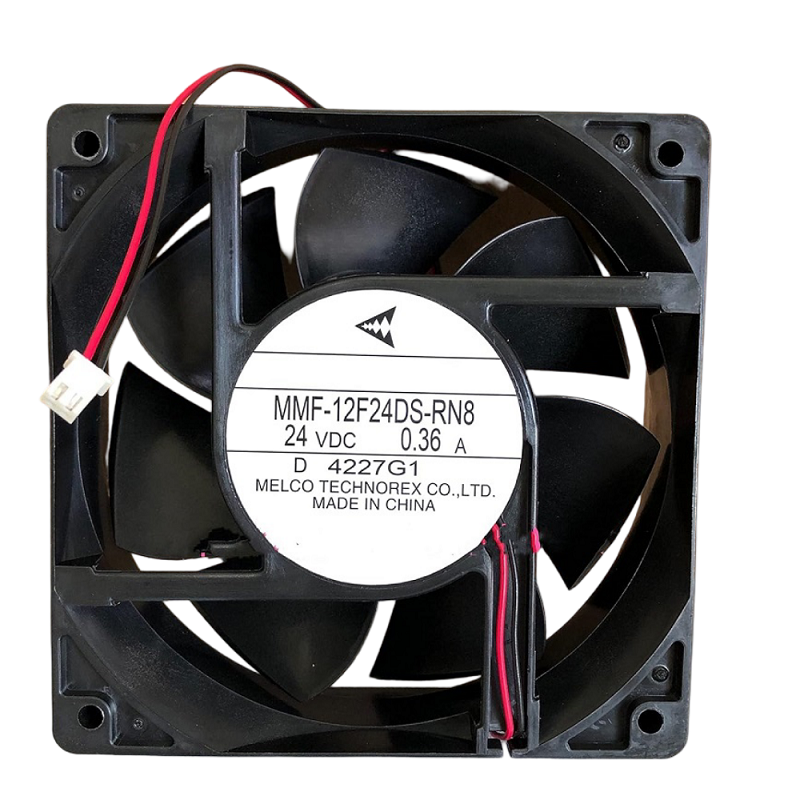

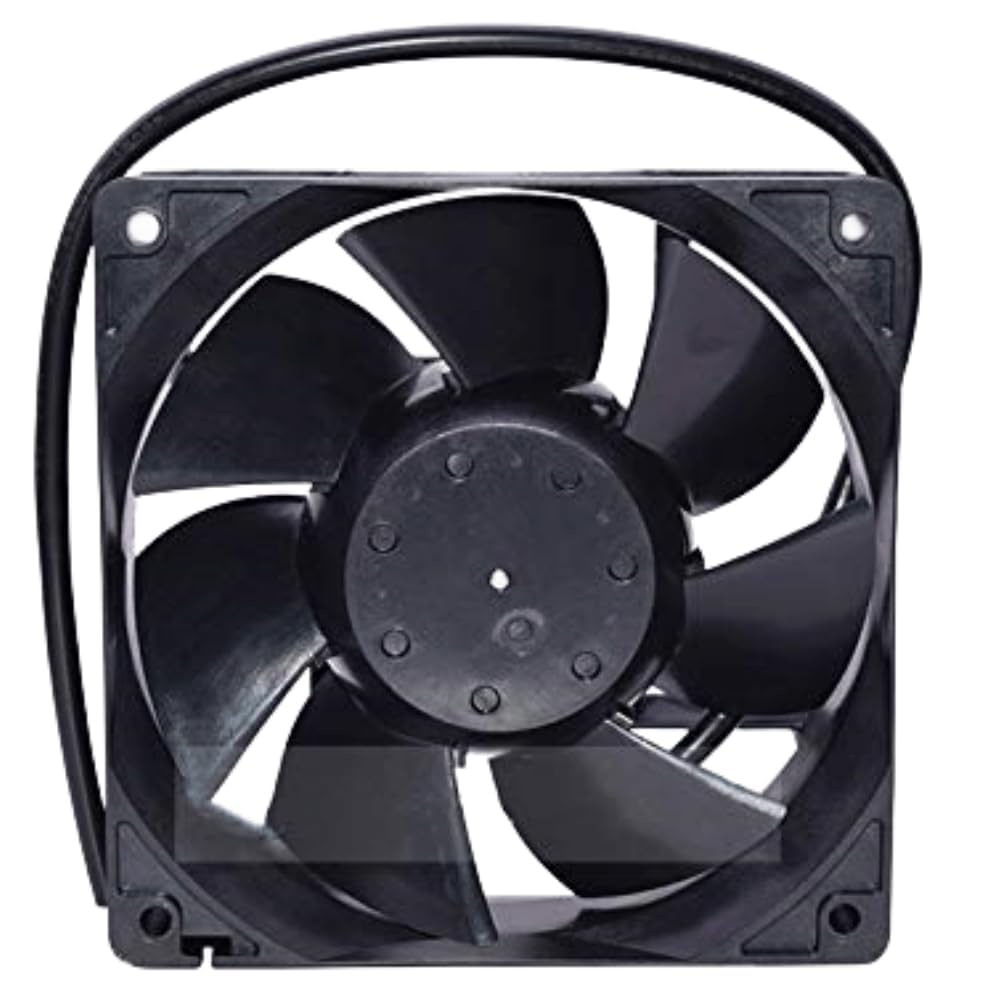

Melco MMF-12F24DS-RN8 Cooling Fan

Melco MMF-12F24DS-RN8 Cooling Fan Specification

Power Supply
DC

Product Type
DC Axial Cooling Fan

Power Rating
8.64 W

Application
PLC Panels, Servo Drives, CNC Machines, VFDs, UPS Systems, Power Supplies, Control Cabinets, Industrial Automation Equipment

Rated Voltage
24 Volt (V)

Supply Voltage
24 Volt (v)

Size
120 x 120 x 38 mm

Color
Black

Weight
0.25 Kilograms (kg)

Warranty
1 year

Cable Type
2 Wires

Phase
single

Features
High Airflow, Energy Efficient, Low Noise, Long Service Life, Continuous Duty Operation, Reliable Performance, Easy Installation, Industrial Grade Construction

Material
Plastic

Current Rating
0.36 A

Melco MMF-12F24DS-RN8 Cooling Fan Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Melco MMF-12F24DS-RN8 Cooling Fan

The Melco MMF-12F24DS-RN8 Cooling Fan is a high-performance DC axial cooling fan designed for industrial automation, PLC panels, CNC machines, servo drives, VFDs, control cabinets, power supplies, and electronic equipment. It features a Brushless DC (BLDC) motor with a ball bearing design for long life, low maintenance, stable airflow, and efficient cooling during continuous operation.

Product Name: Melco MMF-12F24DS-RN8 Cooling Fan
Brand: Melco
Fan Type: DC Axial Cooling Fan
Size: 120 x 120 x 38 mm
Size (Inch): 4.72 x 4.72 x 1.50 Inch
Rated Voltage: 24V DC
Voltage Category: 24V DC
Rated Current: 0.36 A
Input Power: 8.64 W
Air Flow: 100 CFM (Approx.)
Rotational Speed: 3000 RPM (Approx.)
Bearing Type: Ball Bearing
Current Category: 0.3 A
Noise Level: 4045 dBA
Number of Wires: 2 Wires
Blade Material: Plastic
Frame Material: Reinforced Plastic
Motor Type: Brushless (BLDC)
Mounting Type: Panel Mount
Insulation Class: Class B
Operating Temperature: -10C to +60C
Life Expectancy: Up to 60,000 Hours
