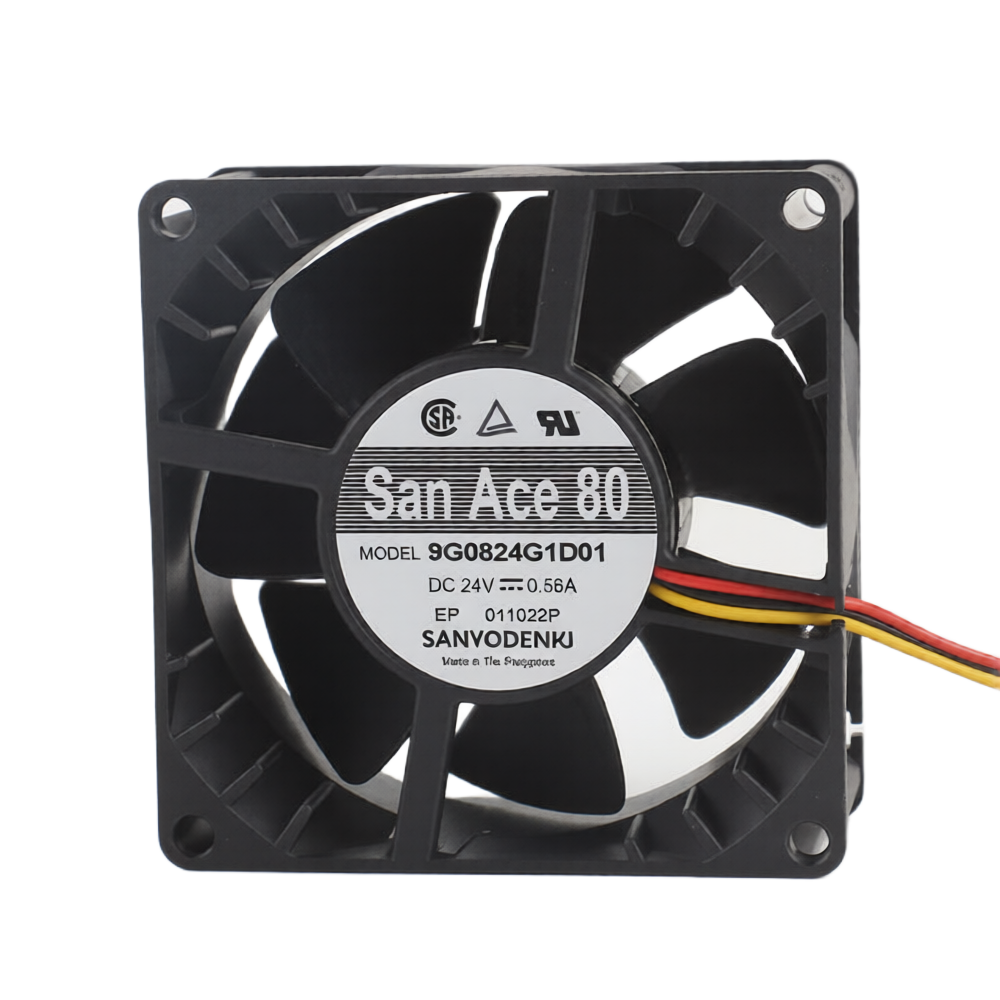

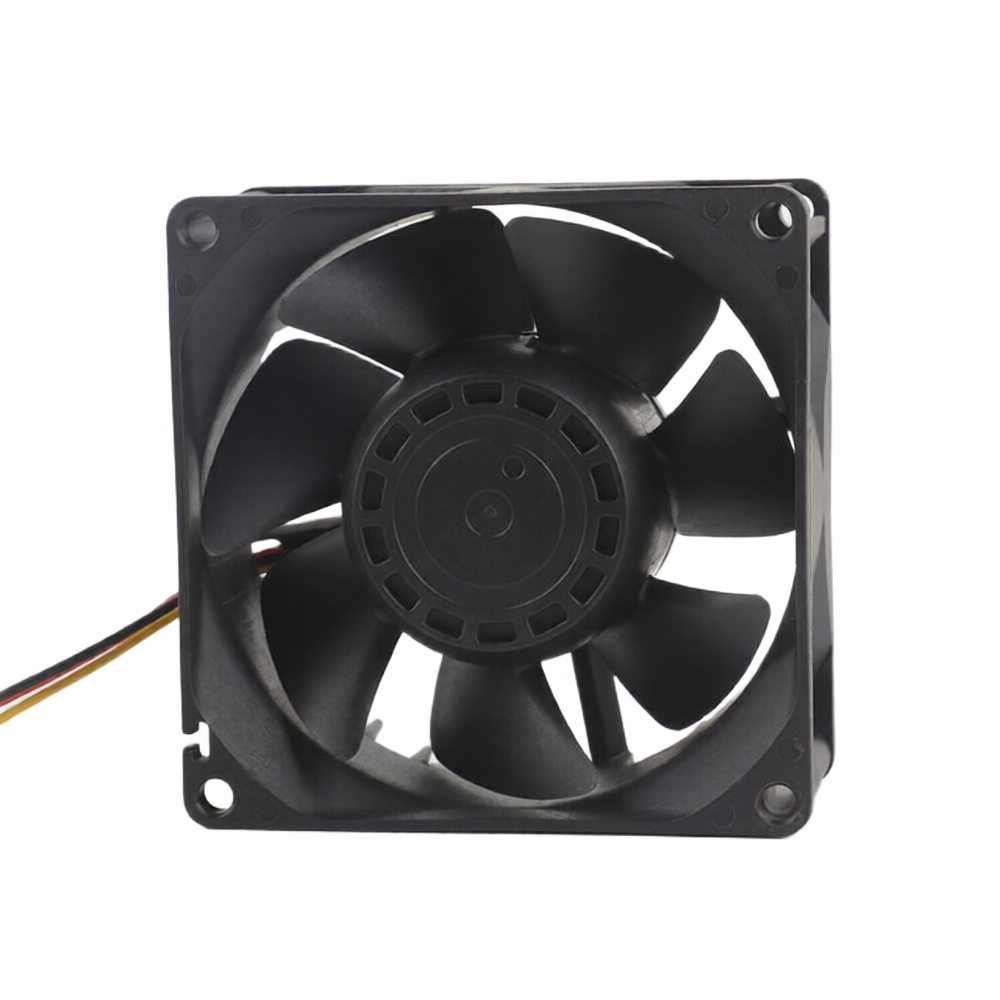

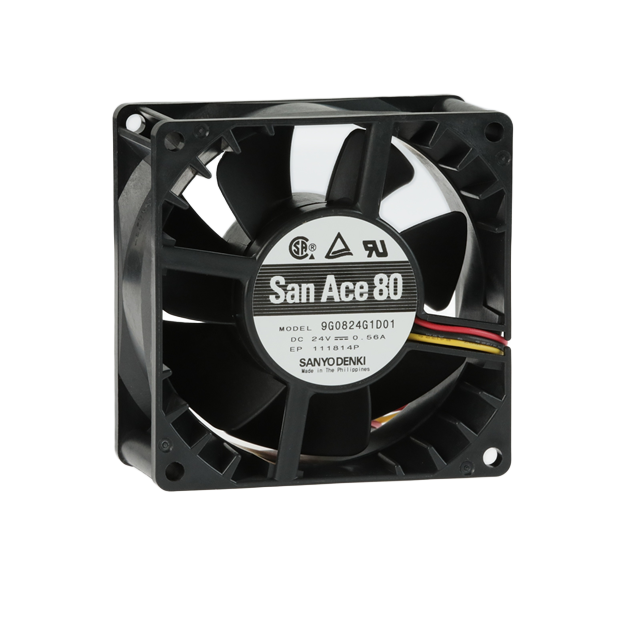

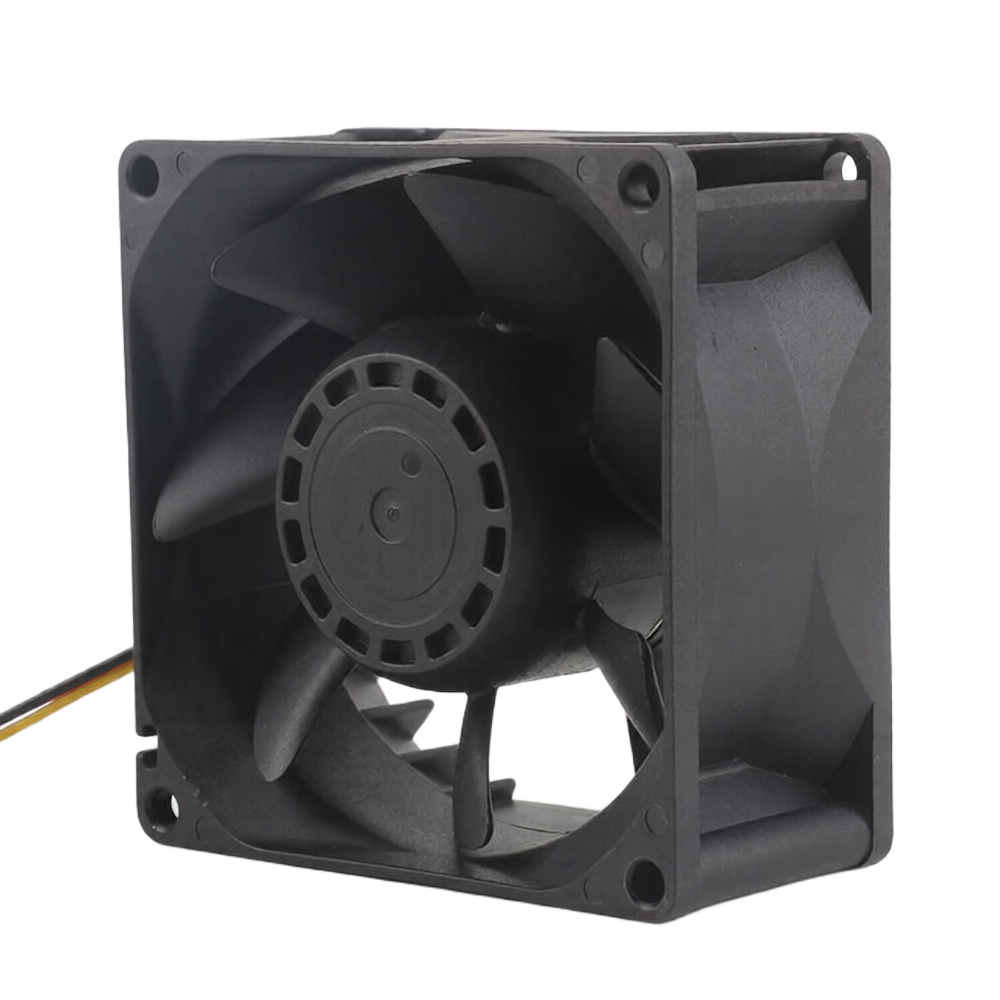

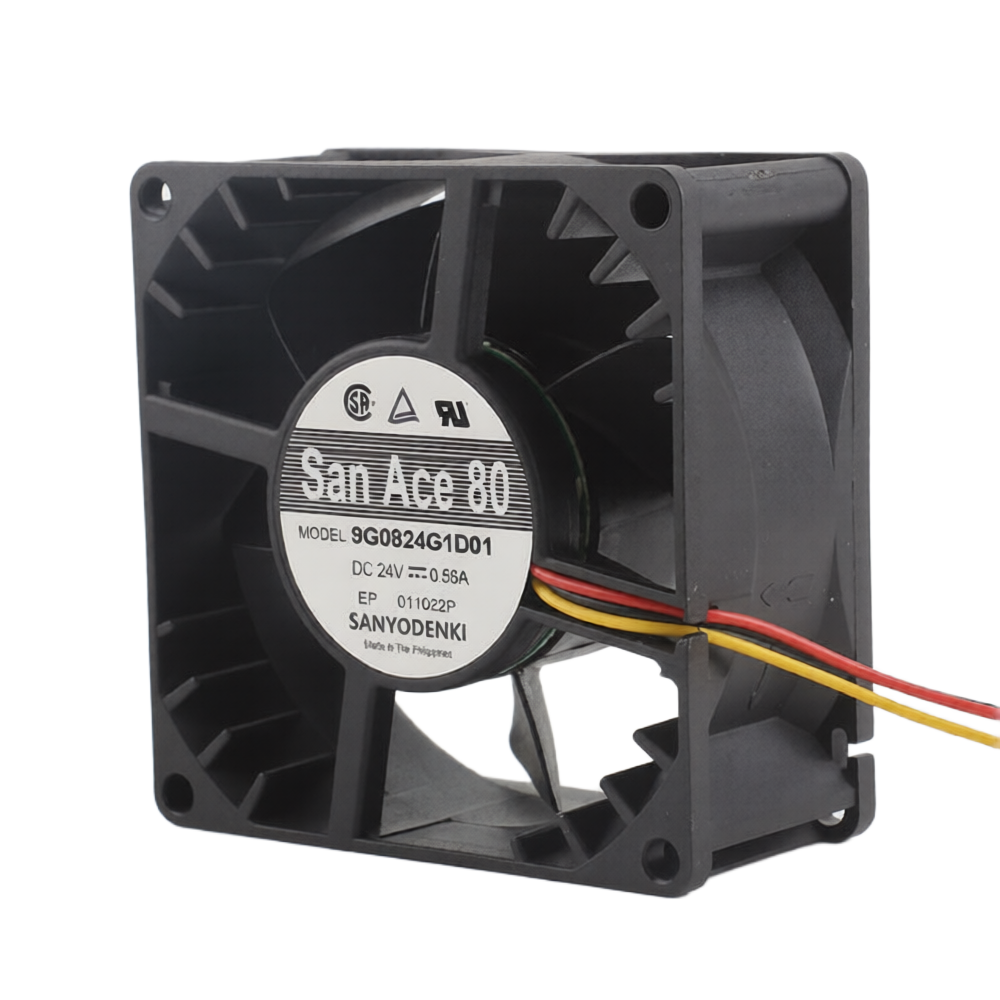

Sanyo 9G0824G1D01 Cooling Fan

Sanyo 9G0824G1D01 Cooling Fan Specification

Power Supply
DC

IP Rating
IP20

Power Source
Direct Current

Usage
Industrial, Electronics Cooling

Interface
2-wire

Operating Temperature
-20C to +70C

Input
2.4W

Output
Airflow Generation

Features
High Reliability, Compact, Long Life

Components
Housing, Motor, Blade

Product Type
Cooling Fan

Application
Cabinet and Electronic Enclosure Cooling

Rated Voltage
24V DC

Supply Voltage
24V

Size
80 x 80 mm

Dimension (L*W*H)
80 x 80 x 25 mm

Function
Cooling Electronic Components

Color
Black

Weight
Approx. 120g

Thickness
25 mm

Current Rating
0.10A

Frequency
Not applicable (DC)

Life Expectancy
Expected 60,000 hours at 60C

Connector Type
Lead Wire

Frame Material
Plastic (UL94V-0)

Fan Speed
3100 RPM

Maximum Air Flow
40 CFM

Bearing Type
Ball Bearing

Model Number
9G0824G1D01

Noise Level
27 dBA

Sanyo 9G0824G1D01 Cooling Fan Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal

Supply Ability
150 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia

Main Domestic Market
All India

About Sanyo 9G0824G1D01 Cooling Fan

Brand: Sanyo Denki
Model: 9G0824G1D01
Series: San Ace 80
Fan Type: DC Axial (Tubeaxial)
Bearing Type: Ball Bearing

Electrical Specifications

Rated Voltage: 24V DC
Operating Voltage Range: 20.4 27.6V DC
Current Rating: 0.56 A
Power Consumption: 13.4 W

Performance Specifications

Speed: 6300 RPM
Air Flow: 90 CFM (2.52 m/min)
Static Pressure: 211 Pa
Noise Level: 51 dBA

Mechanical Specifications

Fan Size: 80 80 38 mm
Weight: Approx. 170 g
Frame Material: Plastic (UL 94V-0)
Blade Material: Plastic
Termination: 3 Wire Leads

Reliable Cooling for Demanding Applications

The Sanyo 9G0824G1D01 Cooling Fan is crafted to deliver robust airflow across industrial and electronic settings. Its ball bearing system ensures extended operational life and consistent performance, even in high-temperature environments. This fan efficiently dissipates heat from electronic enclosures and control cabinets, thereby protecting vital components from overheating and failure.

Compact Design with High Efficiency

Measuring just 80 x 80 x 25 mm, the Sanyo cooling fan fits easily into tight spaces within cabinets or electronic housings. Despite its size, it supplies up to 40 CFM of airflow at a low noise level of just 27 dBA. The UL94V-0 rated plastic frame further contributes to safety and reliability, making it a preferred choice for industrial cooling applications.

FAQ's of Sanyo 9G0824G1D01 Cooling Fan:

Q: How is the Sanyo 9G0824G1D01 Cooling Fan typically installed in electronic enclosures?

A: The Sanyo 9G0824G1D01 fan is usually mounted inside electronic cabinets or enclosures using screws through its standardized mounting holes. The lead wire connector facilitates direct connection to a 24V DC power source, making setup straightforward for technicians and engineers.

Q: What environments or applications are best suited for this cooling fan?

A: This fan is ideal for industrial and electronics cooling, specifically in control panels, cabinet systems, and enclosures that require efficient heat dissipation. Its robust design and compact form factor make it suitable for machinery, automation equipment, and sensitive electronic devices.

Q: When should I replace the Sanyo 9G0824G1D01 fan in my equipment?

A: Replacement is generally recommended after the fan approaches its rated life expectancy of 60,000 hours at 60C, or earlier if there is a noticeable drop in airflow, increased noise, or impaired performance due to dust or wear.

Q: Where can I source the Sanyo 9G0824G1D01 cooling fan in India?

A: The 9G0824G1D01 cooling fan is available through authorized importers, suppliers, and traders throughout India, catering to both bulk industrial and individual procurement requirements.

Q: What process does the fan use to provide efficient cooling?

A: The fan operates by converting electrical input-24V DC at 0.10A-into mechanical motion via its motor and blades, creating consistent airflow (up to 40 CFM) to remove heat from electronic components within the enclosure.

Q: How does using this fan benefit electronic equipment?

A: Using the Sanyo 9G0824G1D01 helps maintain optimal operating temperatures, prevents overheating, and extends the lifespan of sensitive electronics. Its long-life ball bearings and flame-retardant materials enhance reliability and safety in demanding environments.

Q: What makes the Sanyo 9G0824G1D01 a dependable choice for cooling applications?

A: Its combination of high airflow, compact size, low noise, and long operational life (60,000 hours) make it a dependable solution. Additionally, its UL94V-0 compliant frame and high-quality ball bearing ensure dependable operation in critical settings.
