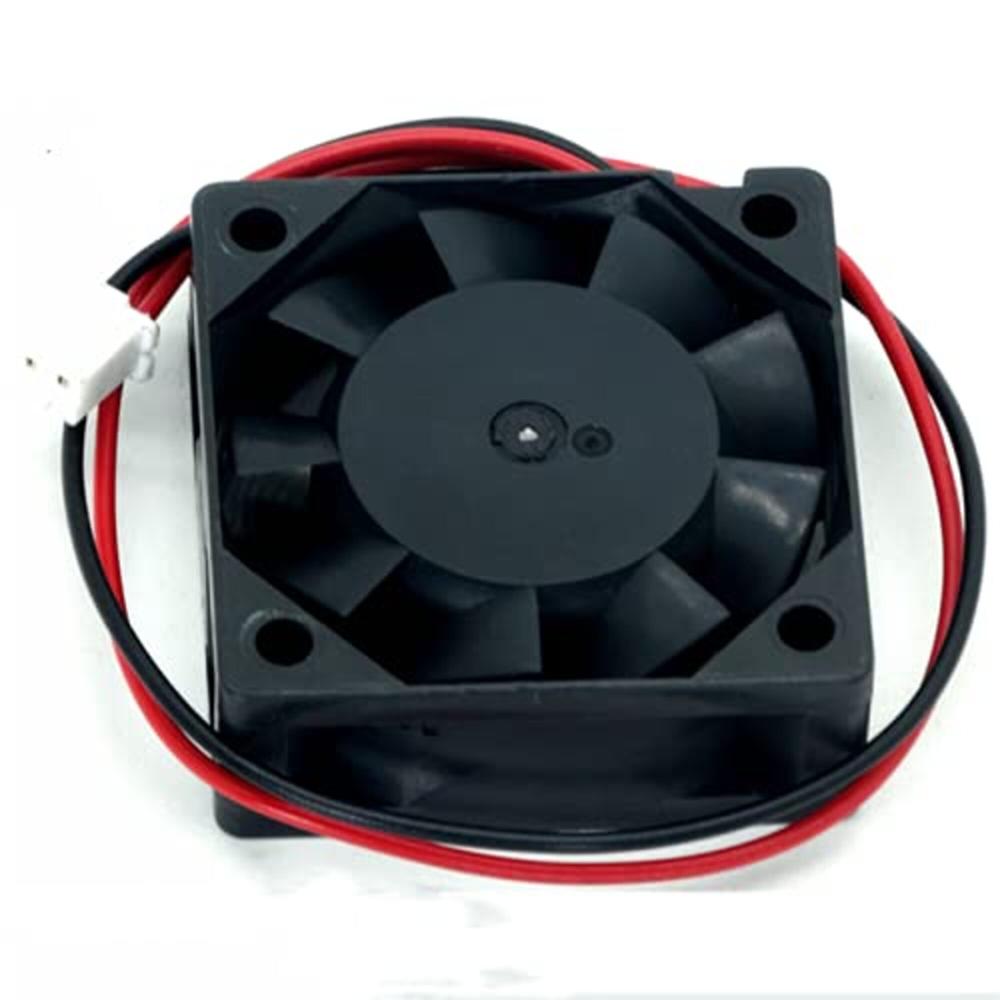

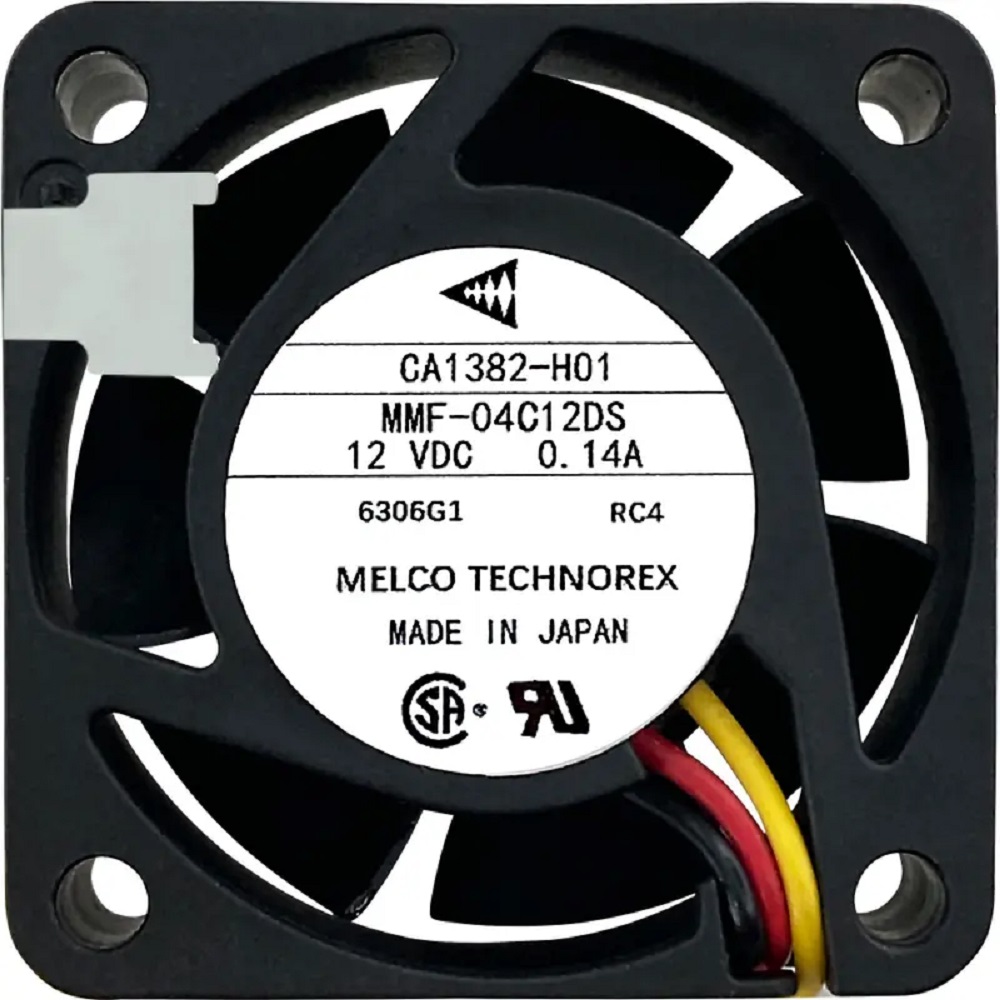

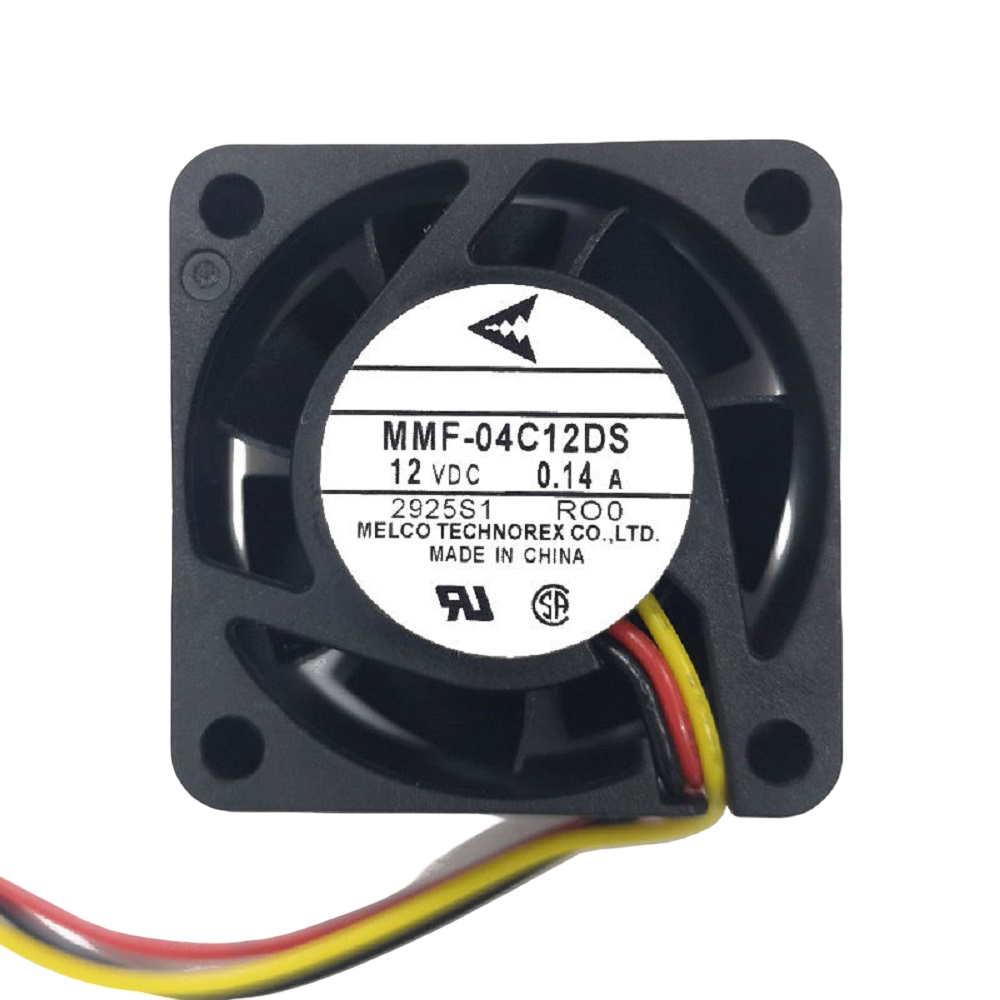

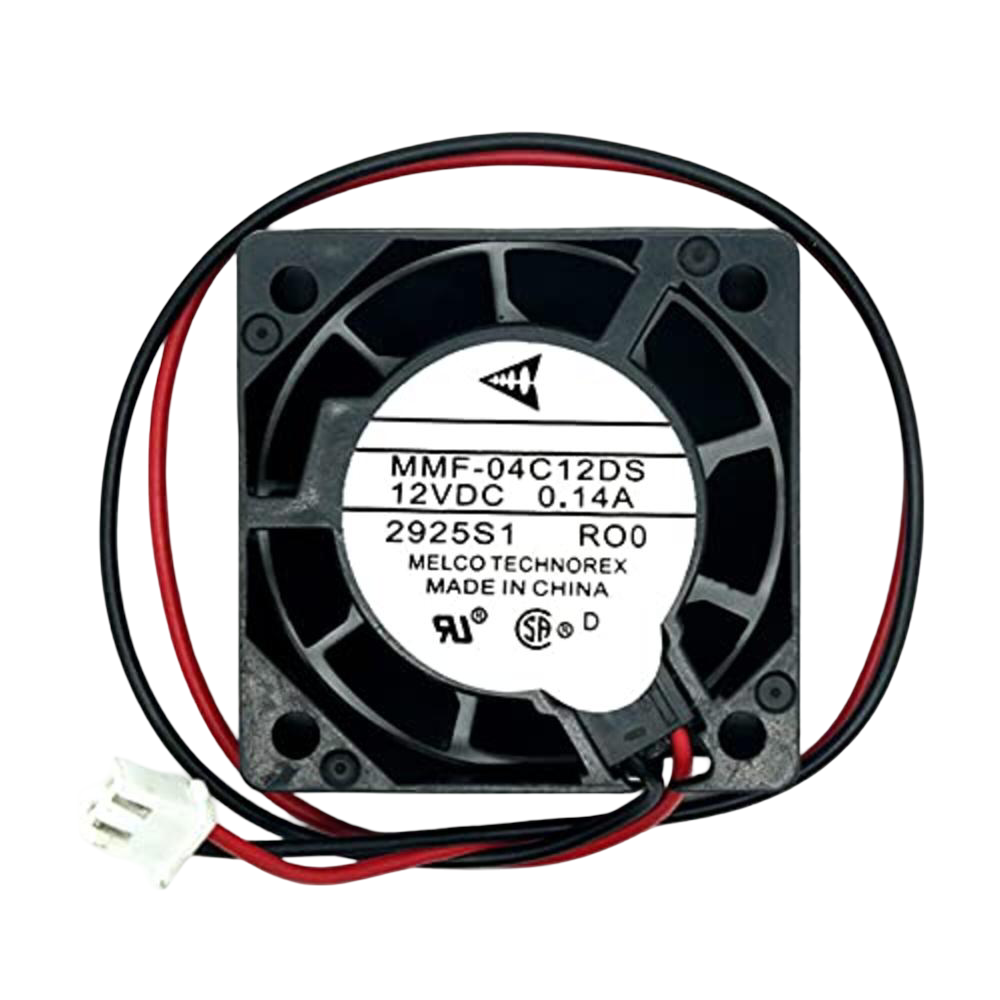

Melco MMF-04C12DS 12V DC Axial Cooling Fan

Melco MMF-04C12DS 12V DC Axial Cooling Fan Specification

IP Rating
IP20

Usage
Industrial Cooling

Operating Temperature
-10 C to +70 C Celsius (oC)

Interface
2-Wire Lead Connection

Power Supply
dc

Output
High Airflow Cooling

Power Rating
1.68 W

Product Type
DC Axial Cooling Fan

Application
PLC Panels, CNC Machines, Servo Drives, Power Supplies, Control Cabinets, Industrial Automation Equipment

Rated Voltage
12 Volt (V)

Supply Voltage
12 Volt (v)

Size
40 40 mm

Dimension (L*W*H)
40 40 15 Centimeter (cm)

Color
Black

Weight
0.05 Kilograms (kg)

Usage & Applications
PLC Panels, CNC Machines, Industrial Control Panels, VFDs, Servo Drives, Medical Equipment, Electronic Cooling Systems, Telecom Equipment

Warranty
1 Year

Phase
Single Phase DC

Features
Brushless (BLDC) Motor, Ball Bearing, High Airflow, Compact Design, Low Noise, Long Service Life, Energy Efficient, Maintenance-Free, Continuous Duty Operation

Current Rating
0.14 A

Thickness
15 Millimeter (mm)

Melco MMF-04C12DS 12V DC Axial Cooling Fan Trade Information

Minimum Order Quantity
4 Pieces

Delivery Time
1 Week

About Melco MMF-04C12DS 12V DC Axial Cooling Fan

The Melco MMF-04C12DS Cooling Fan is a compact, high-performance DC axial cooling fan designed for industrial automation equipment, PLC panels, CNC machines, servo drives, power supplies, communication equipment, and electronic control systems. Equipped with a Brushless DC (BLDC) motor and ball bearing construction, it provides excellent airflow, low power consumption, high reliability, and long service life. Its compact design makes it ideal for applications where space is limited while ensuring efficient heat dissipation for continuous operation.

Specifications

Product Name: Melco MMF-04C12DS Cooling Fan
Brand: Melco
Model Number: MMF-04C12DS
Fan Type: DC Axial Cooling Fan
Size: 40 40 15 mm
Size (Inch): 1.57 1.57 0.59 Inch
Rated Voltage: 12V DC
Voltage Category: 12V DC
Operating Voltage: 6.013.8V DC
Rated Current: 0.14 A
Input Power: 1.68 W
Air Flow: 7.8 CFM (Approx.)
Rotational Speed: 8450 RPM
Bearing Type: Ball Bearing
Current Category: 0.15 A
Noise Level: 3540 dBA
Number of Wires: 2 Wires
Blade Material: Plastic
Frame Material: Reinforced Plastic
Motor Type: Brushless (BLDC)
Mounting Type: Panel Mount
Lead Wire Length: 300 mm (Approx.)
