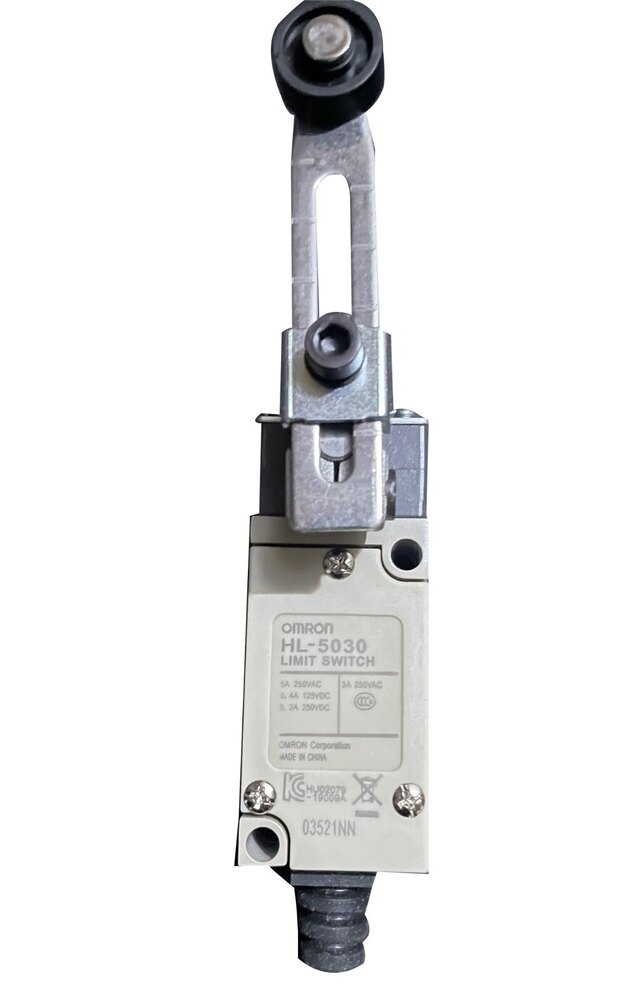

HL-5030 Omron Limit Switch

HL-5030 Omron Limit Switch Specification

Power Supply
Passive

Product Type
Limit Switch with Adjustable Roller Lever

Rated Voltage
250 Volt (V)

Supply Voltage
250 V AC/DC Volt (v)

Color
Silver-gray

Weight
130 to 190 Grams (g)

Warranty
1 year

Thickness
34 Inch

HL-5030 Omron Limit Switch Trade Information

Minimum Order Quantity
20 Pieces

Payment Terms
Paypal, Cash in Advance (CID), Cheque

Supply Ability
50 Pieces Per Month

Delivery Time
2 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About HL-5030 Omron Limit Switch

The Omron HL-5030 is a compact, heavy-duty limit switch equipped with an adjustable roller lever actuator. It features a SPDT contact configuration (1NO + 1NC) and supports up to 250VAC or 250VDC at 5A for resistive loads. Designed for industrial environments, it offers reliable mechanical operation with a lifespan of up to 10 million cycles. The switch is enclosed in a durable die-cast housing with IP65 protection, making it resistant to dust and water. Commonly used for position detection in machinery and automation systems, the HL-5030 combines flexibility, durability, and precise actuation in a space-efficient form.

Precision Control and Durability

The HL-5030 Omron Limit Switch is engineered for accuracy and longevity, featuring a 34-inch thick, robust build. Its passive operation ensures minimal power draw, while the silver-gray design provides both functionality and a contemporary appearance. This switch is a solution designed to enhance system reliability and operational safety in industrial automation.

Universal Compatibility and Warranty

With a rated voltage and supply voltage capacity of 250 V AC/DC, the HL-5030 Omron Limit Switch seamlessly integrates with most industrial systems. Notable for its passive power supply, it assures compatibility where active switching is unnecessary. The product is backed by a 1-year warranty to provide added confidence to its users.

FAQ's of HL-5030 Omron Limit Switch:

Q: How is the HL-5030 Omron Limit Switch typically installed in industrial machinery?

A: Installation of the HL-5030 Omron Limit Switch involves mounting it in the desired position where it will detect the mechanical motion or limits of a machine component. It should be securely affixed to ensure correct alignment, then wired to the control circuit using the 250V AC/DC connections as per the manufacturer's guidelines.

Q: What primary benefits does the HL-5030 Omron Limit Switch offer for automation systems?

A: This limit switch provides dependable detection of mechanical positions, enhancing safety and system accuracy. Its passive operation and robust construction make it suitable for high-reliability environments, contributing to reduced downtime and improved efficiency for automated processes.

Q: When should the limit switch be replaced or serviced?

A: It's advisable to inspect and, if needed, replace the switch every 1-2 years or if you observe inconsistent operation, visible wear, or environmental damage. The 1-year warranty offers assurance for standard operational periods and maintenance schedules.

Q: Where is the HL-5030 Omron Limit Switch sourced from, and who can supply it?

A: This limit switch is imported, supplied, and traded predominantly by reputable businesses based in China, ensuring global availability through established industrial distribution networks.

Q: What is the process for connecting the HL-5030 Omron Limit Switch to a control circuit?

A: To integrate the switch, wire its terminals to your control system using cables rated for 250V AC/DC. Follow the wiring diagram provided by the manufacturer to avoid misconnection and ensure safe, reliable operation.

Q: How is the rated voltage and supply voltage of 250 V significant for this switch?

A: A 250V rating ensures that the switch can handle a wide range of industrial voltages, enabling safe usage in demanding environments that require either AC or DC electrical compatibility.

Q: What usage scenarios are best suited for the HL-5030 Omron Limit Switch?

A: Ideal applications include industrial automation, machinery position detection, conveyor systems, and safety interlocks-any setting demanding reliable passive switching and mechanical durability.
