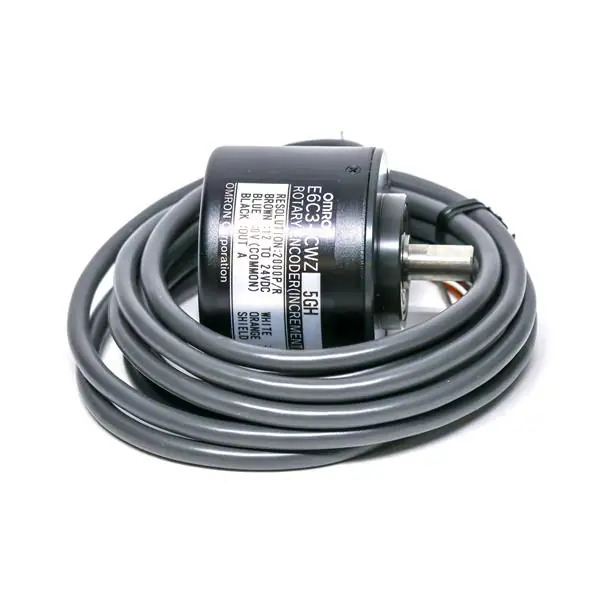

E6C3-CWZ5GH Omron Rotary Encoder

E6C3-CWZ5GH Omron Rotary Encoder Specification

Input
Shaft rotation

Output
Electrical pulses

Power Supply
DC

Usage
Positioning

Product Type
Rotary Encoder

Application
Position sensing in industrial automation and motion control systems

Rated Voltage
12 to 24 Volt (V)

Dimension (L*W*H)
58 mm 58 mm 40 mm Millimeter (mm)

Function
A rotary encoder converts the angular position or motion of a shaft into an electrical signal.

Color
Black

Weight
200 Grams (g)

Warranty
1 year

Material
aluminum or stainless steel

Thickness
40 Millimeter (mm)

E6C3-CWZ5GH Omron Rotary Encoder Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal

Supply Ability
150 Pieces Per Month

Delivery Time
2 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About E6C3-CWZ5GH Omron Rotary Encoder

Incremental model
External diameter of 50 mm.
Resolution of up to 3,600 ppr.
IP65 (improved oil-proof construction with sealed bearings)
Superior shaft loading performance (radial: 80 N, thrust: 50 N)

High-Precision Position Feedback

The E6C3-CWZ5GH rotary encoder delivers highly accurate angular position data, essential for automation and control applications. By transforming mechanical shaft rotation into electrical pulses, it ensures dependable feedback to your system, improving operational productivity and safety.

Robust Construction for Industrial Use

Crafted from quality aluminum or stainless steel, the encoder is both lightweight and durable, able to withstand tough industrial settings. Its 40 mm thickness and compact dimensions facilitate easy integration into space-constrained environments without compromising performance.

FAQ's of E6C3-CWZ5GH Omron Rotary Encoder:

Q: How does the E6C3-CWZ5GH rotary encoder function in automation systems?

A: The E6C3-CWZ5GH rotary encoder translates the shaft's angular position into a series of electrical pulses, providing vital feedback for position sensing within automation and motion control processes.

Q: What are the primary benefits of using this encoder in industrial applications?

A: This encoder offers precise and reliable position detection, enhancing control accuracy in automation systems, minimizing errors, and supporting efficient operation in demanding industrial environments.

Q: Where can this rotary encoder be installed?

A: The E6C3-CWZ5GH can be integrated into machinery across various settings, including manufacturing, packaging, and robotics, where precise shaft position feedback is required.

Q: When should I consider replacing or maintaining the encoder?

A: It's recommended to follow regular maintenance schedules and replace the encoder if performance issues, such as erratic signals or physical damage, are observed during routine inspections.

Q: What is the process for connecting and powering this device?

A: Connect the encoder to a DC power supply ranging from 12 to 24 Volts, ensuring correct wiring as per the manufacturer's guide. The rotating shaft input will then generate corresponding output pulses.

Q: What usage scenarios are ideal for this rotary encoder?

A: This device excels in applications such as conveyor systems, robotic arms, and other machinery where precise and continuous position measurement is crucial for optimal performance.
