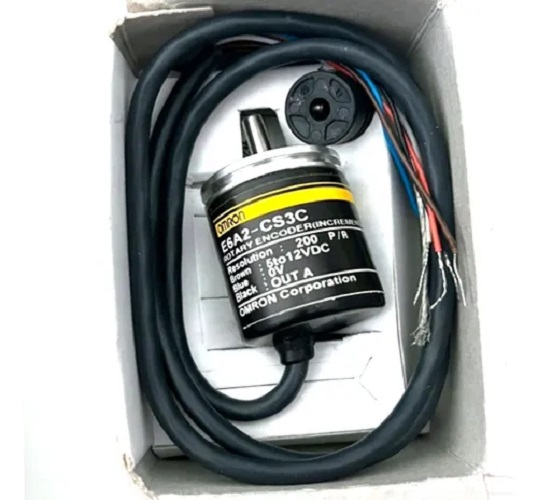

E6A2-CS3C Omron Rotary Encoder

E6A2-CS3C Omron Rotary Encoder Specification

Output
Pulse signals (A, B, Z channels)

Power Supply
DC

Usage
Speed and position detection

Input
Shaft rotation

Product Type
Incremental Rotary Encoder

Application
Motion control, motor feedback, automation systems

Rated Voltage
5 Volt (V)

Supply Voltage
5 24 Volt (v)

Size
60 mm

Dimension (L*W*H)
60 mm 39.5 mm Millimeter (mm)

Function
Position sensing

Color
Silver / black

Weight
200 Grams (g)

Warranty
1 year

Material
Aluminum housing with stainless steel shaft

Thickness
Around 39.5 Millimeter (mm)

E6A2-CS3C Omron Rotary Encoder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
100 Pieces Per Week

Delivery Time
1 Week

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Main Domestic Market
All India

About E6A2-CS3C Omron Rotary Encoder

TheE6A2-CS3C Omron Rotary Encoderof dia 50mm incremental rotary encoders features an improved water resistance compared to standard models.

IP65f drip-proof, oil-proof construction
8mm shaft Diameter

High Precision Motion Sensing

The E6A2-CS3C Omron Rotary Encoder provides accurate position and speed detection, enabling enhanced performance in motion control and motor feedback applications. With pulse outputs on A, B, and Z channels, it ensures precise monitoring and improves automation system reliability.

Durable and Flexible Design

Designed with an aluminum housing and stainless steel shaft, this encoder is built to withstand demanding industrial environments. Its compact dimensions (60 x 39.5 mm) and light weight (200 g) allow for easy installation in machines where space is limited.

Versatile Integration and Reliable Operation

Operating within a broad supply voltage range (5-24V DC), the E6A2-CS3C integrates smoothly with various automation hardware. Its robust construction and 1-year warranty offer users peace of mind and reduced maintenance hassles in demanding field conditions.

FAQs of E6A2-CS3C Omron Rotary Encoder:

Q: How does the E6A2-CS3C Omron Rotary Encoder detect position and speed?

A: The encoder works by converting the mechanical rotation of its stainless steel shaft into electrical pulse signals across A, B, and Z channels. These pulses are then interpreted by control systems to accurately determine the shafts position and speed.

Q: What applications commonly use the E6A2-CS3C Rotary Encoder?

A: This encoder is widely used for motion control, motor feedback, and automation systems. It is ideal for scenarios where precise position sensing and speed detection are critical, such as in robotics, CNC machinery, and conveyor tracking.

Q: When should I consider using this rotary encoder for my project?

A: You should opt for the E6A2-CS3C encoder when your application demands accurate position or speed feedback, especially in a compact space where reliable performance and easy integration are essential.

Q: Where is the ideal installation site for the E6A2-CS3C encoder?

A: Due to its compact dimensions and robust build, it can be installed in confined machine environments, on motor shafts, or within control panels for industrial automation tasks in factories or process control systems.

Q: What is the process of connecting the E6A2-CS3C to a control system?

A: Connect the encoders pulse output wires (A, B, and Z channels) to the input terminals of your controller or PLC. Ensure the power supply voltage is within the 524V DC range, and securely mount the shaft using proper alignment to prevent mechanical stress.

Q: How does using this encoder benefit my automation system?

A: By implementing the E6A2-CS3C, you obtain precise and real-time feedback on shaft position and speed, leading to improved accuracy, efficiency, and reliability in your automation or motion control processes.

Q: What type of warranty and support accompany this rotary encoder?

A: The E6A2-CS3C is supplied with a 1-year warranty, and as an importer, supplier, and trader in India, we provide comprehensive support for installation, operation, and after-sales service.
