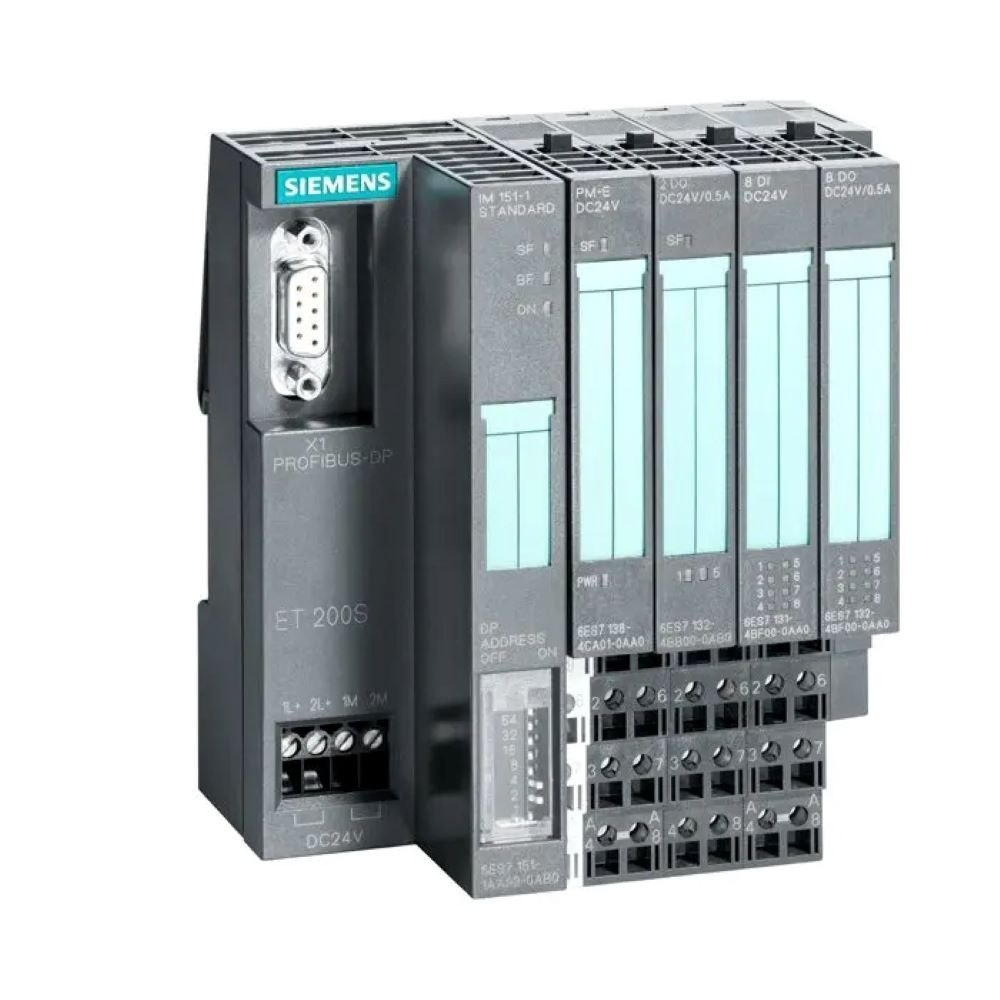

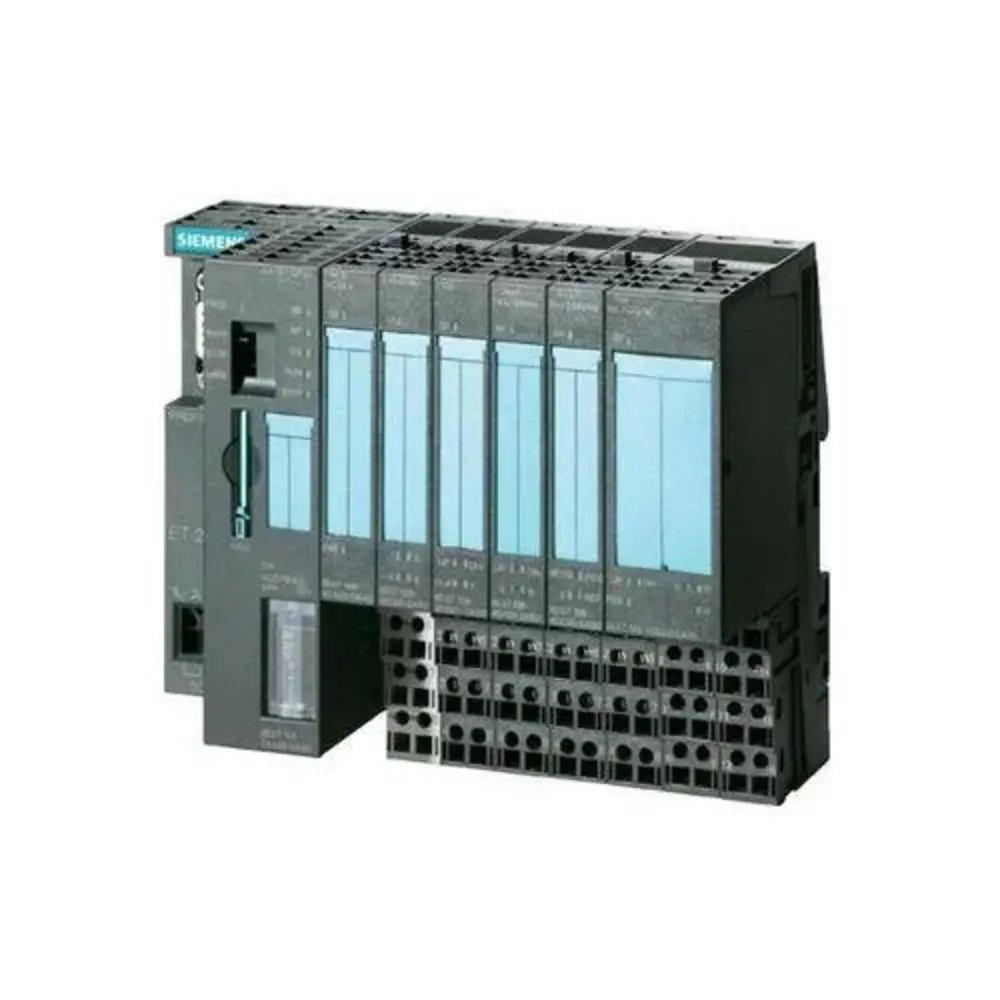

SIEMENS SERIES- ET200S PLC

SIEMENS SERIES- ET200S PLC Specification

Components
Base module, I/O modules, power modules, interface modules

Input
Digital and Analog inputs, module-dependent

Processor Speed
Determined by the interface module, e.g., IM151-1: ~1 ms processing time

Usage
Industrial automation, Control system expansion

IP Rating
IP20

Features
Hot swapping, modularity, easy installation, diagnostics LEDs

Power Source
External 24V DC Power Supply

Thermal Conductivity
Passive cooling, convection

Interface
PROFIBUS DP or PROFINET (depending on module)

Display Type
Status LEDs

Operating Temperature
0C to 60C

Power Supply
Through backplane bus or external feed

Resolution
Analog modules: 12 bits typical

Sensors Specification
Compatible with standard industrial sensors (PNP/NPN, analog, etc.)

Output
Digital and Analog outputs, module-dependent

Response Time
Typically 1 ms (module-dependent)

Product Type
PLC

Application
Factory automation, process control, machine building

Rated Voltage
24 V DC

Supply Voltage
24 V DC

Size
Compact, modular design

Dimension (L*W*H)
168 112 90 Millimeter (mm)

Function
Remote Distributed I/O for automation systems

Color
Light Grey body with dark grey terminals

Weight
0.4 Kilograms (kg)

Warranty
1 YEAR

Thickness
18.0 mm (standard module width)

Capacity
Supports up to 64 modules per station

Current Rating
Depends on module, up to 10 A per supply module

Frequency
50/60 Hz (only with external supply for relay output modules)

Communication Protocols
PROFIBUS DP, PROFINET

Configuration Tool
STEP 7, TIA Portal

Module Width
30 mm (standard digital I/O); 15 mm (for some signal modules)

Overload Protection
Integrated in power and output modules

Max Expansion Modules
64 modules per station

Data Transmission Rate
Up to 12 Mbps (PROFIBUS)

Diagnostic Function
Module status and error indication via LEDs

Mounting Type
DIN Rail mounting

Module Coding
Electronic module keying for error prevention

System Compatibility
SIMATIC S7 controllers

Module Power Consumption
0.8W to 3.0W per module (depending on type)

Hot Swappable Modules
Yes, for I/O modules

Ambient Humidity
5% to 95% (non-condensing)

Bus Connector
Integrated in base module

SIEMENS SERIES- ET200S PLC Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
10 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About SIEMENS SERIES- ET200S PLC

General Details

Brand: Siemens
Product Name: SIMATIC ET200S PLC
Series: ET200S Distributed I/O System
Module Type:
- Interface Module (IM151 Series)
- CPU Module (IM151-7 / IM151-8)
- I/O Expansion Modules
Model Numbers:

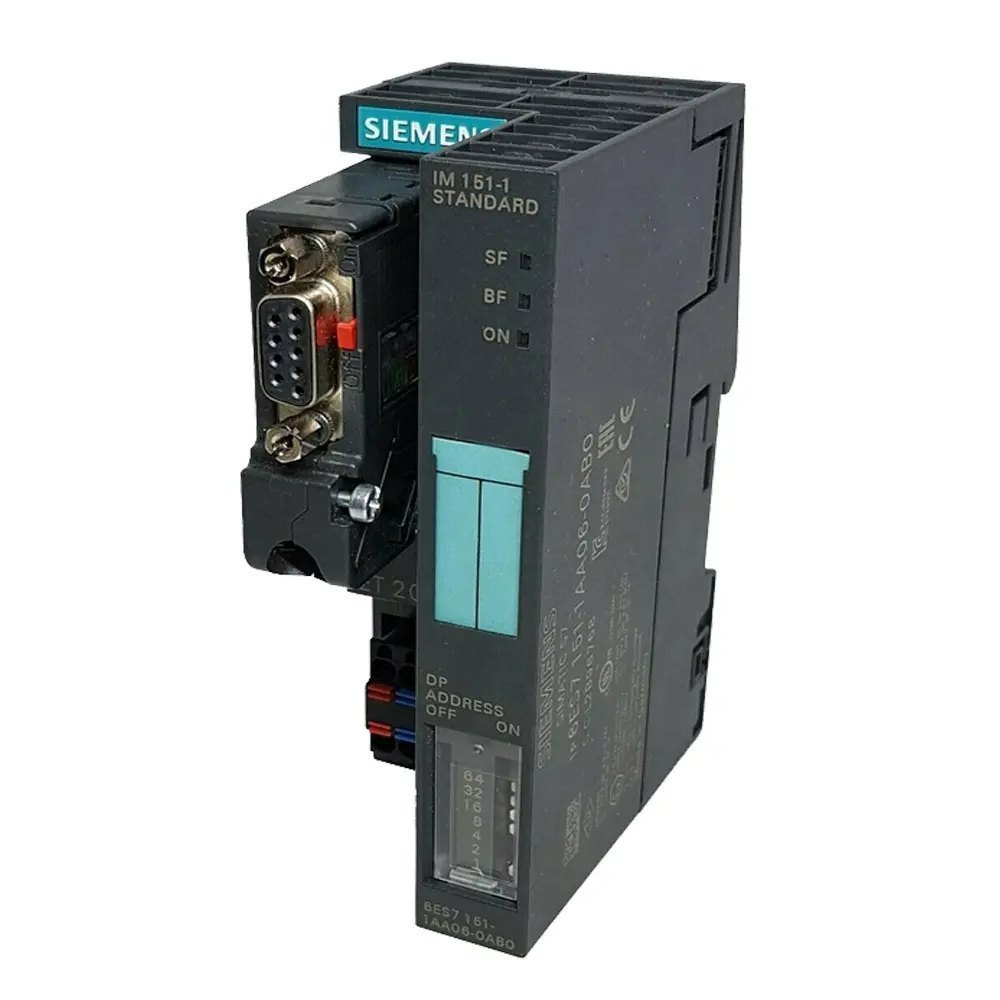

- IM151-1 (Interface Module)
- IM151-3 PN (PROFINET)

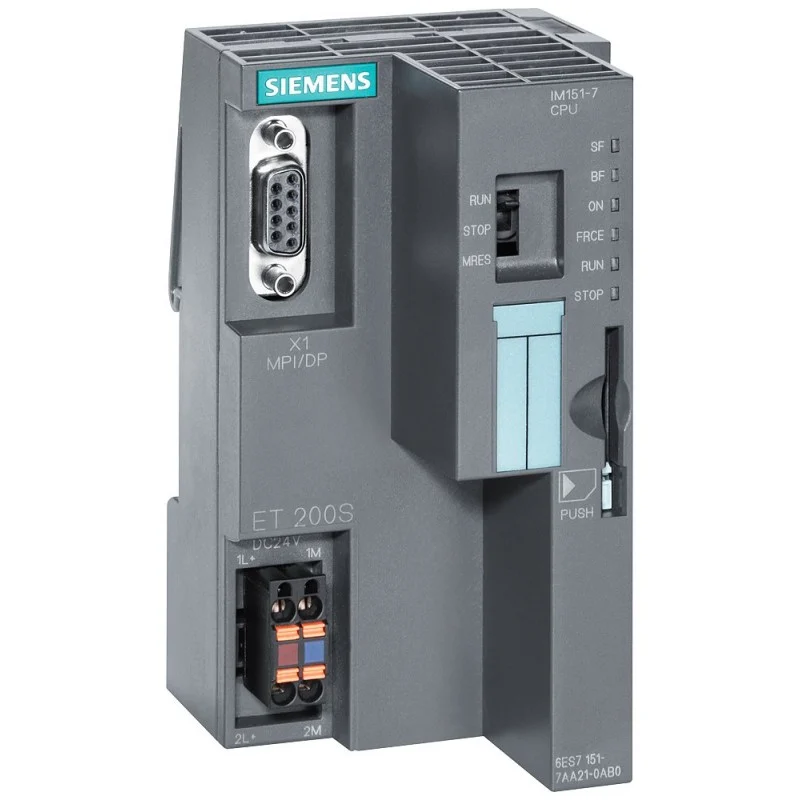

- IM151-7 CPU
- IM151-8 PN/DP CPU
Condition: New

Seamless System Integration

The ET200S PLC integrates smoothly into SIMATIC S7 automation systems, providing a flexible platform for control system expansion. It supports both PROFIBUS DP and PROFINET communication, delivering high-speed and reliable data exchange. The solution's modularity, including hot swappable modules and electronic keying, simplifies upgrades and maintenance without system downtime.

Efficient Diagnostics and Safety

Built-in diagnostic functions offer immediate status and error feedback through module LEDs, facilitating swift troubleshooting and increased system uptime. The ET200S features overload protection within its power and output modules to safeguard both equipment and personnel. Electronic module coding further prevents installation errors, ensuring proper module placement every time.

Versatile Application and Expansion Capabilities

With support for up to 64 modules per station and a compact, modular design, the ET200S adapts to varied industrial needs. Its compatibility with a range of input/output modules, including both digital and analog options, ensures it can be tailored for factory automation, process control, and machine building projects where space-saving and flexibility are essential.

FAQ's of SIEMENS SERIES- ET200S PLC:

Q: How does the SIEMENS ET200S PLC benefit industrial automation applications?

A: The ET200S PLC offers modularity, remote I/O capabilities, and compatibility with SIMATIC S7 controllers, making it ideal for flexible system expansions in industrial environments. Its robust diagnostics, hot swappable modules, and easy installation significantly reduce downtime and improve overall operational efficiency.

Q: What is required to configure the ET200S PLC, and which tools are used?

A: Configuration is achieved using Siemens' STEP 7 or TIA Portal software, which allows for setup, parameterization, and diagnostics. Both PROFIBUS DP and PROFINET modules can be easily configured through these platforms for smooth integration into automation systems.

Q: When can modules be replaced or added without powering down the system?

A: The ET200S supports hot swapping of I/O modules, meaning modules can be added or replaced while the PLC is running. This feature is especially valuable for minimizing downtime during maintenance or system expansion.

Q: Where is the ET200S PLC typically installed, and what mounting type is used?

A: Designed for industrial environments such as factories and process plants, the ET200S PLC uses DIN Rail mounting, making installation straightforward within control panels or electrical enclosures.

Q: What safety and diagnostic features are integrated into the ET200S PLC?

A: The system includes overload protection in power and output modules, module coding to prevent incorrect installation, and diagnostic LEDs for immediate module status and error reporting. These features help maintain equipment safety and streamline troubleshooting processes.

Q: How can I expand the system, and what is the maximum capacity per station?

A: The ET200S supports up to 64 modules per station, accommodating a combination of digital and analog input/output, power, and interface modules. Expansion is as simple as adding modules onto the DIN rail, maintaining compactness and flexibility for future needs.
