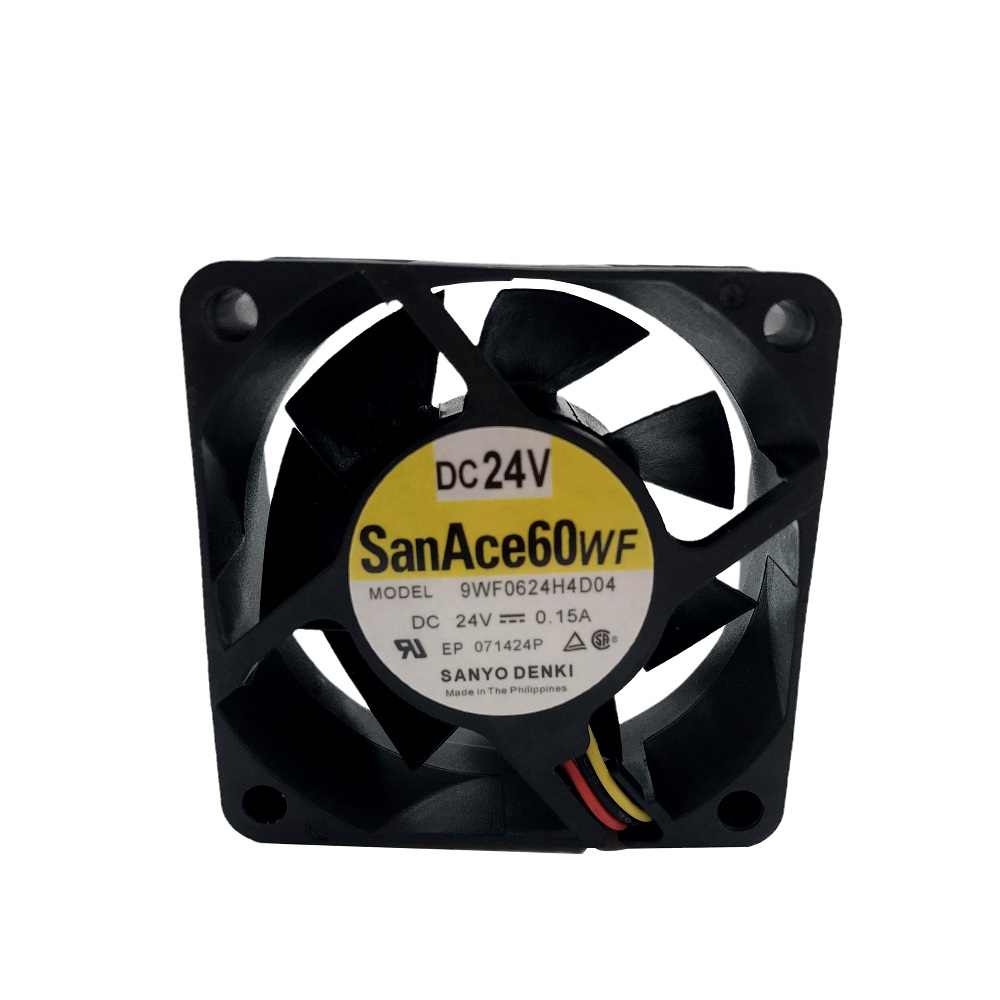

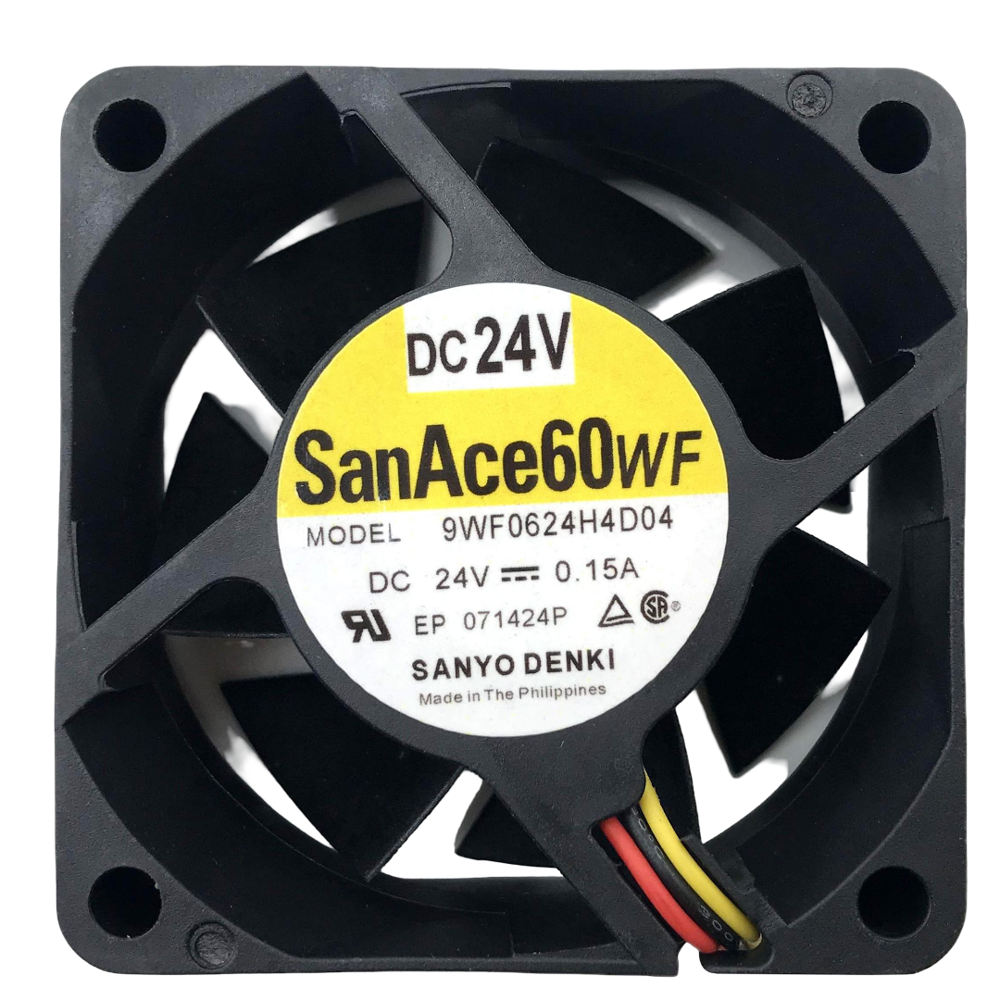

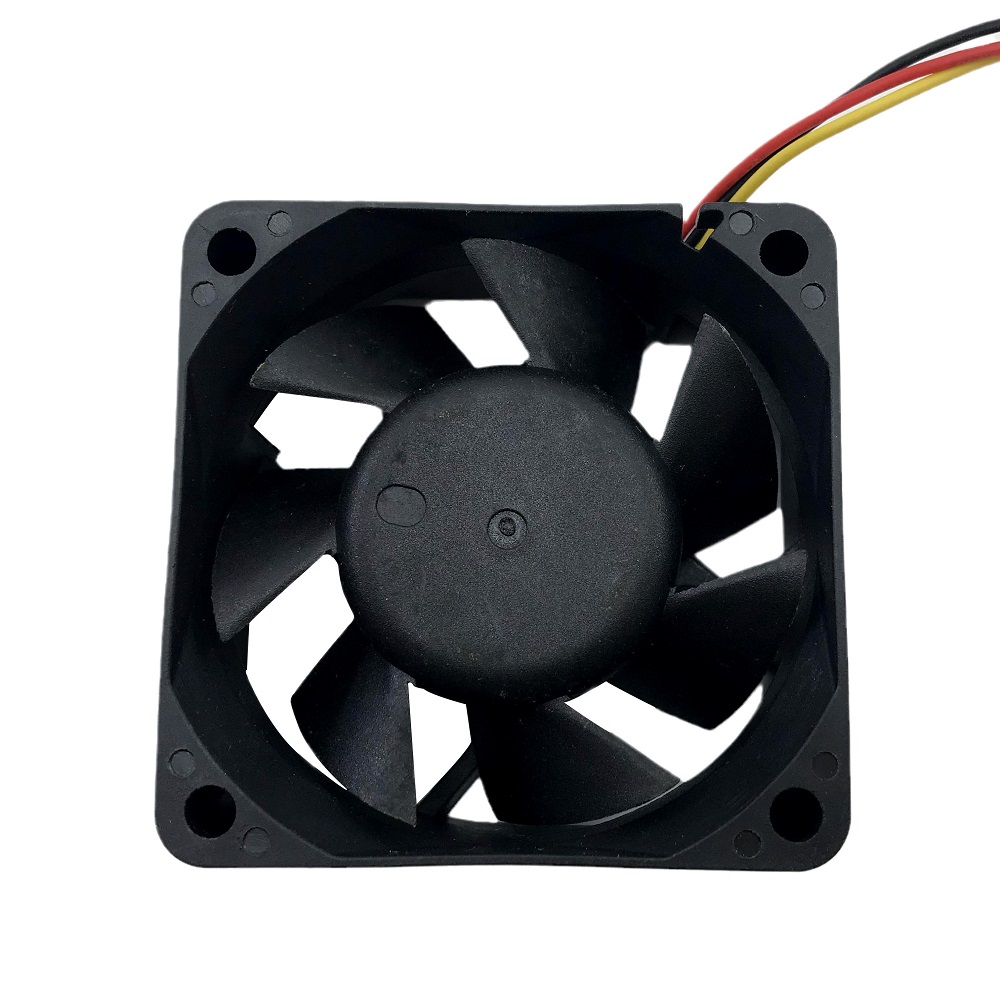

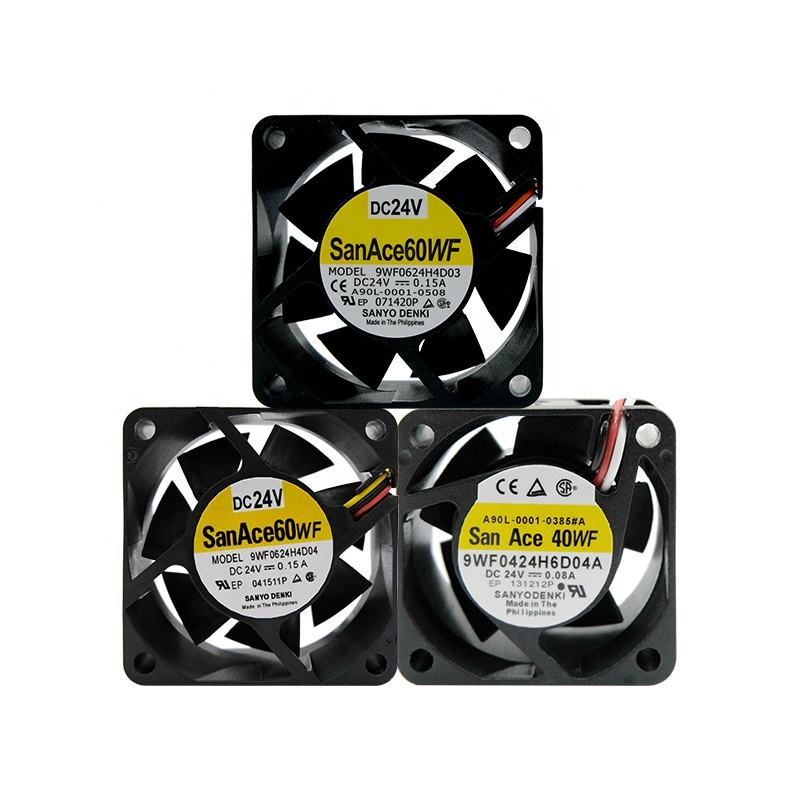

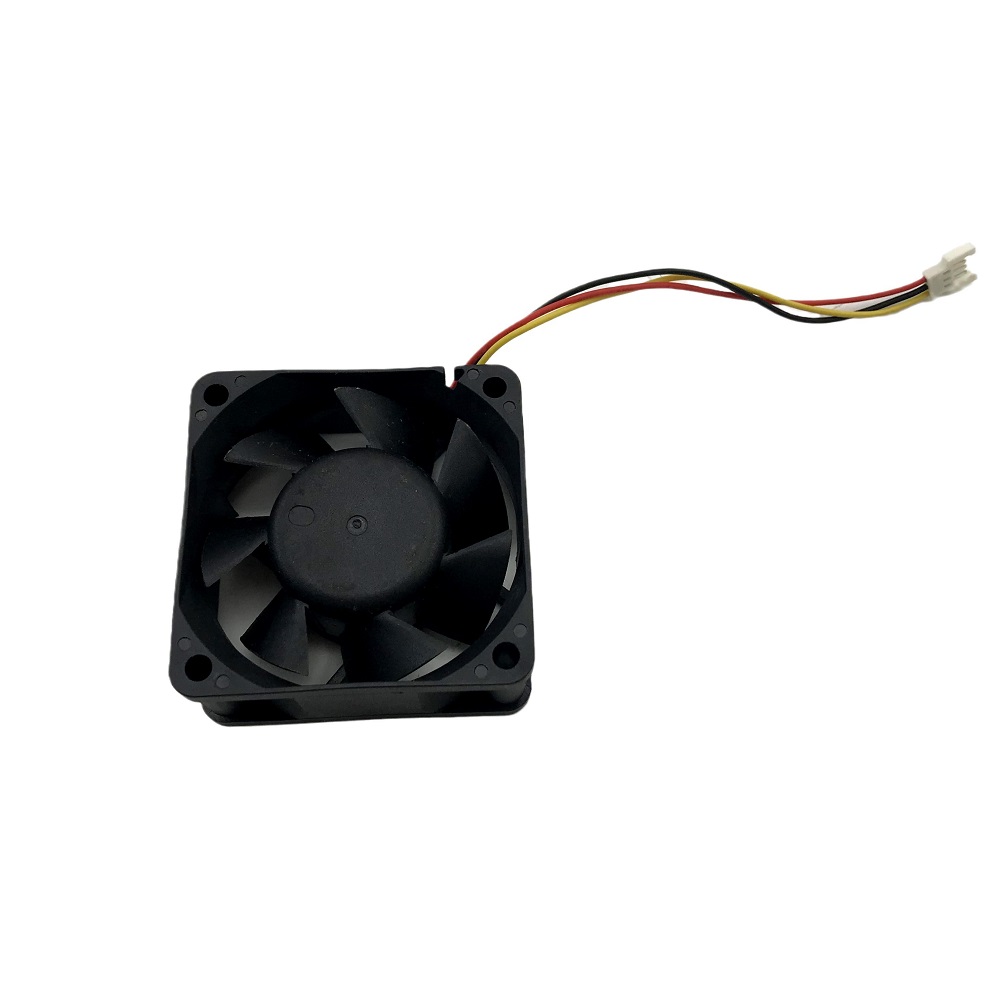

Sanyo 9WF0624H4D04 Cooling Fan

Sanyo 9WF0624H4D04 Cooling Fan Specification

Processor Speed
---

Components
Impeller, frame, DC motor

Sensors Specification
---

Features
Long life, high airflow, low noise

Input
24V DC, 0.13A

Operating Temperature
-20C to +70C

Interface
2-wire

Display Type
---

Thermal Conductivity
---

Resolution
---

IP Rating
---

Power Supply
DC

Output
---

Response Time
---

Power Source
DC Powered

Usage
Electronics cooling, industrial equipment

Charging Voltage
---

Product Type
Axial Cooling Fan

Application
Server, Network equipment, Telecom, Automation

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
60mm x 60mm x 25mm

Dimension (L*W*H)
60mm x 60mm x 25mm

Function
Cooling and heat dissipation

Color
Black

Weight
90g

Current Rating
0.13A

Capacity
---

Thickness
25mm

Frequency
---

Noise Level
33 dBA

Life Expectancy
Up to 60,000 hours at 25C

Number of Blades
7

Connector Type
Lead Wires

Safety Standards
RoHS Compliant, UL Recognized (E165911)

Air Flow
27.0 CFM (Cubic Feet Minute)

Maximum Static Pressure
0.22 inch H2O

Frame Material
Plastic (UL94V-0)

Rotation Direction
Clockwise viewed from front

Bearing Type
Ball Bearing

Model Number
9WF0624H4D04

Sanyo 9WF0624H4D04 Cooling Fan Trade Information

Minimum Order Quantity
4 Pieces

Payment Terms
Paypal

Supply Ability
150 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

Sanyo 9WF0624H4D04 Cooling Fan About

Brand: SANYO DENKI
Model No.: 9WF0624H4D04
Fan Type: DC Axial Cooling Fan
Fan Size: 60 mm 60 mm 25 mm
Rated Voltage: 24V DC
Current Rating: 0.15 A
Power Consumption: 3.6 W (approx.)
Bearing Type: Ball Bearing
Speed: 4000 6000 RPM (approx.)
Airflow: 20 30 CFM (approx.)
Noise Level: 35 45 dBA (approx.)
Number of Wires: 3 Wire
Connector Type: 3-Pin
Frame Material: High-quality plastic
Mounting Type: Panel Mount

Efficient Cooling and Long-Lasting Reliability

Built to deliver consistent airflow, the Sanyo 9WF0624H4D04 fan features a ball bearing design and sturdy plastic frame to ensure extended service life. This fan is capable of operating up to 60,000 hours at 25C, making it a trustworthy choice for critical environments. Its high maximum static pressure and reliable performance effectively dissipate heat in electronics and industrial equipment.

Low Noise Operation with Optimal Airflow

Despite its compact dimensions at 60mm x 60mm x 25mm, this fan achieves an impressive 27.0 CFM airflow at just 33 dBA, supporting quiet and efficient cooling. It's suitable for installations needing suppressed noise without sacrificing performance, making it well-suited for office environments and precision equipment.

FAQ's of Sanyo 9WF0624H4D04 Cooling Fan:

Q: How should the Sanyo 9WF0624H4D04 Cooling Fan be installed for optimal airflow?

A: Install the fan so that air flows in the intended direction, which is clockwise when viewed from the front. Ensure the lead wire connector is properly attached to a 24V DC power supply. Mount it securely to prevent vibrations and ensure unrestricted airflow for best performance.

Q: What are the typical applications for the Sanyo 9WF0624H4D04 Cooling Fan?

A: This cooling fan is commonly used in servers, network equipment, telecom systems, industrial automation, and various electronics requiring efficient thermal management. Its reliability and certifications make it suitable for critical and long-duration operational environments.

Q: When should the fan be replaced or serviced?

A: The fan is rated for a life expectancy of up to 60,000 hours at 25C. It is recommended to monitor for signs of increased noise, reduced airflow, or irregular operation and to replace the fan if any symptoms of wear or malfunction appear.

Q: Where does the Sanyo 9WF0624H4D04 Cooling Fan meet safety standards?

A: The fan meets RoHS compliance and is UL recognized (E165911), ensuring adherence to global safety and environmental standards. These certifications make it suitable for regulated and safety-conscious applications.

Q: What is the process for connecting the fan to a power supply?

A: Connect the fan's lead wires to a stable 24V DC power source with a current rating of at least 0.13A. Observe correct polarity and ensure all connections are secure to maintain reliable operation and avoid electrical issues.

Q: How does using this fan benefit my equipment's longevity and performance?

A: By providing high airflow and efficient heat dissipation while maintaining low noise and long operational life, the Sanyo 9WF0624H4D04 helps prevent overheating, protects sensitive components, and thereby extends the overall life of your equipment.
