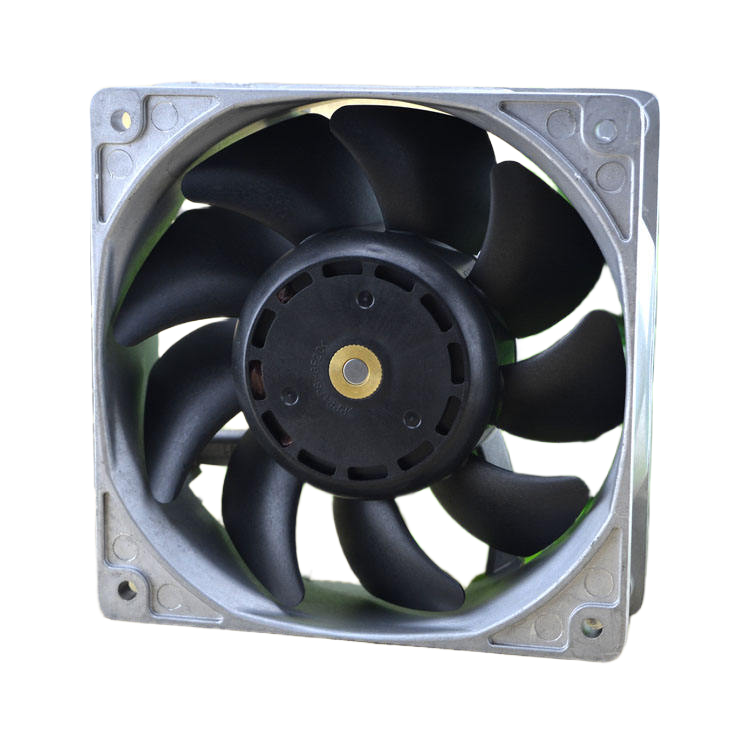

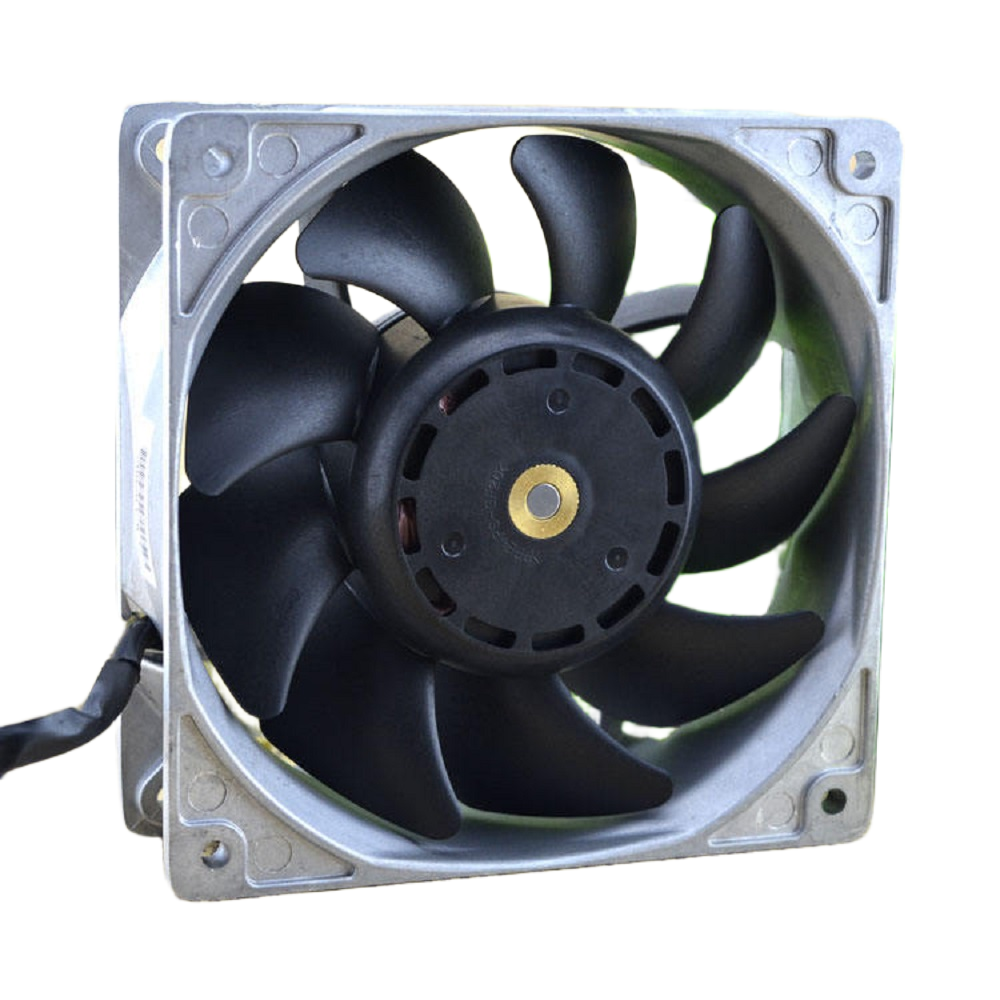

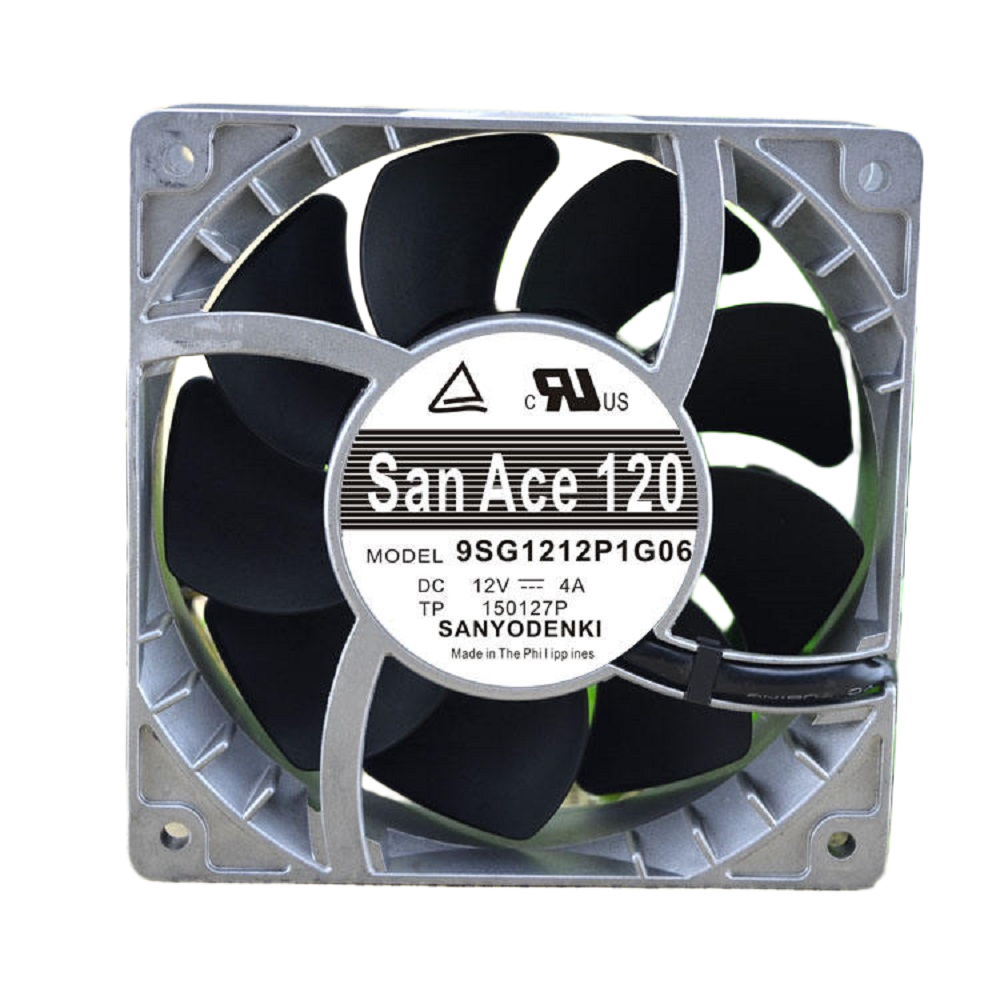

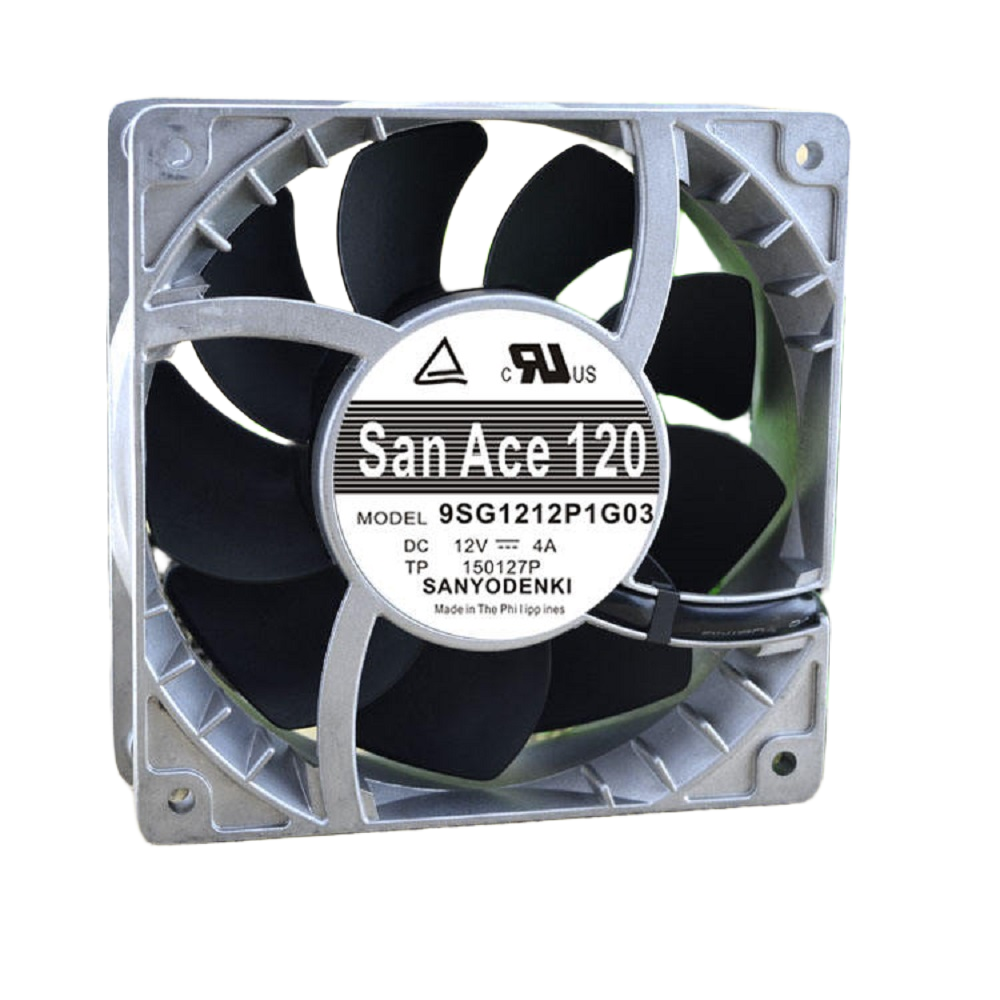

SANYO 9SG1212P1G03/G06 Cooling Fan

SANYO 9SG1212P1G03/G06 Cooling Fan Specification

Interface
3-wire / 4-wire Lead

Components
Fan

Operating Temperature
-20C to +70C

Features
High static pressure, long life, ball bearing

Power Supply
DC

Output
High Airflow

Usage
Electronics, Industrial, Servers, Computers

Sensors Specification
FG (Frequency Generator) Sensor

Power Source
DC Power

Input
12V DC

Product Type
Cooling Fan

Application
Cabinet, Enclosure, Electronic System Cooling

Rated Voltage
12V DC

Supply Voltage
12V

Size
120mm x 120mm x 38mm

Dimension (L*W*H)
120mm x 120mm x 38mm

Function
Cooling

Color
Black

Weight
400g

Current Rating
2.2A

Thickness
38mm

Rated Current
2.2A

Connector Type
Lead Wires

Approval Standards
UL, CSA, CE

Noise Level
68 dBA

Material
Plastic PBT Frame & Impeller

Max Static Pressure
2.579 inch-H2O

Number of Blades
7

Rated Power
26.4W

Life Expectancy
60,000 hours at 60C

Rotation Direction
Counterclockwise (viewed from label side)

Bearing Type
Ball Bearing

Model Number
9SG1212P1G03/G06

Max Air Flow
235 CFM (Cubic Feet per Minute)

SANYO 9SG1212P1G03/G06 Cooling Fan Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Paypal

Supply Ability
112 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

SANYO 9SG1212P1G03/G06 Cooling Fan About

Brand: SANYO DENKI
Models: 9SG1212P1G03 / 9SG1212P1G06
Series: San Ace 120
Fan Type: DC Axial Cooling Fan
Fan Size: 120 mm 120 mm 38 mm
Rated Voltage: 12V DC
Current Rating: 4.0 A
Power Consumption: 48 W (approx.)
Speed: 5600 7000 RPM
Airflow: 200 250 CFM (high airflow type)
Static Pressure: High (suitable for dense systems)
Noise Level: 30 45 dBA
Bearing Type: Ball Bearing
Frame Material: Aluminum Alloy
Number of Wires: 4 Wire (PWM + Tach Output)
Control Type: PWM Speed Control

High Airflow Performance for Demanding Applications

Designed to tackle intensive cooling requirements, the SANYO 9SG1212P1G03/G06 fan offers significant airflow of up to 235 CFM. This ensures efficient temperature regulation for electronic systems, industrial equipment, and server enclosures. Its robust performance makes it ideal for scenarios where heat buildup could compromise reliability or hardware longevity.

Engineered for Longevity and Minimal Maintenance

With its ball bearing design, the cooling fan achieves a lifespan of up to 60,000 hours at 60C, reducing the need for frequent replacements. The high-quality plastic PBT frame and impeller add to its durability, making it a dependable choice for continuous operation in critical electronic and industrial systems.

FAQ's of SANYO 9SG1212P1G03/G06 Cooling Fan:

Q: How is the SANYO 9SG1212P1G03/G06 Cooling Fan installed in electronic cabinets or enclosures?

A: The fan can be mounted directly onto 120mm fan slots using screws or mounting brackets in typical cabinets and enclosures. Lead wire connectors facilitate easy integration into your power supply. Ensure alignment with the airflow direction for optimal cooling.

Q: What benefits does the ball bearing design offer for the SANYO cooling fan?

A: Ball bearings provide the fan with a longer operational lifespan (up to 60,000 hours at 60C), reduce operational noise, and improve stability during high-speed rotations. This reduces maintenance needs and enhances reliability for continuous, demanding usage.

Q: When should I consider replacing the SANYO 9SG1212P1G03/G06 Cooling Fan?

A: Consider replacement if you observe increased noise levels, vibration, or reduced airflow, indicating possible bearing wear or electrical issues. Routine inspection is recommended, especially after several years of continuous operation or if the system environment exceeds typical temperatures.

Q: Where can this fan be utilized most effectively?

A: It is ideally used in electronics cooling, industrial machinery, server racks, computer systems, and enclosures where high airflow and static pressure are required to maintain optimal operating temperatures.

Q: What process does the FG (Frequency Generator) sensor support?

A: The FG sensor provides a tachometer output for real-time RPM monitoring and speed control. This feature enables precise fan management, allowing system administrators or controllers to detect fan failures or adjust speeds for efficient cooling.

Q: How does the SANYO 9SG1212P1G03/G06 fan handle high static pressure environments?

A: With a maximum static pressure of 2.579 inch-H2O, this fan is well-suited for densely packed electronic systems and filters that restrict airflow, maintaining consistent cooling performance where resistance is higher than average.

Q: What is the primary benefit of using a 12V DC power source for this cooling fan?

A: A 12V DC power input ensures compatibility with standard electronic and industrial power supplies, enabling safe, energy-efficient operation without the need for voltage conversion components.
