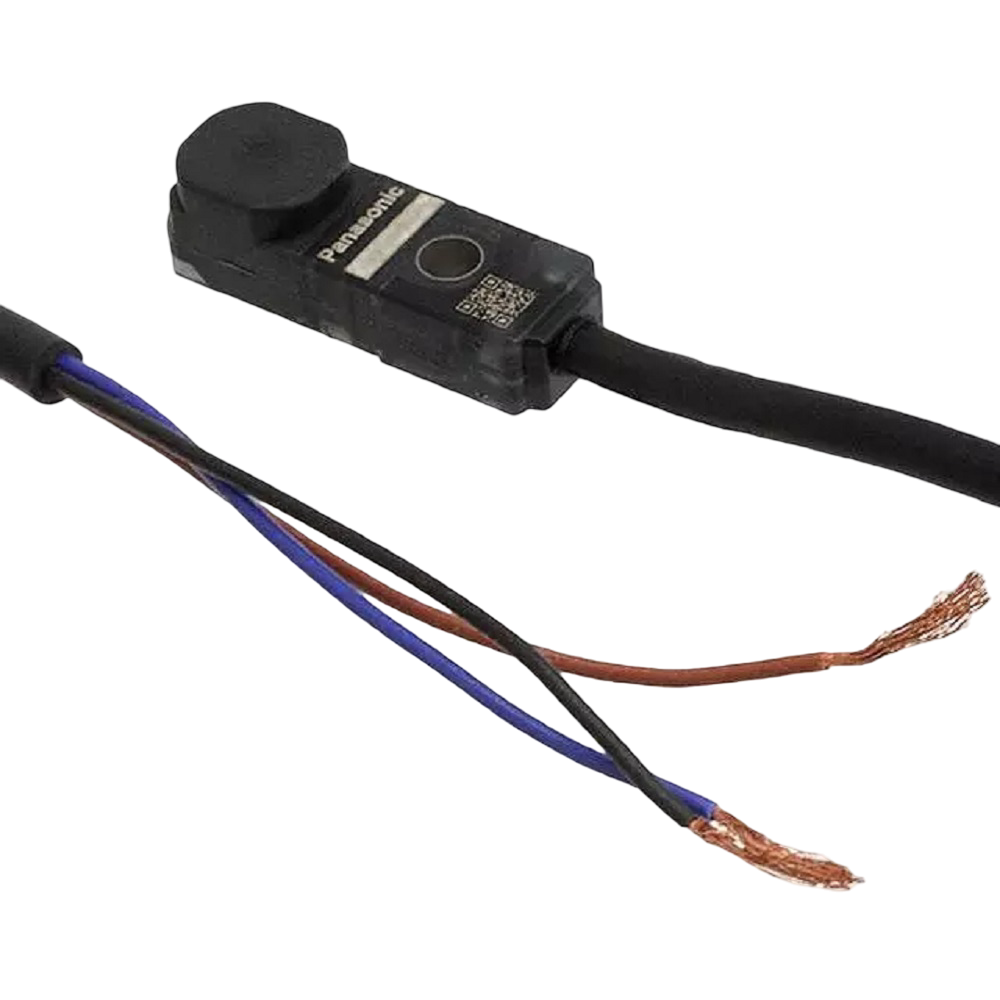

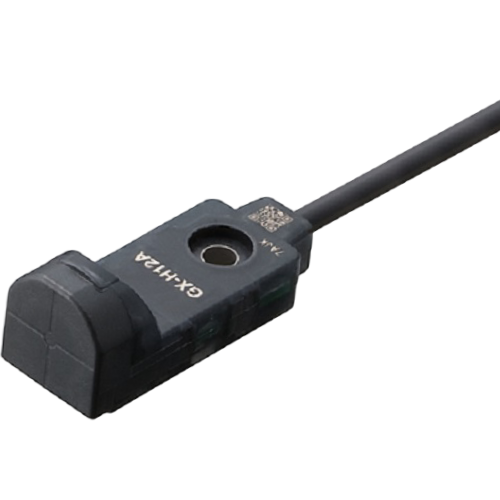

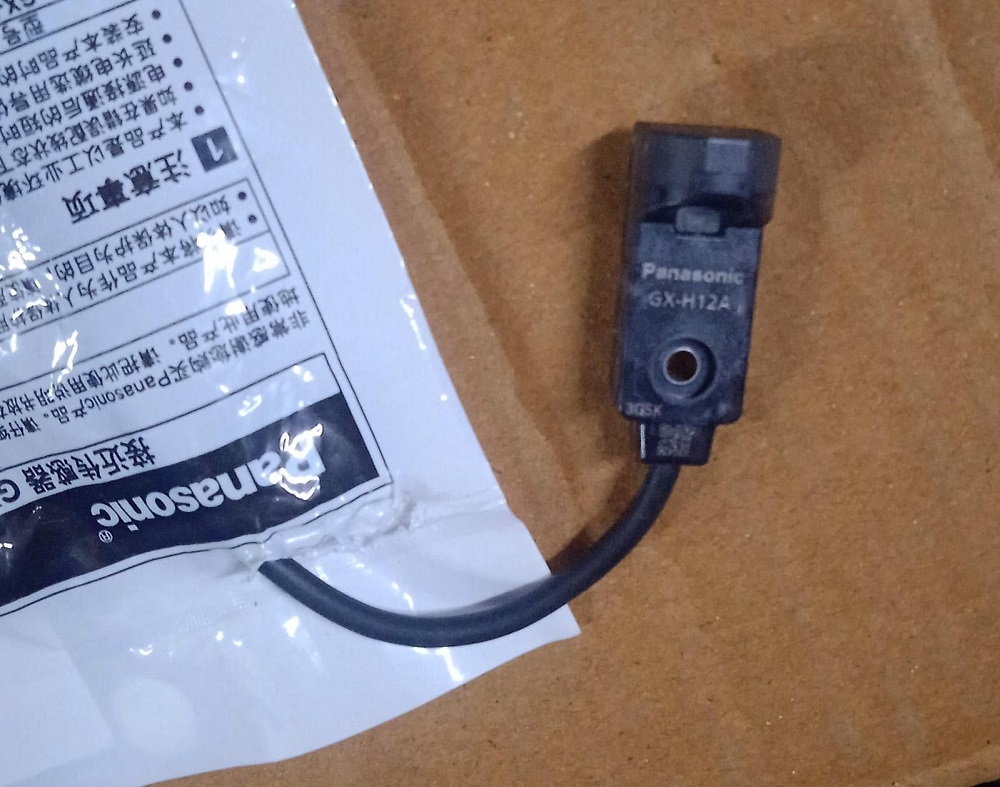

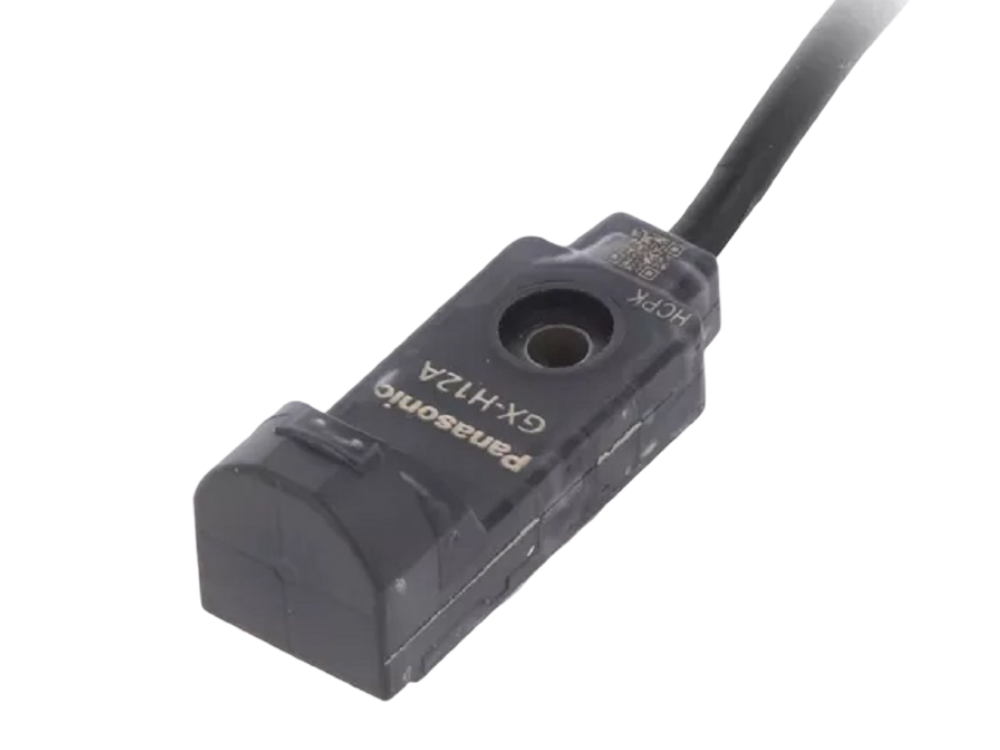

PANASONIC GX-H12A INDUCTIVE PROXIMITY SENSOR

PANASONIC GX-H12A INDUCTIVE PROXIMITY SENSOR Specification

IP Rating
IP68 / IP68g

Application
Automation Equipment, Packaging Machines, Conveyor Systems

Sensor Type
Inductive Sensor

Operating Temperature
-25 C to +70 C Celsius (oC)

Housing Material
Plastic (PBT)

Mounting Thread
Standard Threaded Type

Product Type
Inductive Proximity Sensor

Material
PBT Plastic

Input
DC Input

Function
Non-Contact Metal Detection

Usage
Industrial Automation

Voltage
12 24 Volt (v)

Warranty
1 Year

PANASONIC GX-H12A INDUCTIVE PROXIMITY SENSOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
100 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About PANASONIC GX-H12A INDUCTIVE PROXIMITY SENSOR

Model : GX-H12A

Type : Inductive Proximity Sensor

Brand : Panasonic

Series : GX Series

Diameter : 4 mm

Shape : Rectangular

Body Type : Rectangular

Mounting Type : Non-Flush

Output Type : NPN

Output Logic : NO

Sensing Distance : 4 mm

Stable Sensing Range : 0 3.3 mm

Standard Target : Iron Plate 20 20 1 mm

Supply Voltage : 12 24 V DC

Current Consumption : 15 mA Max

Maximum Load Current : 100 mA

Response Frequency : 500 Hz

IP Rating : IP68 / IP68g

Housing Material : Plastic (PBT)

Connection Type : Cable

Cable Length : 1 Meter

Indicator : Orange LED

Operating Temperature : -25C to +70C

Storage Temperature : -40C to +85C

Shock Resistance : 1000 G

Vibration Resistance : 20 G

Repeatability : 0.04 mm

Wiring : 3 Wire

Brown Wire : +V

Blue Wire : 0V

Black Wire : Output

Application : Industrial Automation

Country of Origin : Japan

Certification : CE, RoHS, UKCA

Reliable Non-Contact Metal Detection

The PANASONIC GX-H12A is engineered for precise detection of metallic objects in a variety of industrial settings without physical contact. Its advanced inductive technology increases operational safety and reduces maintenance requirements, making it a suitable choice for environments that demand consistent, repeatable sensor performance.

Versatile Industrial Applications

From conveyor systems to packaging machines, this sensor integrates seamlessly into automation equipment. Thanks to a robust design, wide temperature tolerance, and IP68/IP68g protection, the sensor operates dependably, enhancing productivity and reducing equipment downtime in diverse industrial processes.

Durable Design for Harsh Environments

Constructed with high-quality PBT plastic and featuring a standard threaded mounting, the GX-H12A is designed for easy installation and exceptional durability. Its IP68/IP68g rating protects it from dust and water, ensuring reliable performance even in the most challenging industrial conditions.

FAQ's of PANASONIC GX-H12A INDUCTIVE PROXIMITY SENSOR:

Q: How does the PANASONIC GX-H12A sensor detect metal objects?

A: The GX-H12A uses inductive sensing technology, which creates an electromagnetic field to detect the presence of metal nearby without requiring direct contact. This ensures reliable operation and reduces physical wear on the sensor over time.

Q: What applications are suitable for the PANASONIC GX-H12A Inductive Proximity Sensor?

A: This sensor is ideal for integration into automation equipment, packaging machines, and conveyor systems, offering accurate non-contact metal detection in industrial automation settings where robustness and precision are required.

Q: When is it necessary to use a sensor with an IP68 rating, like the GX-H12A?

A: You should use sensors with IP68/IP68g ratings, such as the GX-H12A, in environments where exposure to dust, moisture, or water immersion is possible. The rating ensures the sensor remains reliable and protected even in harsh or outdoor conditions.

Q: Where can the PANASONIC GX-H12A be installed?

A: Thanks to its standard threaded mounting design, the sensor can be easily installed in various industrial machinery setups, such as on conveyor frames, inside packaging equipment, or any other automation component requiring metal detection.

Q: What is the benefit of the sensor's wide operating temperature range?

A: The GX-H12A operates reliably from -25C to +70C, making it suitable for facilities with extreme temperature variations and ensuring consistent performance without the need for additional thermal protection.

Q: How does the PBT plastic housing contribute to the sensor's functionality?

A: The PBT (Polybutylene Terephthalate) plastic housing provides chemical resistance, high durability, and mechanical strength, protecting the electronics inside and extending the sensor's lifespan even in demanding industrial environments.
