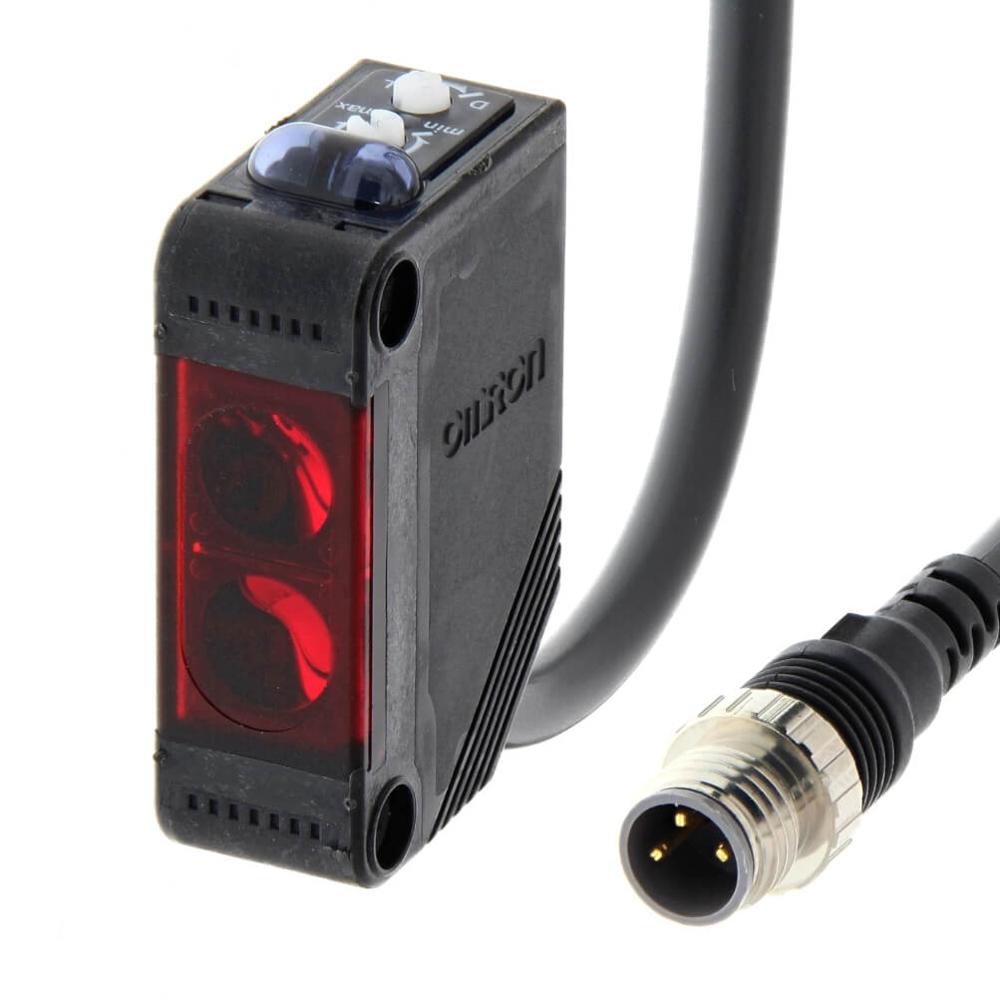

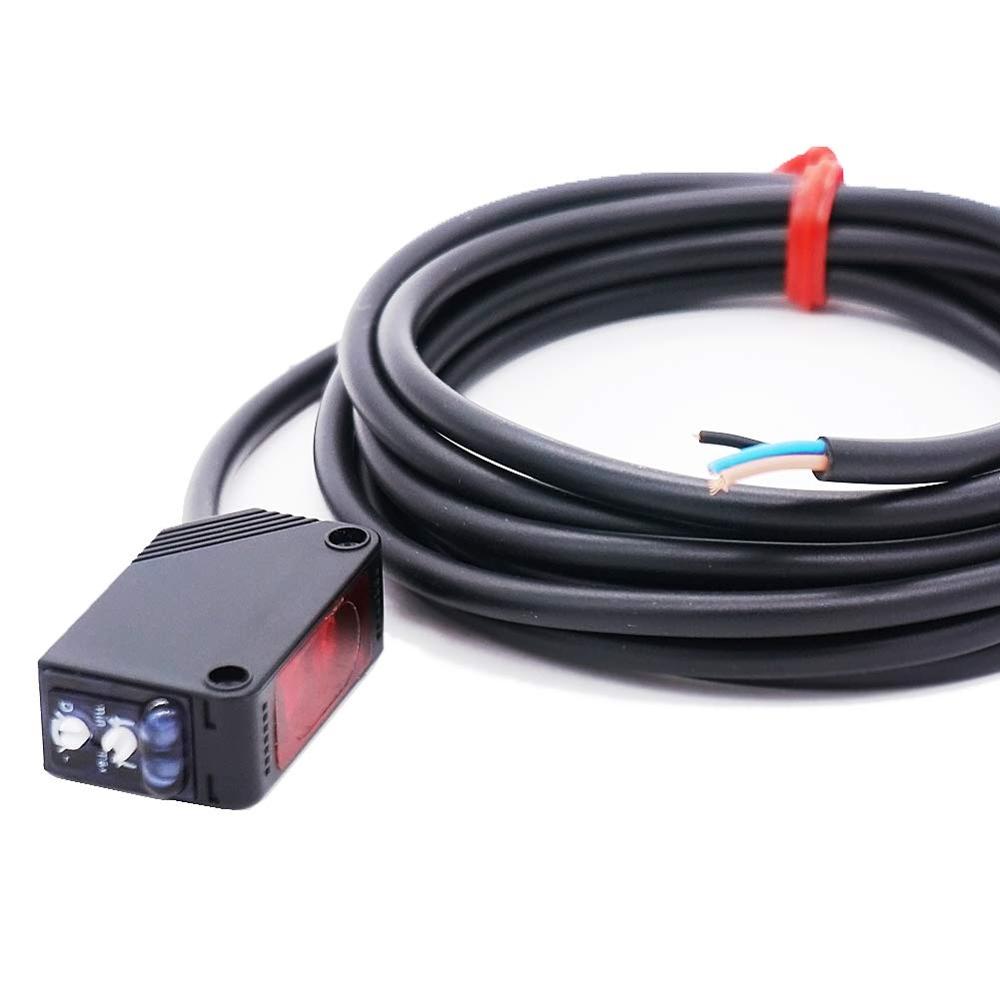

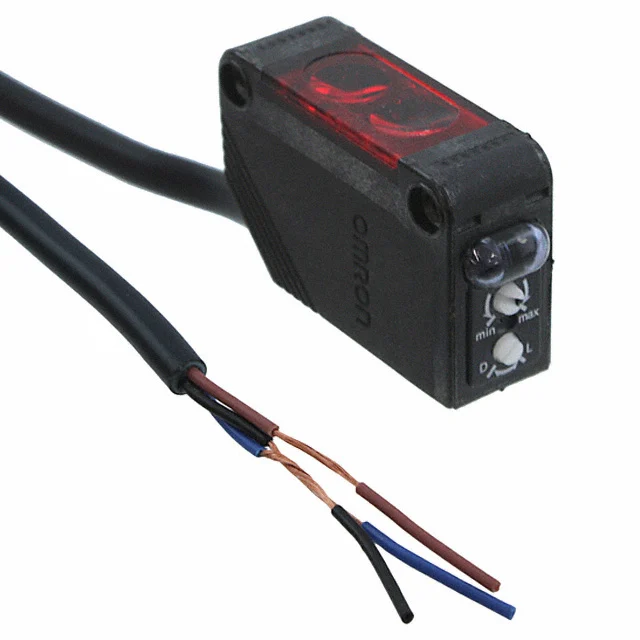

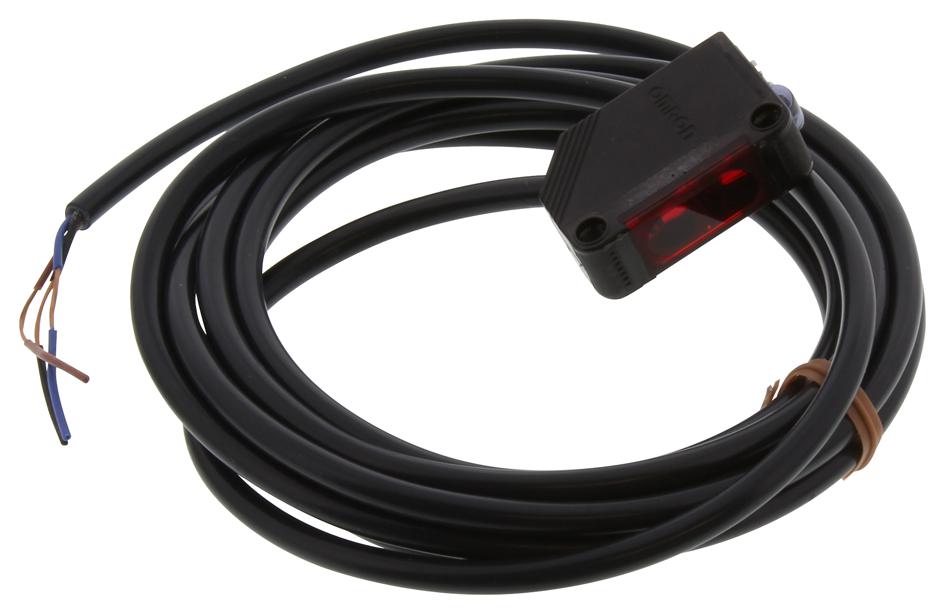

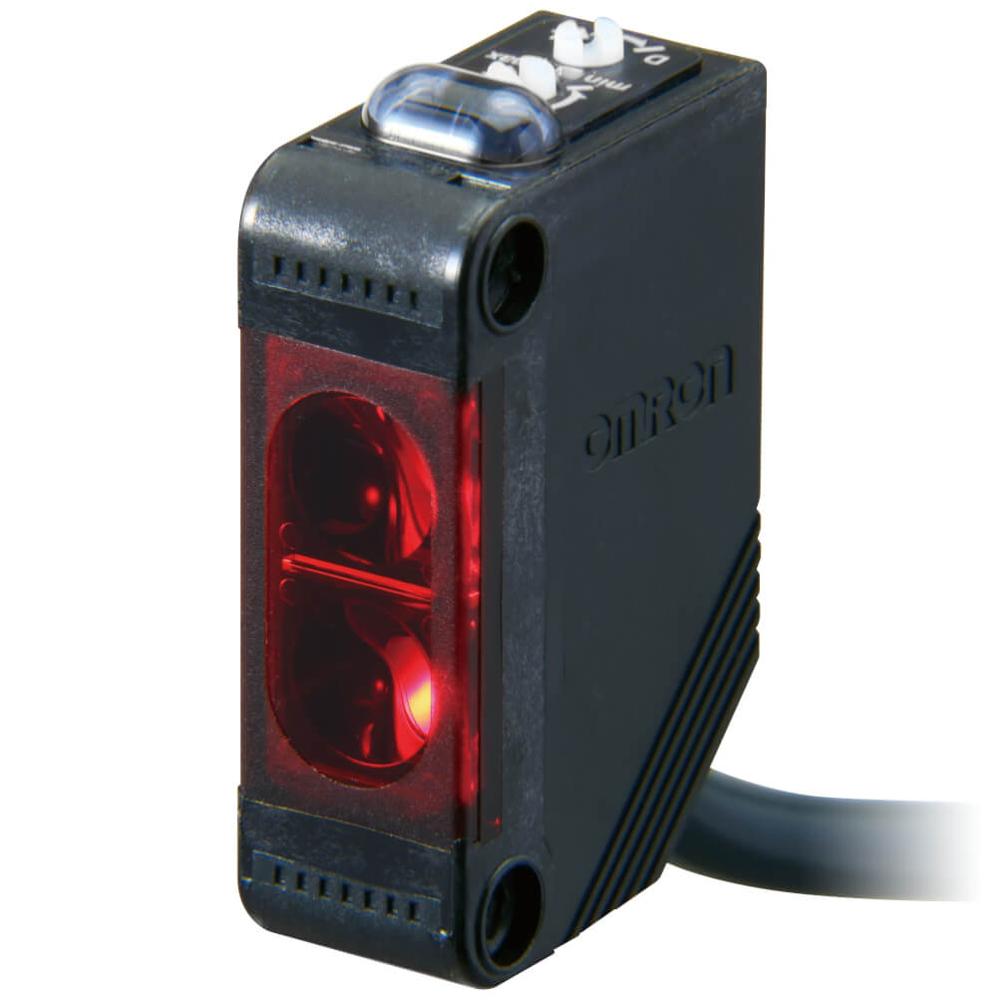

Omron E3Z R81 Photoelectric Sensor Supplier, Importer, Trader

Omron E3Z R81 Photoelectric Sensor Specification

Cable Length
2 Meter (m)

Power Consumption
30 mA max Ampere

Ingress Protection
660 nm

Sensor Type
Retro-reflective Photoelectric Sensor

Operating Temperature
-25 C to +55 C Celsius (oC)

IP Rating
IP67

Mounting Thread
M18 Compatible Bracket Mount

Housing Material
PBT

Application
Conveyor Systems, Packaging Machines, Presence Detection

Product Type
Photoelectric Sensor

Material
Polybutylene Terephthalate (PBT)

Input
Optical Light Input

Output
PNP Open Collector

Function
Object Detection

Usage
Industrial Automation

Resolution
Standard

Voltage
12 to 24 Volt (v)

Weight
Approx. 65 Grams (g)

Warranty
1 Year

Omron E3Z R81 Photoelectric Sensor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
100 Pieces Per Month

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron E3Z R81 Photoelectric Sensor

Description : Compact retro-reflective photoelectric sensor with built-in amplifier
Model : Omron E3Z- R81
Sensing Method : Retro-reflective
Sensing Distance : 100 mm to 4 m
Output Type : PNP Open Collector
Supply Voltage : 12 to 24 VDC
Light Source: Red LED (660 nm)
Response Time: 1 ms max.
Operation Mode: Light-ON / Dark-ON selectable
Protection Rating: IP67
Housing Material: PBT
Connection Type: Pre-wired cable
Current Consumption: 30 mA max.
Operating Temperature: -25C to +55C
Features: M.S.R. (Mirror Surface Rejection), compact design, short-circuit protection, reverse polarity protection
Applications: Conveyor systems, packaging machines, bottle counting, industrial automation, object detection
Required Accessory: Reflector E39-R1 / E39-R1S
