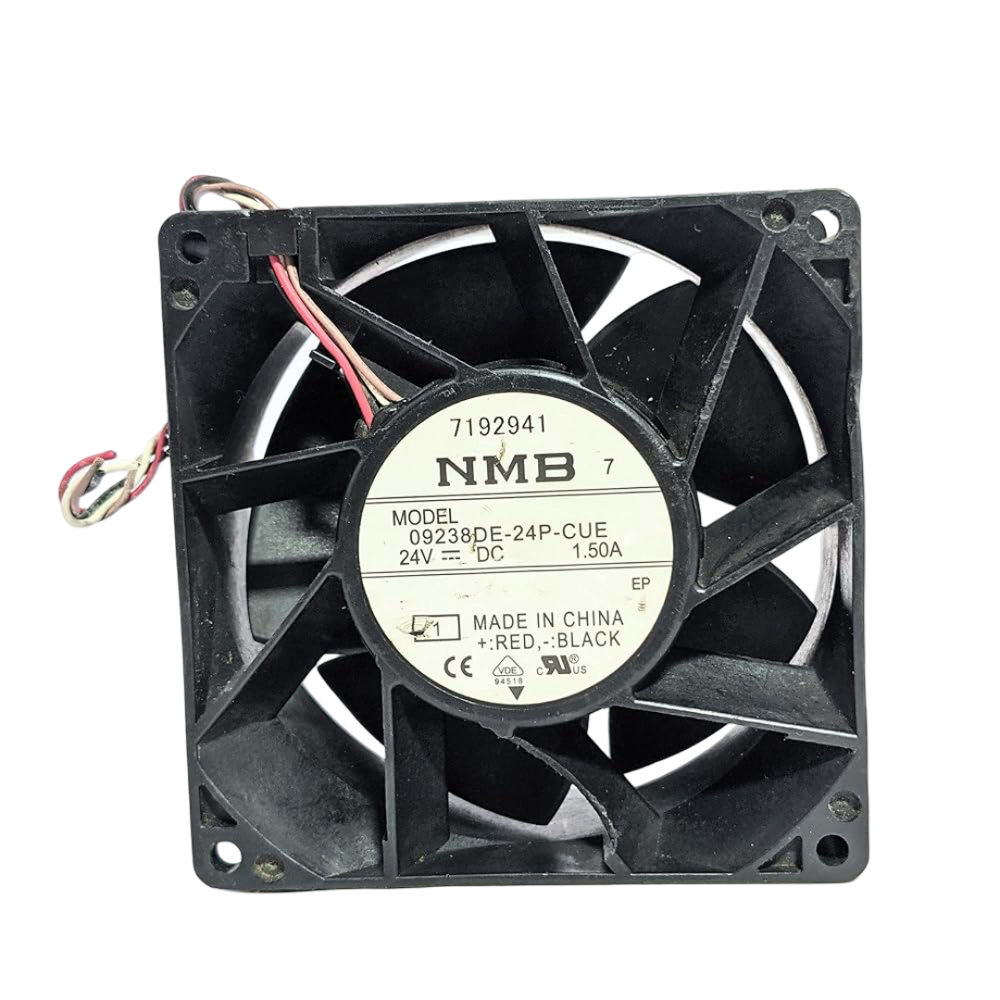

NMB 09238DE-24P-CUE Axial Fan

NMB 09238DE-24P-CUE Axial Fan Specification

Power Source
DC Powered

Input
36 W

Components
Fan blade, Housing, Motor

Usage
Industrial, Electronics Cooling

Features
Ball bearing, Low noise, High reliability

Operating Temperature
-10C to +70C

Display Type
None

Interface
2-wire or 3-wire leads

Power Supply
DC

IP Rating
IP20

Product Type
Axial

Application
Cabinets, Industrial machinery, Power supplies

Rated Voltage
24 Volt (V)

Supply Voltage
24 V

Size
92 mm x 92 mm x 38 mm

Dimension (L*W*H)
92 x 92 x 38 mm

Function
Cooling and Ventilation

Color
Black

Weight
Approx. 370 g

Rated Current
1.50 Ampere (amp)

Material
Plastic

Current Rating
1.50 A

Capacity
High airflow

Thickness
38 mm

NMB 09238DE-24P-CUE Axial Fan Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
1 Week

About NMB 09238DE-24P-CUE Axial Fan

The NMBMAT 09238DE24PCUE is a 92 92 38 mm DC axial fan operating at 24 V, drawing about 1.50 A via a 4wire lead. It delivers high airflow (141 CFM / 4.0 m/min) at a speed of 6,5006,700 RPM, making it suitable for server / industrial cooling applications. Its design includes a durable plastic frame, likely with ball bearings, built for continuous operation.

Reliable and Efficient Cooling

Powered by a robust DC motor and designed with ball bearings, the NMB 09238DE-24P-CUE Axial Fan ensures reliable and efficient operation. Its 7-blade design offers high airflow (97 CFM) while maintaining a relatively low noise profile at 48 dBA, making it suitable for sensitive environments that require high-performance cooling.

Designed for Industrial Applications

This fan is crafted with industrial requirements in mind. Its durable plastic housing and ball bearing system support a long service life of up to 70,000 hours at 40C and continuous operation within a wide temperature range from -10C to +70C. It is perfect for powering cooling in electronics cabinets, industrial machinery, and power supply units.

Easy Installation and Versatile Connectivity

Thanks to screw mounting options and lead wire connections (2-wire or 3-wire), installation is straightforward. The fan complies with RoHS and CE regulations and can handle an input of 36 W and a current of 1.50 A, ensuring compatibility in a broad range of industrial electronics and machinery.

FAQs of NMB 09238DE-24P-CUE Axial Fan:

Q: How do I install the NMB 09238DE-24P-CUE Axial Fan in my equipment?

A: The NMB 09238DE-24P-CUE Axial Fan features screw mounting holes compatible with standard industrial setups. Simply align the fan with the designated slots or cutouts, secure it using appropriate screws, and connect the lead wires to your devices DC power supply (24 V). Ensure adherence to wiring diagrams and safety standards during installation.

Q: What makes the ball bearing type beneficial for long-term use?

A: Ball bearing fans, like the NMB 09238DE-24P-CUE, are designed for high reliability and extended service life. They reduce friction and wear, supporting stable operation for up to 70,000 hours at 40C. This makes them ideal for continuous, demanding environments where regular maintenance is challenging.

Q: When should this axial fan be chosen over other cooling solutions?

A: The NMB 09238DE-24P-CUE is best selected when your application requires high airflow (approx. 97 CFM), long operational life, and operation within a temperature range of -10C to +70C. Its particularly suitable for industrial cabinets, power supplies, and machinery where durability and efficient cooling are priorities.

Q: Where can this fan be effectively used?

A: The fan is designed for use in industrial settings, including electronics cabinets, control panels, industrial machines, and power supply units. Its size and mounting flexibility also make it appropriate for any environment requiring reliable ventilation and cooling.

Q: What is the process for connecting the fan to my power source?

A: Connect the lead wires (either 2-wire or 3-wire) to a compatible 24 V DC power supply, ensuring correct polarity and secure connections. Verify voltage and current specifications (1.50 A) to avoid overloading the circuit. Always perform installations and connections with the power off for safety.

Q: What are the main benefits of using this axial fan in industrial applications?

A: The main benefits include high airflow capacity for efficient cooling, quiet operation at 48 dBA, robust service life (70,000 hours at 40C), RoHS and CE compliance for safety and environmental standards, and versatility in various industrial and electronic scenarios.

Q: Is this fan compliant with industry standards and certifications?

A: Yes, the NMB 09238DE-24P-CUE Axial Fan is compliant with CE and RoHS certifications, ensuring that it meets safety, quality, and environmental regulations required for use in industrial and electronic devices.
