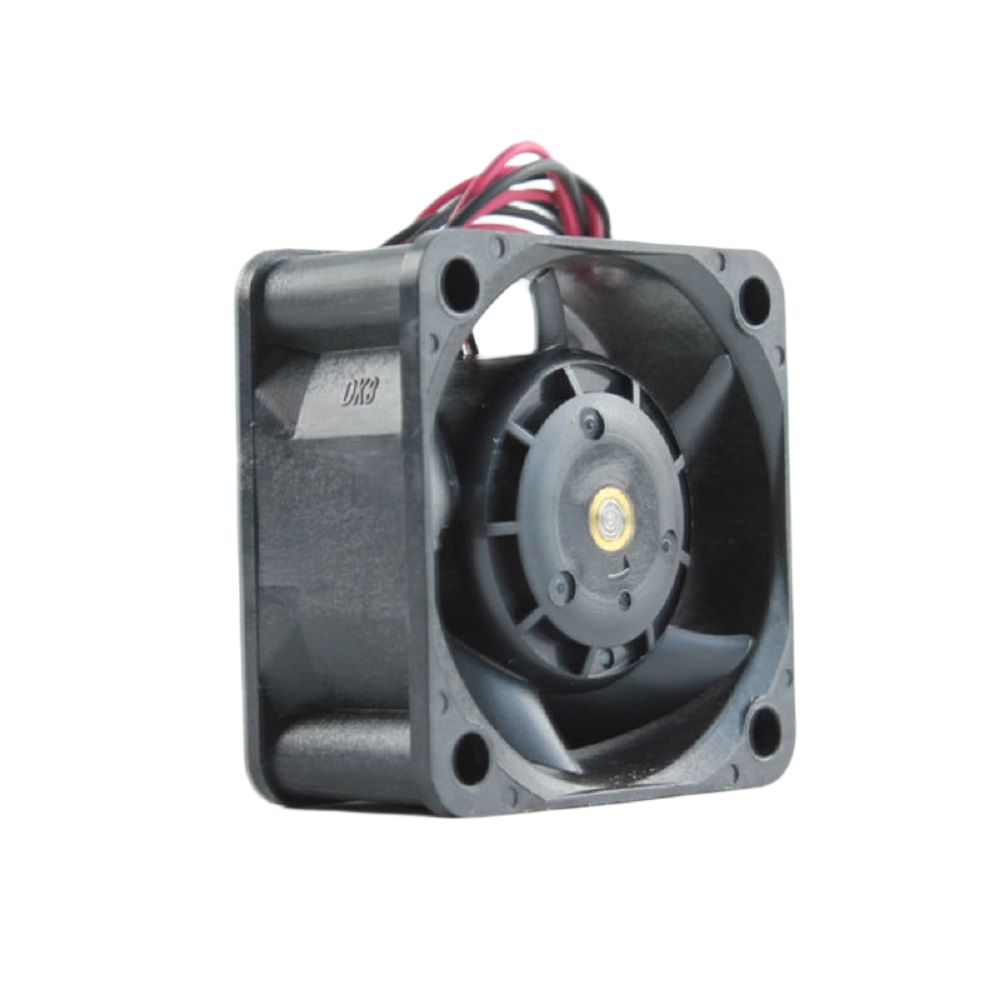

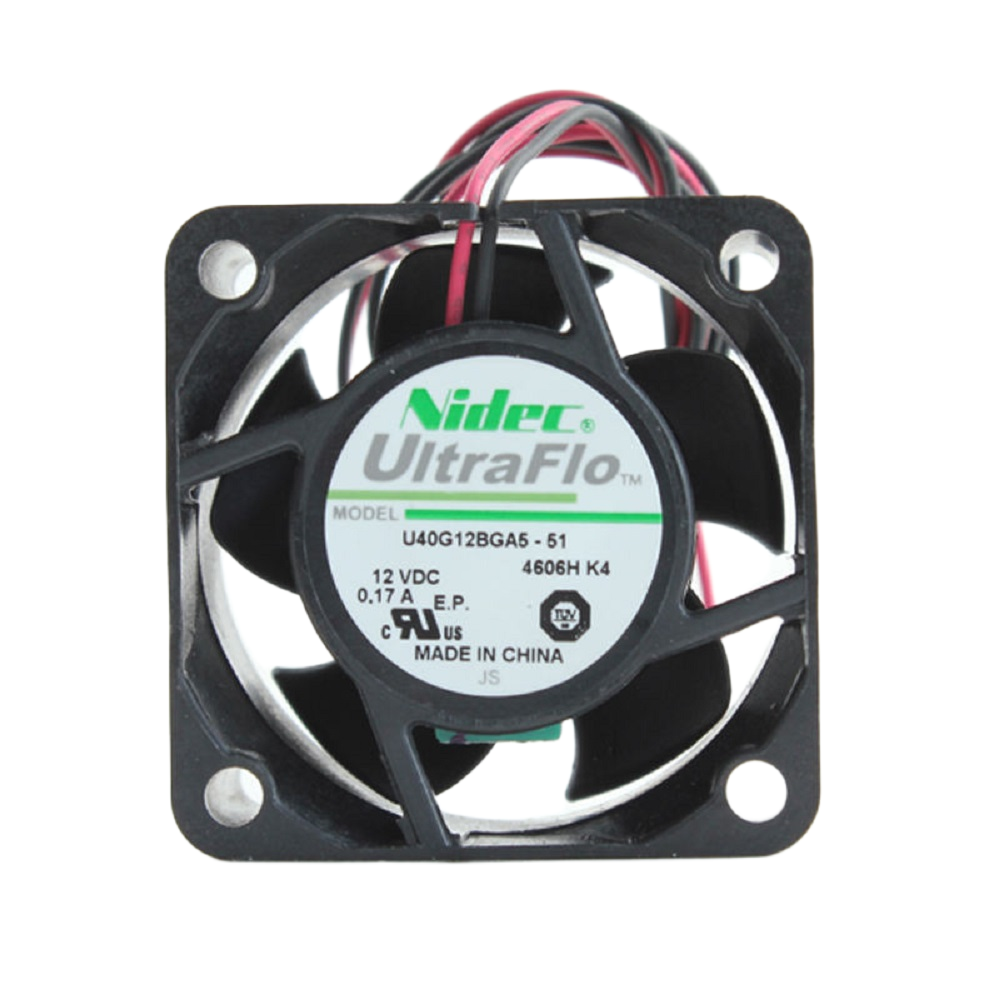

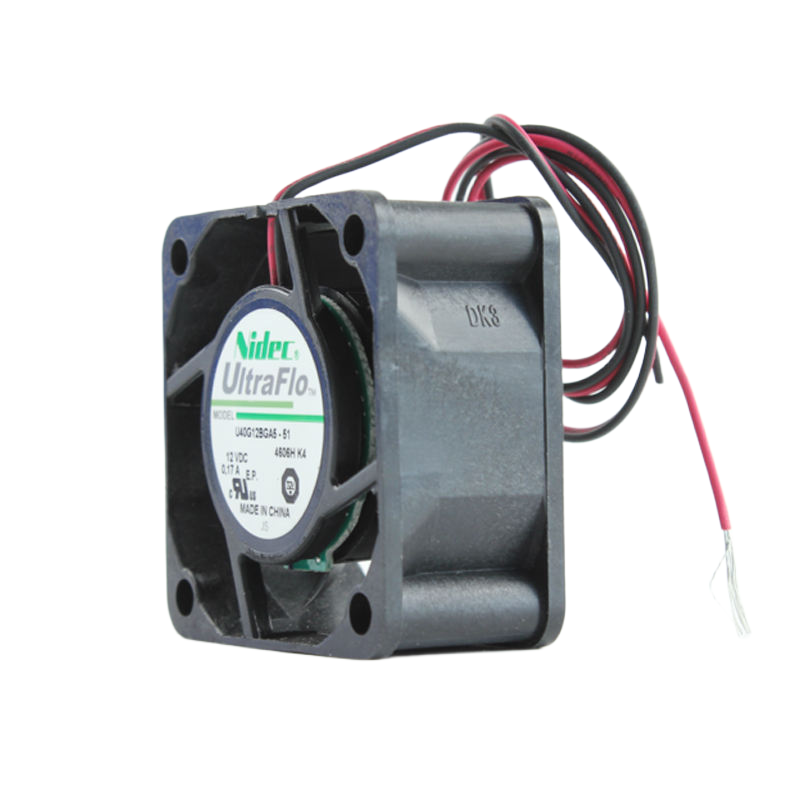

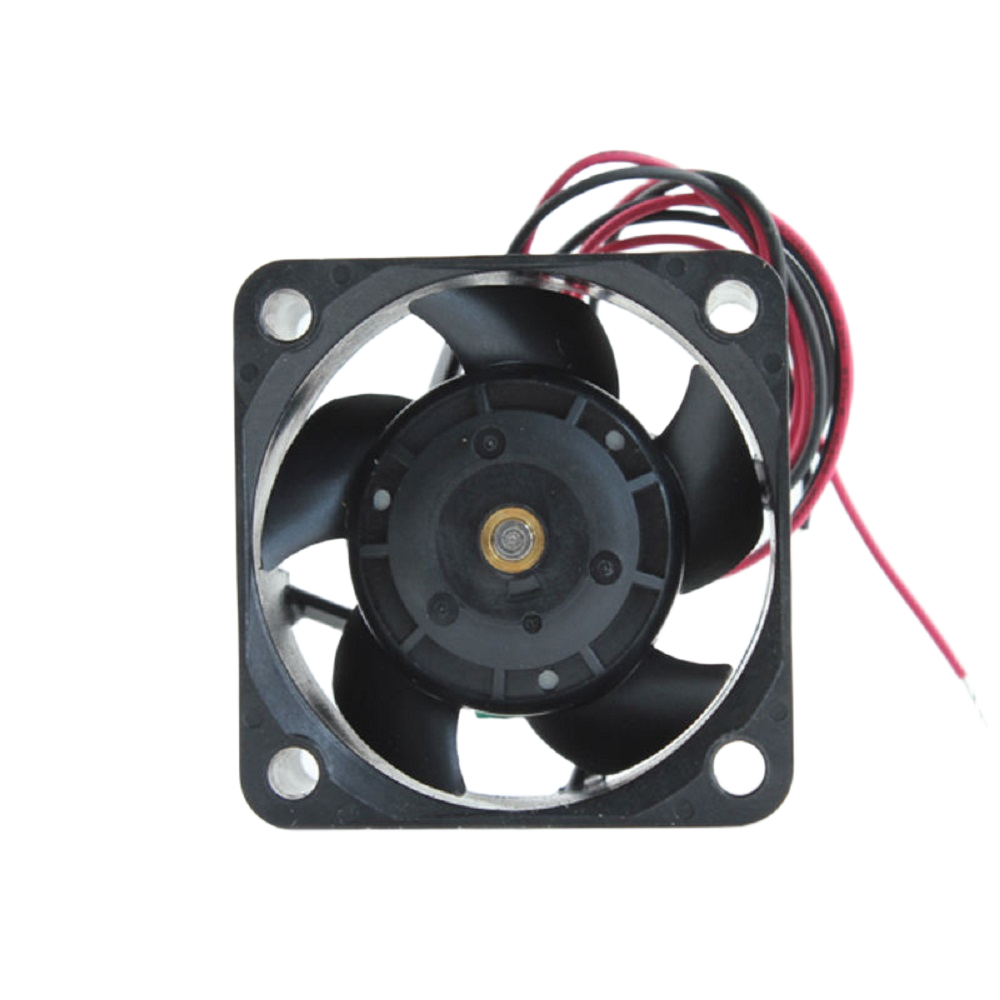

Nidec U40G12BGA5-51 Axial Flow Fan

Nidec U40G12BGA5-51 Axial Flow Fan Specification

Input
1.08 W

Usage
Electronic cooling

Operating Temperature
-10C to +70C

Components
Plastic frame, brushless DC motor

Features
High reliability, low noise, compact size

Power Supply
DC

Interface
2-wire (power only)

Power Source
DC power supply

Product Type
Axial flow fan

Application
Computers, electronic enclosures, devices requiring active cooling

Rated Voltage
12 Volt (V)

Supply Voltage
12 VDC

Size
40 mm x 40 mm x 20 mm

Dimension (L*W*H)
40 x 40 x 10 mm

Function
Axial air flow for cooling electronic devices and enclosures

Color
Black

Weight
32 g

Current Rating
0.09 A

Thickness
10 mm

Maximum Static Pressure
2.92 mmH2O

Rated Speed
5500 RPM

Rotation Direction
Counterclockwise viewed from front

Storage Temperature
-40C to +80C

Bearing Type
Ball Bearing

Life Expectancy
60,000 hours at 25C

Material
Plastic (housing and blades)

Number of Blades
7

Noise Level
23.0 dBA

Air Flow
7.68 CFM (Cubic Feet per Minute)

Connector Type
PH-2.0/2P

Model
U40G12BGA5-51

Nidec U40G12BGA5-51 Axial Flow Fan Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal

Supply Ability
234 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Nidec U40G12BGA5-51 Axial Flow Fan

Brand: Nidec
Model Number: U40G12BGA5-51
Fan Type: DC Axial Flow Fan
Fan Size: 40 mm 40 mm 20 mm
Rated Voltage: 12V DC
Current Rating: 0.17 A
Power Consumption: Approx. 2.0 W
Bearing Type: Ball Bearing (long life, low friction)
Speed: High-speed operation (approx. up to 17000 RPM series range)
Airflow: High airflow performance (18 CFM class typical for series)
Static Pressure: High static pressure design for dense systems
Noise Level: Low noise optimized design
Connector Type: 2-wire
Frame Material: High-quality thermoplastic
Operating Temperature: -10C to +70C
Lifespan: Up to 30,000 hours (at 40C)

Compact High-Performance Cooling Solution

The Nidec U40G12BGA5-51 fan combines high airflow and low noise in a small 40 x 40 x 10 mm design. Its robust construction and ball bearing system ensure dependable cooling performance for critical electronic equipment.

Trusted Durability and Extended Lifespan

Engineered for longevity, this fan boasts a lifespan of up to 60,000 hours at 25C. Its sturdy plastic components and brushless DC motor provide reliable operation even in demanding environments.

Easy Installation with Versatile Application

Designed with a PH-2.0/2P connector and 2-wire interface, the U40G12BGA5-51 is simple to install. It's suitable for a wide range of uses, from cooling computer components to managing heat in industrial enclosures.

FAQ's of Nidec U40G12BGA5-51 Axial Flow Fan:

Q: How is the Nidec U40G12BGA5-51 axial fan installed in electronic devices?

A: The fan features a compact size (40 x 40 x 10 mm) with a 2-wire PH-2.0/2P connector, making it straightforward to mount and connect to a 12V DC power supply in various electronic enclosures or computer setups.

Q: What are the primary benefits of using this fan in cooling applications?

A: The U40G12BGA5-51 offers high reliability, low noise operation (23.0 dBA), and a long lifespan of 60,000 hours at 25C. Its compact form is ideal for limited spaces, providing robust and efficient cooling for sensitive electronics.

Q: When should I use a ball bearing fan like this model?

A: Ball bearing fans such as the U40G12BGA5-51 are best suited for applications requiring extended use and reliability, particularly where the fan will run continuously or in varying temperature conditions.

Q: Where can the Nidec U40G12BGA5-51 fan be effectively utilized?

A: This model is well-suited for computers, electronic enclosures, and any device or system requiring stable active cooling, especially in environments found throughout India and similar climates.

Q: What process does the fan use to cool devices?

A: The U40G12BGA5-51 utilizes an axial flow system powered by a brushless DC motor, moving air along its axis of rotation (counterclockwise, viewed from the front) to dissipate heat from components efficiently.

Q: How does the fan's noise level affect device performance?

A: With a rated noise level of just 23.0 dBA, this fan operates quietly, minimizing acoustic disturbance and making it ideal for noise-sensitive applications or office environments.

Q: What is the typical usage scenario for this axial flow fan?

A: This compact fan is commonly used for cooling computers, sensitive electronics, and compact enclosures, where space efficiency and reliable thermal management are crucial for device longevity.
