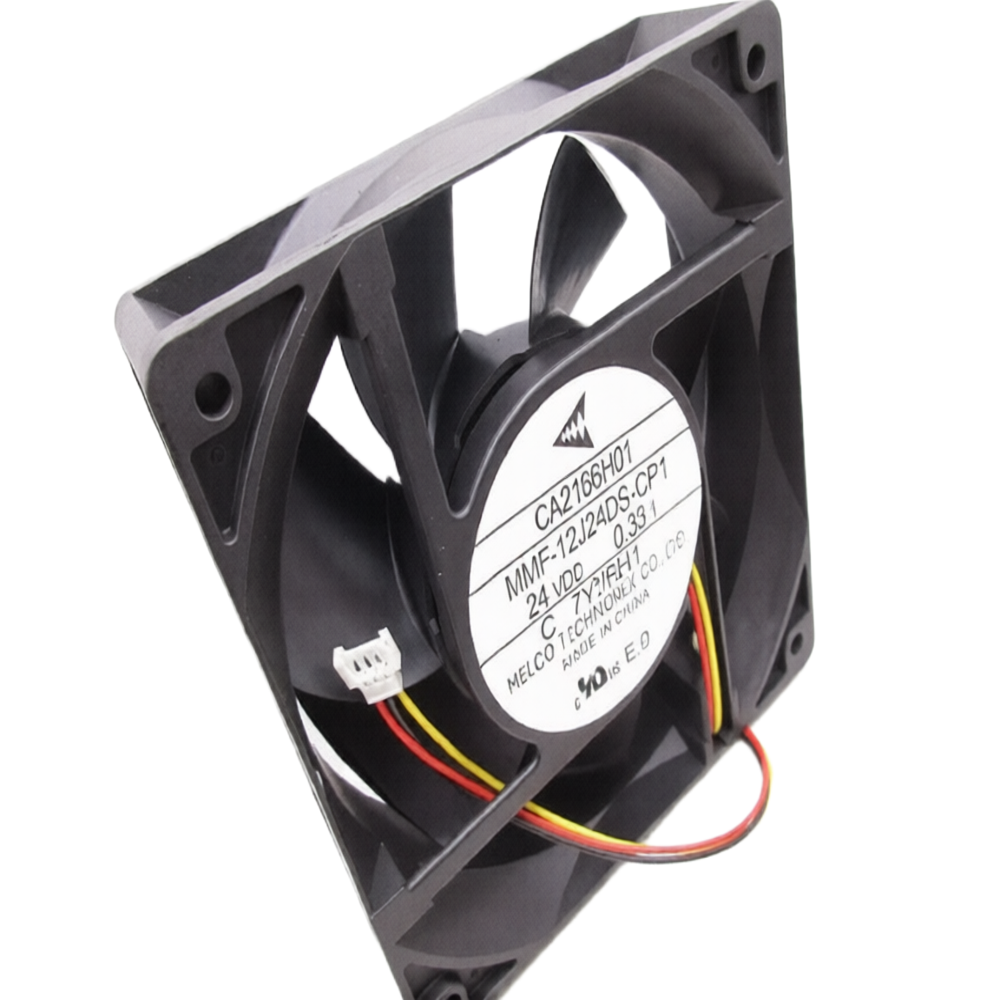

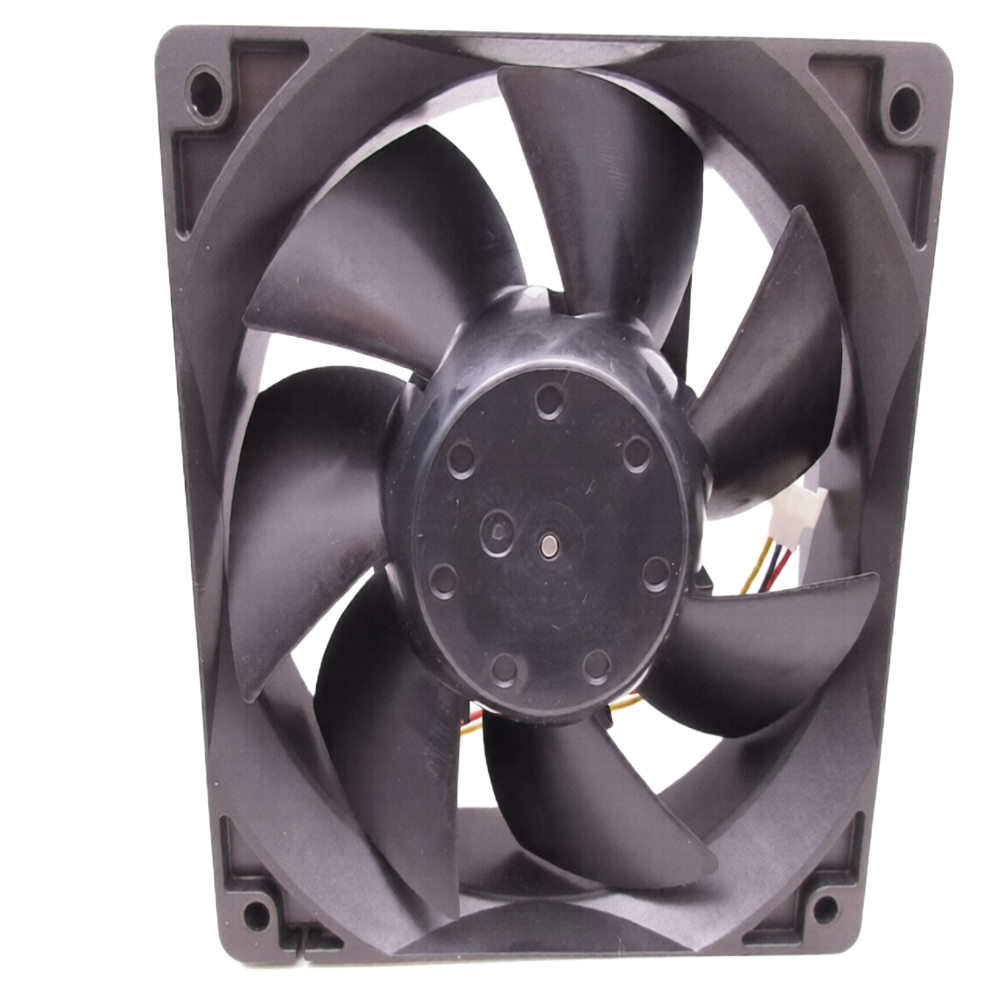

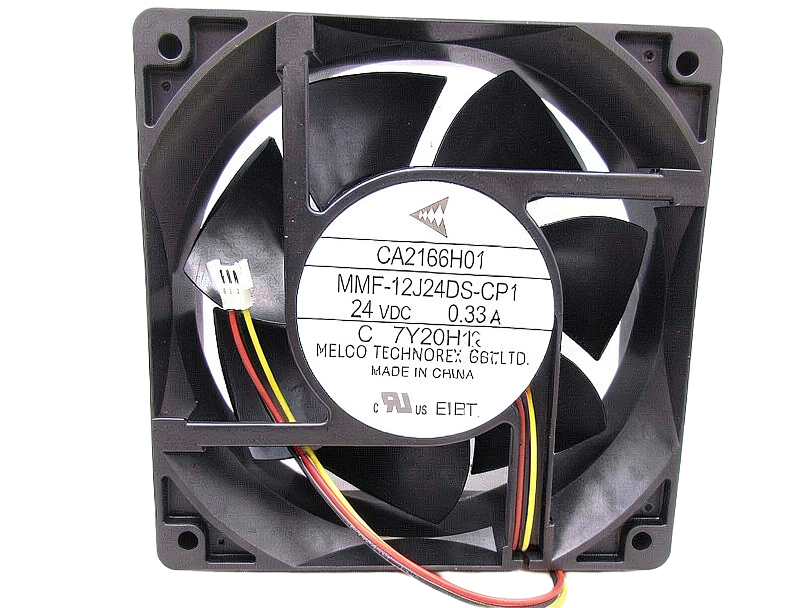

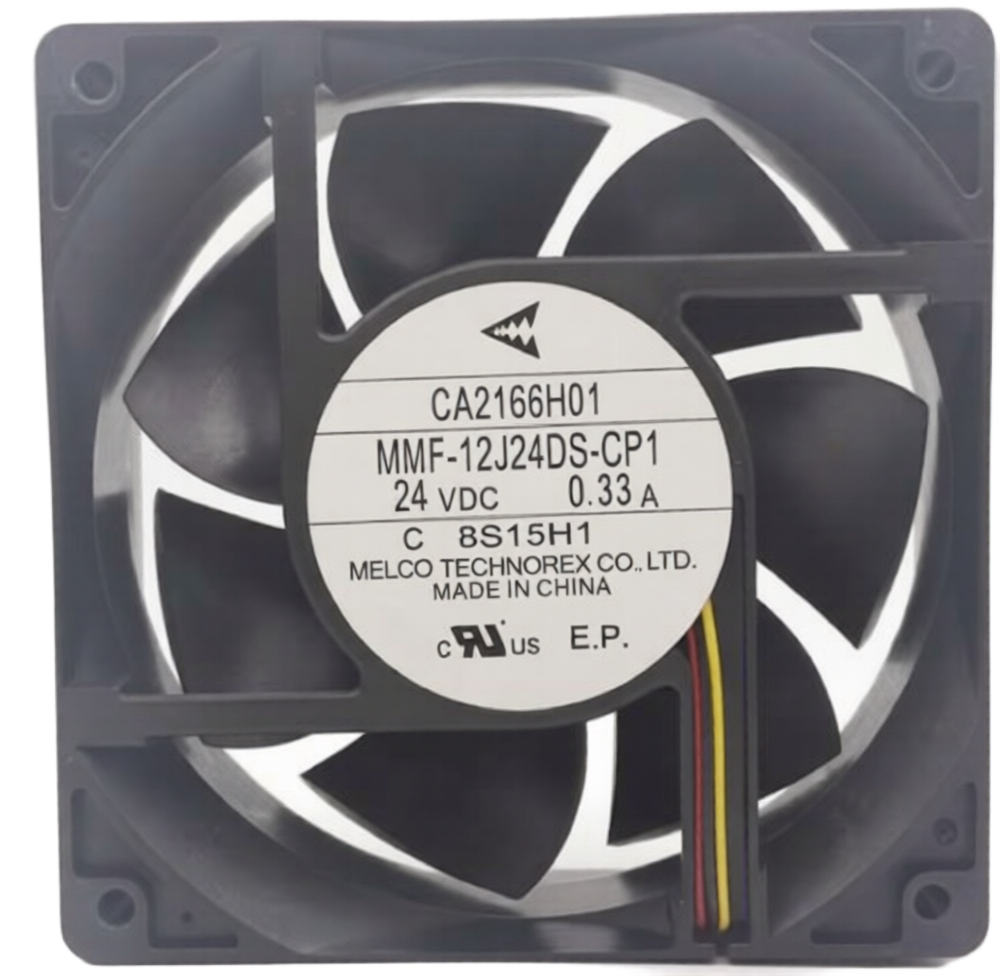

Melco MMF-12J24DS-CP 24V DC Axial Cooling Fan

Melco MMF-12J24DS-CP 24V DC Axial Cooling Fan Specification

Power Supply
DC

Product Type
dc cooling fan

Power Rating
7.92 W

Application
PLC Panels, Servo Drives, CNC Machines, VFDs, Industrial Control Panels, Power Supplies, Automation Equipment, UPS Systems, Telecom Equipment

Rated Voltage
24 Volt (V)

Supply Voltage
24 Volt (v)

Size
120 x 120 x 38 mm

Color
Black

Weight
0.25 Kilograms (kg)

Warranty
6 MONTH

Operating Temperature
-10 C to +85 C Celsius (oC)

Phase
single

Features
High Airflow, Low Noise Operation, Brushless DC Motor, Ball Bearing Construction, Long Service Life, Energy Efficient, Continuous Duty Operation, Stable Performance, Industrial Grade Quality, Easy Installation, Maintenance-Free

Material
Plastic

Current Rating
0.33 A

Melco MMF-12J24DS-CP 24V DC Axial Cooling Fan Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
5 Days

About Melco MMF-12J24DS-CP 24V DC Axial Cooling Fan

The Melco MMF-12J24DS-CP Cooling Fan is a premium industrial DC axial cooling fan designed for high-performance cooling in PLC panels, VFDs, CNC machines, servo drives, industrial control cabinets, UPS systems, and automation equipment. Powered by a 24V DC Brushless (BLDC) motor, it delivers excellent airflow, low noise, high reliability, and long service life. The fan is suitable for continuous-duty industrial applications and offers efficient heat dissipation with low power consumption. The MMF-12J24DS series is a 120 120 38 mm fan with approximately 0.33 A, 96 CFM airflow, and 3120 RPM.

Specifications

Product Name: Melco MMF-12J24DS-CP Cooling Fan
Brand: Melco
Model Number: MMF-12J24DS-CP
Fan Type: DC Axial Cooling Fan
Size: 120 x 120 x 38 mm
Size (Inch): 4.72 x 4.72 x 1.50 Inch
Rated Voltage: 24V DC
Voltage Category: 24V DC
Rated Current: 0.33 A
Input Power: 7.92 W
Air Flow: 96 CFM (Approx.)
Rotational Speed: 3120 RPM
Bearing Type: Ball Bearing
Current Category: 0.3 A
Noise Level: 4550 dBA
Number of Wires: 3 Wires
Blade Material: Plastic
Frame Material: Reinforced Plastic
Motor Type: Brushless (BLDC)
Mounting Type: Panel Mount
Protection: Auto Restart Locked Rotor Protection
