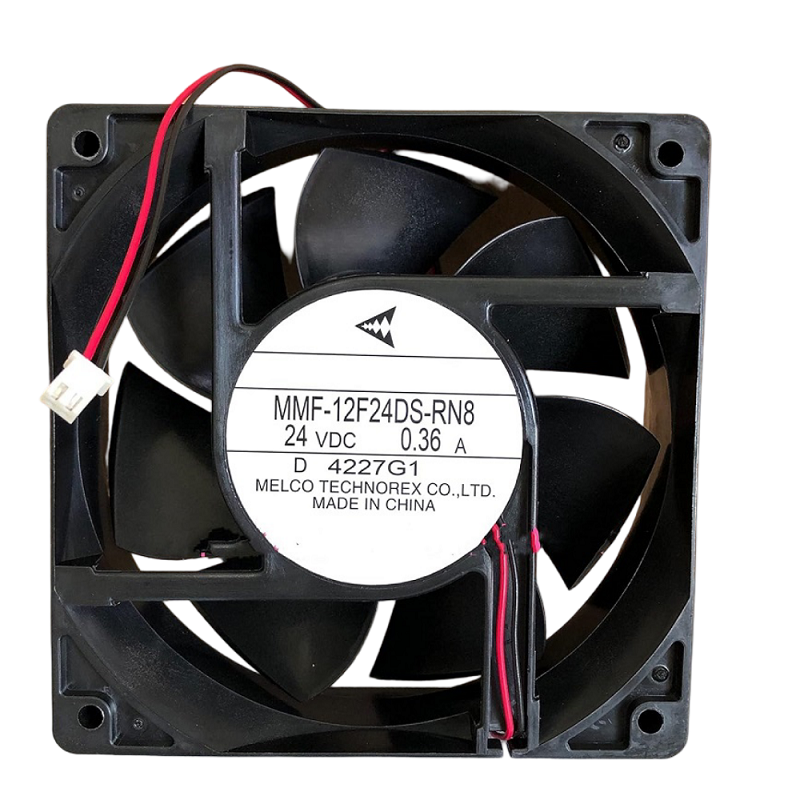

Melco MMF-12F24DS-RN8 Cooling Fan

Melco MMF-12F24DS-RN8 Cooling Fan Specification

Power Supply
DC

Power Rating
8.64 W

Product Type
DC Axial Cooling Fan

Application
PLC Panels, Servo Drives, CNC Machines, VFDs, UPS Systems, Power Supplies, Control Cabinets, Industrial Automation Equipment

Rated Voltage
24 Volt (V)

Supply Voltage
24 Volt (v)

Size
120 x 120 x 38 mm

Color
Black

Weight
0.25 Kilograms (kg)

Warranty
1 year

Cable Type
2 Wires

Phase
single

Material
Plastic

Features
High Airflow, Energy Efficient, Low Noise, Long Service Life, Continuous Duty Operation, Reliable Performance, Easy Installation, Industrial Grade Construction

Current Rating
0.36 A

Melco MMF-12F24DS-RN8 Cooling Fan Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Melco MMF-12F24DS-RN8 Cooling Fan

The Melco MMF-12F24DS-RN8 Cooling Fan is a high-performance DC axial cooling fan designed for industrial automation, PLC panels, CNC machines, servo drives, VFDs, control cabinets, power supplies, and electronic equipment. It features a Brushless DC (BLDC) motor with a ball bearing design for long life, low maintenance, stable airflow, and efficient cooling during continuous operation.

Product Name: Melco MMF-12F24DS-RN8 Cooling Fan
Brand: Melco
Fan Type: DC Axial Cooling Fan
Size: 120 x 120 x 38 mm
Size (Inch): 4.72 x 4.72 x 1.50 Inch
Rated Voltage: 24V DC
Voltage Category: 24V DC
Rated Current: 0.36 A
Input Power: 8.64 W
Air Flow: 100 CFM (Approx.)
Rotational Speed: 3000 RPM (Approx.)
Bearing Type: Ball Bearing
Current Category: 0.3 A
Noise Level: 4045 dBA
Number of Wires: 2 Wires
Blade Material: Plastic
Frame Material: Reinforced Plastic
Motor Type: Brushless (BLDC)
Mounting Type: Panel Mount
Insulation Class: Class B
Operating Temperature: -10C to +60C
Life Expectancy: Up to 60,000 Hours
