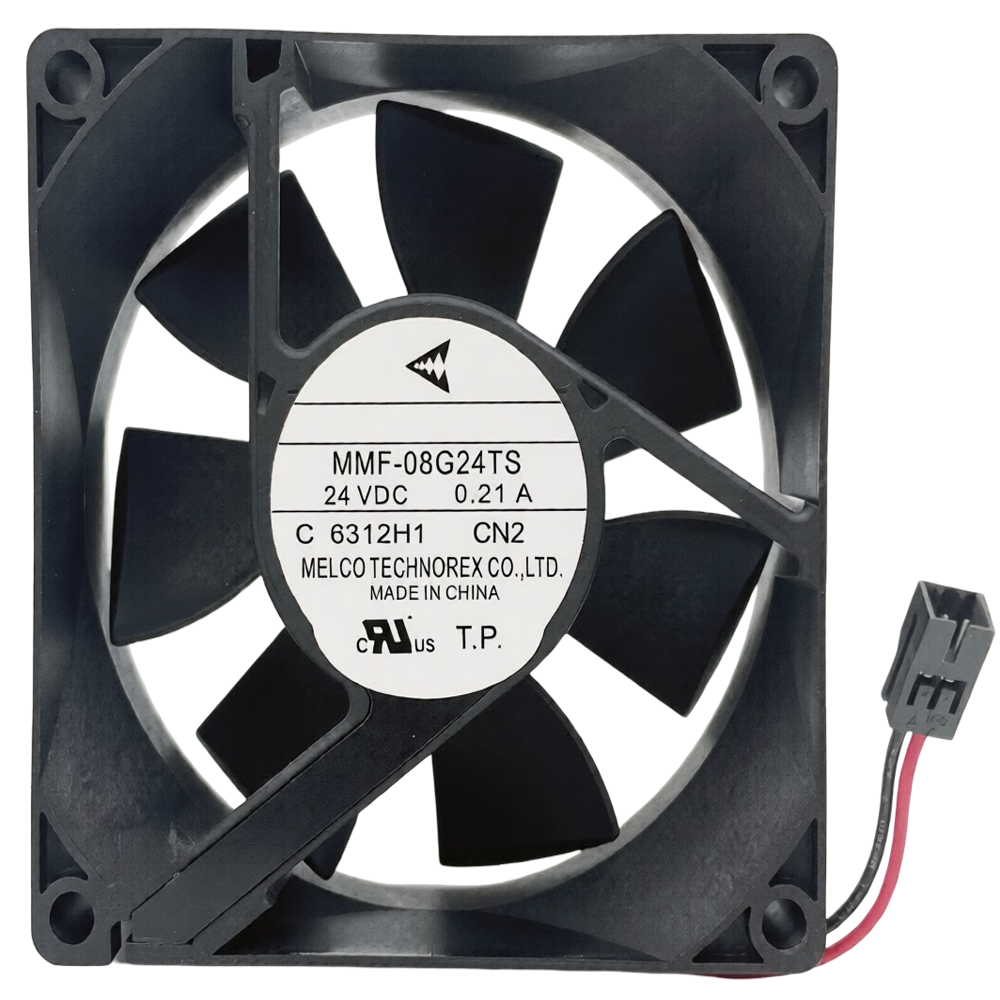

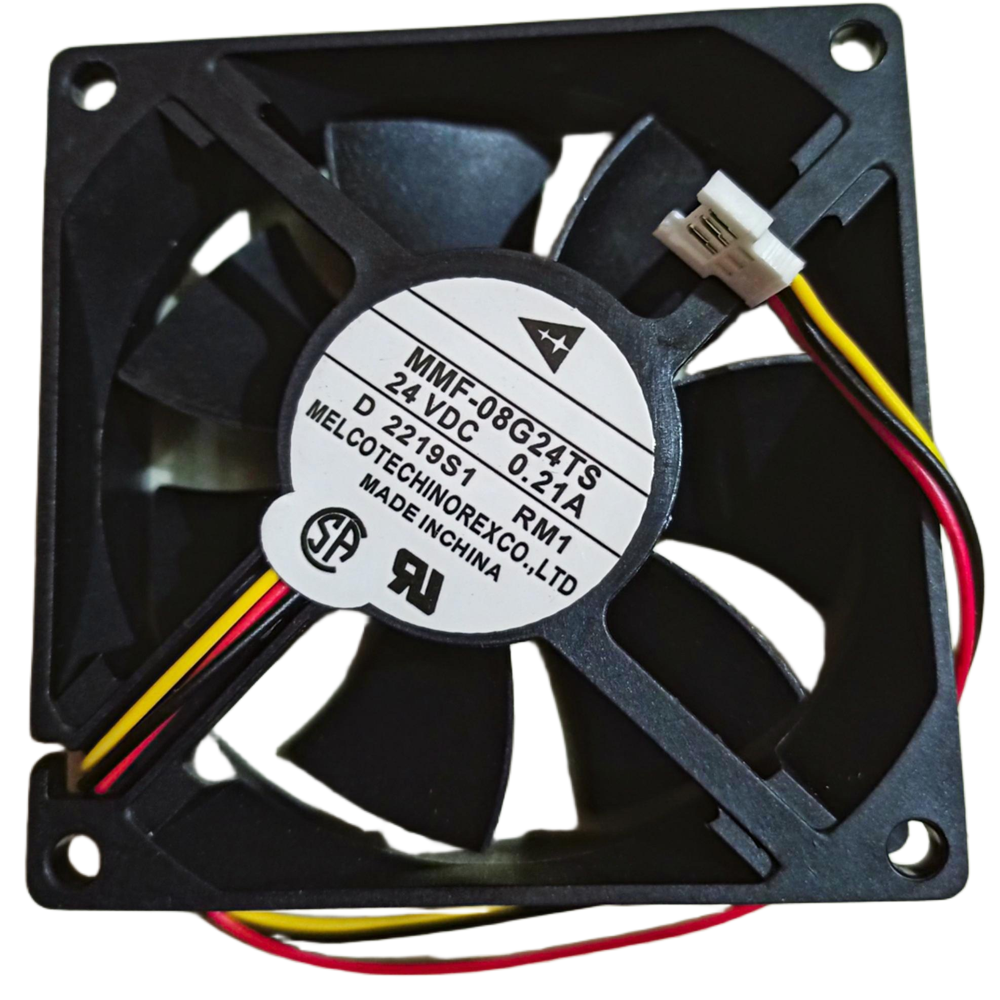

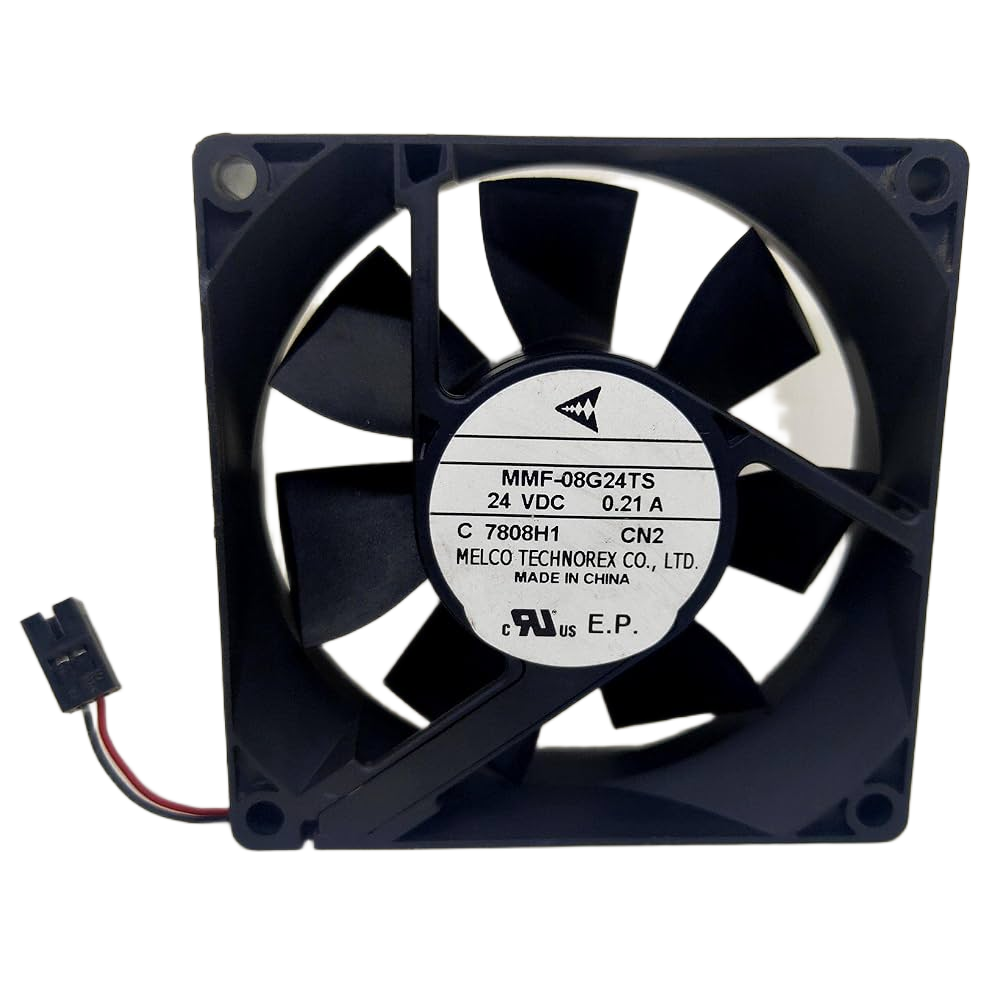

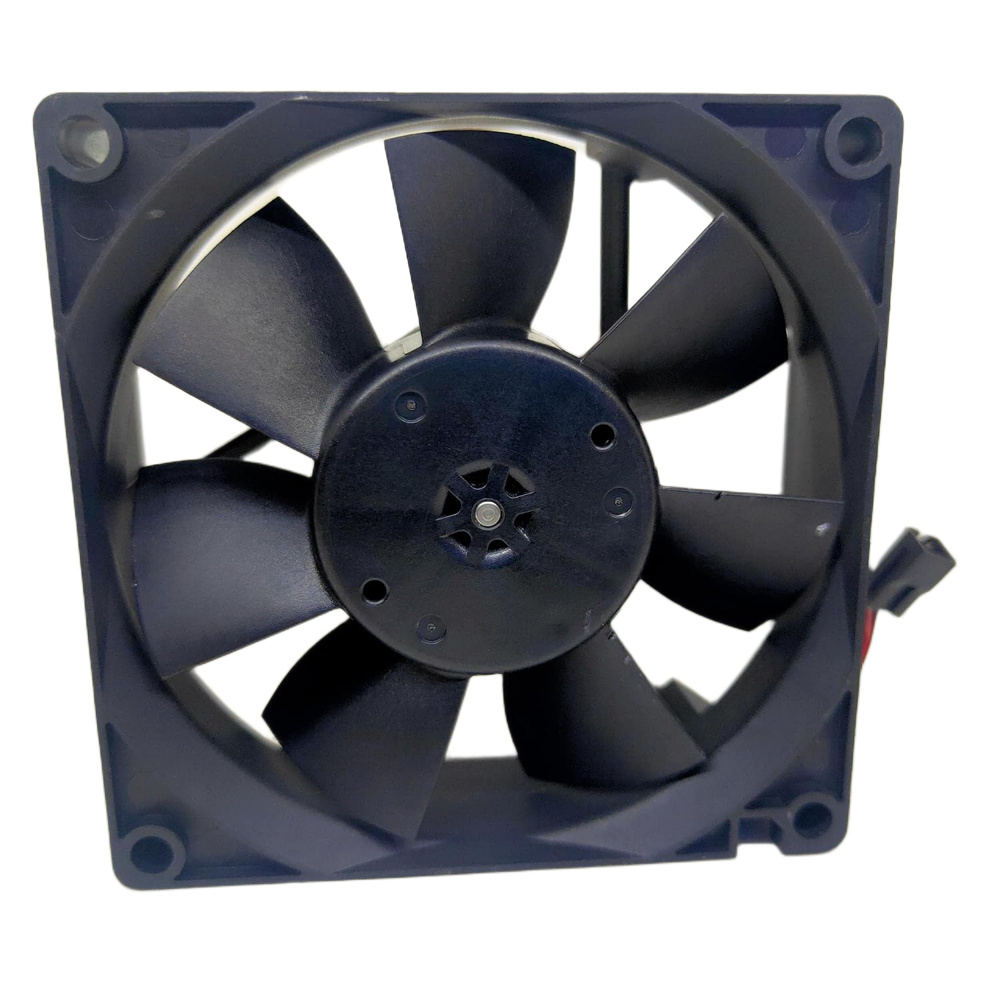

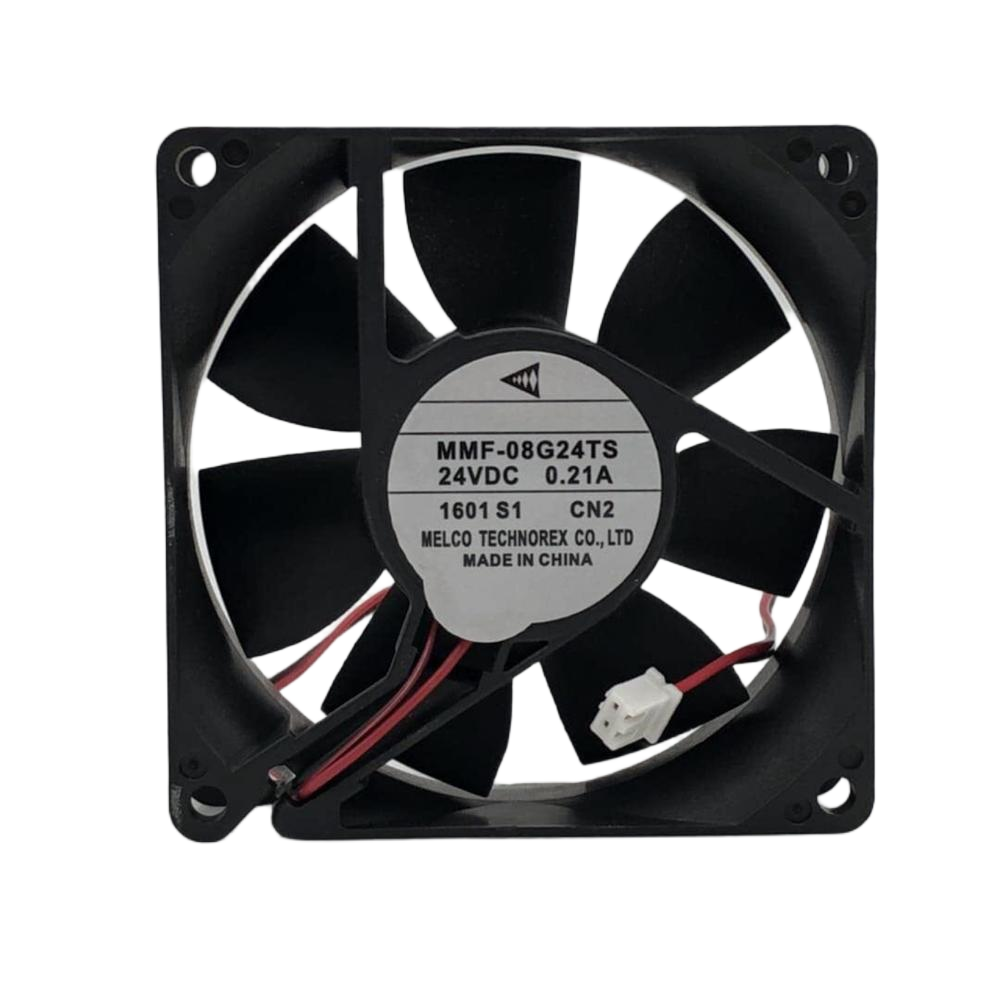

Melco MMF-08G24TS Cooling Fan

About Melco MMF-08G24TS Cooling Fan

The Melco MMF-08G24TS is a high-performance 24V DC axial cooling fan designed for efficient heat dissipation in industrial automation equipment, Mitsubishi CNC machines, servo drives, frequency inverters, PLC panels, power supplies, and electrical control cabinets. With its 80 80 25 mm compact design, durable ball bearing construction, and reliable airflow, it delivers long-lasting, low-noise cooling for continuous industrial operation.

Specifications

• Product Name: DC Cooling Fan
• Brand: Melco
• Model: MMF-08G24TS
• Fan Type: DC Axial Cooling Fan
• Rated Voltage: 24 V DC
• Current Rating: 0.21 A
• Power Consumption: 5.0 W (Approx.)
• Size: 80 x  80 x  25 mm
• Dimension (cm): 8 x  8 x  2.5 cm
• Dimension (inch): 3.15 3.15 0.98 in
• Air Flow: Approx. 35 CFM
• Rotational Speed: 2500 RPM
• Bearing Type: Ball Bearing
• Number of Blades: 7
• Blade Material: Plastic
• Frame Material: PBT Plastic
• Connector Type: 3-Wire
• Mounting Type: Panel Mount
• Phase: Single Phase (DC)
•
