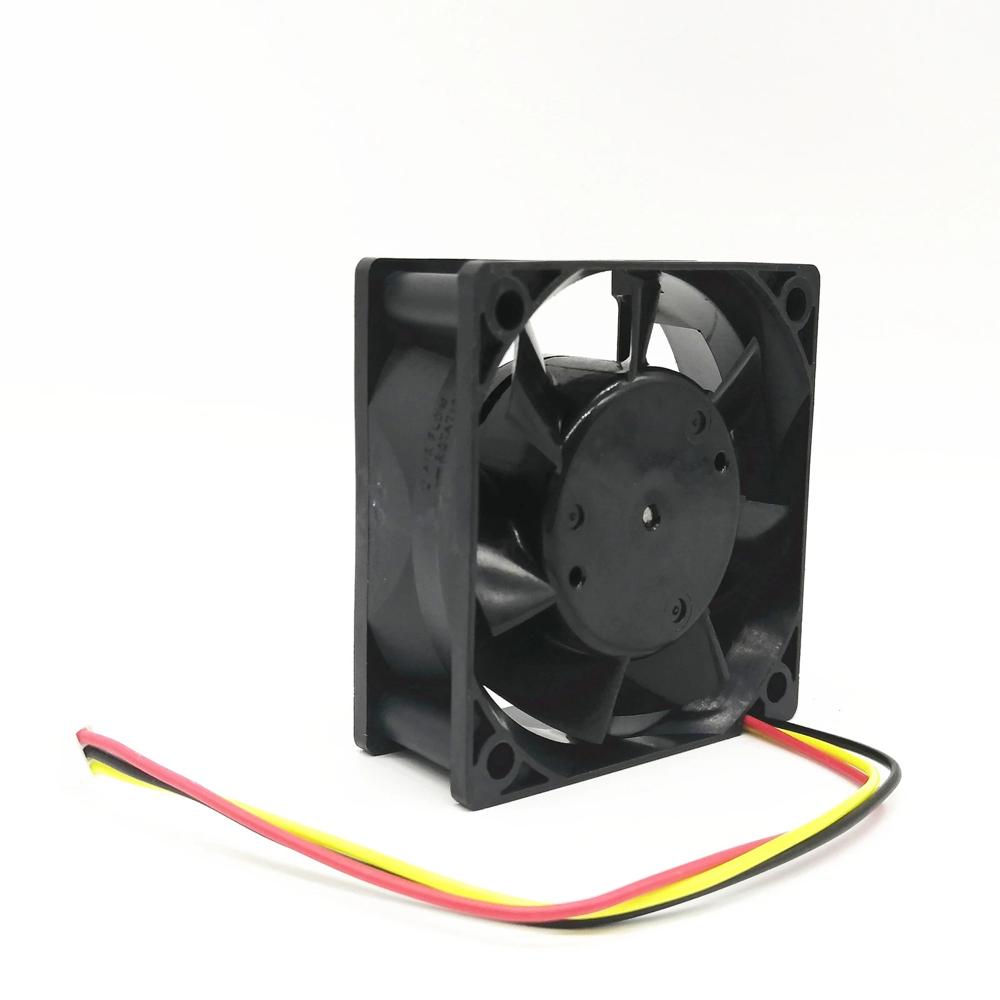

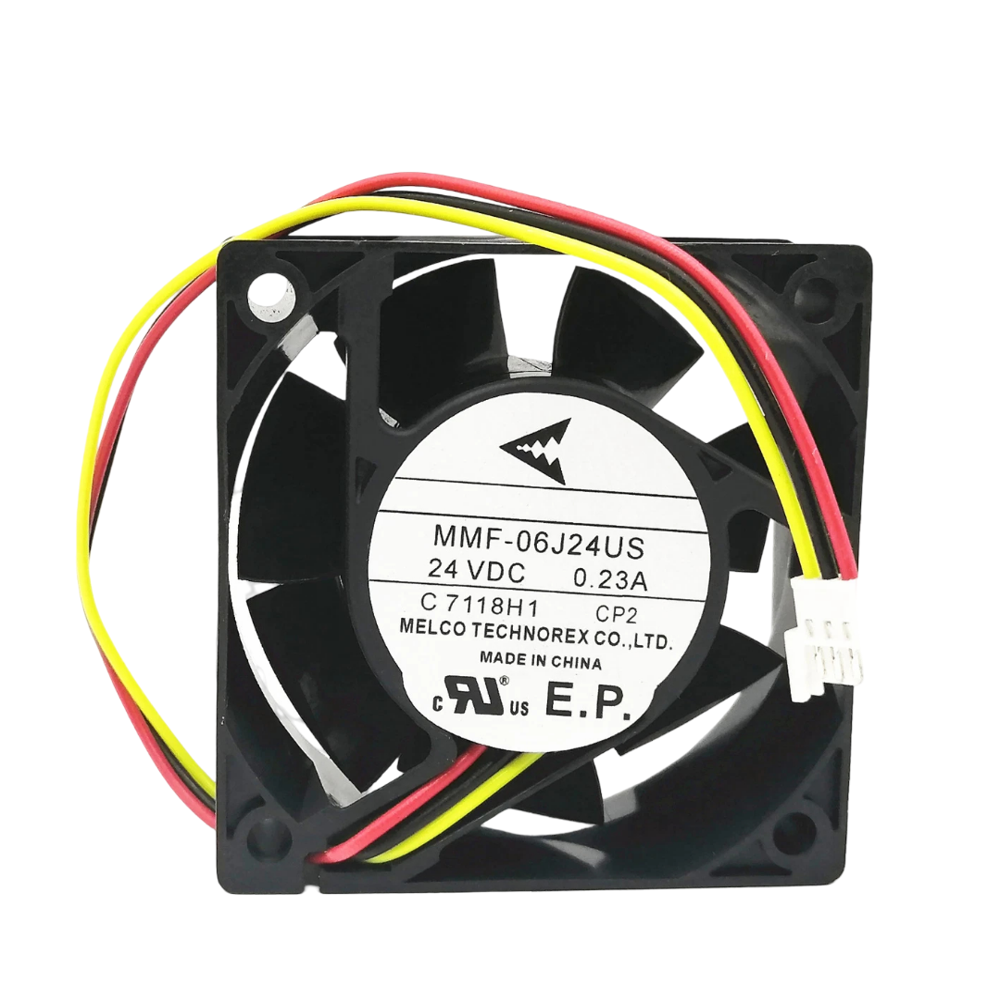

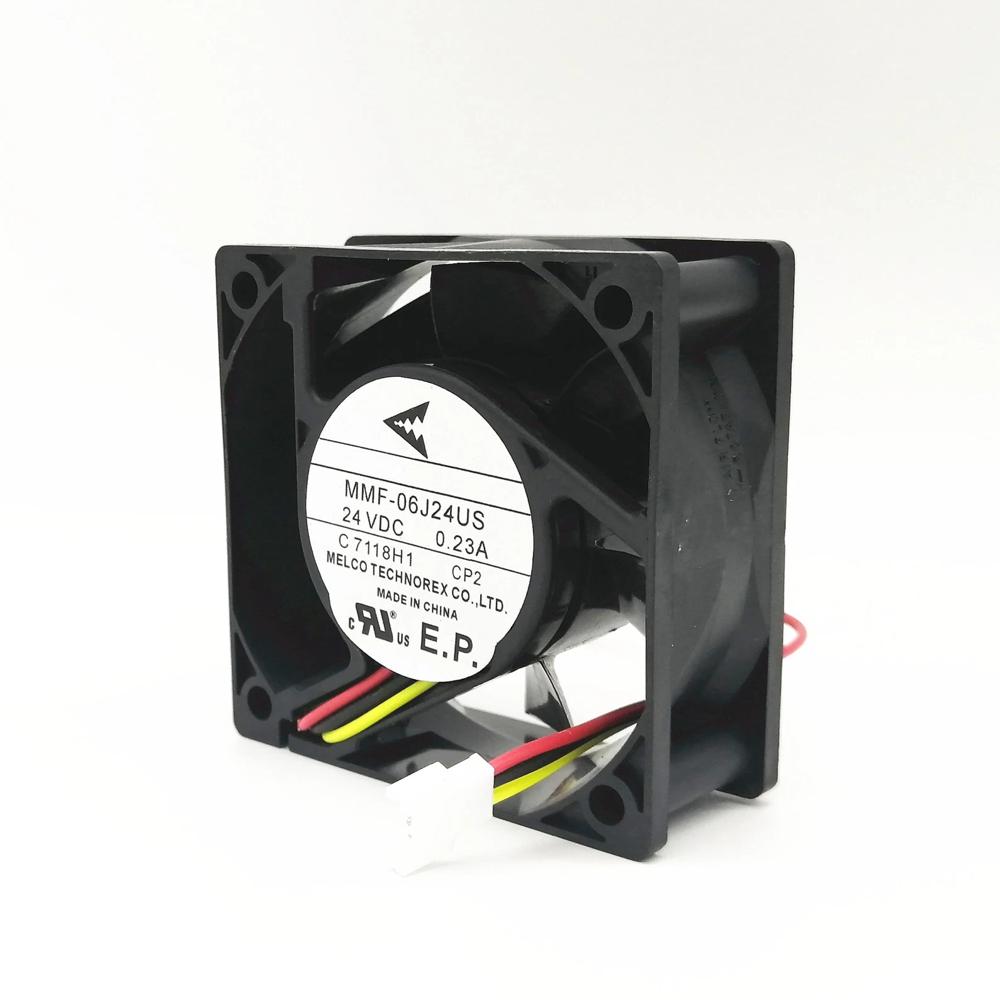

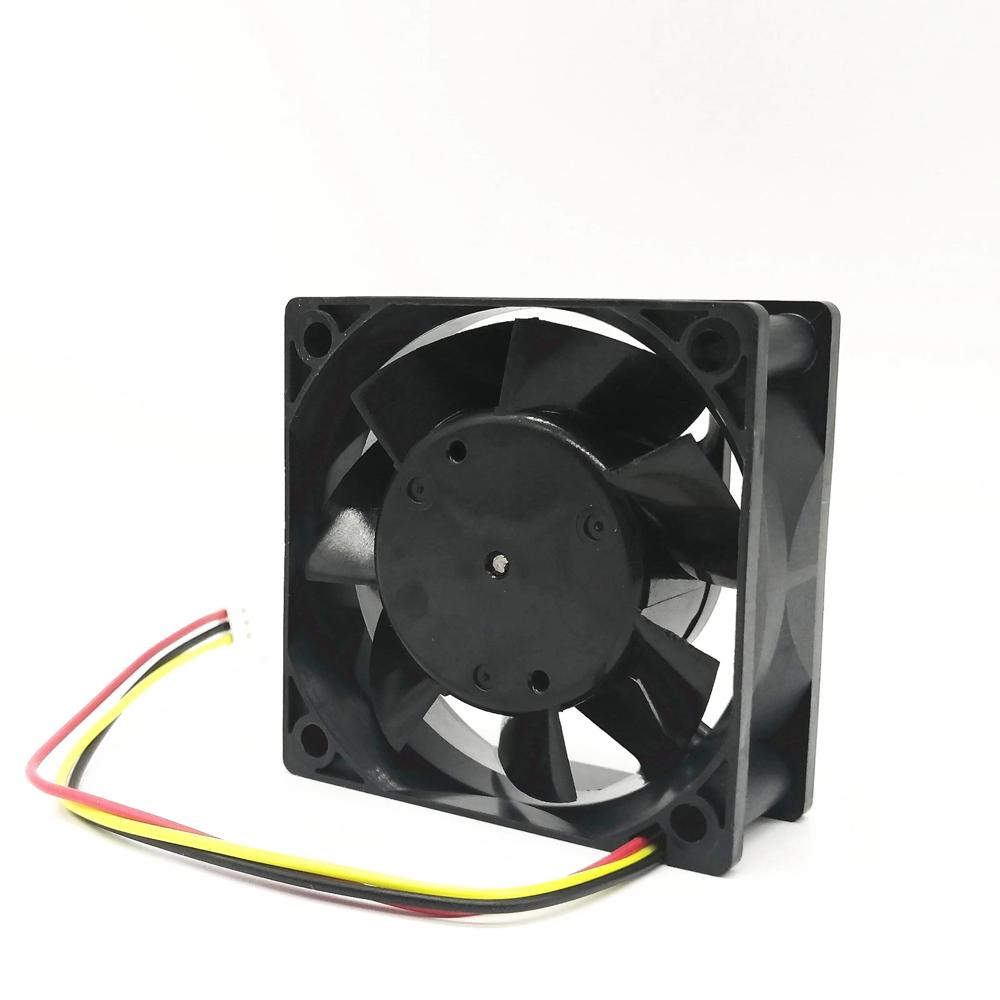

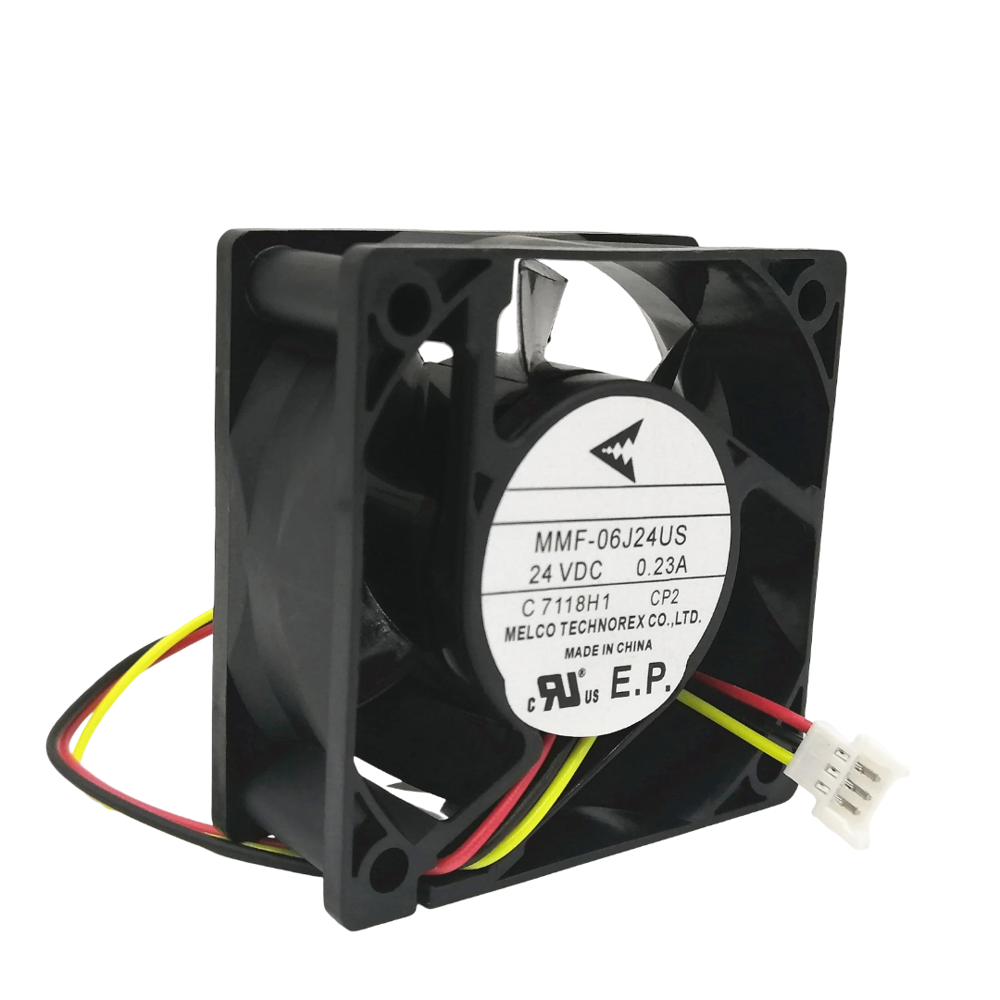

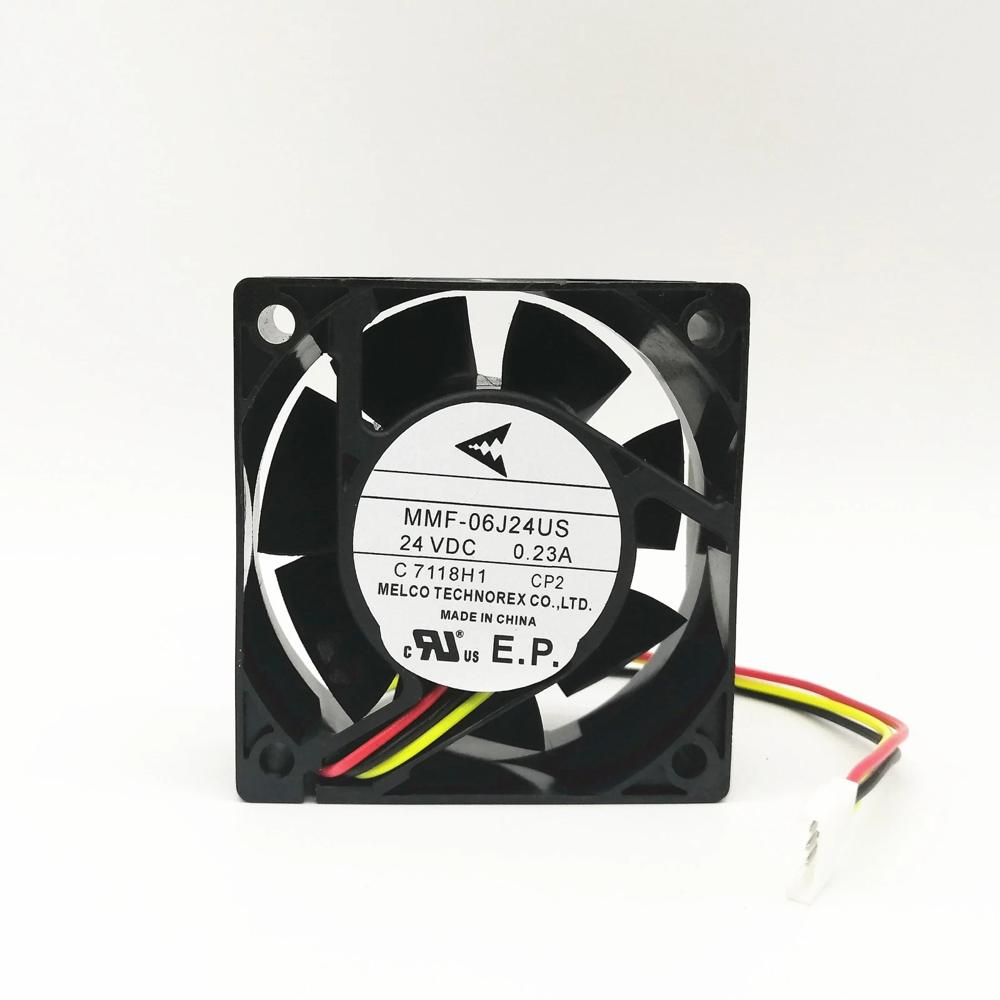

Melco MMF-06J24US 24V DC Axial Cooling Fan

Melco MMF-06J24US 24V DC Axial Cooling Fan Specification

Operating Temperature
-10C to +70C (typical)

Output
Airflow for cooling

Input
0.23A

Power Supply
DC Powered

Usage
Cooling electronic equipment, enclosures, and panels

Components
Fan unit, mounting holes, lead wires

Power Source
DC

Features
Long life, efficient airflow, compact size

Interface
3-wire connection

Product Type
Axial Fan

Application
Industrial and electronic cooling

Rated Voltage
24V DC

Supply Voltage
24V DC

Size
60mm x 60mm x 25mm

Dimension (L*W*H)
60 x 60 x 25 mm

Function
Axial Cooling Fan

Color
Black

Weight
Approx. 70g

Thickness
25mm

Current Rating
0.23A

Model
MMF-06J24US

Rotor Material
Plastic

Bearing Type
Ball Bearing

Frame Material
Plastic

Noise Level
Approx. 34 dBA

Fan Speed
3600 RPM (typical)

Connector Type
3-pin

Service Life
40,000 hours at 60C

Air Flow
Approx. 21.2 CFM

Melco MMF-06J24US 24V DC Axial Cooling Fan Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
1 Week

About Melco MMF-06J24US 24V DC Axial Cooling Fan

The Melco MMF-06J24US Cooling Fan is a premium industrial DC axial cooling fan designed for efficient thermal management in PLC panels, CNC machines, servo drives, VFDs, industrial power supplies, communication equipment, and automation control cabinets. Powered by a 24V DC Brushless (BLDC) motor, it delivers high airflow, excellent static pressure, reliable performance, and a long service life. The J-Series is engineered for continuous industrial operation with reduced switching noise and improved EMI resistance.

Specifications

Product Name: Melco MMF-06J24US Cooling Fan
Brand: Melco
Model Number: MMF-06J24US
Fan Type: DC Axial Cooling Fan
Size: 60 60 25 mm
Size (Inch): 2.36 2.36 0.98 Inch
Rated Voltage: 24V DC
Voltage Category: 24V DC
Operating Voltage: 20.427.6V DC
Rated Current: 0.23 A (Typ.)
Maximum Current: 0.27 A
Input Power: 5.52 W (Typ.)
Air Flow: 34 CFM (Approx.)
Rotational Speed: 7000 RPM
Bearing Type: Ball Bearing
Current Category: 0.25 A
Noise Level: 5055 dBA
Number of Wires: 3 Wires
Blade Material: Plastic
Frame Material: Reinforced Plastic
Motor Type: Brushless (BLDC)
Mounting Type: Panel Mount
Protection: Locked Rotor Protection with Auto Restart
Operating Temperature: -10C to +70C
Life Expectancy: Up to 100,000 Hours (@60C)
Color: Black
Applications: PLC Panels, CNC Machines, Servo Drives, Industrial Inverters, VFDs, Power Supplies, Automation Equipment, Control Cabinets, Telecom Equipment, Industrial Electronic Cooling.

Durable and Efficient Cooling Solution

This fan leverages ball bearing technology to ensure longevity and maintain high performance under extensive use. It supplies consistent airflow to prevent overheating in sensitive electronics and industrial setups, while its sturdy plastic build resists wear from daily operation. The result is dependable cooling with minimal maintenance needs.

Compact Design for Versatile Applications

Measuring just 60mm on each side and 25mm thick, the Melco MMF-06J24US fits perfectly into tight spaces without sacrificing cooling efficiency. The 3-pin interface and universal 24V DC power requirement make it a flexible choice for a wide variety of enclosures, panels, or electronics demanding reliable thermal management.

FAQ's of Melco MMF-06J24US 24V DC Axial Cooling Fan:

Q: How do I install the Melco MMF-06J24US cooling fan?

A: Installation is straightforward: use the designated mounting holes to securely attach the fan to your equipment or enclosure. Connect the fan using its 3-pin, 3-wire connector to a compatible 24V DC power source, ensuring correct polarity for safe operation.

Q: What types of equipment can benefit from this cooling fan?

A: The MMF-06J24US is ideal for cooling a range of industrial and electronic equipment, including control panels, power supplies, automation systems, and other enclosures where excess heat can impact performance or longevity.

Q: When should I consider replacing this fan?

A: Although the Melco MMF-06J24US has a long service life of up to 40,000 hours at 60C, replacement may be necessary if airflow drops, unusual noise develops, or you observe higher than normal device temperatures. Regular inspection is recommended, especially in high-temperature environments.

Q: Where is the best location to position this axial fan in an enclosure?

A: For optimal cooling, place the fan where it can facilitate even airflow across heat-sensitive components or areas with high thermal loads. Typically, intake and exhaust positions work best, allowing fresh air in and hot air out efficiently.

Q: What is the benefit of the ball bearing design in this fan?

A: Ball bearings provide minimal friction and greater resistance to wear compared to sleeve bearings. This results in smoother, quieter operation and a notable increase in lifespan, especially in continuous-duty industrial applications.

Q: How does this fan contribute to equipment reliability?

A: By maintaining a steady airflow of approximately 21.2 CFM, the fan effectively manages internal temperatures, minimizing heat-induced failures and extending component life. This ensures consistent equipment performance and helps prevent costly downtime.
