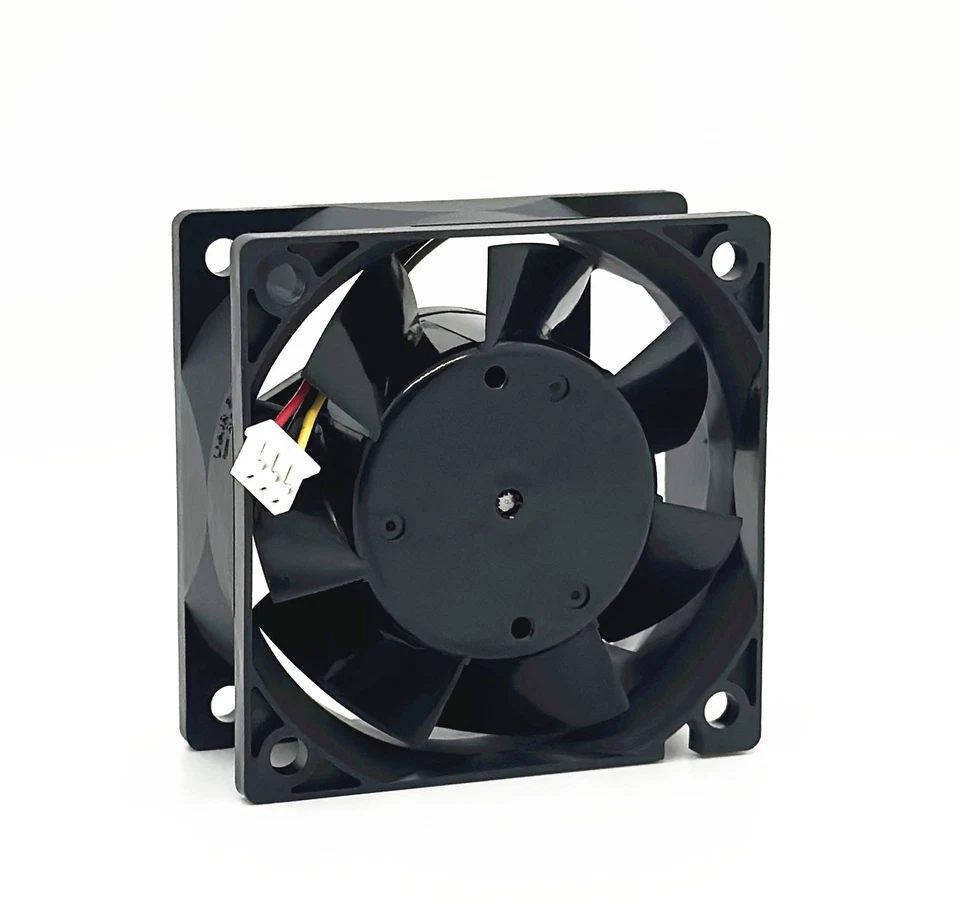

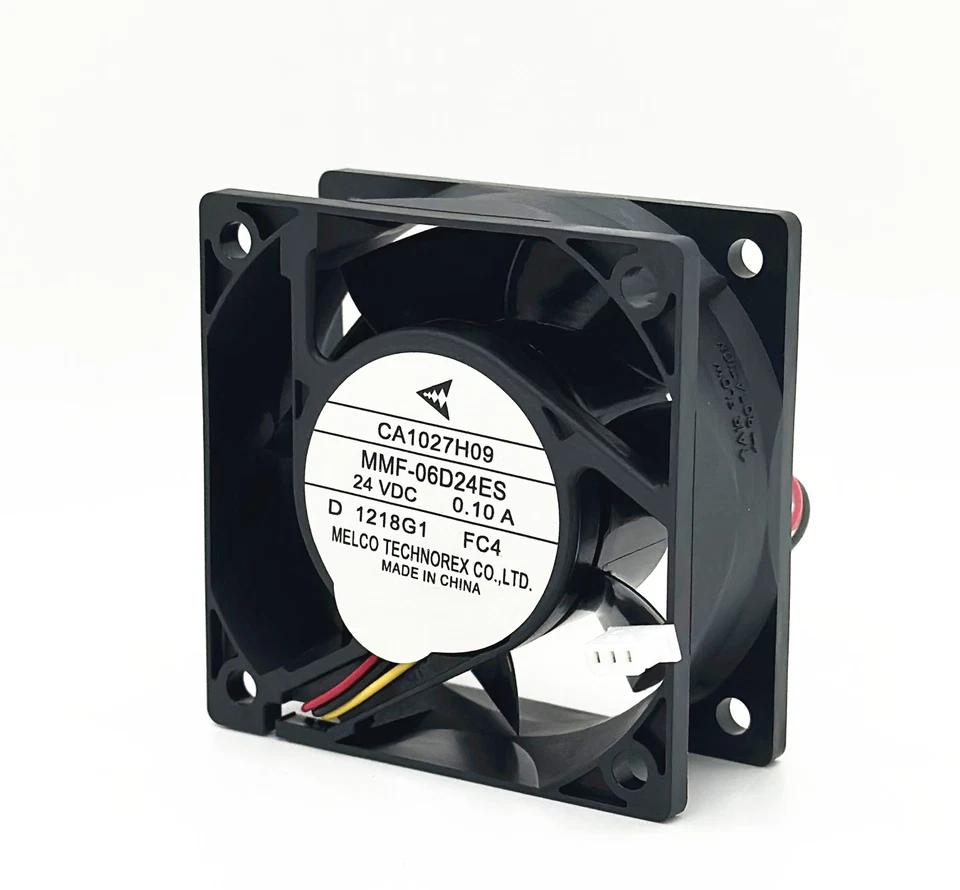

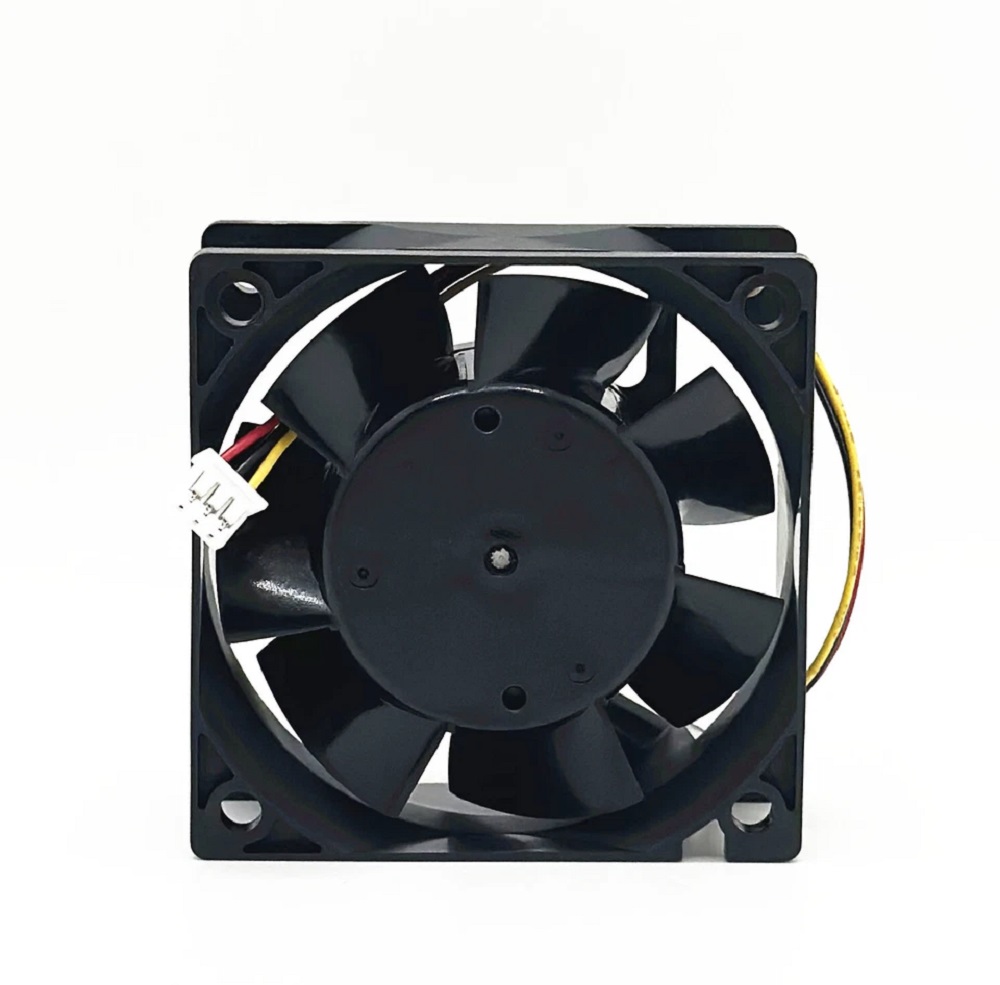

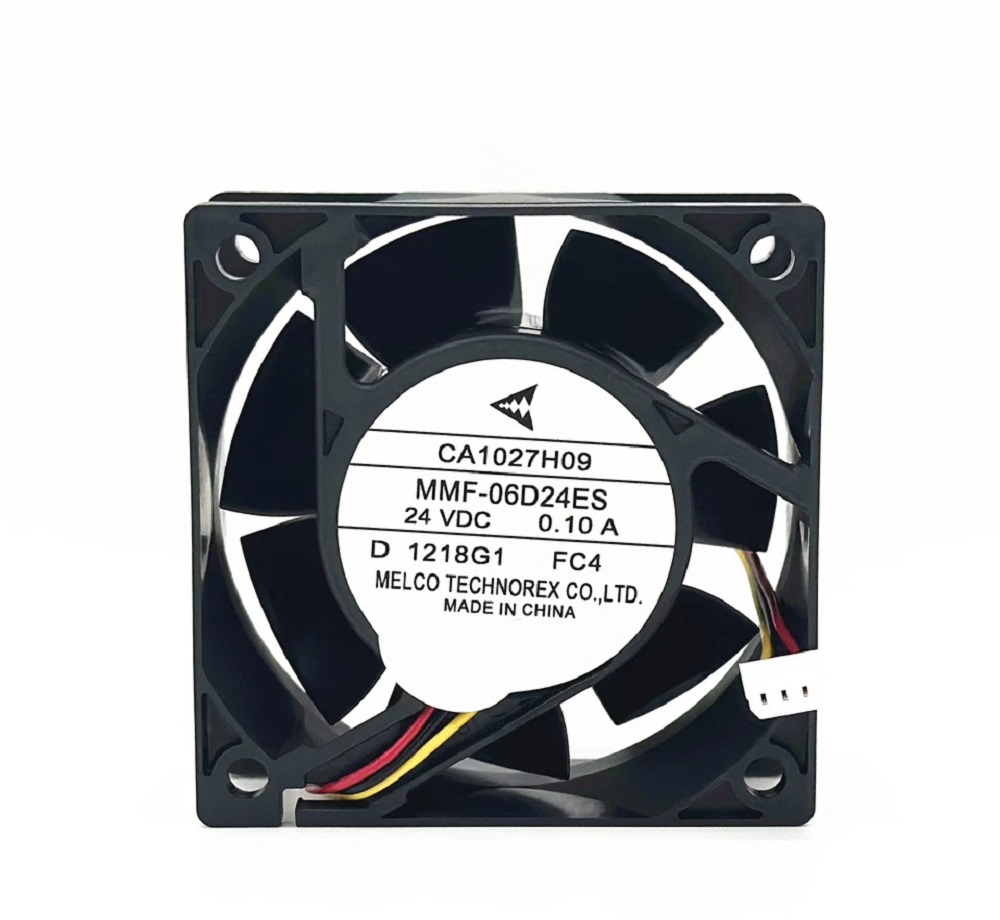

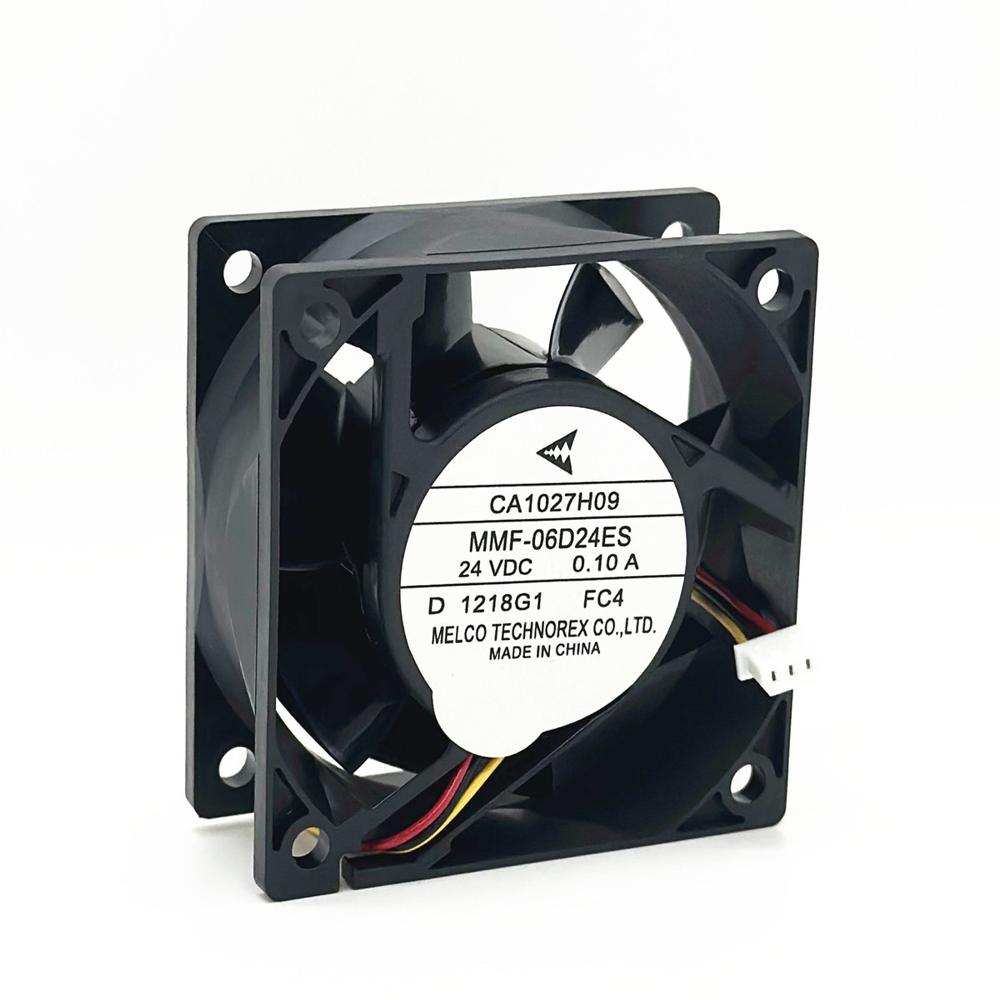

Melco MMF-06D24ES-FC4 24V DC Cooling Fan

About Melco MMF-06D24ES-FC4 24V DC Cooling Fan

The Melco MMF-06G24DH is a high-quality 24V DC axial cooling fan designed for efficient cooling of industrial automation equipment, PLC panels, inverters, servo drives, power supplies, and electrical control cabinets. Featuring a compact 60 60 25 mm design, dual ball bearings, and a 2-wire connector, it provides reliable airflow, low-noise operation, and long service life for continuous industrial applications.

Specifications

• Product Name: DC Cooling Fan
• Brand: Melco
• Model: MMF-06G24DH
• Fan Type: Other (DC Axial Cooling Fan)
• Rated Voltage: 24 V DC
• Current Rating: 0.06 A
• Power Consumption: Approx. 1.44 W
• Size: 60 60 25 mm
• Dimension (cm): 6 6 2.5 cm
• Dimension (inch): 2.36 2.36 0.98 in
• Air Flow: Other (Approx. 1822 CFM)
• Rotational Speed: Other (Approx. 2,600 RPM)
• Bearing Type: Dual Ball Bearing
• Number of Blades: 7
• Blade Material: Plastic
• Frame Material: PBT Plastic
• Connector Type: 2-Wire / 2-Pin
• Mounting Type: Panel Mount
• Phase: Single Phase (DC)
• Power Category: Other
• Noise Level: Approx. 2130 dB(A)
