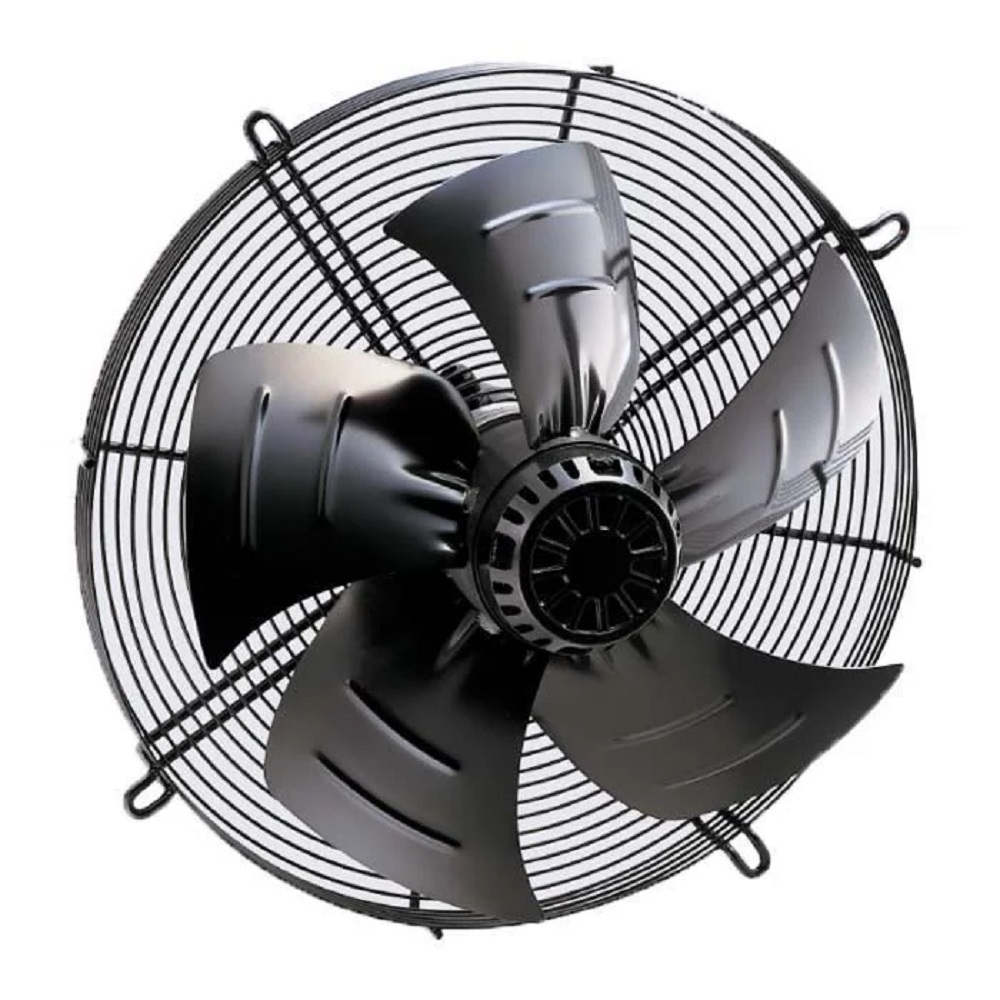

EBM S4D400-AP12-04 Axial Cooling Fan

About EBM S4D400-AP12-04 Axial Cooling Fan

 The ebm-papst S4D400-AP12-04 is a high-performance 3-phase AC axial cooling fan designed for industrial ventilation, HVAC systems, refrigeration units, condensers, evaporators, heat exchangers, and cooling applications. It offers high airflow, low noise, energy-efficient operation, and long service life.

Model : S4D400-AP12-04

Brand : ebm-papst

Product Type : AC Axial Cooling Fan

Fan Size : 400 mm

Air Flow : 40004610 m/hr

Motor Power : 180 W (185 W @ 60 Hz)

Speed : 1500 RPM (1450 RPM Rated @ 50 Hz)

Phase : Three Phase

Voltage : 230/400 VAC

Frequency : 50/60 Hz

Current : 0.76 A / 0.44 A

Blade Material : Mild Steel

Number Of Blades : 5 Blades

Bearing Type : Ball Bearing

Protection Class : IP44

Insulation Class : Class B

Mounting Type : Flange Mounted

Air Flow Direction : A

Rotation : Clockwise (Rotor Side)

Overall Diameter : 470 mm (47 cm / 18.50 in)

Fan Diameter : 400 mm (40 cm / 15.75 in)

Depth : 132 mm (13.2 cm / 5.20 in)

Cable Length : 600 mm (60 cm / 23.62 in)

Net Weight : 5.9 kg (13.0 lbs)
